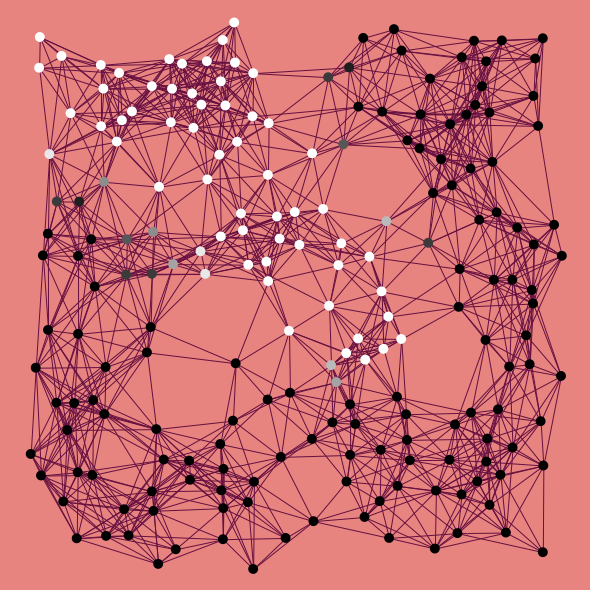

CultranDejanet - cultural transmission on network preview image

1 collaborator

Default-person Marshall Abrams (Author)

Tags

culture

Tagged by Marshall Abrams about 12 years ago

diffusion

Tagged by Marshall Abrams about 12 years ago

networks

Tagged by Marshall Abrams about 12 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 5.1.0 • Viewed 1731 times • Downloaded 228 times • Run 0 times
Download the 'CultranDejanet - cultural transmission on network' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

This is a model of spread of conflicting beliefs or other cultural variants on a network. It allows experimenting with the effect of different network structures and transmission methods on the distribution of beliefs.

HOW IT WORKS - OVERVIEW

Each person, or node, represented by a circle has a degree of confidence. 1 indicates full confidence in the "black" proposition. -1 indicates full confidence in its negation, the "white" proposition. Intermediate levels of confidence are represented by grays. There are two kinds of transmission modeled, "popco" transmission (inspired by another program by the same author, POPCO), and "averaging transmission". Which method is used depends on setting of the averaging-transmission switch. Both methods can also be subject to a "bounded confidence" rule. Each of these three aspects of the model are described below.

HOW TO USE IT - OVERVIEW

Most of the GUI controls should be easy to understand with a little bit of experimentation; details are given below. If you're new to NetLogo, or just new to this NetLogo model, try clicking on "set up network". After it finishes, click on "go". You can stop the program before it decides to finish by clicking on "go" again. Notice how the program behaves differently depending on whether the averaging-transmission is turned on or off. Try changing the number of people in the network by dragging the nodes-per-subnet slider. The average-node-degree slider changes the kind of structure the network has, adjusting how many links each person has.

POPCO TRANSMISSION

This section describes the behavior when averaging-transmission is set to off (false). See below for the model's behavior when averaging-transmission is set to on (true).

Degrees of confidence are not transmitted. Instead, the degree of confidence (activation) determines the probability that a belief will be communicated. (After all, when people offer assertions to each other, they don't generally indicate their degree of confidence, even if there are ways to do that by choice of words and tone of voice.)

On each tick, for each link attached to a person, the person randomly decides to "utter" the proposition to its (undirected) network neighbors, with probability equal to the absolute value of the degree of confidence plus transmission-bias-prob. The value that's conveyed to the receiver of the utterance is trust-mean times the sign of the original degree of confidence, or a normally distributed value with mean trust-mean and standard deviation trust-stdev, if trust-stdev is not zero. The effect of this input to the receiver's degree of confidence depends on how far the latter is from -1 or 1.

If the activation increment (the value normally distributed around trust-mean) is positive, it will move receiver's activation in that direction; if negative, it will push in negative direction. However, the degree of push will be scaled by how far the current activation is from the extremum in the direction of push. If the distance is large, the incoming activation will have a large effect. If the distance is small, then incoming-activn's effect will be small, so that it's harder to get to the extremum. The underlying intuition is that if you already have a strong belief in a proposition, then when someone expresses agreement with you, it doesn't make much difference. On the other hand, if you're undecided, then what people around tell you is more likely to make a big difference. Also, if you have a strong belief that P, and someone disagrees with you, that can make a big difference in your opinion. (However, for a common value of trust-mean such as .05, the effect is still small.) The method used to do the updating is similar to methods often used to update nodes in connectionist/neural networks (e.g. Holyoak & Thagard 1989). This is clearly not Bayesian updating, by the way.

AVERAGING TRANSMISSION

When averaging-transmission is set to on (true), the new activation that results from each communication event is a weighted average of the senders and the receiver's activations. A receiver node's new activation is then receiver's old activation * (1 - sender-activn-weight) + (transmitter's activation * sender-activn-weight). Whether an activation is communicated is still a random decision, using the procedure described in the popco transmission section. For averaging tramsmission you may find it useful to adjust stop-threshold-exponent from the default value if you want the updating to stop on its own.

BOUNDED CONFIDENCE

For both methods of transmission, if confidence-bound is set to something other than 2, then persons whose activations differ by more than this amount will not communicate. This is a way to model the idea that people will often ignore opinions that differ too much from their own. (In Hegselmann & Krause's (2002) models, confidence bounds > .8 give the same result in the end for averaging transmission, but that doesn't seem to be the case in this version of averaging transmission, perhaps because whether one person says something to its neighbor is stochastic here.)

COHESION

The select-region and select-indivs buttons let you select a set of persons on which to calculate Morris's measure of "cohesion" (Morris 2000) or "cohesiveness (Vega-Redondo 2007; Young 1998). The monitor box labeled "cohesion" will display the cohesion of the selected set. With the select-region button down, you can drag the mouse across nodes to select them. Dragging the mouse a second time adds to the set of selected nodes. With select-indivs down, instead, you can click on individual nodes to add or remove them to/from the set of selected nodes. (Sometimes you have to click a few times to get this to work.) The deselect button empties the set of selected nodes.

Cohesion in Morris's sense is a measure of how well a set of nodes with similar opinions support each other's opinions in the face of disagreement from outside the set. The cohesion of a set tells you how vulnerable to outside influence the most vulnerable member of the set is (0: very vulnerable, 1: not at all). To compute cohesion, for each node in the set, we calculate the fraction of all of its links that connect to other nodes within the set. Cohesion is the minimum of these fractions. You can think of such fractions as fraction of neighbors who will help a node hold onto an opinion that is held within the group, if neighbors from outside the group disagree. Morris's cohesion has a precise mathematical relationship to a form of transmission that isn't implemented in this model, although it's easy to implement. Factors influencing whether a subnet has a stable common opinion in the fact of outside disagreement under popco transmission is not perfectly captured by cohesion.

PLOTS

The first plot shows the frequency of persons with activations > 0 ("+"), the frequency for persons with activations < 0 ("-"), and the population mean and variance for activations activation.

The second plot shows the distribution of degrees. The degree of a node (person) its number of links.

THINGS TO NOTICE

The spread of black or white beliefs is influenced by how well connected different nodes are. A set of nodes with many interconnections can reinforce similarity among its members, even in the face of a bias toward an alternative cultural variant.

If a group of nodes has more connections to each other than to "outsiders", it can maintain an extreme view even if surrounded by those with the opposite view. This property of a region of a network is related to Morris's concept of "cohesion" or "cohesiveness" (Morris 2000; Vega-Redondo 2007), Young's concept of "close-knittedness" (Young 1998), to other concepts of cohesion (Wasserman & Faust 1994), and other measures of community structure (Newman 2010).

THINGS TO TRY

Start with average node degree in the range of 12 to 15. Does one color take over the network? Once the network has stopped, or you have stopped it, try clicking reset-cultvars. The network will be preserved, but the nodes will be given a different set of random beliefs. What happens this time? What if you run it many times with the same network structure?

Now try increasing the average node degree to 20, or 30. Perform the same experiment. What happens?

Go back to your original node degree and run the model until there is a stable pattern. Now change transmission-bias-prob, making the black (1) or white (-1) cultural variant more likely to be transmitted. What happens? Is it possible to maintain cultural variation with a nonzero value for this parameter?

Try altering trust-mean or trust-stdev. What happens? (You might think of high values of trust-mean as representing rumor during a crisis.)

Turn on averaging-transmission. How does the behavior differ? How long does it take for the network to settle to a stable configuration under different conditions? Is it possible to stabilize to a state with a variety of activation values? What happens if you adjust stop-threshold exponent?

With average-node-degree in the 12-15 range, try starting with averaging-transmission off. Then turn it on after the network has stabilized to a configuration in which there are large contiguous black and white regions.

Under popco transmission, wait until regions of black and white opinions stabilize, with a few conflicted grey nodes in between them. Measure the cohesion of the black and white regions. Measure the cohesion of regions that overlap with them. Notice how cohesion changes as you add and remove nodes from the set of selected nodes.

Try adjusting confidence-bound. How does this change the behavior of the model?

DISCUSSION

Maybe a way to think about the relationship between (1) popco transmission model without bounded confidence, (2) game theoretic models such as Morris's (2000) and some in Alexander (2007), and (3) bounded confidence models with averaging transmission, is that they all allow the effect of neighbors on a node to be sharply restricted in some situations, or to be subject to competition. This is what allows maintenance of disagreement. In averaging models without bounded confidence, by contrast, the effect of neighbors may be small, but it is persistent and constant.

Using popco transmission without bounded confidence, the effect of each neighbor is always restricted to a maximum of (a normal distribution around) trust-mean, regardless of how strong neighbors' beliefs are. In the game-theoretic models mentioned above, the effects of neighbors is restricted by payoff values. In popco transmission models and these game-theoretic models, there is a competition between influences of neighbors who disagree with each other, so that if there is sufficiently more influence from one set of competing neighbors, the others end up having no effect. In bounded confidence models, the effect of neighbors is curtailed when their opinions differ too much from the recipient node's. In averaging models, each neighbor always has an influence, no matter what the receiver or other neighbors think.

REFERENCES

Alexander, J. M. (2007). The Structural Evolution of Morality. Cambridge University Press.

DeGroot, M. H. (1974, March). "Reaching a consensus". Journal of the American Statistical Association 69(345), 118–121.

Hegselmann, R. and U. Krause (2002). "Opinion dynamics and bounded confidence: Models, analysis, and simulation". Journal of Artificial Societies and Social Simulation 5(3), 1–33.

Grim, P., D. J. Singer, C. Reade, and S. Fisher (2011). "Information dynamics across linked sub-networks: Genes, germs, and memes". In Proceedings, AAAI Fall Symposium on Complex Systems: Energy, Information, and Intelligence. AAAI Press.

Holyoak, K. J. and P. Thagard (1989). "Analogical mapping by constraint satisfaction". Cognitive Science 13, 295–355.

Lehrer, K. and C. Wagner (1981). Rational Consensus in Science and Society. D. Reidel Publishing.

Morris, S. (2000). "Contagion". Review of Economic Studies 67, 57–78.

Newman, M. E. J. (2010). Networks: An Introduction. Oxford University Press.

Vega-Redondo, F. (2007). Complex Social Networks. Cambridge University Press.

Wasserman, S. and K. Faust (1994). Social Network Analysis: Methods and Applications. Cambridge University Press.

Young, H. P. (1998). Individual Strategy and Social Structure: An Evolutionary Theory of Institutions. Princeton University Press.

MODELS USED AS STARTING POINTS

Stonedahl, F. and Wilensky, U. (2008). "NetLogo Virus on a Network model". http://ccl.northwestern.edu/netlogo/models/VirusonaNetwork. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.

DEDICATION

This model is dedicated to two transmitters of deep, resonant, complex, fascinating culture, John Coltrane and Jack Dejohnette.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

; CultranDejanet.nlogo
; Marshall Abrams' model based partly on the following models from the built-in NetLogo models library:
;
; Stonedahl, F. and Wilensky, U. (2008). NetLogo Virus on a Network model. http://ccl.northwestern.edu/netlogo/models/VirusonaNetwork. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.
; Wilensky, U. (2005). NetLogo Preferential Attachment model. http://ccl.northwestern.edu/netlogo/models/PreferentialAttachment. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.
; Wilensky, U. (2005). NetLogo Small Worlds model. http://ccl.northwestern.edu/netlogo/models/SmallWorlds. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.
; Code not directly dependent on the above is released under the GNU Public License v 3.0 by Marshall Abrams.

; Globals set by user:
;   num-nodes
;   average-node-degree  ; avg links per node
;   trust-mean           ; mean activation passed to receiver
;   trust-stdev          ; standard deviation of normal distribution around mean
;   prob-of-transmission-bias ; allows transmission to be biased so that black or white is more likely to transmit
;   subnet1, subnet2

;extensions [matrix]

globals
[
  max-activn       ; maximum possible node activation, i.e. degree of confidence/commitment, prob of transmission, etc.
  min-activn       ; minimum possible node activation. negative to indicate confidence/commitment in the opposite cultvar.
  stop-threshold   ; if every node's activation change from previous tick is < this, go procedure automatically stops.
  ready-to-stop    ; transmit result of activn change test before update-activns proc to after it runs.
  netlogo-person-hue ; hue of nodes for use with variation using NetLogo built-in color-mapping scheme (vs. HSB or RGB).
  node-shape       ; default node shape
  link-color       ; obvious
  inter-link-subnets-color ; links that go from one subnet to another
  inter-node-shape ; nodes that link from one subnet to another
  background-color ; obvious
  clustering-coefficient               ; the clustering coefficient of the network; this is the
                                       ; average of clustering coefficients of all persons
  average-path-length                  ; average path length of the network
  infinity                             ; a very large number.
                                       ; used to denote distance between two persons which
                                       ; don't have a connected or unconnected path between them
  nodes-showing-numbers?                      ; true when we are displaying node degrees
  subnets-matrix                       ; matrix of subnet id's showing how they're layed out in the world

  communities  ; list of lists of nodes representing communities we've found so far
  selected-subnet ; subnet selected by user through GUI.  Maybe merge with preceding.
  selected-subnet-color
]

breed [sides side]
breed [persons person]

persons-own
[
  activation       ; ranges from min-activn to max-activn
  next-activation  ; allows parallel updating
  node-clustering-coefficient
  distance-from-other-persons   ;; list of distances of this node from other persons
  person-subnet
  index ; temporary variable for matrix configuration
  my-community ; temporary variable for cohesion reporting and community processing
]

links-own
[
  link-subnet
]

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; SETUP

to setup
  clear-all

  set ready-to-stop false

  set-default-shape sides "line"

  set max-activn 1
  set min-activn -1
  set stop-threshold 10 ^ stop-threshold-exponent

  set node-shape "circle" ; "square" "target" "face happy" "x" "leaf" "star""triangle" "face sad"
  set-default-shape persons node-shape

  ;set background-color 73 ; a blue-green
  set background-color 17 ; peach
  ;set background-color 58
  set netlogo-person-hue 0
  set selected-subnet-color red
  set link-color 123
  set inter-link-subnets-color yellow
  set inter-node-shape "square"
  set nodes-showing-numbers? false
  set communities []
  set selected-subnet no-turtles
  ;output-print "vars defined"

  ask patches [set pcolor background-color]

  ;output-print "patches colored"
  ;output-print (sentence "number-of-subnets = " number-of-subnets)

  let i 1
  ;while [i <= number-of-subnets] [
    create-nodes i
    ;output-print "nodes created"
    create-network i
    ;output-print "create-network has run"
    set i i + 1
  ;]
  ;output-print "net created"

  layout-network
  ;output-print "net layed out"

  reset-ticks
  ;output-print "ticks reset"
end

to create-nodes [subnet]
  create-persons num-nodes
  [
    ; for visual reasons, we don't put any nodes *too* close to the edges
    setxy (random-xcor * 0.95) (random-ycor * 0.95)
    set person-subnet subnet
    setup-cultvar
  ]
end

; mostly from "Virus on a Network"--see above
; Assign a random number of links randomly between pairs of nodes, making the total number of links such
; that the average node degree per node is that specified by the user.  But try to link to physically
; near nodes.  This is therefore not an Erdos-Renyi binomial/Possion network, since pairs of
; nodes don't have equal probability of being linked: Closer nodes are overwhelmingly more likely to be linked.
; [But maybe the degree distribution is neverthless typical for an E-R net?  Don't know.]
; Algorithm:
; Keep doing the following until you've created enough links that you have average-node-degree/2 per node:
; ( /2 since each link adds a degree to two nodes)
; Choose a random person, and create a link to the physically closest person to which it's not already linked.
; Since create-nodes gave persons random locations, the link is to a random person.
; (Note that these locations will be revised by initial-layout-network.  Their only function is to group persons
; randomly--in effect to randomly order persons by closeness to any given person.)

to create-network [subnet]
  let num-links (average-node-degree * num-nodes) / 2
  while [count links with [link-subnet = subnet] < num-links ][
    ask one-of persons with [person-subnet = subnet] [
      let choice (min-one-of (other persons with [person-subnet = subnet and not link-neighbor? myself]) [distance myself])
      if choice != nobody [ create-link-with choice [set link-subnet subnet]]
    ]
  ]
  ask links[ set color link-color ]
end

;to inter-link-subnets [subn1 subn2]
;  if (subn1 != subn2) [
;    let nodes1 persons with [person-subnet = subn1]
;    let nodes2 persons with [person-subnet = subn2]
;    if (any? nodes1 and any? nodes2) [
;      link-close-nodes inter-num-nodes nodes1 nodes2
;    ]
;  ]
;end


; A kind of kludgey but effective way to choose near nodes to link from two subnets
; Chooses n nodes each from two sets, and then creates links from every one on each side to every one on the other.
; If you just want a set of single links, call repeatedly with n=1.
; BUG: I think that if the chosen nodes are already linked, it silently does nothing.

to link-close-nodes [n nodes1 nodes2]
  let from-nodes1 min-n-of n nodes1 [distance one-of nodes2]      ; find the nearest nodes to an arbitrary member of the second set
  let from-nodes2 min-n-of n nodes2 [distance one-of from-nodes1] ; now find the nearest nodes to one of the ones in the first set
  ask from-nodes1 [create-links-with from-nodes2 [set color inter-link-subnets-color]]
  ask from-nodes1 [set shape inter-node-shape]
  ask from-nodes2 [set shape inter-node-shape]
end

to layout-network
  initial-layout-network persons
  ; at this point, all of the subnets are on top of each other
  ;place-subnets
end

to initial-layout-network [nodes]
  repeat 10 [
    layout-spring nodes links
                  0.1 (world-width / sqrt num-nodes) 1 ; 3rd arg was 0.3 originally
  ]
end

;to place-subnets
;  let subnet-lattice-dims (near-factors number-of-subnets)
;  let subnet-lattice-dim1 item 0 subnet-lattice-dims
;  let subnet-lattice-dim2 item 1 subnet-lattice-dims
;
;  ; subnet-lattice-dim1 is always <= subnet-lattice-dim2.
;  ; Here we choose whether there should be more subnets in the x or y dimension,
;  ; depending on whether the world is larger in one direction or the other.
;  let x-subnet-lattice-dim "not yet"
;  let y-subnet-lattice-dim "not yet"
;  if-else max-pxcor < max-pycor [
;    set x-subnet-lattice-dim subnet-lattice-dim1
;    set y-subnet-lattice-dim subnet-lattice-dim2
;  ][
;    set x-subnet-lattice-dim subnet-lattice-dim2
;    set y-subnet-lattice-dim subnet-lattice-dim1
;  ]
;
;  ; initialize global matrix that will summarize the layout.  note which is x and y: matrix rows are y, and cols are x.
;  set subnets-matrix matrix:make-constant y-subnet-lattice-dim x-subnet-lattice-dim 0
;
;  let x-subnet-lattice-unit 1 / x-subnet-lattice-dim
;  let y-subnet-lattice-unit 1 / y-subnet-lattice-dim
;
;  stretch-network persons (.9 * x-subnet-lattice-unit) (.9 * y-subnet-lattice-unit)  ; resize the overlaid subnets as one. we'll split them up in a moment.
;
;  let x-shift-width (x-subnet-lattice-unit * (max-pxcor - min-pxcor))
;  let y-shift-width (y-subnet-lattice-unit * (max-pycor - min-pycor))
;  let j 0
;  let k 0
;  while [j < x-subnet-lattice-dim] [
;    while [k < y-subnet-lattice-dim] [
;      let subnet (k * x-subnet-lattice-dim) + j + 1
;      let xshift min-pxcor + ((j + .5) * x-shift-width)  ; subnets are laid out from left to right
;      let yshift max-pycor - ((k + .5) * y-shift-width)  ; and from top to bottom
;      shift-network-by-patches persons with [person-subnet = subnet] xshift yshift
;      matrix:set subnets-matrix k j subnet ; store name of this subnet in matrix location corresponding to location in world
;      set k (k + 1)
;    ]
;    set k 0
;    set j (j + 1)
;  ]
;end
;
;to link-near-subnets
;  let dims matrix:dimensions subnets-matrix
;  let rows item 0 dims
;  let cols item 1 dims
;
;  ; link horizontally
;  let row-index 0
;  let col-index 0
;  while [row-index < rows] [
;    while [col-index < cols - 1] [
;      let subn1 matrix:get subnets-matrix row-index col-index
;      let subn2 matrix:get subnets-matrix row-index (col-index + 1)
;      inter-link-subnets subn1 subn2
;      set col-index col-index + 1
;    ]
;    set row-index row-index + 1
;    set col-index 0
;  ]
;
;  ; link vertically
;  set row-index 0
;  set col-index 0
;  while [col-index < cols] [
;    while [row-index < rows - 1] [
;      let subn1 matrix:get subnets-matrix row-index col-index
;      let subn2 matrix:get subnets-matrix (row-index + 1) col-index
;      inter-link-subnets subn1 subn2
;      set row-index row-index + 1
;    ]
;    set col-index col-index + 1
;    set row-index 0
;  ]
;end

; Given a set of nodes, moves them toward/away from the origin
; by multipling coordinates by amount,
; which should be in (0,1) for shrinking, or > 1 for expansion.

to resize-network [nodes ratio]
  stretch-network nodes ratio ratio
end

; Given a set of nodes, stretches/shrinks in x and y dimensions by xratio and yratio, respectively.

to stretch-network [nodes xratio yratio]
  ask nodes [
    set xcor (clip-to-x-extrema (xratio * xcor))   ; note inner parens are essential
    set ycor (clip-to-y-extrema (yratio * ycor))]
end

; Given a set of nodes, moves them xratio of distance to right/left edge
; and yratio up to the top/bottom edge (depending on whether xratio, yratio are positive or negative)
; ASSUMES that origin is in center, and that world is right-left and up/down symmetric (but not necess that height and width are same).
;to shift-network [nodes xratio yratio]
;  shift-network-by-patches nodes
;                           (xratio * max-pxcor)
;                           (yratio * max-pycor)
;end

; Given a set of nodes, moves them xincrement, yincrement patches to the right and up, respectively.

to shift-network-by-patches [nodes xincrement yincrement]
   ask nodes [set xcor (clip-to-x-extrema (xcor + xincrement))  ; note inner parens are essential
              set ycor (clip-to-y-extrema (ycor + yincrement))]
end

to-report clip-to-x-extrema [x]
  if x > max-pxcor [report max-pxcor]
  if x < min-pxcor [report min-pxcor]
  report x
end

to-report clip-to-y-extrema [y]
  if y > max-pycor [report max-pycor]
  if y < min-pycor [report min-pycor]
  report y
end

; start over with the same network

to reset-cultvars
  ask persons [setup-cultvar]
  clear-all-plots
  reset-ticks
  set ready-to-stop false
end

to setup-cultvar
  set activation ((random-float 2) - 1)
  set color (activn-to-color activation)
end

to toggle-degree-display
  if-else nodes-showing-numbers? [
    ask persons [set label ""]
    set nodes-showing-numbers? false
  ][
    ask persons [;set label sum [count link-neighbors] of link-neighbors
                 set label count link-neighbors
                 set label-color ifelse-value (activation < .3) [black] [white]]
    set nodes-showing-numbers? true
  ]
end

to toggle-who-display
  if-else nodes-showing-numbers? [
    ask persons [set label ""]
    set nodes-showing-numbers? false
  ][
    ask persons [set label who
                 set label-color ifelse-value (activation < .3) [black] [white]]
    set nodes-showing-numbers? true
  ]
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;; RUN

to go
  if (ready-to-stop) [
    set ready-to-stop false ; allows trying to restart, perhaps after altering parameters or network
    stop
  ]
  set stop-threshold 10 ^ stop-threshold-exponent ; allows changing this while running
  transmit-cultvars
  if (activns-settled) [set ready-to-stop true] ; compares activation with next-activation, so must run between transmit-cultvars and update-activns
  update-activns                                ; on the other hand, we do want to complete the activation updating process even if about to stop
  tick
end

to-report activns-settled
  let max-change (max [abs (activation - next-activation)] of persons) ; must be called between communication and updating activation
  report stop-threshold > max-change
end

; Transmit to any neighbor if probabilistic decide to transmit along that link.
; Probability is determined by activation value.

to transmit-cultvars
  ask persons
    [let message cultvar-to-message activation
     ask link-neighbors
       [if transmit-cultvar? message
           [receive-cultvar message]]]
end

; Decide probabilistically whether to report your cultvar to an individual:
; Roughly, the absolute value of your activation is treated as a probability: When bias = 0,
; a random number between 0 and 1 is selected, and if your absolute activation is above that,
; you transmit to the receiver.  When bias is nonzero, the sum of activation and bias is used instead.
; i.e. for large activations, if bias has the same sign as activation, it increases the probability of
; transmission; if they have opposite signs, the probability is reduced. The result may be
; > 1, in which case the effect is the same as if it were 1.  For small absolute activations,
; adding bias to the activation may flip the sign and produce a number whose absolute value is
; larger than the absolute value of the activation. [IS THAT OK?]

to-report transmit-cultvar? [activn]
  report (abs (activn + transmission-bias-prob)) > (random-float 1)
end

to-report cultvar-to-message [activn]
  report activn
end

; RECEIVE-CULTVAR
; Let an incoming cultvar affect strength of receiver's cultvar.
; If incoming-activn is positive, it will move receiver's activn in that direction;
; if negative, it will push in negative direction. However, the degree of push will
; be scaled by how far the current activation is from the extremum in the direction
; of push.  If the distance is large, the incoming-activn will have a large effect.
; If the distance is small, then incoming-activn's effect will be small, so that it's
; harder to get to the extrema. The method used to do this is often used to update
; nodes in connectionist/neural networks (e.g. Holyoak & Thagard, Cognitive Science 13, 295-355 (1989), p. 313).

to receive-cultvar [incoming-activn]
  let candidate-activn 0
  if-else (abs (activation - incoming-activn)) > confidence-bound
    [set candidate-activn activation] ; if difference exceeds confidence bound, don't change current activn
    [if-else averaging-transmission
      [set candidate-activn new-activn-averaging-tran activation incoming-activn]
      [set candidate-activn new-activn-popco-tran activation incoming-activn]]
  set next-activation max (list min-activn (min (list max-activn candidate-activn))) ; failsafe: cap at extrema. need list op, not [] here
end

to-report new-activn-averaging-tran [activn incoming-activn]
  report (incoming-activn * sender-activn-weight) + (activn * (1 - sender-activn-weight))
end

to-report new-activn-popco-tran [activn incoming-activn]
  let effective-in-activn (sign-of incoming-activn) * (random-normal trust-mean trust-stdev)
  report (activn + (effective-in-activn * (dist-from-extremum effective-in-activn activn))) ; sign will come from incoming-activn; scaling factors are positive
end

to-report dist-from-extremum [incoming-activn current-activn]
  let dist ifelse-value (incoming-activn <= 0)
                        [activation - min-activn]  ; if incoming-activn is pushes in negative direction, get current distance from the min
                        [max-activn - activation] ; if incoming activen pushes in positive direction, get distance from max
  report max (list 1 dist)
end

to update-activns
  ask persons
    [set activation next-activation
     set color (activn-to-color activation)
     if nodes-showing-numbers? [
       set label-color ifelse-value (activation < .3) [black] [white]]]
end

to make-activns-extreme
  ask persons
    [if-else activation >= 0
       [set activation 1
        set next-activation 1]
       [set activation -1
        set next-activation -1]
     set color (activn-to-color activation)]
end

to reset-colors
  ask persons
    [set color (activn-to-color activation)
     set label ""]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; USER SELECTION OF SUBNETS

to select-indivs
  let something-changed false

  if mouse-down? [
    let this-person min-one-of turtles [distancexy mouse-xcor mouse-ycor]
    if [distancexy mouse-xcor mouse-ycor] of this-person < 2 [
      if-else member? this-person selected-subnet [
        ask this-person [set selected-subnet other selected-subnet]
      ][
        set selected-subnet (turtle-set this-person selected-subnet)
      ]
      set something-changed true
    ]
  ]

  if something-changed [
    set communities (list [self] of selected-subnet) ; communities is supposed to be a list of lists of persons
    reset-subnet-colors
    ;output-subnet-properties selected-subnet
    set something-changed false
  ]
end

to select-region
  let something-changed false

  if mouse-down? [
    handle-select
    set something-changed true
  ]

  if something-changed [
    set communities (list [self] of selected-subnet) ; communities is supposed to be a list of lists of persons
    reset-subnet-colors
    ;output-subnet-properties selected-subnet
    set something-changed false
  ]

  ask sides [die]
  display
end

to reset-subnet-colors
  ask selected-subnet [set color selected-subnet-color]
  ask persons with [not member? self selected-subnet]
    [set color (activn-to-color activation)
     set label ""]
  display
end

to handle-select
  ;; remember where the mouse pointer was located when
  ;; the user pressed the mouse button
  let old-x mouse-xcor
  let old-y mouse-ycor
  while [mouse-down?] [
    select old-x old-y mouse-xcor mouse-ycor            ; this is the line that should the nodes into selected-subnet
    ;; update the view, otherwise the user can't see
    ;; what's going on
    display
  ]
  ;; if no turtles are selected, kill off
  ;; the selection rectangle and start over
  ;if not any? selected-subnet [ deselect ]
end

to deselect
  ask sides [ die ]
  set selected-subnet no-turtles
  reset-subnet-colors
  ;output-subnet-properties selected-subnet
end

to select [x1 y1 x2 y2]   ;; x1 y1 is initial corner and x2 y2 is current corner
  ;deselect  ;; kill old selection rectangle
  make-side x1 y1 x2 y1
  make-side x1 y1 x1 y2
  make-side x1 y2 x2 y2
  make-side x2 y1 x2 y2
  set selected-subnet (turtle-set (persons with [selected? xcor ycor]) selected-subnet)
  ask selected-subnet [ set color red ]
end

to make-side [x1 y1 x2 y2]
  ;; for each side, one thin line shape is created at the mid point of each segment
  ;; of the bounding box and scaled to the proper length
  create-sides 1 [
    set color black
    setxy (x1 + x2) / 2
          (y1 + y2) / 2
    facexy x1 y1
    set size 2 * distancexy x1 y1
  ]
end

;; helper procedure that determines whether a point is
;; inside the selection rectangle

to-report selected? [x y]
  if not any? sides [ report false ]
  let y-max max [ycor] of sides   ;; largest ycor is where the top is
  let y-min min [ycor] of sides   ;; smallest ycor is where the bottom is
  let x-max max [xcor] of sides   ;; largest xcor is where the right side is
  let x-min min [xcor] of sides   ;; smallest xcor is where the left side is
  ;; report whether the input coordinates are within the rectangle
  report x >= x-min and x <= x-max and
         y >= y-min and y <= y-max
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; COMMUNITY MARKING AND COHESION CALCULATION

;to output-subnet-properties [community]
;  clear-output
;  output-type "cohesion: "
;  output-print community-cohesion community
;end

to-report node-cohesion [node community]
  let num-neighbs 0
  let num-community-neighbs 0
  ask node
    [set num-neighbs count link-neighbors
     set num-community-neighbs num-neighbors-in-community community]
  report num-community-neighbs / num-neighbs
end

to-report num-neighbors-in-community [community]
  report count link-neighbors with [member? self community]
end

to-report community-cohesion [community]
  report min [node-cohesion self community] of community
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; UTILITY PROCEDURES



; Finds middle-factors of n if there are factors > 1; otherwise returns middle-factors of n + 1.

to-report near-factors [n]
  if n = 1 [report [1 1]]  ; special case
  if n = 2 [report [2 1]]  ; special case
  let facs middle-factors n
  if-else (first facs) = 1
    [report middle-factors (n + 1)]
    [report facs]
end

; Finds the pair of factors of n whose product is n and whose values are closest in value to each other.

to-report middle-factors [n]
  report middle-factors-helper n (floor (sqrt n))
end

to-report middle-factors-helper [n fac]
  ; if fac < 0, there's a bug, so let it error out in a stack overflow
  if fac = 0 [report (list 0 0)]
  if fac = 1 [report (list 1 n)]
  if (n mod fac) = 0 [report (list fac (n / fac))]
  report middle-factors-helper n (fac - 1)
end

to-report activn-to-color [activn]
  let zero-one-activn (activn + 1) / 2
  let zero-ten-activn round (10 * zero-one-activn)
  let almost-color netlogo-person-hue + 10 - zero-ten-activn   ; change "+ 10 -" to "+" to map colors in NetLogo order, not reverse
  report ifelse-value (almost-color = 10) [9.9] [almost-color]
end

to-report sign-of [x]
  report ifelse-value (x >= 0) [1] [-1]
end

; NetLogo's standard-deviation and variance are sample functions, i.e. dividing
; by n-1 rather than n.
; These functions undo the sample correction to give a proper population variance and

to-report var [lis]
  let n length lis
  report (variance lis) * (n - 1) / n
end

to-report stdev [lis]
  report sqrt (var lis)
end

to yo
  let counts []
  foreach (sort turtles) [
    set counts lput ([count link-neighbors] of ?) counts
  ]
  show counts
end

There are 12 versions of this model.

Uploaded by When Description Download
Marshall Abrams over 10 years ago Trivial--renamed variable for clarity Download this version
Marshall Abrams about 12 years ago Updated Info tab. Download this version
Marshall Abrams about 12 years ago Added Morris (2000) cohesion/cohesiveness calculation. Updated Info tab. Download this version
Marshall Abrams about 12 years ago minor changes to Info tab and Interface Download this version
Marshall Abrams about 12 years ago Added bounded confidence functionality. Added to Info tab. Download this version
Marshall Abrams about 12 years ago Clarified, added to Info tab. Added new transmission method averaging-transmission. Download this version
Marshall Abrams about 12 years ago Trivial change in layout of GUI elements. Download this version
Marshall Abrams about 12 years ago Made world smaller--still doesn't fit applet. Download this version
Marshall Abrams about 12 years ago Shrunk world further. Still didn't fit last time. Download this version
Marshall Abrams about 12 years ago Shrunk world to fit in app window. Download this version
Marshall Abrams about 12 years ago Edited comments to reflect this new, simplified version (I deleted the previous version so I could get a new image file associated with the new version.) Download this version
Marshall Abrams about 12 years ago Initial upload Download this version

Attached files

File Type Description Last updated
CultranDejanet - cultural transmission on network.png preview Preview for 'CultranDejanet - cultural transmission on network' about 12 years ago, by Marshall Abrams Download

This model does not have any ancestors.

This model does not have any descendants.
