extensions [gst-video bitmap matrix]

globals [cam-is-inited? xconv yconv]

patches-own [
  bw
  grad
  chemical             ;; amount of chemical on this patch
  food                 ;; amount of food on this patch (0, 1, or 2)
  nest?                ;; true on nest patches, false elsewhere
  nest-scent           ;; number that is higher closer to the nest
  food-source-number   ;; number (1, 2, or 3) to identify the food sources
  edge?
]

to start-webcam
  if (not (cam-is-inited? = true)) [
    gst-video:camera-init
    set cam-is-inited? true
  ]
  gst-video:camera-start
end

to stop-webcam
  gst-video:camera-stop
end

to display-mirror-to-patches
  cam-mirror-to-patches
  display
end

to cam-mirror-to-patches
  if (gst-video:camera-is-rolling?) [
    bitmap:copy-to-pcolors gst-video:camera-image false
  ]
end

to go
  no-display
  cam-mirror-to-patches
  ifelse detection-method != "None" [
    detect-edges
  ] [ ask patches [ set edge? false ] ]
  ant-go
  display
end

to detect-edges
  ask patches [set bw brightness]
  ask patches [set grad gradient]
  let max-grad max [grad] of patches
  let normalizer 255 / max-grad
  ask patches with ([not nest? and food = 0]) [ set edge? normalizer * grad > thresh ]
end

to-report brightness
  report (sum pcolor / 3) / 255
end

to-report gradient
  let p1 [bw] of patch-at -1 1
  let p2 [bw] of patch-at 0 1
  let p3 [bw] of patch-at 1 1
  let p4 [bw] of patch-at -1 0
  let p5 [bw] of patch-at 0 0
  let p6 [bw] of patch-at 1 0
  let p7 [bw] of patch-at -1 -1
  let p8 [bw] of patch-at 0 -1
  let p9 [bw] of patch-at 1 -1
  if detection-method = "Scharr" [
    ; Scharr
    report abs((3 * p1 + 10 * p2 + 3 * p3) - (3 * p7 + 10 * p8 + 3 * p9)) + abs((3 * p3 + 10 * p6 + 3 * p9) - (3 * p1 + 10 * p4 + 3 * p7))
  ]
  if detection-method = "Sobel" [
    ; Sobel
    report abs((p1 + 2 * p2 + p3) - (p7 + 2 * p8 + p9)) + abs((p3 + 2 * p6 + p9) - (p1 + 2 * p4 + p7))
  ]
  if detection-method = "Prewitt" [
    report abs((p1 + p2 + p3) - (p7 + p8 + p9)) + abs((p3 + p6 + p9) - (p1 + p4 + p7))
  ]
end

;;;;;;;;;;;;;;;;;;;;;;;;
;;; Setup procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all
  set-default-shape turtles "bug"
  crt population
  [ set size 2         ;; easier to see
    set color red  ]   ;; red = not carrying food
  setup-patches
  reset-ticks
end

to setup-patches
  ask patches
  [ set edge? false
    setup-nest
    setup-food
    recolor-patch ]
end

to setup-nest  ;; patch procedure
  ;; set nest? variable to true inside the nest, false elsewhere
  set nest? (distancexy 0 0) < 5
  ;; spread a nest-scent over the whole world -- stronger near the nest
  set nest-scent 200 - distancexy 0 0
end

to setup-food  ;; patch procedure
  ;; setup food source one on the right
  if (distancexy (0.6 * max-pxcor) 0) < 5
  [ set food-source-number 1 ]
  ;; setup food source two on the lower-left
  if (distancexy (-0.6 * max-pxcor) (-0.6 * max-pycor)) < 5
  [ set food-source-number 2 ]
  ;; setup food source three on the upper-left
  if (distancexy (-0.8 * max-pxcor) (0.8 * max-pycor)) < 5
  [ set food-source-number 3 ]
  ;; set "food" at sources to either 1 or 2, randomly
  if food-source-number > 0
  [ set food one-of [1 2] ]
end

to recolor-patch  ;; patch procedure
  ;; give color to nest and food sources
  ifelse nest?
  [ set pcolor violet ]
  [ ifelse food > 0
    [ if food-source-number = 1 [ set pcolor cyan ]
      if food-source-number = 2 [ set pcolor sky  ]
      if food-source-number = 3 [ set pcolor blue ] ]
    ;; scale color to show chemical concentration

    [ ifelse edge? [ set pcolor brown ][ set pcolor scale-color green chemical 0.1 5 ] ]]
end

;;;;;;;;;;;;;;;;;;;;;
;;; Go procedures ;;;
;;;;;;;;;;;;;;;;;;;;;

to ant-go  ;; forever button
  ask turtles
  [ if who >= ticks [ stop ] ;; delay initial departure
    ifelse color = red
    [ look-for-food  ]       ;; not carrying food? look for it
    [ return-to-nest ]       ;; carrying food? take it back to nest
    wiggle
    let max-tries 100
    while [[edge?] of patch-ahead 1 and max-tries > 0] [
      wiggle
      set max-tries max-tries - 1
    ]
    if [not edge?] of patch-ahead 1 [ fd 1 ]
  ]
  diffuse chemical (diffusion-rate / 100)
  ask patches
  [ set chemical chemical * (100 - evaporation-rate) / 100  ;; slowly evaporate chemical
    recolor-patch ]
  tick
end

to return-to-nest  ;; turtle procedure
  ifelse nest?
  [ ;; drop food and head out again
    set color red
    rt 180 ]
  [ set chemical chemical + 60  ;; drop some chemical
    uphill-nest-scent ]         ;; head toward the greatest value of nest-scent
end

to look-for-food  ;; turtle procedure
  if food > 0
  [ set color orange + 1     ;; pick up food
    set food food - 1        ;; and reduce the food source
    rt 180                   ;; and turn around
    stop ]
  ;; go in the direction where the chemical smell is strongest
  if (chemical >= 0.05) and (chemical < 2)
  [ uphill-chemical ]
end

;; sniff left and right, and go where the strongest smell is

to uphill-chemical  ;; turtle procedure
  let scent-ahead chemical-scent-at-angle   0
  let scent-right chemical-scent-at-angle  45
  let scent-left  chemical-scent-at-angle -45
  if (scent-right > scent-ahead) or (scent-left > scent-ahead)
  [ ifelse scent-right > scent-left
    [ rt 45 ]
    [ lt 45 ] ]
end

;; sniff left and right, and go where the strongest smell is

to uphill-nest-scent  ;; turtle procedure
  let scent-ahead nest-scent-at-angle   0
  let scent-right nest-scent-at-angle  45
  let scent-left  nest-scent-at-angle -45
  if (scent-right > scent-ahead) or (scent-left > scent-ahead)
  [ ifelse scent-right > scent-left
    [ rt 45 ]
    [ lt 45 ] ]
end

to wiggle  ;; turtle procedure
  rt random 40
  lt random 40
  if not can-move? 1 [ rt 180 ]
end

to-report nest-scent-at-angle [angle]
  let p patch-right-and-ahead angle 1
  if p = nobody [ report 0 ]
  report [nest-scent] of p
end

to-report chemical-scent-at-angle [angle]
  let p patch-right-and-ahead angle 1
  if p = nobody [ report 0 ]
  report [chemical] of p
end


; Copyright 1997 Uri Wilensky.
; See Info tab for full copyright and license.

There is only one version of this model, created almost 11 years ago by Bryan Head.

Attached files

No files

Parent: Canny Edge Detector

This model does not have any descendants.

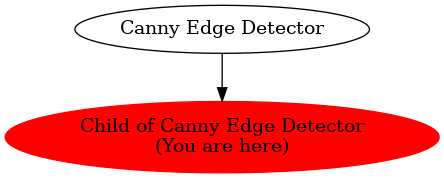

Graph of models related to 'Child of Canny Edge Detector'
