WHAT IS IT?

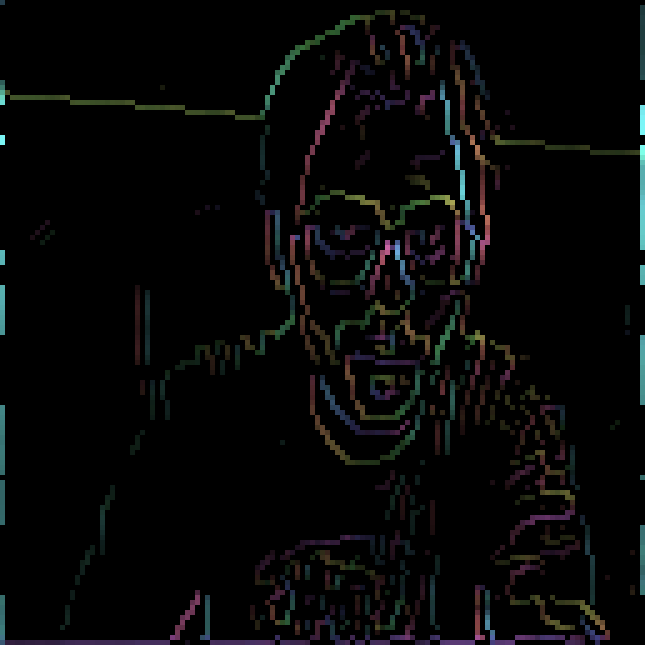

This demonstrates each step of the Canny edge detector algorithm (except for the final, edge tracing step).

HOW IT WORKS

http://en.wikipedia.org/wiki/Cannyedgedetector#StagesoftheCannyalgorithm

HOW TO USE IT

First, hit "start-webcam" to initialize your camera. You can use use "display-mirror-to-patches" to test it.

Hit "go" to see it in action! Play with the settings!

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

extensions [gst-video bitmap]

globals [cam-is-inited? xconv yconv max-grad]
patches-own [bw new-bw grad gx gy]

to start-webcam
  if (not (cam-is-inited? = true)) [
    gst-video:camera-init
    set cam-is-inited? true
  ]
  gst-video:camera-start
end

to stop-webcam
  gst-video:camera-stop
end

to display-mirror-to-patches
  cam-mirror-to-patches
  display
end

to cam-mirror-to-patches
  if (gst-video:camera-is-rolling?) [
    bitmap:copy-to-pcolors gst-video:camera-image false
  ]
end

to go
  no-display
  cam-mirror-to-patches
  ask patches [set bw brightness set new-bw bw]
  if horizontal-blur [ask patches [apply-horiz-gaussian]]
  if vertical-blur [ask patches [apply-vert-gaussian]]
  ask patches [set bw new-bw]
  ifelse detection-method != "None" [
    ask patches [gradient]
    set max-grad max [grad] of patches
    ;ask patches [set pcolor scale-color white grad 0 max-grad]
    ask patches [color-patch]
  ]
  [
    ask patches [set pcolor scale-color white bw 0 255]
  ]
  display
end

to-report brightness
  report mean pcolor
end

to color-patch
  ifelse grad <= high-thresh or (non-max-suppress and not max-edge?) [set pcolor black] [
    ifelse color-gradient
      [set pcolor hsb (255 * atan gx gy / 360) 128 (255 * grad / max-grad)]
      [set pcolor scale-color white grad 0 max-grad]
  ]
end

to apply-horiz-gaussian
  let p1 [bw] of patch-at -2 0
  let p2 [bw] of patch-at -1 0
  let p4 [bw] of patch-at 1 0
  let p5 [bw] of patch-at 2 0

  set new-bw (2 * p1 + 4 * p2 + 5 * bw + 4 * p2 + 2 * p1) / 13
end

to apply-vert-gaussian
  let p1 [bw] of patch-at 0 -2
  let p2 [bw] of patch-at 0 -1
  let p4 [bw] of patch-at 0 1
  let p5 [bw] of patch-at 0 2
  set new-bw (2 * p1 + 4 * p2 + 5 * bw + 4 * p2 + 2 * p1) / 13
end

to-report max-edge?
  if grad < high-thresh [report false]
  let angle 45 * round ((atan gy gx) / 45)
  let x sin angle
  let y cos angle
  report grad >= [grad] of patch-at x y and grad >= [grad] of patch-at (- x) (- y)
end

to gradient
  let p1 [bw] of patch-at -1 1
  let p2 [bw] of patch-at 0 1
  let p3 [bw] of patch-at 1 1
  let p4 [bw] of patch-at -1 0

  let p6 [bw] of patch-at 1 0
  let p7 [bw] of patch-at -1 -1
  let p8 [bw] of patch-at 0 -1
  let p9 [bw] of patch-at 1 -1
  if detection-method = "Scharr" [
    ; Scharr
    set gx (3 * p1 + 10 * p2 + 3 * p3) - (3 * p7 + 10 * p8 + 3 * p9)
    set gy (3 * p3 + 10 * p6 + 3 * p9) - (3 * p1 + 10 * p4 + 3 * p7)
  ]
  if detection-method = "Sobel" [
    ; Sobel
    set gx (p1 + 2 * p2 + p3) - (p7 + 2 * p8 + p9)
    set gy (p3 + 2 * p6 + p9) - (p1 + 2 * p4 + p7)
  ]
  if detection-method = "Prewitt" [
    set gx (p1 + p2 + p3) - (p7 + p8 + p9)
    set gy (p3 + p6 + p9) - (p1 + p4 + p7)
  ]
  set grad abs(gx) + abs(gy)
  ;report abs(gx) + abs(gy)
end
