Forest-Fire and Mitigation on Network

; =============================================================================
; Forest-Fire and Mitigation on Network
; -----------------------------------------------------------------------------
; Agents:
;   - nodes (trees) connected by links (network edges)
;   - sprinklers (placed near high-degree nodes)
;   - firebreaks (draw lines on patches to break connectivity)
;
; State flow for nodes:
;   normal -> burning -> (ash OR revert to normal via extinction)
;
; Mechanics:

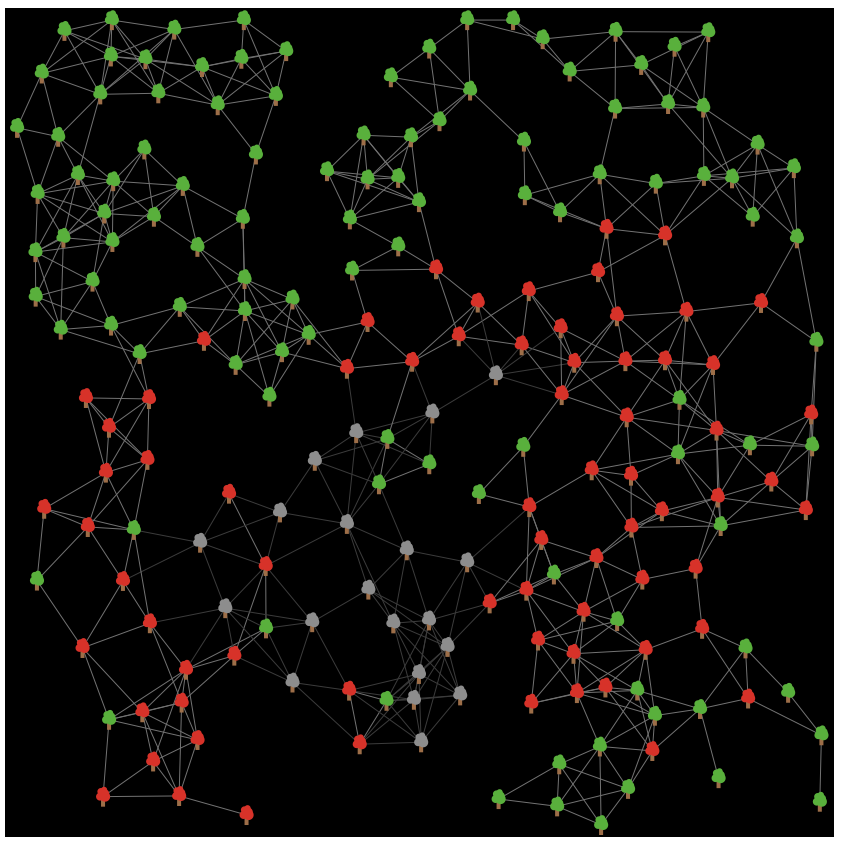

;   - Fire spreads along ACTIVE links with probability spread-prob
;   - Burning nodes either:
;       * turn to ash after burn-limit ticks, or
;       * are extinguished (revert to normal) with probability extinguish-prob

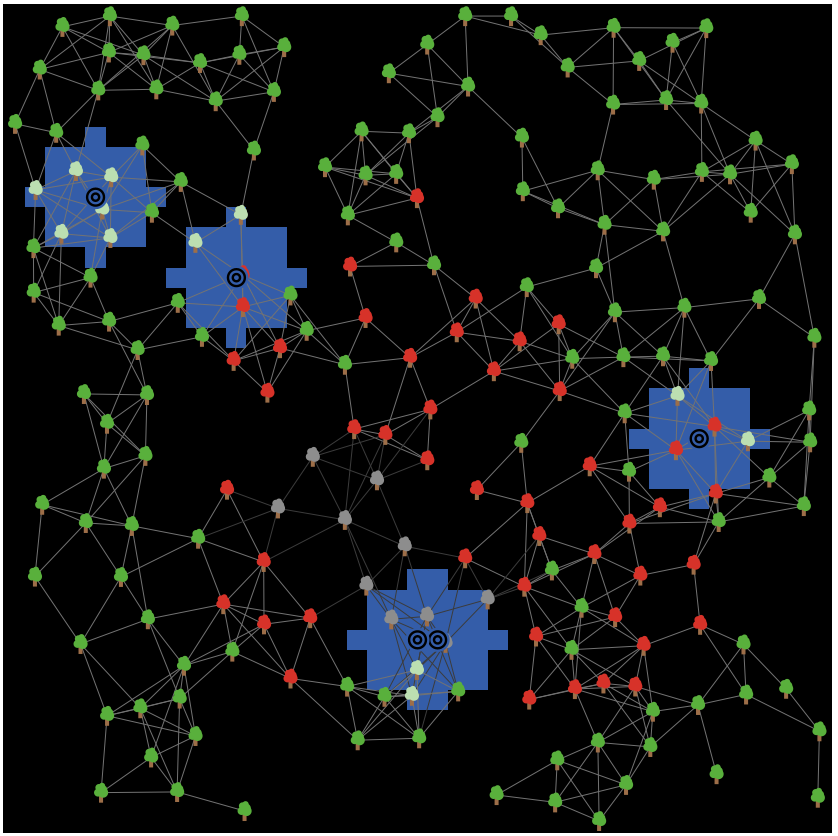

;   - Sprinklers shorten burn-limit within a radius (reducing spread window)

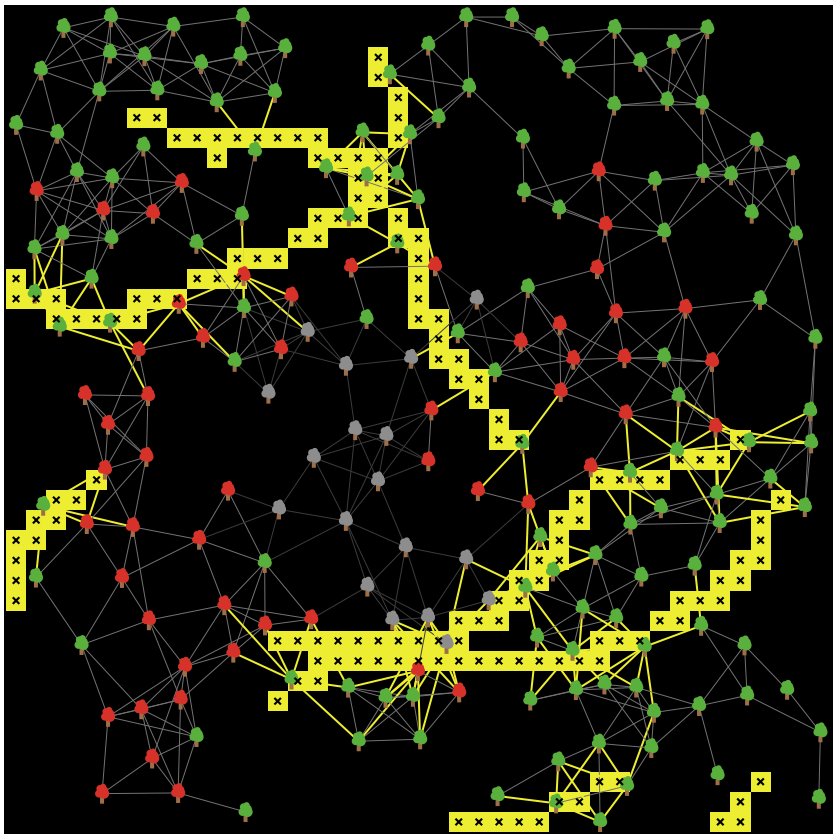

;   - Firebreaks mark yellow patch bands and probabilistically disable links
;
; =============================================================================


; ============================== BREEDS & OWN ================================

breed [nodes node]
breed [sprinklers sprinkler]
breed [firebreaks firebreak]

nodes-own
[
  ;node state
  normal?
  burning?
  ash?

  ;fire duration
  check-timer  ; ticks since ignition
  burn-limit   ; duration threshold to become ash

  ;lables
  ignition?  ; marks initial ignition nodes
  degree     ; current degree (# of link neighbors)
]

links-own
[
  active?           ; if false, fire cannot pass along this link
  pass-firebreak?   ; whether this link crosses a firebreak area
]

patches-own
[
  sprinkled?        ; patch is inside a sprinkler's radius (blue)
  firebreak?        ; patch belongs to a firebreak path (yellow)
]


; ============================== SETUP =================================

to setup
  clear-all
  if seed-fixed? [ random-seed initial-seed ]

  setup-patches
  setup-nodes
  setup-spatially-clustered-network

  ; compute node degrees after links are created
  ask nodes [ set degree count link-neighbors ]

  ; initialize links to be active
  ask links
  [
    set color grey - 1
    set active? true
    set pass-firebreak? false
  ]

  ; ignite a set of initial nodes
  ask n-of initial-ignition-size nodes
  [
    set ignition? true
    become-burning
  ]

  ; optional mitigation 1 : sprinklers
  if sprinklers-on?
  [
    place-sprinklers
    apply-sprinkler-burn-limits
  ]

  ; optional mitigation 2 : firebreaks
  if firebreaks-on?
  [
    carve-firebreak
    disable-links-by-firebreak
  ]

  reset-ticks
end


; --- patches baseline visuals & flags ---------------------------------------

to setup-patches
  ask patches
  [
    set pcolor black
    set sprinkled? false
    set firebreak? false
  ]
end


; --- create nodes and initialize node-level state ---------------------------

to setup-nodes
  set-default-shape nodes "tree"
  create-nodes number-of-nodes
  [
    ; for visual reasons, we don't put any nodes *too* close to the edges
    setxy (random-xcor * 0.95) (random-ycor * 0.95)
    become-normal
    set check-timer 0
    set burn-limit base-burn-limit
    set ignition? false
  ]
end


; --- build a spatially-clustered network -----------------------------------
; Goal: add links so that each new link connects to the nearest non-neighbor,
; until we reach target number of links. Then relax layout for aesthetics.

to setup-spatially-clustered-network
  let num-links (average-node-degree * number-of-nodes) / 2
  while [count links < num-links ]
  [
    ask one-of nodes
    [
      let choice (min-one-of (other nodes with [not link-neighbor? myself])
                   [distance myself])
      if choice != nobody [ create-link-with choice ]
    ]
  ]
  ; make the network look a little prettier
  repeat 10
  [
    layout-spring nodes links 0.3 (world-width / (sqrt number-of-nodes)) 1
  ]
end


; ============================== MAIN LOOP ===================================

to go
  ; stop when no nodes are burning
  if all? nodes [not burning?]
  [ stop ]

  ; update burning timers, convert to ash if threshold met
  ask nodes with [burning?]
  [
     set check-timer check-timer + 1
     if check-timer >= burn-limit
       [ become-ash ]
  ]

  ; fire dynamics
  spread-fire
  extinct

  tick
end


; ============================= STATE TRANSITIONS ============================

to become-burning  ;; node procedure
  set normal? false
  set burning? true
  set ash? false
  set color red
end

to become-normal  ;; node procedure
  set normal? true
  set burning? false
  set ash? false
  set color green
end

to become-ash  ;; node procedure
  set normal? false
  set burning? false
  set ash? true
  set color gray
  ask my-links
  [
    if active?
    [ set color gray - 3]
  ]
end


; ============================== FIRE DYNAMICS ===============================

to spread-fire
  ask nodes with [burning?]
  [
    ask link-neighbors with [normal?]
    [
      let lk link-with myself
      if (lk != nobody) and [active?] of lk
      [
        if random 100 < spread-prob
        [ become-burning ]
      ]
    ]
  ]
end


; --- burning nodes may be extinguished (revert to normal) -------------------

to extinct
  ask nodes with [burning?]
  [
    if random 100 < extinguish-prob
    [ become-normal ]
  ]
end


; ============================ SPRINKLER SYSTEM ==============================

; --- place sprinklers near the top-degree nodes -----------------------------

to place-sprinklers
  let s sprinkler-count
  if s = 0 [ stop ]

  ; choose s nodes with maximum degree
  let topS max-n-of s nodes [degree]

  ; for each, find a nearby empty patch (or use current) and place a sprinkler
  ask topS
  [
    let target-patch find-nearby-empty-patch patch-here
    if target-patch != nobody
    [
      ask target-patch
      [
        sprout-sprinklers 1
        [
          setxy [pxcor] of target-patch [pycor] of target-patch
          set shape "target"
          set color blue
          set size 1.2
        ]
        set sprinkled? true
      ]
      ask patches with [ distance target-patch <= sprinkler-radius ]
      [
        set pcolor blue
        set sprinkled? true
      ]
    ]
  ]
end


; --- reduce burn-limit for nodes standing on sprinkled patches --------------

to apply-sprinkler-burn-limits
  let factor (1 - (sprinkler-effect / 100))
  ;show (word "factor = " factor)

  ask nodes with [[sprinkled?] of patch-here]
  [
    set burn-limit max list 1 floor (base-burn-limit * factor)
    set color green + 3
  ]
end


; --- helper: choose an alternative nearby patch for placing a sprinkler -----

to-report find-nearby-empty-patch [ base-patch ]
  let candidates patches in-radius 1.5 with [ self != base-patch ]
  if any? candidates [ report one-of candidates ]
  report base-patch
end


; ============================= FIREBREAK SYSTEM =============================

; --- carve yellow firebreak bands by walking "firebreak" turtles ------------

to carve-firebreak
  let f firebreak-count
  if f = 0 [ stop ]

  if firebreak-steps <= 0 [ stop ]

  let start-patch n-of f patches
  let step-len floor(world-width * 0.1)
  ;show(step-len)

  ; seed movers (temporary firebreak turtles)
  ask start-patch
  [
    sprout-firebreaks 1
    [
      set color black
      set shape "x"
      set size 0.5
      set heading random 360
    ]
  ]

  ; random-walk forward "stamping" yellow patches along the path
  repeat firebreak-steps
  [
    ask firebreaks
    [
      let fromx xcor
      let fromy ycor

      fd step-len

      stain-line-yellow fromx fromy xcor ycor
      rt (random-float 90 - 45)
    ]
  ]

  ; remove walkers, leave yellow patches; re-sprout markers for visualization
  ask firebreaks [die]

  ask patches with [firebreak?]
  [
      sprout-firebreaks 1
    [
        set color black
        set shape "x"
        set size 0.5
    ]
  ]
end


; --- color patches along a line segment yellow and flag as firebreak --------

to stain-line-yellow [x1 y1 x2 y2]
  let dist [ distancexy x2 y2 ] of patch x1 y1
  let samples max list 3 ceiling (2 * dist)
  ;show(samples)
  foreach (n-values samples [ i -> i ]) [ i ->
    let t  (i / (samples - 1))
    let sx (x1 + t * (x2 - x1))
    let sy (y1 + t * (y2 - y1))
    ask patch sx sy [
      set firebreak? true
      set pcolor yellow
    ]
  ]
end


; --- detect and probabilistically disable links crossing firebreak patches ---

to disable-links-by-firebreak
  ask links
  [
    if link-crosses-firebreak? self
    [
      set pass-firebreak? true
      if random 100 < disable-prob
      [
        set active? false
        set color yellow
        set thickness 0.1
      ]
    ]
  ]
end


; --- sample along link AB to check if any point lies on a firebreak patch ---

to-report link-crosses-firebreak? [ lnk ]
  let a [end1] of lnk
  let b [end2] of lnk
  let x1 [xcor] of a
  let y1 [ycor] of a
  let x2 [xcor] of b
  let y2 [ycor] of b

  let delta-x (x2 - x1)
  let delta-y (y2 - y1)
  let dist sqrt (delta-x * delta-x + delta-y * delta-y)
  let samples max list 3 ceiling (2 * dist)
  let crosses? false

  foreach (n-values samples [ i -> i ]) [ i ->
    if not crosses? [
      let t  (i / (samples - 1))
      let sx (x1 + t * delta-x)
      let sy (y1 + t * delta-y)
      if [firebreak?] of patch sx sy [
        set crosses? true
      ]
    ]
  ]
  report crosses?
end
