Coupled Stochastic Chaos - Lorenz System

patches-own [
  aX ; drift factor for Lorenz Coupled SDE for the X vector value
  aY ; drift factor for Lorenz Coupled SDE for the Y vector value
  aZ ; drift factor for Lorenx Coupled SDE for the Z vector value
  X ; X vector value
  Y ; Y vector value
  Z ; Z vector value
  activation ; activationb value for patch

  ; Auxiliary variables for SDE calculation:
  k1x
  k1y
  k1z
  k2x
  k2y
  k2z
  Xa
  Ya
  Za
  dWx
  dWy
  dWz
  Sx
  Sy
  Sz

]

to setup
  ca
  reset-ticks
  ask patches [
               ;set x 10 * pi
               ;set y 3 * exp(0.5)
               ;set z 15 * 2 ^ 0.5
               set x random-float 20 - 10
               set y random-float 20 - 10
               set z random-float 20
               ]
end

to go
  ask patches[update-drift]
  ask patches[update-k1]
  ask patches[get-auxiliary]
  ask patches[update-new-drift]
  ask patches[update-displacement]
  ask patches[update-colors]
  if ticks > transient_ticks [do-plots]
  tick
end


;;;;;;;;;;;;;;;;;;;;;;
;;; SDE Procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;



; The initial drift is updated in accordance with the Lorenz equations with local mean field coupling

to update-drift
  set aX (1 - coupling) * (sigma * (Y - X)) + coupling * mean [X] of neighbors4
  set aY (1 - coupling) * (rho * X - Y - X * Z) + coupling * mean [Y] of neighbors4
  set aZ (1 - coupling) * (X * Y - beta * Z) + coupling * mean [Z] of neighbors4
end


; First update of the k1 component for each field mode following
; Roberts' (2012) modified Runge-Kutta algorithm using the output
;from the first drift update obtained from the Lorenz system's equations

to update-k1
  ; Sx, Sy and Sz are randombly selected between -1 and 1 with equal
  ; probability, this is used in Itô calculus
  set Sx get_S
  set Sy get_S
  set Sz get_S
  ; The Wiener dW terms are selected for each field component each
  ; dW component is independently selected with Gaussian distribution with a
  ; zero mean and standard deviation given by the square root of the integration step dt
  set dWx (sqrt dt) * random-normal 0 1
  set dWy (sqrt dt) * random-normal 0 1
  set dWz (sqrt dt) * random-normal 0 1

  ; The k1 component of the algorithm is obtained using the three
  ; inputs as per Robert's (2012) algorithm
  set k1x get_k1 aX Sx dWx
  set k1y get_k1 aY Sy dWy
  set k1z get_k1 aZ Sz dWz
end

; Auxliliary variables used for the computation of the displaced values for X, Y and Z
; displaces as X + k1x, Y + k1y and Z + k1z, this is a necessary step for the calculation of
; k2 which requires the calculation of the new drift using the displaced coordinates

to get-auxiliary
  set Xa X + k1x
  set Ya Y + k1y
  set Za Z + k1z
end

; The new drift is now calculated by using the displaced coordinates using the Lorenz
; system's equations

to update-new-drift
  set aX (1 - coupling) * (sigma * (Ya - Xa)) + coupling * mean [Xa] of neighbors4
  set aY (1 - coupling) * (rho * Xa - Ya - Xa * Za) + coupling * mean [Ya] of neighbors4
  set aZ (1 - coupling) * (Xa * Ya - beta * Za) + coupling * mean [Za] of neighbors4
end


; The new field value variables are obtained by calculating the displacement

to update-displacement
  ; First calculate k2 using the new drift
  set k2x get_k2 aX Sx dWx
  set k2y get_k2 aY Sy dWy
  set k2z get_k2 aZ Sz dWz

  ; The SDE procedure calculates the displacement is calculated using k1 and k2
  let dX_value SDE k1x k2x
  let dY_value SDE k1y k2y
  let dZ_value SDE k1z k2z

  ; The new variables are calculated
  set X X + dX_value
  set Y Y + dY_value
  set Z Z + dZ_value
end

; The auxiliary variable S is calculated with equal probabilities between
; -1 and 1 for the numeric integration to approximate Itô integral

to-report get_S
  let S 0
  ifelse random-float 1 < 0.5  [set S -1] [set S 1]
  report S
end

; k1 is given by the drift a which is multiplied by dt and corresponds
; in our case to the Lorenz system's equations
; and it is added by a term that depends upon the stochastic component
; following Robert's scheme we have b which in our case is a parameter that
; controls the noise level multiplied by the the Wiener innovation dW subtracted
; by S multiplied by the square root of the time step is

to-report get_k1 [a S dW]
  let k1 dt * a + b * (dW - S * sqrt(dt))
  report k1
end

; k2 is calculated in the same way as k1 with the exception that it uses the
; displaced drift and S is multiplied by the square root of dt.

to-report get_k2 [a S dW]
  let k2 dt * a + b * (dW + S * sqrt(dt))
  report k2
end

; The displacement for the SDE is obtained by taking the mean value of k1 and k2

to-report SDE [k1 k2]
  let displacement 0.5 * (k1 + k2)
  report displacement
end

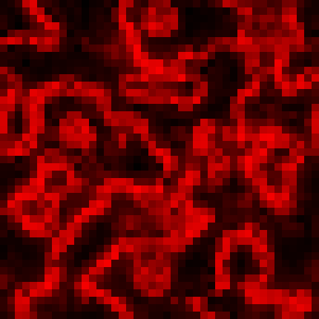

; Colors are updated following the activation variable which has calculates
; the deviation of each patch's field components from the mean of its 4 nearest neighbors
; using a sigmoid function the color uses shades of red the stronger the red color
; the higher the deviation from the local mean field

to update-colors

  let mX mean [X] of neighbors4
  let mY mean [Y] of neighbors4
  let mZ mean [Z] of neighbors4

  let devX (2 / (1 + exp(0 - abs(X - mX)))) - 1
  let devY (2 / (1 + exp(0 - abs(Y - mY)))) - 1
  let devZ (2 / (1 + exp(0 - abs(Z - mZ)))) - 1

  set activation (devX + devY + devZ) / 3

  set pcolor rgb (activation * 255) 0 0
end

; The plots involve local plots using patch (0,0) and
; collective dynamics plots including mean field and
; dispersion

to do-plots

  ; Local Plots for Patch (0,0)
  let target patch 0 0

  set-current-plot "X vs Y value of Patch at 0 0"
  set-current-plot-pen "patch (0,0)"
  plotxy [X] of target [Y] of target

  set-current-plot "X vs Z value of Patch at 0 0"
  set-current-plot-pen "patch (0,0)"
  plotxy [X] of target [Z] of target

  set-current-plot "Y vs Z value of Patch at 0 0"
  set-current-plot-pen "patch (0,0)"
  plotxy [Y] of target [Z] of target

  let mfX mean [X] of patches
  let mfY mean [Y] of patches
  let mfZ mean [Z] of patches

  ; Collective Dynamics Plots
  set-current-plot " vs "
  set-current-plot-pen " vs "
  plotxy mfX mfY

  set-current-plot " vs "
  set-current-plot-pen " vs "
  plotxy mfX mfZ

  set-current-plot " vs "
  set-current-plot-pen " vs "
  plotxy mfY mfZ

  set-current-plot "Activation of Patch at 0 0"
  set-current-plot-pen "patch (0,0)"
  plot [activation] of target

  set-current-plot "Mean Activation"
  set-current-plot-pen "Mean Activation"
  plot mean [activation] of patches


  set-current-plot "Standard Deviation X"
  set-current-plot-pen "SDX"
  plot standard-deviation [X] of patches

  set-current-plot "Standard Deviation Y"
  set-current-plot-pen "SDY"
  plot standard-deviation [Y] of patches

  set-current-plot "Standard Deviation Z"
  set-current-plot-pen "SDZ"
  plot standard-deviation [Z] of patches
end
