particles in a box Chemical Equilibrium

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)

WHAT IS IT?

Visualizing the dynamic distribution of molecules between two states with different free energy

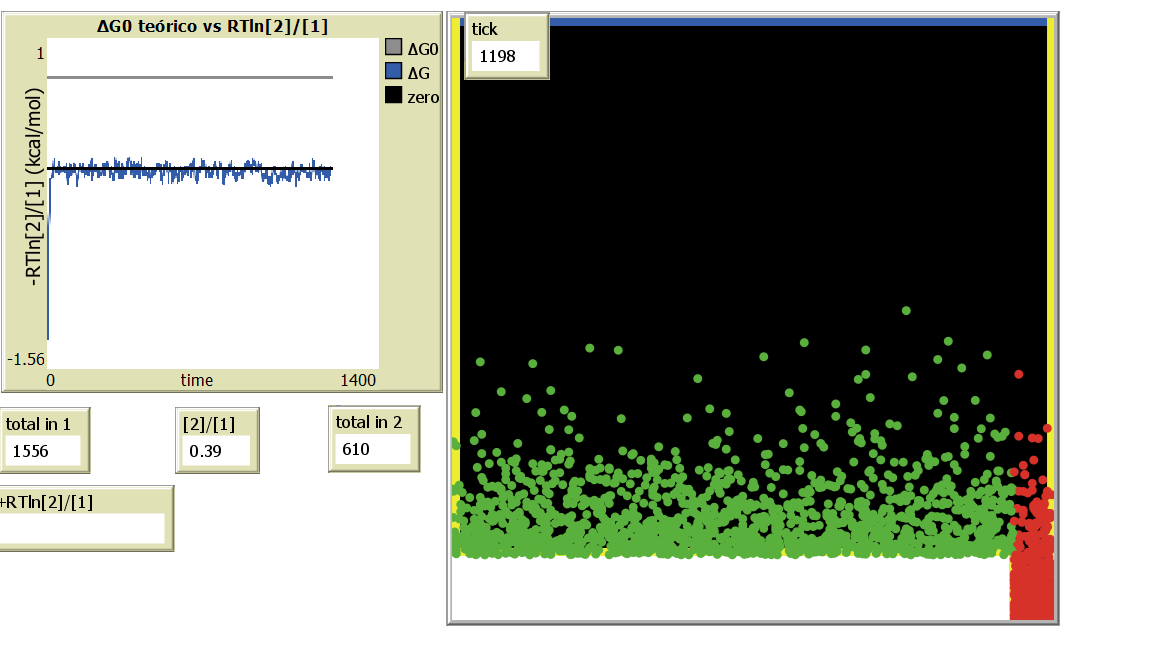

This model simulates molecules in a thermal bath that can switch between two states. The states differ in standard enthalpy (H°) and entropy (S°). The height difference represents ΔH°, while the width of each sector represents ΔS°. This two-sector box visually represents a single-molecule reaction such as:
1-propanol ⇌ 2-propanol

HOW IT WORKS

Stochastic Energy

Molecules gain energy stochastically based on the Boltzmann probability, simulating energy "injection" from a thermal bath. Molecules jump to different heights based on their current state and the Boltzmann-weighted probability of energy absorption. If a molecule reaches a height higher than the energy step between states, the probability of transitioning depends on the relative widths of the two sectors.

Energy Allocation (Boltzmann’s Law)

• Energy levels follow the Boltzmann probability:
  p = exp(-ΔE / (R*T)) where ΔE is the energy difference.

• Energy jumps follow:
  ΔE = -ln(random) * R*T
  (where random is a uniform number between 0 and 1.)


In this box model, entropy is represented by sector width, while energy (enthalpy) is represented by height. In reality, reactants and products exist in the same physical space, but here they are represented in separate sectors, each with an energy level determined by its height and a population following Boltzmann's distribution.

ADJUSTABLE PARAMETERS

• number-of-particles: Total number of molecules in the box. Fewer molecules show larger fluctuations in average energy (demonstrating statistical uncertainty).

• entropy2 (ΔS°): Standard entropy difference (S° reactant - S° product). The sector width reflects this difference.

• enthalpy2 (ΔH°): Standard enthalpy difference (H° reactant - H° product). The sector height reflects this difference.

• temperature (T): Governs energy spread. Higher T allows more molecules to populate high-energy states.

• avance (reaction progress): Defines the initial distribution of molecules between the two compartments (0 = all reactants, 1 = all products).


THINGS TO NOTICE

A fundamental law of thermodynamics states that a system evolves to minimize its Gibbs free energy (G):

G = H – T*S

For a system at constant pressure and temperature, the equilibrium state is determined by minimizing G, balancing energy (H) and entropy (S).

Reaction Equilibrium

Green particles ⇌ Red particles

At equilibrium, standard Gibbs free energy change (ΔG°) relates to entropy and enthalpy gradients:
ΔG° = ΔH° − TΔS°

The reaction quotient adjusts Gibbs free energy:
ΔG = ΔG° + RT ln(Reactants / Products)

At equilibrium (ΔG = 0), we get:
ΔG° = -RT ln(K)
where K is the equilibrium constant:
K = (Products at equilibrium) / (Reactants at equilibrium).

THINGS TO TRY

• Observe reaction movement toward equilibrium: Regardless of initial conditions, the system evolves to minimize G.

• Explore temperature effects: Higher T favors the entropy-dominant state, while lower T favors lower-energy states.

• Adjust ΔS° and ΔH°: See how entropy and enthalpy changes affect equilibrium positioning.


KEY TAKEAWAY

This model visually demonstrates how molecules distribute between two compartments following Boltzmann statistics, mirroring a chemical reaction.

The relationship between free energy, entropy, and enthalpy naturally emerges from the stochastic movement of particles. Reaction equilibrium, progress, and temperature dependence arise from statistical mechanics principles.

CALCULATING SECTOR WIDTHS BASED ON ΔS°

Sector widths correspond to the entropy difference (ΔS°), as entropy influences the probability of a molecule being in a given state. Since Boltzmann’s entropy definition is:

S = R ln(W),

where W represents the number of available microstates, we define probabilities for the two sectors:

p₁ = W₁ / Wₜ
p₂ = W₂ / Wₜ,

where Wₜ = W₁ + W₂ accounts for all possible configurations.

The entropy difference between compartments is determined by:

ΔS = R ln(W₂) - R ln(W₁) = R ln(W₂ / W₁).

Rewriting in terms of probabilities:

ln((1 - p₁) / p₁) = ΔS / R.

Solving for p₁:

p₁ = 1 / (1 + exp(ΔS / R)).

Since R is the gas constant (R = k_B × Avogadro’s number), in kcal/(mol·K), we can calculate p₁ and p₂ directly from the entropy difference.

Thus, the relative sector widths in the NetLogo model follow the Boltzmann distribution, reflecting how entropy influences state occupancy at equilibrium.
