Atmospheric Dispersion model

Atmospheric Dispersion model preview image

1 collaborator

Default-person A Bedouch (Author)

Tags

physics

Tagged by A Bedouch 7 months ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.4.0 • Viewed 76 times • Downloaded 1 time • Run 0 times
Download the 'Atmospheric Dispersion model' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

rays-own [initial-heading]
breed [simulated-rays simulated-ray]
breed [rays ray]
globals [red_em blue_em green_em red_rec blue_rec green_rec test-list]


;;; HELPER PROCEDURES

to-report is-scattered [t_color]
  ;; gives scattering probability as a function of the light ray color
  let probability (ifelse-value
    t_color = blue [base_probability]
    t_color = green [base_probability / 1.8]
    t_color = red [base_probability / 4.6]
                 [0])
  report (random-float 100 <= probability)
end

to-report scatter-angle
  ;; Rayleigh scattering has a scattering probability proportional to cos(theta)^2
  let which_sign random 2
  let sign (ifelse-value
    which_sign = 0 [ -1 ]
    which_sign = 1 [ 1 ]
  )
  report ((acos (sign * sqrt(random-float 1))) * 2) - 90
end

to-report is-oob [y]
  ;; check if the y coordinate is out of bounds
  ;; returns 1 if reached the top of the simulation (escaped the atmosphere)
  ;; returns 2 if collided with the ground
  ;; returns 0 if no collisions
  if y > max-pycor - 0.5 [report 1]
  if y < min-pycor + 0.5 [report 2]
  report 0
end

to-report check-sun-collision [exit-angle]
  ;; Checks if the exit-angle is within the sun's diameter
  if exit-angle > 180 [set exit-angle (exit-angle - 360)]
  report (
    (exit-angle > sun_angle - sun_diameter / 2 ) and
    (exit-angle < sun_angle + sun_diameter / 2 )
  )
end

to-report get-index [angle]
  ;; For a given angle, gets the index of the cone bin
  if angle > 180 [set angle (angle - 360)]
  set angle (angle + 90)
  report floor(angle / 180 * division-factor)
end

to-report get-color [red_emitted red_received green_emitted green_received blue_emitted blue_received]
  ;; yields an rgb vector of the color corresponding to the fraction of emitted and received rays
  ifelse relative-gain?
  [
    let multiplier max rgb (red_received / red_emitted) (green_received / green_emitted) (blue_received / blue_emitted)
    ifelse multiplier = 0 [report rgb 0 0 0]
    [
      let new-gain (relative-gain / 100) * (255 / multiplier)
      report rgb (new-gain * red_received / red_emitted) (new-gain * green_received / green_emitted) (new-gain * blue_received / blue_emitted)
    ]
  ]
  [report rgb (gain * red_received / red_emitted) (gain * green_received / green_emitted) (gain * blue_received / blue_emitted)]
end


;;; SETUP PROCEDURES

to setup
  clear-all
  setup-rays
  setup-atmosphere
  setup-simulated-rays
  setup-counters
  reset-ticks
end

to setup-rays
  ;; setup the rays with random colour and direction
  set-default-shape rays "line"
  create-rays n_rays [setxy 0 min-pycor + 1]
  ask rays [
    let choice random 3
    set color (ifelse-value
      who mod 3 = 0 [ red ]
      who mod 3 = 1 [ blue ]
      who mod 3 = 2 [ green ])
    set heading (random-float 180) - 90
    set initial-heading heading
  ]
end

to setup-counters
  ;; setup counters for emitted and received rays of each colours, one counter for each bin of sky
  set red_em (n-values division-factor [1])
  set green_em (n-values division-factor [1])
  set blue_em (n-values division-factor [1])
  set red_rec (n-values division-factor [1])
  set green_rec (n-values division-factor [1])
  set blue_rec (n-values division-factor [1])
end

to setup-simulated-rays
  ;; setup simulated rays with the calculated colours
  set-default-shape simulated-rays "line"
  let tot 180 * 3
  create-simulated-rays tot [setxy 0 min-pycor + 1]
  ask simulated-rays [
    set hidden? true
    set heading (((who - n_rays) * 180 / tot) - 90)
    set size 2
    set pen-mode "down"
    set pen-size 2
  ]
end


;;; LOOP PROCEDURES

to increment-color-counter [escaped init-heading escape-heading tcolor]
  ;; increment colour of the correct bin for a ray of color tcolor and initial and escape heading

  let index get-index init-heading
  (
    ifelse
    tcolor = red   [set red_em replace-item index red_em   (item index red_em + 1)]
    tcolor = blue  [set blue_em replace-item index blue_em  (item index green_em + 1)]
    tcolor = green [set green_em replace-item index green_em (item index green_em + 1)]
)
  if escaped and (check-sun-collision escape-heading) [
    (
      ifelse
      tcolor = red   [set red_rec replace-item index red_rec   (item index red_rec + 1)]
      tcolor = blue  [set blue_rec replace-item index blue_rec  (item index green_rec + 1)]
      tcolor = green [set green_rec replace-item index green_rec (item index green_rec + 1)]
    )
]
end

to setup-atmosphere
  ask patches [
    ifelse pycor + max-pycor < 2 * max-pycor * atmosphere_height / 100 [ set pcolor blue + 3.5 ]
    [ set pcolor black]
  ]
end

to go
  ;; flow control of what to display and what to compute
  move-rays
  if-else draw-path
  [ask rays [pen-down]]
  [ask rays [pen-up]]
  setup-atmosphere
  ifelse show-result? [
    set draw-path false
    ask rays [set hidden? true]
    ask simulated-rays [
      set hidden? false
      set pen-mode "down"
      get-simulated-color
   ]
    move-simulated-rays
  ]
  [
    ask rays [set hidden? false]
    ask simulated-rays [
      set hidden? true
      set pen-mode "up"
    ]
    clear-drawing
  ]
  tick
end

to reset-ray
  set pen-mode "up"
  set xcor 0
  set ycor min-pycor + 1
  set heading (random-float 180) - 90
  set initial-heading heading
  if draw-path [set pen-mode "down"]
end

to move-rays
  ;; move and scatter r
  ask rays [
    if pcolor != black [
      if is-scattered color [
        right (heading + scatter-angle)
      ]
    ]
    forward light_path
    let oob is-oob ycor

    ;; escaped the atmosphere
    if oob = 1 [
      increment-color-counter true initial-heading heading color
      reset-ray
    ]

    ;; collided with ground
    if oob = 2 [
      increment-color-counter true initial-heading heading color
      reset-ray
    ]
  ]
end

to get-simulated-color
  ask simulated-rays [
    let index get-index heading
    set color get-color
      (item index red_em)
      (item index red_rec)
      (item index green_em)
      (item index green_rec)
      (item index blue_em)
      (item index blue_rec)
  ]
end

to move-simulated-rays
  ask simulated-rays [
    foreach (n-values 50 [1]) [
      forward 0.1
      if ((xcor < min-pxcor + 0.05) or
        (xcor > max-pxcor - 0.05) or
        (ycor > max-pycor - 0.05)
      ) [setxy 0 min-pycor + 1]
    ]
  ]
end

There is only one version of this model, created 7 months ago by A Bedouch.

Attached files

File Type Description Last updated

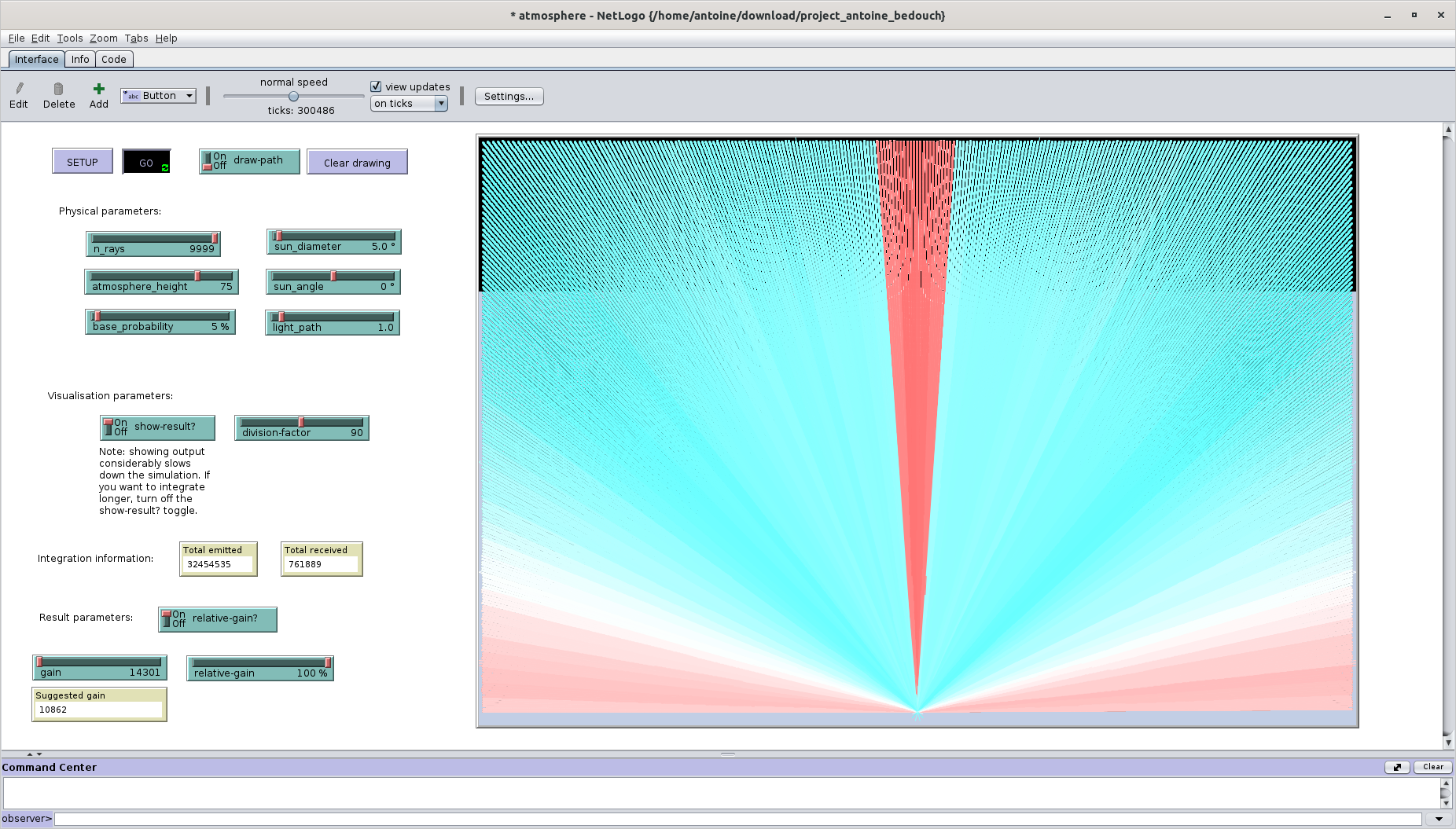

Atmospheric Dispersion model.png preview Preview for 'Atmospheric Dispersion model' 7 months ago, by A Bedouch Download

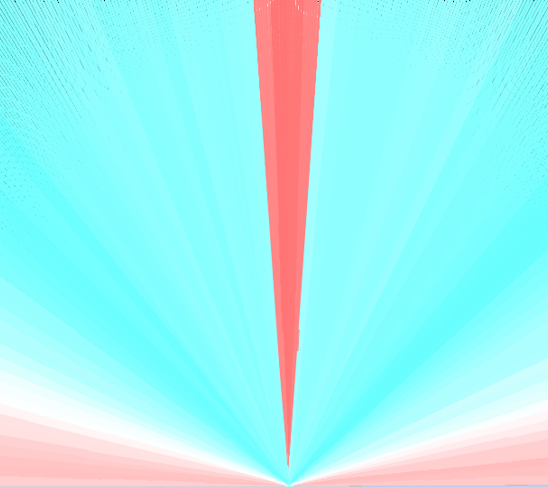

example.png png example output 7 months ago, by A Bedouch Download

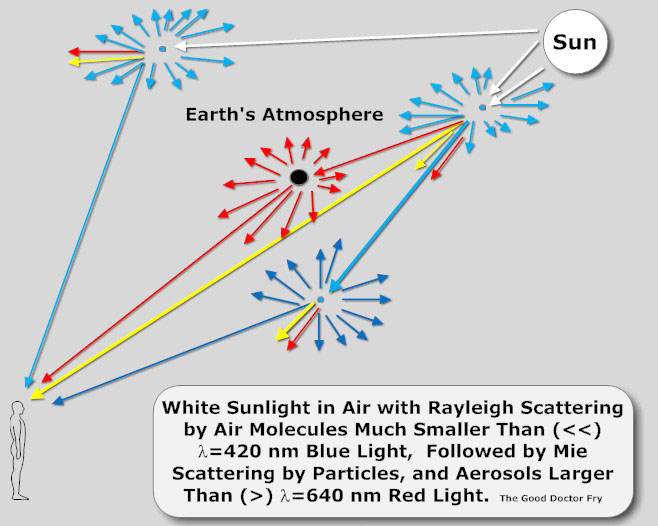

rayleigh.jpg png physics principle illustration 7 months ago, by A Bedouch Download
