Worley Noise CA

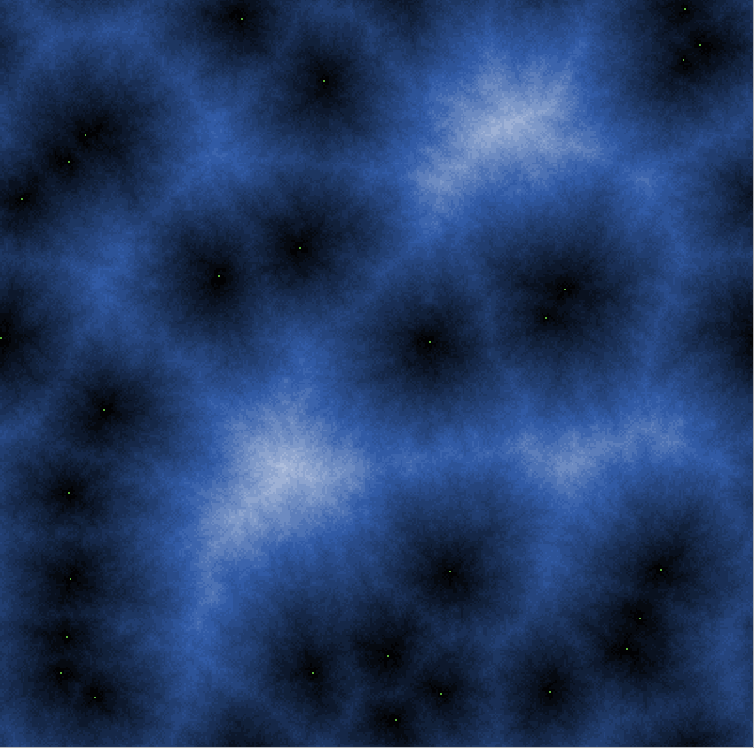

Worley Noise CA preview image

1 collaborator

Default-person Talaya White (Author)

Tags

cellular automata

Tagged by Talaya White 7 months ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.4.0 • Viewed 109 times • Downloaded 2 times • Run 0 times
Download the 'Worley Noise CA' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

A simple cellular automata to generate Worley Noise(ish).

HOW IT WORKS

A handful of patches act as seeds. These are green, and marked "done" at setup. When you hit go, any patches who are NOT marked "done" ask if any of their neighbors are done. If any of their neighbors are done, they mark themselves done, and set their color based on tick count. This means that the further away a patch is from any of the seed patches, the higher the number of ticks will be before that patch can mark itself done, and therefore the brighter it will be.

HOW TO USE IT

Choose how many seeds/cells you want with the cell slider. Hit Setup to clear previous and generate seeds. Hit Go to run the model. It will stop when all cells are marked as done.

CREDITS AND REFERENCES

Worley Noise was thought up by Steven Worley in 1996. https://dl.acm.org/doi/10.1145/237170.237267

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

patches-own [done]

to setup
  ca
  reset-ticks
  crt cells [setxy random-xcor random-ycor]
  ask patches [
    ifelse count turtles-here > 0
    [set pcolor green
     set done true]
    [set done false]
  ]
  ask turtles [die]
end

to go
  if count patches with [done = false] < 1 [stop]
  ask patches [
    if done = true [stop]
    if any? neighbors with [done = true]
    [set pcolor scale-color blue ticks 0 (max-pxcor / 8)
      set done true]
  ]
  tick
end
