Mosquito Transmitted Disease

1 collaborator

Nich Martin (Author)

WHAT IS IT?

(a general understanding of what the model is trying to show or explain)

HOW IT WORKS

(what rules the agents use to create the overall behavior of the model)

HOW TO USE IT

(how to use the model, including a description of each of the items in the Interface tab)

THINGS TO NOTICE

(suggested things for the user to notice while running the model)

THINGS TO TRY

(suggested things for the user to try to do (move sliders, switches, etc.) with the model)

EXTENDING THE MODEL

(suggested things to add or change in the Code tab to make the model more complicated, detailed, accurate, etc.)

NETLOGO FEATURES

(interesting or unusual features of NetLogo that the model uses, particularly in the Code tab; or where workarounds were needed for missing features)

RELATED MODELS

(models in the NetLogo Models Library and elsewhere which are of related interest)

CREDITS AND REFERENCES

(a reference to the model's URL on the web if it has one, as well as any other necessary credits, citations, and links)

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [people person]
breed [mosquitoes mosquito]
people-own [energy infection kids IT]
mosquitoes-own [menergy minfection mids MIT]
globals [number-died]

to setup
  clear-all
  ask patches [ set pcolor green ]
  set-default-shape people "person"
  set number-died 0
  create-people initial-number-of-people
  [
    set color blue
    set size 2
    set kids 0
    set label-color blue - 2
    set energy random-float 50
    setxy random-xcor random-ycor
  ]
  set-default-shape mosquitoes "bug"
  create-mosquitoes initial-number-potentials
  [
    set color black
    set size 1
    set menergy random-float 50
    setxy random-xcor random-ycor
  ]
  create-mosquitoes initial-number-vectors
  [
    set minfection 1
    set color red
    set size 1
    set menergy random-float 50
    setxy random-xcor random-ycor
  ]
  reset-ticks
end

to go
    ask people [
    reproduce-people
    move-people
    catch-mosquitoes
    death-people
    color-infection
  ]
  ask mosquitoes [
    reproduce-mosquitoes
    move-mosquitoes
    catch-people
    death-mosquitoes
    color-minfection
  ]
  add-mosq
  kill-mosq
  if count people < 1 [
    stop]
  if ticks >= 2000 [
    stop]
  tick
end

to move-people
rt random 50
lt random 50
if infection = 0 [
    set energy energy + random-float 3]
if infection = 1 [
    set energy energy + random-float 1
    if IT > 0 [set IT IT - 1]
    if IT = 0 [set color blue set infection 0]
  ]
fd people-movement / 50
set energy energy - random-float 1.5
end

to move-mosquitoes
  rt random 50
  lt random 50
  set menergy menergy - random-float 1
  if minfection = 1 [set MIT MIT - 1]
  fd (temperature / 5)
end

to catch-people
  let prey one-of people-here
  if prey != nobody [set menergy menergy + random-float 50]
if minfection = 1 [
  if prey != nobody
    [ ask prey [ set infection  1 set IT 10]
    ]
]
end

to catch-mosquitoes
  let mosq one-of mosquitoes-here
if infection = 1 [
  if mosq != nobody
    [ ask mosq [ set minfection 1 set MIT 5]
    ]
]
end

to reproduce-people
   if count people < 100 [
    if energy >= 199
    [
    set kids random number-children
    hatch kids [rt random-float 360 fd 1 set energy random-float 5 set color blue]
    set energy random-float 50
    ]
  ]
end

to reproduce-mosquitoes
     if count mosquitoes < 500 [
  if menergy >= 199
    [
    ;;set mids 10
    hatch 20 [rt random-float 360 fd 1 set menergy random-float 5 set color black]
    die
  ]
  ]
end

to death-people
  ask people [
    if energy < 0 [
      set number-died (number-died + 1)
      die]
  ]
end

to death-mosquitoes
  ask mosquitoes [
    if menergy < 0 [die]]
end

to color-infection
if infection = 1 [
  set color red
]
end

to color-minfection
if minfection = 1 [
  set color red
]
end

to add-mosq
  let monte random-float 1
  if monte <= vector-migration [
    create-mosquitoes 1 [
      set menergy random-float 5
      let mm random-float 1
      ifelse mm <= 0.99 [
      set minfection 1
        set color red][
      set minfection 0
      set color blue]

    ]
  ]
end

to kill-mosq
  if count people with [color = red] / count people >= control-population [
    ask mosquitoes [die]
  ]
end

There is only one version of this model, created almost 2 years ago by Nich Martin.

Attached files

File	Type	Description	Last updated

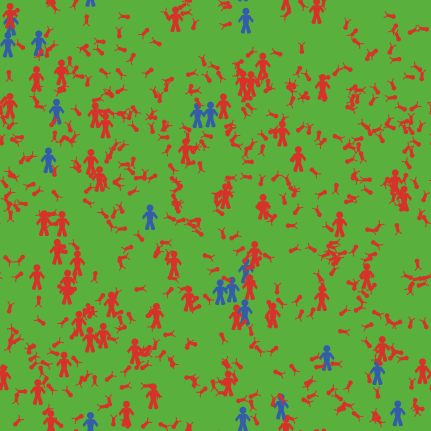

Mosquito Transmitted Disease.png	preview	Preview for 'Mosquito Transmitted Disease'	almost 2 years ago, by Nich Martin	Download

This model does not have any ancestors.

This model does not have any descendants.

NetLogo
