Sugarscape Sexual Reproduction

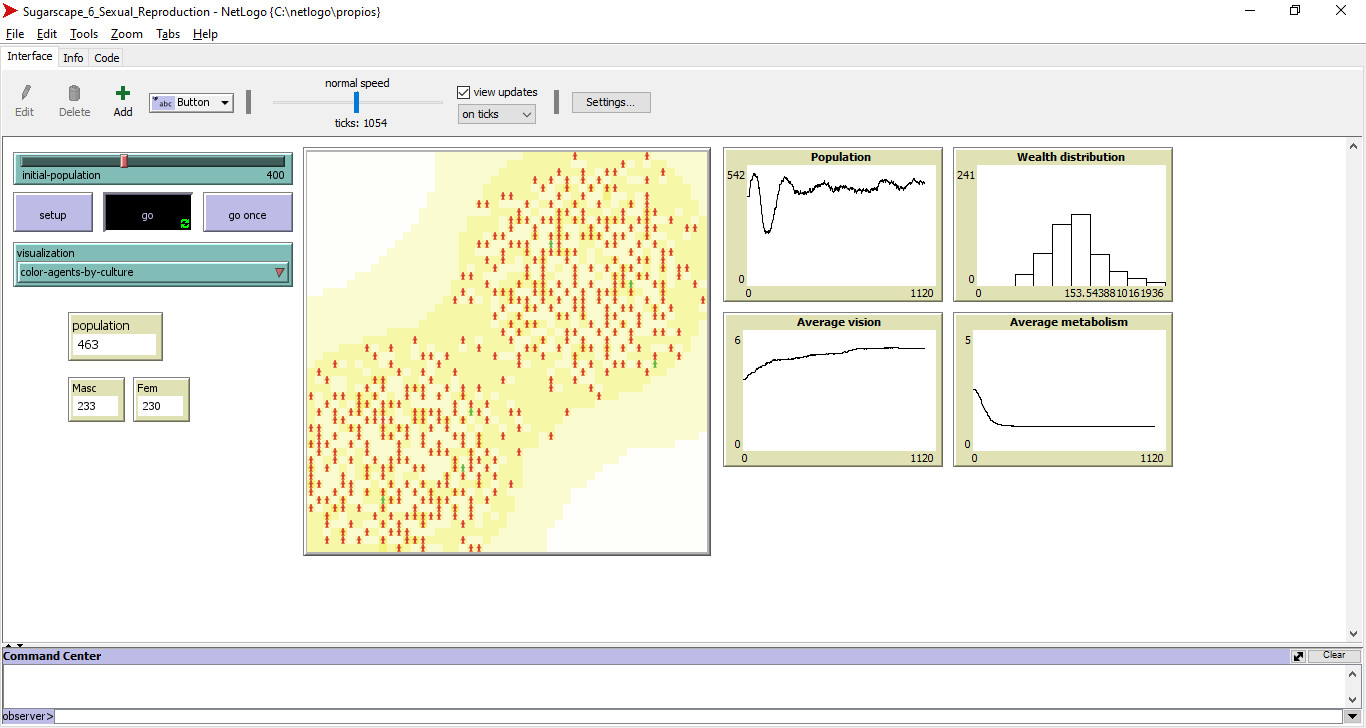

Sugarscape Sexual Reproduction preview image

1 collaborator

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.3.0 • Viewed 86 times • Downloaded 4 times • Run 0 times
Download the 'Sugarscape Sexual Reproduction' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

extensions [matrix]
turtles-own [
  sugar           ;; the amount of sugar this turtle has
  metabolism      ;; the amount of sugar that each turtles loses each tick
  vision          ;; the distance that this turtle can see in the horizontal and vertical directions
  vision-points   ;; the points that this turtle can see in relative to it's current position (based on vision)
  ;culture         ;; a list containing cultural tags
  ;culturecolor    ;; sum of culture list tags
  sexo            ;; set agent sex 1 male 0 female
  edad            ;; set agent age
  muerte          ;; set agent age death
  fertilidadc     ;; set agent age fertility start
  fertilidadf     ;; set agent age fertility end
  dotacion        ;; set agent sugar amount at birth (or creation in the setup routine)
]

patches-own [
  psugar           ;; the amount of sugar on this patch
  max-psugar       ;; the maximum amount of sugar that can be on this patch
]

;;
;; Setup Procedures
;;

to setup
  clear-all
  create-turtles initial-population [ turtle-setup ]
  setup-patches
  reset-ticks
end

to turtle-setup ;; turtle procedure
  set color red
  set shape "person"
  move-to one-of patches with [not any? other turtles-here]
  set sugar random-in-range 50 100
  ;;guardo la dotacion inicial de azucar
  set dotacion sugar
  set metabolism random-in-range 1 4
  set vision random-in-range 1 6
  ;; turtles can look horizontally and vertically up to vision patches
  ;; but cannot look diagonally at all
  set vision-points []
  foreach (range 1 (vision + 1)) [ n ->
    set vision-points sentence vision-points (list (list 0 n) (list n 0) (list 0 (- n)) (list (- n) 0))
  ]
  ;set culture n-values 11 [random 2]
  ; edad de muerte
  set muerte 60 + random 40
  ; sexo if 1 = male, 0 = female
  set sexo random 2
  set edad 0
  set fertilidadc 12 + random 3
  ifelse sexo = 1
      [set fertilidadf 50 + random 10]
      [set fertilidadf 40 + random 10]
  run visualization
end

to setup-patches
let m matrix:from-row-list [[0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 2 2 2 2 2 2 2 2]
[0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2]
[0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2]
[0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2]
[0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2]
[0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 2 2 2 2 2 2 3 3 3 3 3 3 3 4 4 4 4 3 3 3 3 3 3 3 2 2]
[0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 2 2 2 2 2 3 3 3 3 3 3 4 4 4 4 4 4 4 4 3 3 3 3 3 3 2]
[0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 2 2 2 2 2 2 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 2]
[0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 2 2 2 2 2 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 3]
[0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3]
[0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3]
[0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3]
[0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3]
[0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 3]
[0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 2]
[0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 3 3 3 3 3 3 2]
[1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 4 4 4 4 3 3 3 3 3 3 3 2 2]
[1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2]
[1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2]
[1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2]
[1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2]
[1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2]
[1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1]
[1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 1]
[1 1 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 1 1]
[1 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1]
[1 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1]
[2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 1 1]
[2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 1 1 1]
[2 2 2 2 2 2 3 3 3 3 3 3 3 4 4 4 4 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1]
[2 2 2 2 2 3 3 3 3 3 3 4 4 4 4 4 4 4 4 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 1 0 0 0]
[2 2 2 2 2 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 3 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0]
[2 2 2 2 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 3 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0]
[2 2 2 2 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0]
[2 2 2 2 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0]
[2 2 2 2 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0]
[2 2 2 2 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 2 2 2 2 2 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0]
[2 2 2 2 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 3 2 2 2 2 2 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0]
[2 2 2 2 2 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 3 3 3 3 3 2 2 2 2 2 2 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0]
[2 2 2 2 2 3 3 3 3 3 3 4 4 4 4 4 4 4 4 3 3 3 3 3 3 2 2 2 2 2 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0]
[2 2 2 2 2 2 3 3 3 3 3 3 3 4 4 4 4 3 3 3 3 3 3 3 2 2 2 2 2 2 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0]
[2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0]
[2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0]
[1 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0]
[1 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0]
[1 1 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0]
[1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
[1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
[1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0]
[1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0]]
  let i 0
  let j 0
  ;let m1 matrix:transpose m
  ;; let row-i matrix:get-row m i ask patches with [pxcor = i and pycor = j]
  ;[set max-psugar item rowx row-i
  let rowx 49
  repeat 50 [ repeat 50
              [let row-i matrix:get-row m i ask patches with [pxcor = i and pycor = j]
                 [set max-psugar item rowx row-i
                ;ask patches with [pxcor = i and pycor = j] [set max-psugar item rowx (matrix:get-row m i)
                set psugar max-psugar
                patch-recolor
                ]
               set rowx rowx - 1
               set j j + 1
              ]
    set i i + 1
    set j 0
  set rowx 49]
end
;;
;; Runtime Procedures
;;

to go
  if not any? turtles [
    stop
  ]
  ask patches [
    patch-growback
    patch-recolor
  ]
  ask turtles [
    ;turtle-culture
    turtle-move
    turtle-eat
    if sugar <= 0
      [ die ]
    if edad = muerte
      [die]

    set edad edad + 1
    if (edad >= fertilidadc) and (edad <= fertilidadf) and (sugar >= dotacion)
        [sexear]
    run visualization
  ]
  tick
end

to parir [metaP visionP metaM visionM dotacionP dotacionM]
  hatch 1 [
     move-to patch-ahead 1
     set color green
     ifelse (random 2 = 0)
       [set metabolism metaM]
       [set metabolism metaP]
     ifelse (random 2 = 0)
       [set vision visionM]
       [set vision visionP]
     set vision-points []
     foreach (range 1 (vision + 1)) [ n ->
         set vision-points sentence vision-points (list (list 0 n) (list n 0) (list 0 (- n)) (list (- n) 0))
          ]
    ifelse (random 2 = 0)
      [set sexo 0]
      [set sexo 1]
    set muerte 60 + random 40
    set edad 0
    set fertilidadc 12 + random 3
    ifelse sexo = 1
      [set fertilidadf 50 + random 10]
      [set fertilidadf 40 + random 10]
    let sugarH (dotacionP / 2) + (dotacionM / 2)
    set sugar sugarH
    set dotacion sugar
  ]
end

to sexear

let sexoc sexo
let metaP metabolism
let visionP vision
let bnacio false
let dotacionP dotacion
let bvacio false
let metaM 0
let visionM 0
let dotacionM 0
let vecindario turtles-on neighbors4
if (count(vecindario) > 0)
  [ask vecindario [
     set metaM metabolism
     set visionM vision
     set dotacionM dotacion
     repeat 4
       [
       if (sexoc != sexo) and (edad >= fertilidadc) and (edad <= fertilidadf) and (sugar >= dotacion) and (not any? turtles-on patch-ahead 1)
         [
         parir metaP visionP metaM visionM dotacionP dotacionM
         set sugar sugar - (dotacionM / 2)
         set bNacio true
         ]
       set heading heading + 90
       ]
       ;si la pareja no tiene lugar fijarse si hay lugar en el llamador
    if (sexoc != sexo) and (edad >= fertilidadc) and (edad <= fertilidadf) and (sugar >= dotacion) and (bNacio = false)
      [set bvacio true
      ]
    ]
    if bvacio = true
      [repeat 4
        [if (not any? turtles-on patch-ahead 1)
          [parir metaP visionP metaM visionM dotacionP dotacionM
           set bNacio true
          ]
        set heading heading + 90
        ]
      ]
  ]
if bNacio = true
  [set sugar sugar - (dotacionP / 2)]
end
;to turtle-culture
;  let vecindario turtles-on neighbors4
;  ;; me fijo si hay alguna tortuga en su vecindario
;  if (count(vecindario) > 0)
;    [;; selecciono un tag cultural al azar
;     let rndvalue random 11
;     let culturetag item rndvalue culture
;     ask vecindario [let culturetagV item rndvalue culture
;                     if culturetag != culturetagV
;                        [set culture replace-item rndvalue culture culturetag]
;                    ]
;    ]
;end

to turtle-move ;; turtle procedure
  ;; consider moving to unoccupied patches in our vision, as well as staying at the current patch
  let move-candidates (patch-set patch-here (patches at-points vision-points) with [not any? turtles-here])
  let possible-winners move-candidates with-max [psugar]
  if any? possible-winners [
    ;; if there are any such patches move to one of the patches that is closest
    move-to min-one-of possible-winners [distance myself]
  ]
end

to turtle-eat ;; turtle procedure
  ;; metabolize some sugar, and eat all the sugar on the current patch
  set sugar (sugar - metabolism + psugar)
  set psugar 0
end

to patch-recolor ;; patch procedure
  ;; color patches based on the amount of sugar they have
  set pcolor (yellow + 4.9 - psugar)
end

to patch-growback ;; patch procedure
  ;; gradually grow back all of the sugar for the patch
  ;set psugar min (list max-psugar (psugar + 1))
  ;set psugar max-psugar
  if psugar < max-psugar
    [set psugar psugar + 1]
end

;;
;; Utilities
;;

to-report random-in-range [low high]
  report low + random (high - low + 1)
end

;;
;; Visualization Procedures
;;

to no-visualization ;; turtle procedure
  set color red
end

to color-agents-by-vision ;; turtle procedure
  set color red - (vision - 3.5)
end

to color-agents-by-metabolism ;; turtle procedure
  set color red + (metabolism - 2.5)
end

to color-agents-by-culture
  set color red
;  set culturecolor reduce + culture
;  ifelse culturecolor > 5
;    [set color red]
;    [set color blue]
;  ;[set color scale-color red culturecolor 0 10 ]
;    ;[set color scale-color blue culturecolor 0 10]
end

; Copyright 2009 Uri Wilensky.
; See Info tab for full copyright and license.

There is only one version of this model, created about 1 year ago by Diego Díaz Córdova.
