Sunny-CloudResourcesManagement

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;             ____                                                           ;;
;;            / ___| _   _ _ __  _ __  _   _                                  ;;
;;            \___ \| | | | '_ \| '_ \| | | |                                 ;;
;;             ___) | |_| | | | | | | | |_| |                                 ;;
;;            |____/ \__,_|_| |_|_| |_|\__, |                                 ;;
;;                                     |___/    v0.01 (pre-alpha)             ;;
;;                                                            Dapeng Dong     ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;
extensions [ py ]

globals
[

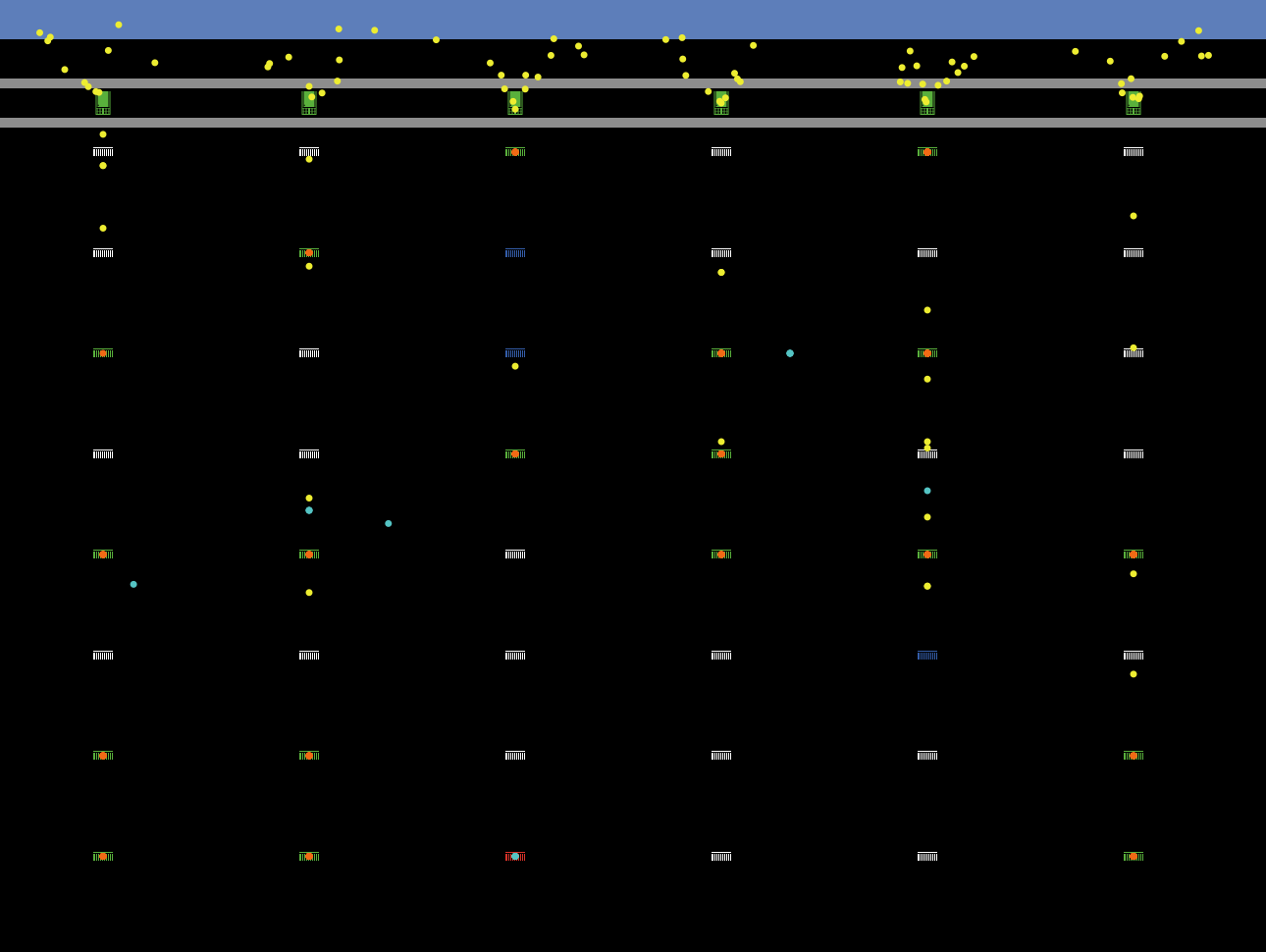

  ;;--Layout Related----------------------------------------------------------;;
  ;; The height for the service submission zone in the world.
  ;; DEFAULT: [4] patches
  service-submission-zone-height

  ;; The height for placing the SCHEDULER nodes in the world.
  ;; DEFAULT: [3] patches
  svr-scheduler-placement-zone-height

  ;; The height for the delay zone between the 'application submission zone'
  ;; and the 'scheduler zone'. This zone is used for adding some random
  ;; factors to the submission of services. When services are created
  ;; in the 'service submission zone', each of which will be assigned with a
  ;; default moving speed. This creates an effect that services will not
  ;; arrive at scheduler nodes at the same time.
  ;; DEFAULT: [4] patches
  service-submission-delay-zone-height

  ;; The default width of separation line in the world.
  ;; DEFAULT: [1] patches
  def-sepa-line-width

  ;; The height for the gap between different types of objects.
  ;; DEFAULT: [1] patches
  def-gap-width

  ;; Used for tracing the object placement coordinates.
  current-top-cord
  current-bottom-cord

  show-label-on?
  show-model-on?
  show-trace-on?


  ;;--Service Related--------------------------------------------------------;;
  sys-services-left

  service-method-container-delay ;; 3 seconds
  service-method-vm-delay ;; 10 seconds

  service-lifetime-max
  service-lifetime-min

  service-mem-access-ratio-beta-alpha
  service-mem-access-ratio-beta-beta

  service-cpu-usage-dist-random?
  service-cpu-usage-dist-beta-alpha
  service-cpu-usage-dist-beta-beta

  service-mem-usage-dist-random?
  service-mem-usage-dist-beta-alpha
  service-mem-usage-dist-beta-beta

  service-net-usage-dist-random?
  service-net-usage-dist-beta-alpha
  service-net-usage-dist-beta-beta

  ;;--Server Related--------------------------------------------------------;;
  server-standby-factor
  server-boot-delay

  server-cpu-underutil-threshold
  server-cpu-overutil-threshold

  server-mem-underutil-threshold
  server-mem-overutil-threshold

  server-net-underutil-threshold
  server-net-overutil-threshold

  ;;--System Related--------------------------------------------------------;;
  sys-service-rejection-counter
  sys-service-reschedule-counter
  sys-migration-event-due-to-consolidation
  sys-migration-event-due-to-auto-migration
  sys-migration-event-due-to-consolidation-total
  sys-migration-event-due-to-auto-migration-total

  sys-service-ops-sla-vio
  sys-service-mem-sla-vio
  sys-service-net-sla-vio

  sys-service-lifetime-total

  sys-power-consumption-total

  sys-migration-base-speed

  sys-random-seed
]

;;============================================================================;;
;;--Agents--------------------------------------------------------------------;;
;; IMPORTANT: the order determines the display layer of the breeds. For
;; example, if a 'server' agent overlaps with a 'service' agent, the 'service'
;; agent will be displayed on top of the 'server', vice versa, the 'service'
;; will be covered by the 'server'.
;; P.S., took me a while to figure it out!
breed                 [ servers    server    ]
breed                 [ schedulers scheduler ]
breed                 [ services   service   ]
;;----------------------------------------------------------------------------;;
services-own
[
  id
  host
  ops-cnf
  mem-cnf
  net-cnf

  ops-now
  mem-now
  net-now

  ops-prev
  mem-prev
  net-prev

  ops-sla
  mem-sla
  net-sla

  ops-hist
  mem-hist
  net-hist

  method
  life-time
  access-ratio
  moving-speed

  migr-dest
  status

  delay-counter
  attempt
]

servers-own
[
  id
  rack
  model
  status

  ops-phy
  mem-phy
  net-phy

  ops-now
  mem-now
  net-now

  ops-rsv
  mem-rsv
  net-rsv

  migr-indicator

  ops-hist
  mem-hist
  net-hist

  power
  base-power
]

schedulers-own
[
  id
  capacity
  ops-hist
  mem-hist
  net-hist
]

;;----------------------------------------------------------------------------;;

to setup
  clear-all
  py:setup py:python
  (py:run
    "import numpy as np"
  )

  ifelse rand-seed <= 0
  [
    set sys-random-seed new-seed
    random-seed sys-random-seed
    py:set "simu_seed" abs(sys-random-seed)
  ]
  [
    random-seed rand-seed
    py:set "simu_seed" abs(rand-seed)
  ]

  py:run "np.random.seed(simu_seed)"


  ;;--Layout Related----------------------------------------------------------;;
  set service-submission-zone-height 4
  set svr-scheduler-placement-zone-height 4
  set service-submission-delay-zone-height 3
  set def-sepa-line-width 1
  set def-gap-width 1
  set current-top-cord max-pycor
  set current-bottom-cord min-pycor
  set show-label-on? false
  set show-model-on? false
  set show-trace-on? false

  ;;--Service Related---------------------------------------------------------;;
  set service-method-container-delay 3 ;; 3 seconds
  set service-method-vm-delay 10;; 10 seconds

  set service-lifetime-max max (read-from-string service-lifetime)
  set service-lifetime-min min (read-from-string service-lifetime)

  py:set "service_mem_access_ratio_beta_alpha" (first (read-from-string mem-access-ratio))
  py:set "service_mem_access_ratio_beta_beta"  (last  (read-from-string mem-access-ratio))


  ifelse (first (read-from-string cpu-usage-dist)) != 0 or (last (read-from-string cpu-usage-dist)) = 0
  [
    set service-cpu-usage-dist-random? true
    py:set "service_cpu_usage_dist_beta_alpha" (first (read-from-string cpu-usage-dist))
    py:set "service_cpu_usage_dist_beta_beta"  (last  (read-from-string cpu-usage-dist))
  ]
  [ set service-cpu-usage-dist-random? false ]


  ifelse (first (read-from-string mem-usage-dist)) != 0 or (last (read-from-string mem-usage-dist)) != 0
  [
    set service-mem-usage-dist-random? true
    py:set "service_mem_usage_dist_beta_alpha" (first (read-from-string mem-usage-dist))
    py:set "service_mem_usage_dist_beta_beta"  (last  (read-from-string mem-usage-dist))
  ]
  [ set service-mem-usage-dist-random? false ]


  ifelse (first (read-from-string net-usage-dist)) != 0 and (last (read-from-string net-usage-dist)) != 0
  [
    set service-net-usage-dist-random? false
    py:set "service_net_usage_dist_beta_alpha" (first (read-from-string net-usage-dist))
    py:set "service_net_usage_dist_beta_beta"  (last  (read-from-string net-usage-dist))
  ]
  [ set service-net-usage-dist-random? true  ]


  ;;--Server Related----------------------------------------------------------;;
  set server-boot-delay 30 ;; Server boot takes 30 seconds.

  set server-cpu-overutil-threshold ((max (read-from-string server-cpu-utilisation-threshold)) / 100)
  set server-cpu-underutil-threshold ((min (read-from-string server-cpu-utilisation-threshold)) / 100)

  set server-mem-overutil-threshold ((max (read-from-string server-mem-utilisation-threshold)) / 100)
  set server-mem-underutil-threshold ((min (read-from-string server-mem-utilisation-threshold)) / 100)

  set server-net-overutil-threshold ((max (read-from-string server-net-utilisation-threshold)) / 100)
  set server-net-underutil-threshold ((min (read-from-string server-net-utilisation-threshold)) / 100)


  (ifelse
    server-standby-strategy = "adaptive" [ set server-standby-factor 2   ]
    server-standby-strategy = "all-off"  [ set server-standby-factor 0   ]
    server-standby-strategy = "all-on"   [ set server-standby-factor 1   ]
    server-standby-strategy = "10% on"   [ set server-standby-factor 0.1 ]
    server-standby-strategy = "20% on"   [ set server-standby-factor 0.2 ]
    server-standby-strategy = "30% on"   [ set server-standby-factor 0.3 ]
    server-standby-strategy = "40% on"   [ set server-standby-factor 0.4 ]
    server-standby-strategy = "50% on"   [ set server-standby-factor 0.5 ]
  )
  ;;--System Related----------------------------------------------------------;;
  set sys-service-rejection-counter 0
  set sys-service-reschedule-counter 0
  set sys-migration-base-speed 0.5

  initialise-datacentre

  if total-services < service-generation-speed [ set service-generation-speed total-services ]
  generate-client-services service-generation-speed
  set sys-services-left total-services - service-generation-speed

  reset-ticks
end

to go
  tick

  ;; Track how many client services are in the service pool. To maintain the
  ;; concurrency value of the service submission events, i.e., keeping the
  ;; number of services at the value specified by 'service-generation-speed'
  ;; services need to be continuously added to the service pool until all the
  ;; services are submitted.
  if sys-services-left > 0
  [
    let services-in-the-pool count services-on patches with [pcolor = blue + 1]
    if sys-services-left > 0 and services-in-the-pool < service-generation-speed
    [
      let more-services (service-generation-speed - services-in-the-pool)
      if more-services > sys-services-left [ set more-services sys-services-left ]
      generate-client-services more-services
      set sys-services-left (sys-services-left - more-services)
    ]
  ]

  ;; Ask all the services to perform their routines.
  update-services-status

  ;; Schedule services to run on servers.
  update-scheduler-status

  ;; Server status will be updated on every tick of the simulation.
  update-servers-status

  ;; Consolidation will only be started when
  ;;   1. at least, two servers are busy,
  ;;   2. the scheduled interval ('consolidation-interval') is reached, and
  ;;   3. the 'consolidation?' switch is enabled.
  if (count servers with [status = "ON" or status = "READY" or status = "OVERLOAD"]) > 1 and
  (ticks mod consolidation-interval) = 0 and consolidation?
  [ consolidate-servers ]

  if not any? services
  [
    ask servers [ set status "OFF" set color white set power 0 reset-server self ]
    print-summary
    stop
  ]
end


;;
;;
;;============================================================================;;
;; During the execution of the simulation, services' status are updated on a
;; per 'tick' basis. On each update (tick), lifetime of the services will be
;; reduced by 1. At the same time, the resource usage of each service will
;; also be updated (the distribution on the resource usage is either a
;; Gaussian or a Beta distribution).
;; In principle, each update of the resource usage should be in the range
;; [0, ops/mem/net-cnf], i.e., it can't exceed the resources initially
;; configured (ops/mem/net-cnf) at the deployment time of the service,
;; neither a service could consume negative resources. However, it can become
;; complicated when multiple services are being deployed on the same server
;; at different times. For example, when Service-1 was 'SCHEDULED' to run
;; on Server-1 at Time-1, the required resources of Service-1 would first be
;; reserved on Server-1. When Service-1 arrived at Server-1, its resource
;; usage would be updated and, more importantly, the updated resource usage
;; would very likely be smaller than the initially configured resources.
;; If at Time-2 (e.g., after Service-1 had already started running on
;; Server-1), there was another service, Service-2, scheduled to run on the
;; same server, Server-1, then during the scheduling process (done by the
;; scheduler), it must be ensured that the Server-1 has sufficient resources
;; for the deployment of Service-2, more specifically, this is determined by
;; the condition:
;; (currently occupied resources of Server-1 + currently reserved resources of
;; Server-1 + the configured resources of Service-2) is greater or equal to
;; (the physically installed resources of Server-1).
;; In this equation, the 'currently occupied resources of Server-1' varies
;; from time to time. In this very specific example, it would be the current
;; resource usage of Service-1. If we further assume that 1) the total physical
;; memory of Server-1 is 2GB, 2) the current updated memory resource usage of
;; Service-1 is only a half of its requested memory (e.g., mem = 0.5,
;; mem-cnf = 1), and 3) the requested memory of Service-2 is 1.5GB. Based on
;; the information assumed above, Server-1 would be  eligible for the
;; deployment of Service-2. When Service-2 was started running on Server-1,
;; both services would update their resource usage at the same time. Thus, it
;; is possible when, at Time-3, both services had updated their memory
;; resource usage to 1GB (Service-1) and 1.2GB (Service-2), respectively.
;; However, the total required memory, at this moment, had exceed the physical
;; memory capacity of Server-1. If this happened, the performance of
;; both the services would be degenerate. To compensate, both Service-1/2's
;; lifetime needed be ;; extended (i.e., requires more time to complete their
;; tasks). The aforementioned phenomenon will occur more frequently after
;; server consolidation is performed.
;;--PARAMETERS----------------------------------------------------------------;;
;;  None
;;============================================================================;;

to update-services-status
  ask services
  [
    ;; When a service reaches the end of its lifetime, or it has been
    ;; rejected three times, it dies.
    if life-time <= 0 [ die ]
    if attempt > 2
    [
      set sys-service-rejection-counter sys-service-rejection-counter + 1
      die
    ]

    ;; Update the visual movement of the service during submission, scheduling
    ;; and migration processes.
    (ifelse
      ;; When the service is on its way to the designated scheduler.
      status = "OFFLINE"
      [ ;; check if it has arrived at the scheduler
        ifelse distance-nowrap scheduler host > 0.5
        [ face-nowrap scheduler host fd moving-speed ]
        [ ;; if arrived, change its status to "SUBMITTED". When a scheduler
          ;; sees a service with "SUBMITTED" status, the scheduler will
          ;; find a suitable server for the service.
          move-to scheduler host
          set status "SUBMITTED"
          set moving-speed 0
        ]
      ]

      ;; If a scheduler sees a service with a status of 'SUBMITTED',
      ;; the scheduler will find a suitable server for the deployment of the
      ;; service, and the status of the service is then changed to 'SCHEDULED'.
      ;; The service then moves toward the server.
      status = "SCHEDULED"
      [
        ifelse distance-nowrap server host > 0.5
        [ face-nowrap server host fd moving-speed ]
        [ ;; if the service has arrived at the designated server,
          ;; its status will be changed to "DEPLOYED".
          move-to server host
          set status "DEPLOYED"
          set color orange
          set moving-speed 0
        ]
      ]

      ;; If a server is thought to be under- or over-utilised, all or some of
      ;; the running services will be migrated to other servers.
      status = "MIGRATING"
      [
        ifelse display-migration-movement?
        [
          ifelse distance-nowrap server migr-dest > 0.5
          [ face-nowrap server migr-dest fd moving-speed ]
          [
            move-to server migr-dest
            ask server host [ set migr-indicator migr-indicator - 1 ]
            set host migr-dest
            set migr-dest -1
            set status "DEPLOYED"
            set color orange
            set moving-speed 0
          ]
        ]
        [
          move-to server migr-dest
          ask server host [ set migr-indicator migr-indicator - 1 ]
          set host migr-dest
          set migr-dest -1
          set status "DEPLOYED"
          set color orange
          set moving-speed 0
        ]
      ]
    )

    ;; When a server receives a service, the server will change the status
    ;; of the service to "RUNNING".
    ;; Update the service status and resource usages if they are 'RUNNING'.
    ;; Note that resource usage freezes during migration.
    if status = "RUNNING"
    [
      ;; The lifetime of the application. It decreases on a per-tick basis.
      set life-time life-time - 1

      ;; During the runtime of the service, the runtime resources used may be
      ;; lower than the 'configured', but it should not be more than the
      ;; configured resource. The resource update follows either a random or a
      ;; beta distribution.
      let res-req-now 0
      ifelse service-cpu-usage-dist-random?
      [ set res-req-now (py:runresult "np.random.rand()" * ops-cnf) ]
      [ set res-req-now (py:runresult "np.random.beta(service_cpu_usage_dist_beta_alpha, service_cpu_usage_dist_beta_beta)" * ops-cnf) ]
      set ops-prev ops-now
      set ops-now round res-req-now

      ifelse service-mem-usage-dist-random?
      [ set res-req-now (py:runresult "np.random.rand()" * mem-cnf) ]
      [ set res-req-now (py:runresult "np.random.beta(service_mem_usage_dist_beta_alpha, service_mem_usage_dist_beta_beta)" * mem-cnf) ]
      set mem-prev mem-now
      set mem-now round res-req-now

      ifelse service-net-usage-dist-random?
      [ set res-req-now (py:runresult "np.random.rand()" * net-cnf) ]
      [ set res-req-now (py:runresult "np.random.beta(service_net_usage_dist_beta_alpha, service_net_usage_dist_beta_beta)" * net-cnf) ]
      set net-prev net-now
      set net-now round res-req-now

      set ops-hist fput ops-now ops-hist
      set mem-hist fput mem-now mem-hist
      set net-hist fput net-now net-hist
      if (length ops-hist) > service-history-length
      [ ;; circular list, expensive operations
        set ops-hist remove-item service-history-length ops-hist
        set mem-hist remove-item service-history-length mem-hist
        set net-hist remove-item service-history-length net-hist
      ]
    ]
  ]
end
;;
;;

;;============================================================================;;
;; Servers' status is updated every 'tick'. When calculating servers' status
;; only the 'ops/mem/net-now' are used. Note that the 'ops/mem/net-rsv'
;; are not actually consumed resources, but reserved.
;;--PARAMETERS----------------------------------------------------------------;;
;;  none
;;============================================================================;;

to update-servers-status
  ;; Clear the reserved resources for new services that are about running on
  ;; the server.
  ask servers
  [
    let newly-arrived-services services-here with [status = "DEPLOYED"]
    if count newly-arrived-services > 0
    [
      set ops-rsv ops-rsv - (sum [ops-cnf] of newly-arrived-services)
      set mem-rsv mem-rsv - (sum [mem-cnf] of newly-arrived-services)
      set net-rsv net-rsv - (sum [net-cnf] of newly-arrived-services)
      ask newly-arrived-services [ set status "RUNNING" ]
    ]

    ;; Update the available resources of the server based on the current
    ;; resource usage of the running services. If the requested resources
    ;; are greater than the physical resources installed on the server,
    ;; a violation of SLA will be recorded and the 'ops/mem/net-now' will
    ;; be capped at the maximum of the physical resources installed, i.e.,
    ;; 'ops/mem/net-phy'. In addition, services requesting for resources
    ;; that can't be allocated will be penalised by extending their
    ;; life-time. This will be accumulated from the calculations of all
    ;; types of resources.
    let running-services services-here with [ status = "RUNNING" ]
    ifelse (count running-services) > 0
    [ ;; For ops shortage
      let sum-val sum ([ops-now] of running-services)
      let diff (sum-val + ops-rsv - ops-phy)
      ifelse diff > 0
      [
        set ops-now (ops-phy - ops-rsv)
        let res-diff []
        let res-min 999999999
        ask running-services
        [
          let service-res-diff (ops-now - ops-prev)
          if res-min > service-res-diff [ set res-min service-res-diff ]
          set res-diff lput (list who service-res-diff) res-diff
        ]

        let res-diff-scale apply-penalty res-diff (diff / ops-phy) ((abs res-min) + 10)
        foreach res-diff-scale
        [
          x -> ask service (first x)
          [
            set ops-sla (last x)
            set life-time life-time + ops-sla
            set sys-service-ops-sla-vio sys-service-ops-sla-vio + ops-sla
          ]
        ]
      ]
      [
        set ops-now sum-val
      ]

      ;; For mem shortage
      set sum-val sum [mem-now] of running-services
      set diff (sum-val + mem-rsv - mem-phy)
      ifelse diff > 0
      [
        set mem-now (mem-phy - mem-rsv)
        let res-diff []
        let res-min 999999999
        ask running-services
        [
          let service-res-diff (mem-now - mem-prev)
          if res-min > service-res-diff [ set res-min service-res-diff ]
          set res-diff lput (list who service-res-diff) res-diff
        ]

        let res-diff-scale apply-penalty res-diff (diff / net-phy) ((abs res-min) + 10)
        foreach res-diff-scale
        [
          x -> ask service (first x)
          [
            set mem-sla (last x)
            set life-time life-time + mem-sla
            set sys-service-mem-sla-vio sys-service-mem-sla-vio + mem-sla
          ]
        ]
      ]
      [
        set mem-now sum-val
      ]

      ;; For net shortage
      set sum-val sum [net-now] of running-services
      set diff (sum-val + net-rsv - net-phy)
      ifelse diff > 0
      [
        set net-now (net-phy - net-rsv)
        let res-diff []
        let res-min 999999999
        ask running-services
        [
          let service-res-diff (net-now - net-prev)
          if res-min > service-res-diff [ set res-min service-res-diff ]
          set res-diff lput (list who service-res-diff) res-diff
        ]

        let res-diff-scale apply-penalty res-diff (diff / net-phy) ((abs res-min) + 10)
        foreach res-diff-scale
        [
          x -> ask service (first x)
          [
            set net-sla (last x)
            set life-time life-time + net-sla
             set sys-service-net-sla-vio sys-service-net-sla-vio + net-sla
          ]
        ]
      ]
      [
        set net-now sum-val
      ]
    ]
    [
      set ops-now 0
      set mem-now 0
      set net-now 0
    ]

    ;; Update server status indicator
    (ifelse
      (ops-now / ops-phy) > server-cpu-overutil-threshold or
      (mem-now / mem-phy) > server-mem-overutil-threshold or
      (net-now / net-phy) > server-net-overutil-threshold
      [ set status "OVERLOAD" set color red ]

      ops-now > 0 or mem-now > 0 or net-now > 0
      [ set status "ON" set color green ]

      (ops-now + ops-rsv) = 0 and
      (mem-now + mem-rsv) = 0 and
      (net-now + net-rsv) = 0 and
      (status = "ON" or status = "OVERLOAD")
      [ set status "IDLE" set color blue ]
    )

    (ifelse
      status = "REPAIR" [ set color grey  reset-server self set power 0 set migr-indicator 0 ]
      status = "OFF"    [ set color white reset-server self set power 0 set migr-indicator 0 ]
    )

    if status != "OFF" and status != "REPAIR"
    [
      (ifelse
        power-model-method = "stepwise simple linear regression"
        [ set power calc-power-consumption-stepwise ops-now  model ]
        power-model-method = "simple linear regression"
        [ set power calc-power-consumption-simple ops-now  model ]
        power-model-method = "quadratic polynomial"
        [ set power calc-power-consumption-quadratic ops-now  model ]
        power-model-method = "cubic polynomial"
        [ set power calc-power-consumption-cubic ops-now  model ]
      )
      set sys-power-consumption-total sys-power-consumption-total + power
    ]

    if auto-migration? and status = "OVERLOAD" [ migrate-services self ]
  ]
end
;;
;;
;;============================================================================;;
;; Generate applications and initialise their status.
;;--PARAMETERS------------------------------------------------------------------
;;  'amount': the number of applications to be generated.
;;============================================================================;;

to generate-client-services [ amount ]
  ask n-of amount patches with [ pcolor = blue + 1 ]
  [
    sprout-services 1
    [
      set shape "circle"
      set color yellow
      set size 0.7

      ;; Each client service has a different lifetime.
      set life-time random (service-lifetime-max - service-lifetime-min) + service-lifetime-min
      set sys-service-lifetime-total sys-service-lifetime-total + life-time
      ;; Allowing client services to have different configurations. If this
      ;; is not needed, use one value in the following lists.
      set ops-cnf one-of (list 25000 50000 100000 150000 200000);; ssj-ops
      set mem-cnf one-of (list 512 1024 2048 4096 8192 16384) ;; MB
      set net-cnf one-of (list 1 2 5 10 20 50 100 200)             ;; Mbps

      ;; The 'method' specifies the deployment method for the application.
      ;; It can be 'VM' (VIRTUAL-MACHINE), 'CT' (CONTAINER) or
      ;; 'BM' (BARE-METAL). A different deployment method has a different
      ;; deployment delay associated with.
      set method one-of (list "BM" "VM" "CT")

      ;; When a service has just started running, it is assumed that the
      ;; service will consume the same amount of resources to the
      ;; requested resources.
      set ops-now ops-cnf
      set mem-now mem-cnf
      set net-now net-cnf

      set ops-hist []
      set ops-hist fput ops-cnf ops-hist
      set mem-hist []
      set mem-hist fput mem-cnf mem-hist
      set net-hist []
      set net-hist fput net-cnf net-hist

      ;; The memory access ratio (aka, memory dirtying rate) determines how
      ;; busy the system memory is being accessed, i.e., the amount of system
      ;; memory that is frequently accessed. This will affect the efficiency of
      ;; service live migration.
      set access-ratio py:runresult "np.random.beta(service_mem_access_ratio_beta_alpha, service_mem_access_ratio_beta_beta)"

      ;; The strategies for sending an application to a scheduler node.
      ;; Strategy 1: send a service to its closest scheduler node.
      ;; Strategy 2: send a service to a rack on which the requested resources
      ;; match the resource usage pattern of the servers on the rack. If the
      ;; datacentre contains homogeneous servers, the pattern will be
      ;; calculated based on currently available resources on the rack
      ;; (aggregated).
      (ifelse
        service-submission-strategy = "closest"
        [ set host [who] of (min-one-of schedulers [distance myself]) ]
        service-submission-strategy = "resource pattern matching"
        [ set host (calc-resource-pattern self) ]
      )

      ;; Calculate the initial moving speed from the application pool to
      ;; the designated scheduler node.
      set moving-speed (random-float 0.6) + 0.05

      set migr-dest -1
      set status "OFFLINE"

      set attempt 0
      set delay-counter 0
    ]
  ]
end
;;
;;
;;############################################################################;;
;; START: Scheduler Related
;;############################################################################;;
;;
;;============================================================================;;
;; Update scheduler
;;--PARAMETERS----------------------------------------------------------------;;
;;  none
;;============================================================================;;

to update-scheduler-status
  ask schedulers
  [
    ;; The history of total resource requests from the rack is recorded.
    ;; This information is used for the server standby strategy.
    ;;update-rack-resource-request-history

    ;; Apply the server standby strategy selected from the global variable
    ;; 'server-standy-strategy'.
    apply-server-standby-strategy (servers with [rack = [id] of myself])

    ;; Initial service placement
    let submitted-services services-here with [status = "SUBMITTED"]
    if (count submitted-services) > 0
    [
      let the-server-set servers with [ rack = [id] of myself ]
      ask submitted-services
      [
        let candidate find-server the-server-set self
        ifelse candidate != nobody
        [
          set host ([who] of candidate)
          set status "SCHEDULED"
          set moving-speed ((distance-nowrap candidate) / 8)
          (ifelse
            method = "CT" [ set delay-counter (delay-counter + (service-method-container-delay / simulation-time-unit)) ]
            method = "VM" [ set delay-counter (delay-counter + (service-method-vm-delay / simulation-time-unit)) ]
          )
          if ([status] of candidate) = "OFF"
          [ ask candidate [ set delay-counter (delay-counter + (server-boot-delay / simulation-time-unit)) ] ]
        ]
        [ resubmit-service self ]
      ]
    ]
  ]
end
;;
;;
;;============================================================================;;
;; Each scheduler is responsible for controlling a number of servers and some
;; of them will be configured in standby mode. When a server is in a standby
;; mode, it will be switched on and its status will be set to 'IDLE'. The
;; rationale behind the use of a standby strategy is that switching a server
;; from 'OFF' to 'ON' will incur a delay by the booting process. To avoid
;; such a delay and to improve user experience, each rack should maintain a
;; number of 'IDLE' servers, which are ready for service deployment. On the
;; other hand, although servers are in the 'IDLE' mode, they still consume
;; electricity. This somehow needs to be balanced between power consumption
;; and system response time.
;;--PARAMETERS----------------------------------------------------------------;;
;; 'the-servers':
;; The list of servers belongs to the same rack.
;;============================================================================;;

to apply-server-standby-strategy [ the-servers ]
  (ifelse
    server-standby-factor = 1
    [ ask the-servers with [status = "OFF"] [ set status "IDLE" ] ]
    server-standby-factor = 0
    [ ask the-servers with [status = "IDLE"] [ set status "OFF" ] ]
    server-standby-factor < 1.5
    [
      let num-off-svrs count (the-servers with [status = "OFF"])
      let should-be-idle round (server-standby-factor * rack-space)
      let are-idle count (the-servers with [status = "IDLE"])
      let diff should-be-idle - are-idle

      (ifelse
        diff > 0
        [
          ask up-to-n-of diff the-servers with [status = "OFF"]
          [ set status "IDLE" set color blue reset-server self]
        ]
        diff < 0
        [
          ask up-to-n-of (abs diff) the-servers with [status = "IDLE"]
          [ set status "OFF" set color white set power 0 reset-server self]
        ]
      )
    ]
    [

    ]
  )
end
;;
;;
;;============================================================================;;
;; If no suitable servers found, resubmit the service, i.e., send it back to
;; the service pool in a random place and the global counter
;; 'sys-service-reschedule-counter ' will be incremented by 1.
;;--PARAMETERS----------------------------------------------------------------;;
;;  none
;;============================================================================;;

to resubmit-service [ the-service ]
  ask the-service
  [
    move-to one-of patches with [ pcolor = blue + 1 ]
    set attempt attempt + 1
    set sys-service-reschedule-counter sys-service-reschedule-counter + 1
    set status "OFFLINE"

    (ifelse
      service-submission-strategy = "closest"
      [ set host [who] of (min-one-of schedulers [distance myself]) ]
      service-submission-strategy = "resource pattern matching"
      [ set host (calc-resource-pattern self) ]
    )

    set moving-speed ((distance-nowrap scheduler host) / 8)
    set color yellow - attempt
    set label attempt
  ]
end
;;
;;
;;############################################################################;;
;; END: Scheduler Related
;;############################################################################;;
;;
;;
;;############################################################################;;
;; START: Placement Algorithms
;;############################################################################;;
;;
;;============================================================================;;
;; Find a server depending on the evaluation stage selected.
;;--PARAMETERS----------------------------------------------------------------;;
;; 'the-server-set'
;; 'the-service'
;;============================================================================;;

to-report find-server [ the-server-set the-service ]
  (ifelse
    evaluation-stage = "1" [ report (one-stage-placement   the-server-set the-service) ]
    evaluation-stage = "2" [ report (two-stage-placement   the-server-set the-service) ]
    evaluation-stage = "3" [ report (three-stage-placement the-server-set the-service) ]
    [ report nobody ]
  )
end
;;
;;

to-report one-stage-placement [ the-server-set the-service ]
  let server-set the-server-set with [who != ([host] of the-service) and status != "REPAIR"]
  let candidate find-candidate server-set the-service

  ifelse candidate != nobody
  [
    reserve-server-resources candidate the-service
    report candidate
  ]
  [ report nobody ]
end
;;
;;
;;============================================================================;;
;; When a service has arrived at a scheduler, the scheduler will first try
;; with active servers, i.e., the servers in 'ON' or 'READY' or 'IDLE'
;; mode. It will randomly select a server from the list of active servers with
;; sufficient resources for the deployment of the servoce. If there is no
;; suitable server found, the scheduler will try with the 'OFF' servers.
;; The two-step process will improve overall server utilisation.
;;--PARAMETERS----------------------------------------------------------------;;
;; 'the-server-set'
;; 'the-service'
;;============================================================================;;

to-report two-stage-placement [ the-server-set the-service ]
  let server-set the-server-set with
  [ who != ([host] of the-service) and (status = "ON" or status = "READY" or status = "IDLE") ]
  let candidate find-candidate server-set the-service

  ifelse candidate != nobody
  [
    reserve-server-resources candidate the-service
    report candidate
  ]
  [
    set server-set the-server-set with
    [ who != ([host] of the-service) and status = "OFF" ]
    set candidate find-candidate server-set the-service

    ifelse candidate != nobody
    [
      reserve-server-resources candidate the-service
      report candidate
    ]
    [ report nobody ]
  ]
end
;;
;;
;;============================================================================;;
;; When a service has arrived at a scheduler, the scheduler will first try
;; try with busy servers, i.e., the servers are in 'ON' or 'READY' mode. It
;; will then randomly select a server from the busy servers with sufficient
;; resources for the deployment of the service. If there is no suitable
;; server can be found, the scheduler will try with the 'IDLE' servers, if
;; still unsuccessful, it will try with the 'OFF' servers.
;;--PARAMETERS----------------------------------------------------------------;;
;; 'the-server-set'
;; 'the-service'
;;============================================================================;;

to-report three-stage-placement [ the-server-set the-service ]
  let server-set the-server-set with
  [ who != ([host] of the-service) and (status = "ON" or status = "READY") ]
  let candidate find-candidate server-set the-service

  ifelse candidate != nobody
  [
    reserve-server-resources candidate the-service
    report candidate
  ]
  [
    set server-set the-server-set with
    [ who != ([host] of the-service) and status = "IDLE" ]
    set candidate find-candidate server-set the-service

    ifelse candidate != nobody
    [
      reserve-server-resources candidate the-service
      report candidate
    ]
    [
      set server-set the-server-set with
      [ who != ([host] of the-service) and status = "OFF" ]
      set candidate find-candidate server-set the-service

      ifelse candidate != nobody
      [
        reserve-server-resources candidate the-service
        report candidate
      ]
      [ report nobody ]
    ]
  ]
end
;;
;;
;;============================================================================;;
;; From the given server set, find a suitable server for the service
;; deployment based on the placement algorithm selected.
;;--PARAMETERS----------------------------------------------------------------;;
;; 'the-server-set'
;; 'the-service'
;;============================================================================;;

to-report find-candidate [ the-server-set the-service ]
  let candidate nobody
  (ifelse
    service-placement-algorithm = "random"
    [ set candidate find-random-server the-server-set the-service ]
    service-placement-algorithm = "first-fit"
    [ set candidate find-first-fit-server the-server-set the-service ]
    service-placement-algorithm = "balanced-fit"
    [ set candidate find-balanced-fit-server the-server-set the-service ]
    service-placement-algorithm = "max-utilisation"
    [ set candidate find-max-utilisation-server the-server-set the-service ]
    service-placement-algorithm = "min-power"
    [ set candidate find-min-power-server the-server-set the-service ]
  )

  report candidate
end
;;
;;
;;============================================================================;;
;; When an application has arrived at a rack-head, the rack-head will randomly
;; select a server from its rack, as long as the server has sufficient
;; resources for the deployment of the application.
;; The algorithm disregards the status of servers. It is not recommended but
;; only used for a simple comparison with other algorithms.
;;--PARAMETERS----------------------------------------------------------------;;
;;  'the-server-set'
;;  'the-service'
;;============================================================================;;

to-report find-random-server [ the-server-set the-service ]
  let candidate one-of the-server-set with
  [
    who != [host] of the-service and
    ((ops-now + ops-rsv + ([ops-cnf] of the-service)) / ops-phy) < server-cpu-overutil-threshold and
    ((mem-now + mem-rsv + ([mem-cnf] of the-service)) / mem-phy) < server-mem-overutil-threshold and
    ((net-now + net-rsv + ([net-cnf] of the-service)) / net-phy) < server-net-overutil-threshold
  ]

  report candidate
end
;;
;;
;;============================================================================;;
;; When a service has arrived at a scheduler, the scheduler will firstly
;; sort all servers based on their Agent ID in an ascending order, then search
;; for a suitable server in the sored list in order. The same process repeats
;; for all the services and the search order is always from the smallest Agent
;; ID to the largest Agent ID, regardless of the status of servers.
;;--PARAMETERS----------------------------------------------------------------;;
;;  'the-server-set'
;;  'the-service'
;;============================================================================;;

to-report find-first-fit-server [ the-server-set the-service ]
  let candidates the-server-set with
  [
    who != [host] of the-service and
    ((ops-now + ops-rsv + ([ops-cnf] of the-service)) / ops-phy) < server-cpu-overutil-threshold and
    ((mem-now + mem-rsv + ([mem-cnf] of the-service)) / mem-phy) < server-mem-overutil-threshold and
    ((net-now + net-rsv + ([net-cnf] of the-service)) / net-phy) < server-net-overutil-threshold
  ]

  report (min-one-of candidates [ who ])
end
;;
;;
;;============================================================================;;
;; The objective of the algorithm is to find a suitable server for
;; 'the-service', so that the placement of the service will results in a
;; balanced resources across all types (CPU/MEM/NET) on the server.
;; As a greedy algorithm, it will not guarantee a global optimal
;; solution, however, the activities in a datacentre changes overtime, finding
;; a global optimal solution for NOW in such a dynamic system, will not ensure
;; the solution will still be optimal LATER, thus such a greedy algorithm is
;; preferred.
;;--PARAMETERS----------------------------------------------------------------;;
;;  'the-server-set'
;;  'the-service'
;;============================================================================;;

to-report find-balanced-fit-server [ the-server-set the-service ]
  let candidates the-server-set with
  [
    who != [host] of the-service and
    ((ops-now + ops-rsv + ([ops-cnf] of the-service)) / ops-phy) < server-cpu-overutil-threshold and
    ((mem-now + mem-rsv + ([mem-cnf] of the-service)) / mem-phy) < server-mem-overutil-threshold and
    ((net-now + net-rsv + ([net-cnf] of the-service)) / net-phy) < server-net-overutil-threshold
  ]

  ifelse count candidates > 0
  [
    let svr-id -1
    let max-resource-distance 1
    ask candidates
    [
      let ops-ratio ((ops-now + ops-rsv + [ops-cnf] of the-service) / ops-phy)
      let mem-ratio ((mem-now + mem-rsv + [mem-cnf] of the-service) / mem-phy)
      let net-ratio ((net-now + net-rsv + [net-cnf] of the-service) / net-phy)

      let max-res-ratio max (list ops-ratio mem-ratio net-ratio)
      let min-res-ratio min (list ops-ratio mem-ratio net-ratio)
      let res-diff max-res-ratio - min-res-ratio
      if res-diff < max-resource-distance
      [
        set max-resource-distance res-diff
        set svr-id who
      ]
    ]

    report (server svr-id)
  ]
  [ report nobody ]
end
;;
;;
;;============================================================================;;
;; This procedure is used for migration processes and all
;; Max-Utilisation-Fit algorithm family. The objective of the procedure is to
;; find a suitable server for 'the-app', so that the placement of the
;; application on the server will result in a balanced resources of all
;; types (computing/memory/network), with an additional condition
;; where the residual resources on the server are minimised. As a greedy
;; algorithm, it will not guarantee a global optimal solution, however,
;; activities in a datacentre changes overtime, finding a global optimal
;; solution for NOW in such a dynamic system, will not ensure the solution will
;; still be optimal LATER, thus such a greedy algorithm is preferred.
;;--PARAMETERS----------------------------------------------------------------;;
;;  'the-server-set'
;;  'the-service'
;;============================================================================;;

to-report find-max-utilisation-server [ the-server-set the-service ]
  let candidates the-server-set with
  [
    who != [host] of the-service and
    ((ops-now + ops-rsv + ([ops-cnf] of the-service)) / ops-phy) < server-cpu-overutil-threshold and
    ((mem-now + mem-rsv + ([mem-cnf] of the-service)) / mem-phy) < server-mem-overutil-threshold and
    ((net-now + net-rsv + ([net-cnf] of the-service)) / net-phy) < server-net-overutil-threshold
  ]

  ifelse count candidates > 0
  [
    let svr-id -1
    let min-resource-distance 3
    ask candidates
    [
      let ops-ratio ((ops-now + ops-rsv + ([ops-cnf] of the-service)) / ops-phy)
      let mem-ratio ((mem-now + mem-rsv + ([mem-cnf] of the-service)) / mem-phy)
      let net-ratio ((net-now + net-rsv + ([net-cnf] of the-service)) / net-phy)

      let sum-residual (reduce + (list (1 - ops-ratio) (1 - mem-ratio) (1 - net-ratio)))

      if sum-residual < min-resource-distance
      [
        set min-resource-distance sum-residual
        set svr-id who
      ]
    ]

    report (server svr-id)
  ]
  [ report nobody ]
end
;;
;;
;;============================================================================;;
;; Experimental, not used.
;;--PARAMETERS----------------------------------------------------------------;;
;;  'the-server-set'
;;  'the-service'
;;============================================================================;;

to-report find-max-utilisation-with-resource-balancing-server [ the-server-set the-service ]
  let candidates the-server-set with
  [
    who != [host] of the-service and
    ((ops-now + ops-rsv + ([ops-cnf] of the-service)) / ops-phy) < server-cpu-overutil-threshold and
    ((mem-now + mem-rsv + ([mem-cnf] of the-service)) / mem-phy) < server-mem-overutil-threshold and
    ((net-now + net-rsv + ([net-cnf] of the-service)) / net-phy) < server-net-overutil-threshold
  ]

  ifelse count candidates > 0
  [
    let svr-id -1
    let min-resource-distance 4
    ask candidates
    [
      let ops-ratio ((ops-now + ops-rsv + ([ops-cnf] of the-service)) / ops-phy)
      let mem-ratio ((mem-now + mem-rsv + ([mem-cnf] of the-service)) / mem-phy)
      let net-ratio ((net-now + net-rsv + ([net-cnf] of the-service)) / net-phy)

      let sum-residual (reduce + (list (1 - ops-ratio) (1 - mem-ratio) (1 - net-ratio)))

      let max-res-residual max (list (1 - ops-ratio) (1 - mem-ratio) (1 - net-ratio))
      let min-res-residual min (list (1 - ops-ratio) (1 - mem-ratio) (1 - net-ratio))

      let res-residual-diff max-res-residual - min-res-residual

      let res-diff sum-residual + res-residual-diff
      if res-diff < min-resource-distance
      [
        set min-resource-distance res-diff
        set svr-id who
      ]
    ]

    report (server svr-id)
  ]
  [ report nobody ]
end
;;
;;
;;============================================================================;;
;; This procedure is used for migration processes and all 'Min-Power-Fit'
;; family algorithms. The objective of this procedure is to find a suitable
;; server for 'the-app', so that the placement of the application on the server
;; will result in minimum power consumption increase. Note that each type of
;; server has its own power consumption model. The power consumption data of
;; servers was collected from spec.org and modeled using stepwise linear
;; regression.
;;--PARAMETERS----------------------------------------------------------------;;
;;  'the-server-set'
;;  'the-service'
;;============================================================================;;

to-report find-min-power-server [ the-server-set the-service ]
  let candidates the-server-set with
  [
    who != [host] of the-service and
    ((ops-now + ops-rsv + ([ops-cnf] of the-service)) / ops-phy) < server-cpu-overutil-threshold and
    ((mem-now + mem-rsv + ([mem-cnf] of the-service)) / mem-phy) < server-mem-overutil-threshold and
    ((net-now + net-rsv + ([net-cnf] of the-service)) / net-phy) < server-net-overutil-threshold
  ]

  ifelse count candidates > 0
  [
    let min-power 100000000
    let svr-id -1
    ask candidates
    [
      let sum-ops 0
      ifelse power-estimation-method = "configured"
      [ set sum-ops ([ops-cnf] of the-service) ]
      [ set sum-ops (get-resource-statistics ([ops-hist] of the-service) + ops-now) ]

      let potential-power-consumption 0
      (ifelse
        power-model-method = "stepwise simple linear regression"
        [ set potential-power-consumption calc-power-consumption-stepwise sum-ops model ]
        power-model-method = "simple linear regression"
        [ set potential-power-consumption calc-power-consumption-simple sum-ops model ]
        power-model-method = "quadratic polynomial"
        [ set potential-power-consumption calc-power-consumption-quadratic sum-ops model ]
        power-model-method = "cubic polynomial"
        [ set potential-power-consumption calc-power-consumption-cubic sum-ops model ]
      )

      let power-diff potential-power-consumption - power
      if power-diff < min-power
      [
        set min-power power-diff
        set svr-id who
      ]
    ]

    report (server svr-id)
  ]
  [ report nobody ]
end
;;
;;
;;============================================================================;;
;; Calculate statistics from the cached information.
;;--PARAMETERS----------------------------------------------------------------;;
;;  'the-history'
;;============================================================================;;

to-report get-resource-statistics [ the-history ]
  (ifelse
    power-estimation-method = "max"
    [ report (max the-history) ]
    power-estimation-method = "mean"
    [ report (mean the-history) ]
    power-estimation-method = "median"
    [ report (median the-history) ]
    power-estimation-method = "linear-regression"
    [ report 0 ]
  )
end
;;
;;
;;============================================================================;;
;; Once a service is scheduled to run on a server, the scheduler will frist
;; reserve the amount of resources requested by the service, i.e., the
;; 'ops/mem/net-cnf'. The resource reservation is necessary and vitally
;; important. Since services using different deployment methods move to
;; servers at a different speed, it is possible that lately scheduled services
;; may arrive at the server sooner than the services that were scheduled
;; earlier. To ensure the server has sufficient resources for services
;; arriving at different speeds, all reservations must be done at the time
;; when a service is scheduled.
;;--PARAMETERS----------------------------------------------------------------;;
;; 'the-server'
;; Resources for 'the-service' to be reserved on 'the-server'.
;;
;; 'the-service':
;;  The service contains the information about the resources to be reserved
;;  on the server.
;;============================================================================;;

to reserve-server-resources [ the-server the-service ]
  ask the-server
  [ ;; Setting a server in 'READY' mode will prevent the server from being
    ;; switched off by the 'server standby stragegy' (running on the
    ;; scheduler node).
    (ifelse
      status = "IDLE" [ set status "READY" set color blue set power base-power ]
      status = "OFF"
      [ set status "READY" set color blue set power base-power ]
    )

    set ops-rsv ops-rsv + [ops-cnf] of the-service
    set mem-rsv mem-rsv + [mem-cnf] of the-service
    set net-rsv net-rsv + [net-cnf] of the-service
  ]
end
;;
;;
;;############################################################################;;
;; END: Placement Algorithms
;;############################################################################;;
;;
;;
;;############################################################################;;
;; START: Server Consolidation
;;############################################################################;;
;;
;;============================================================================;;
;; Consolidating servers in a datacentre to minimise the total power
;; consumption or to maximise the overall resource utilisation.
;; The main mechanism used for server consolidation is live-migration. In
;; general, a live-migration could be performed easily for virtual machines or
;; containers. In this simulation, we allow live-migrations for all virtual
;; machines, containers or bare-metal deployment of services.
;; Additionally, from a technical point of view, live-migration may only be
;; possible when the processor architecture of the hosting server and the
;; targeting servers are compatible. However, in this version of the simulation,
;; migrations between heterogeneous processor architectures are allowed.
;; NOTE: we should try to migrate services from over-utlised servers first,
;; then followed by under-utilised servers, because:
;;  1. it is more important to restore the server's performance than
;;     saving powers or maximising resource utilisation;
;;  2. after migrating applications from over-utilised servers, we could
;;     potentially reduce the number of under-utilised servers, thus avoid
;;     unnecessary calculations and reduce the number of migrations which are
;;     often expensive to perform (e.g., service performance degeneration and
;;     increase of overall network bandwidth consumption of the datacentre).
;;--PARAMETERS----------------------------------------------------------------;;
;;  none
;;============================================================================;;

to consolidate-servers
  if server-consolidation-strategy = "within datacentre" or server-consolidation-strategy = "within rack"
  [ consolidate-underutilised-servers ]
end
;;
;;
;;============================================================================;;
;; Migrate services out of under-utilised servers. A constituent under-utilsed
;; server must exhibit the following characteristics:
;;  1. the server must not be in 'OFF', 'IDLE', 'READY', 'OVERLOAD' mode
;;  2. the resource utilisation of the server must under the threshold
;;     specified by the global variable
;;     'server-cpu/mem/net-utilisation-threshold'
;;  3. all services on the under-utilised servers must be in the 'RUNNING'
;;     mode.
;;--PARAMETERS----------------------------------------------------------------;;
;;  None
;;============================================================================;;

to consolidate-underutilised-servers
  let under-util-svrs servers with
  [
    migr-indicator <= 0 and status = "ON" and (all? services-here [status = "RUNNING"]) and
    ((ops-now + ops-rsv) / ops-phy) <= server-cpu-underutil-threshold and
    ((mem-now + mem-rsv) / mem-phy) <= server-mem-underutil-threshold and
    ((net-now + net-rsv) / net-phy) <= server-net-underutil-threshold
  ]

  if ((count under-util-svrs) > 0)
  [
    foreach (list under-util-svrs)
    [
      svr -> ask svr
      [ ;; Special attention must be paid here. As migrating services out of a
        ;; server, the services could be placed on a server, which was originally
        ;; identified as an under-utilised server, however, the placement might
        ;; make the server a normal server, which should not be considered as a
        ;; candidate server for consolidation. Thus the recheck.
        if migr-indicator <= 0 and status = "ON" and (all? services-here [status = "RUNNING"]) and
        ((ops-now + ops-rsv) / ops-phy) <= server-cpu-underutil-threshold and
        ((mem-now + mem-rsv) / mem-phy) <= server-mem-underutil-threshold and
        ((net-now + net-rsv) / net-phy) <= server-net-underutil-threshold
        [
          ;; For each service here, find a sutiable target server.
          let migr-list []
          let service-count count services-here
          let keep-searching? true
          ask services-here
          [ ;; Identify a suitable server
            if keep-searching?
            [
              let the-server-set []
              (ifelse
                server-consolidation-strategy = "within datacentre"
                [
                  set the-server-set servers with
                  [ ;; The 'ops/mem/net-cnf' could be changed to other values
                    ;; calculated from resource usage patterns.
                    migr-indicator <= 0 and who != ([host] of myself) and
                    (any? services-here with [status = "RUNNING"]) and
                    ((ops-now + ops-rsv + [ops-cnf] of myself) / ops-phy) <= server-cpu-underutil-threshold and
                    ((mem-now + mem-rsv + [mem-cnf] of myself) / mem-phy) <= server-mem-underutil-threshold and
                    ((net-now + net-rsv + [net-cnf] of myself) / net-phy) <= server-net-underutil-threshold
                  ]
                ]
                server-consolidation-strategy = "within rack"
                [
                  set the-server-set servers with
                  [
                    migr-indicator <= 0 and who != ([host] of myself) and rack = ([rack] of svr) and
                    (any? services-here with [status = "RUNNING"]) and
                    ((ops-now + ops-rsv + [ops-cnf] of myself) / ops-phy) <= server-cpu-underutil-threshold and
                    ((mem-now + mem-rsv + [mem-cnf] of myself) / mem-phy) <= server-mem-underutil-threshold and
                    ((net-now + net-rsv + [net-cnf] of myself) / net-phy) <= server-net-underutil-threshold
                  ]

                ]
              )
              ;; If no suitable server could be found for this service,
              ;; terminate the entire process for the server.
              ifelse (count the-server-set) > 0
              [ ;; reserve resources on the server
                let candidate find-server the-server-set self
                ;; add it to the migr-list
                set migr-list lput (list who ([who] of candidate)) migr-list
                set service-count service-count - 1
              ]
              [ set keep-searching? false ]
            ]
          ]

          ;; If not all the services could find a target server, the entire
          ;; process needs to be rolled back, otherwise, trigger the migrating
          ;; process.
          ifelse service-count = 0
          [ ;; Migrate services
            foreach migr-list
            [
              x -> ask service (first x)
              [
                set status "MIGRATING"
                set migr-dest (last x) ;; this must be placed before 'set moving-speed'
                set moving-speed calc-migration-delay self
                set color magenta + 2
                ask server host [ set migr-indicator migr-indicator + 1 ]
              ]
            ]
            set sys-migration-event-due-to-consolidation (length migr-list)
            set sys-migration-event-due-to-consolidation-total sys-migration-event-due-to-consolidation-total + sys-migration-event-due-to-consolidation
          ]
          [ ;; Roll back
            foreach migr-list
            [
              x -> ask server (last x)
              [
                set ops-rsv ops-rsv - ([ops-cnf] of service (first x))
                set mem-rsv mem-rsv - ([mem-cnf] of service (first x))
                set net-rsv net-rsv - ([net-cnf] of service (first x))
                if (ops-rsv = 0 and mem-rsv = 0 and net-rsv = 0 and ops-now = 0 and mem-now = 0 and net-now = 0)
                [ set status "IDLE" ]
              ]
            ]
          ]
        ]
      ]
    ]
  ]
end
;;
;;
;;============================================================================;;
;; Migrate services out of over-utilised servers. A constituent over-utilised
;; server is a server on which any of the CPU/MEM/NET resource utilisation is
;; above a value specified by the global variable
;; 'server-cpu/mem/net-utilisation-threshold'. In addition, the server must
;; not have any reserved resources, i.e., ops/mem/net-rsv. The reason behind
;; this is that reserved resources are the configured resources of service(s),
;; and during the runtime of a service, the required resources are most likely
;; smaller than the configured resources. Thus, if
;; Migrate one service at a time!
;;--PARAMETERS----------------------------------------------------------------;;
;;  None
;;============================================================================;;

to migrate-services [ the-server ]
  ask the-server
  [
    let current-svr-ress (list ops-now mem-now net-now)
    let svr-phy-ress (list ops-phy mem-phy net-phy)
    let running-services services-here with [ status = "RUNNING" ]
    let sorted-services []
    (ifelse
      auto-migration-strategy = "least migration time"
      [ set sorted-services (sort-on [mem-now * access-ratio]  running-services) ]
      auto-migration-strategy = "least migration number"
      [
        let ops-ratio ops-now / ops-phy
        let net-ratio net-now / net-phy
        let mem-ratio mem-now / mem-phy
        let max-res (max (list ops-ratio net-ratio mem-ratio))
        (ifelse ;; we consider the mem the last
          ops-ratio = max-res [ set sorted-services (sort-on [ops-now] running-services) ]
          net-ratio = max-res [ set sorted-services (sort-on [net-now] running-services) ]
          mem-ratio = max-res [ set sorted-services (sort-on [mem-now] running-services) ]
        )
      ]
    )

    let utilisation-thresholds (list server-cpu-overutil-threshold server-mem-overutil-threshold server-net-overutil-threshold)
    let continue? true
    let event-counter 0
    foreach sorted-services
    [
      x ->
      if continue?
      [
        let service-res-list (list ([ops-now] of x) ([mem-now] of x) ([net-now] of x))
        let now-level (map / current-svr-ress svr-phy-ress)
        let now-cmp (map < now-level utilisation-thresholds) ;; pay attention to this
        ifelse (not (reduce and now-cmp))
        [
          let the-server-set []
          (ifelse
            server-consolidation-strategy = "within datacentre"
            [
              set the-server-set servers with
              [ ;; The 'ops/mem/net-cnf' could be changed to other values
                ;; calculated from resource usage patterns.
                who != ([host] of x) and
                ((ops-now + ops-rsv + [ops-cnf] of x) / ops-phy) <= server-cpu-underutil-threshold and
                ((mem-now + mem-rsv + [mem-cnf] of x) / mem-phy) <= server-mem-underutil-threshold and
                ((net-now + net-rsv + [net-cnf] of x) / net-phy) <= server-net-underutil-threshold
              ]
            ]
            server-consolidation-strategy = "within rack"
            [
              let rack-id [rack] of (server ([host] of x))
              set the-server-set servers with
              [
                who != ([host] of x) and rack = rack-id and
                ((ops-now + ops-rsv + [ops-cnf] of x) / ops-phy) <= server-cpu-underutil-threshold and
                ((mem-now + mem-rsv + [mem-cnf] of x) / mem-phy) <= server-mem-underutil-threshold and
                ((net-now + net-rsv + [net-cnf] of x) / net-phy) <= server-net-underutil-threshold
              ]
            ]
          )
          let candidate find-server the-server-set x
          if candidate != nobody
          [
            set current-svr-ress (map - current-svr-ress service-res-list)
            ask x
            [
              set color cyan
              set status "MIGRATING"
              set moving-speed 1
              set migr-dest ([who] of candidate)
            ]
            set event-counter event-counter + 1
          ]
        ]
        [ set continue? false ]
      ]
    ]
    set sys-migration-event-due-to-auto-migration event-counter
    set sys-migration-event-due-to-auto-migration-total sys-migration-event-due-to-auto-migration-total + event-counter
  ]
end
;;
;;
;;============================================================================;;
;; Calculate service migration delay. This will be based on the current
;; available network bandwidth between the source and destination, and the
;; size of the busy memory, which can be jointly determined by the size of
;; the currently used memory (i.e., mem-now) and the memory access rate
;; specified by the service attribute 'access-ratio'.
;;--PARAMETERS----------------------------------------------------------------;;
;;  'the-service'
;;============================================================================;;

to-report calc-migration-delay [ the-service ]
  let mem-footprint (mem-now * access-ratio)
  let dest [migr-dest] of the-service
  let dest-bw ([net-phy - net-rsv - net-now] of server dest)
  let time-needed (mem-footprint / dest-bw) ;; in second
  let dist-to-dest 0
  ask the-service [ set dist-to-dest (distance server dest) ]

  let base-speed ((time-needed / (simulation-time-unit * 60)) + 1)

  report (base-speed - (base-speed / dist-to-dest))
end

;;############################################################################;;
;; END: Server Consolidation
;;############################################################################;;
;;
;;
;;############################################################################;;
;; START: Utility Functions
;;############################################################################;;
;;
;;============================================================================;;
;; When services require more resources but can't be satisfied by the hosting
;; server, the performance of the services will be affected. In this case,
;; all services will be penalised based on how much resources are requested.
;;--PARAMETERS----------------------------------------------------------------;;
;; 'the-res-diff':
;;  The input is a list that contains the differences between the 'now'
;;  resources and the previous resource usage of each running service on the
;;  same server.
;;
;;  'the-ext-unit':
;;  It is a normalised amount of unit that has exceeded the available physical
;;  resources on the server. It is calculated as follows:
;;  (sum(ops/mem/net) of all running services - the reserved ops/mem/net on
;;  the server - the resources occupied by the services who are migrating out
;;  of the server - the total available resources on the server) divided by
;;  the total available resources on the server.
;;
;; 'the-res-min':
;;  This input indicates the minimum value of 'the-res-diff'. Since
;;  the 'the-res-diff' contains a list of list, it would be easier, also
;;  avoid of re-iterate through the list, to calculate the 'the-res-min' when
;;  the 'the-res-diff' is constructed.
;;============================================================================;;

to-report apply-penalty [ the-res-diff the-ext-unit the-res-min ]
  let res-diff-scale []
  let sum-diff 0
  foreach the-res-diff
  [
    x ->
    let scaler (the-res-min + last x)
    set res-diff-scale lput (list (first x) scaler) res-diff-scale
    set sum-diff sum-diff + scaler
  ]

  let res-diff-scaled-unit []
  foreach res-diff-scale [ x -> set res-diff-scaled-unit lput (list (first x) ((last x) * the-ext-unit / sum-diff)) res-diff-scaled-unit ]

  report res-diff-scaled-unit
end
;;
;;
;;============================================================================;;
;; Each service will be assigned to one of the schedulers, conditional on the
;; configuration set out for the datacentre.
;;
;; Scenario 1:
;; The datacentre contains heterogeneous resources/configurations, specified
;; by the global variable 'datacentre-level-heterogeneous?', each rack
;; also has mixed types of servers specified by the global variable
;; 'rack-level-heterogeneous? = true', and the 'resource-pattern-matching'
;; strategy is selected from the 'service-submission-strategy' dropdown list,
;; then the service will be assigned to a scheduler with the best matching
;; scores. The two resource tuples are then the required resources of the
;; service and the available resource of the rack.
;;
;; Scenario 2:
;; The datacentre contains heterogeneous resources/configurations specified by
;; the global variable 'datacentre-level-heterogeneity?', each rack has only
;; homogeneous types of servers specified by 'rack-level-heterogeneity? = off',
;; and the 'resource-pattern-matching' strategy is selected from the
;; 'service-submission-strategy', then the service will be assigned to a
;; scheduler with the best matching scores. The two resource tuples are then
;; the required resources of the service and the configured resources of one
;; of the servers on the rack.
;;
;; Scenario 3:
;; The datacentre contains homogeneous resources/configurations specified by
;; 'datacentre-level-heterogeneity? = off'. In this case the
;; 'rack-level-heterogeneity?'and the 'service-submission-strategy' will not
;; be evaluated. Then the service assignment will fallback to the 'closest'
;; strategy, i.e., send the service to its closest scheduler measured by the
;; distance between the service icon and the scheduler icon.
;;--PARAMETERS----------------------------------------------------------------;;
;;  'the-service':
;;  the service to be assigned to one of the available rack-heads.
;;============================================================================;;

to-report calc-resource-pattern [ the-service ]
  let suggested-candidate-id -1
  (ifelse not datacentre-level-heterogeneity?
    [ set suggested-candidate-id [who] of (min-one-of schedulers [distance the-service]) ]
    [
      let min-score 1 ;; the smaller, the better
      ask schedulers
      [
        let rack-id id
        let matching-score 1
        ifelse rack-level-heterogeneity?
        [
          set matching-score calc-resource-pattern-matching-score ;; The funciton
          (list ([ops-cnf] of the-service) ([mem-cnf] of the-service) ([net-cnf] of the-service)) ;; The first input of the function
          calc-servers-available-resources (servers with [ rack = rack-id ]) ;; The second input of the function
        ]
        [
          let any-svr one-of servers with [ rack = rack-id ]
          set matching-score calc-resource-pattern-matching-score ;; The funciton
          (list ([ops-cnf] of the-service) ([mem-cnf] of the-service) ([net-cnf] of the-service)) ;; The first input of the function
          (list ([ops-phy] of any-svr) ([mem-phy] of any-svr) ([net-phy] of any-svr)) ;; The second input of the function
        ]

        if matching-score < min-score
        [
          set min-score matching-score
          set suggested-candidate-id who
        ]
      ]
    ]
  )

  report suggested-candidate-id
end
;;
;;
;;============================================================================;;
;; Calculate the current total available resources of a given rack.
;;--PARAMETERS----------------------------------------------------------------;;
;;  'the-server-set':
;;  a set of servers
;;============================================================================;;

to-report calc-servers-available-resources [ the-server-set ]
  let sum-ops 0
  let sum-mem 0
  let sum-net 0
  ask the-server-set
  [
    set sum-ops (sum-ops + (ops-phy - ops-now - ops-rsv))
    set sum-mem (sum-mem + (mem-phy - mem-now - mem-rsv))
    set sum-net (sum-net + (net-phy - net-now - net-rsv))
  ]

  report (list sum-ops sum-mem sum-net)
end
;;
;;
;;============================================================================;;
;; Reset server status when reboot or shutdown
;;--PARAMETERS----------------------------------------------------------------;;
;;  'the-server':
;;  a set of servers
;;============================================================================;;

to reset-server [ the-server ]
  set ops-now 0
  set mem-now 0
  set net-now 0

  set ops-rsv 0
  set mem-rsv 0
  set net-rsv 0

  set ops-hist 0
  set mem-hist 0
  set net-hist 0
end
;;
;;
;;============================================================================;;
;; This procedure quantifies the difference between different types of
;; resources with different sizes and scales.
;; Given two resource tuples 'the-service--ress (CPU, MEM, NET) and
;; the total available resources of the rack(aCPU, aMEM, aNET), the pattern
;; matching score is calculated as follows:
;; max(CPU/aCPU, MEM/aMEM, NET/aNET) - min(CPU/aCPU, MEM/aMEM, NET/aNET')
;; The rationale behind this method is that if the difference between the
;; ratio of different types of resources are close to each other, the different
;; types of resources of the server will be used more evenly.
;; The procedure is mainly used when a service is being generated, so that the
;; service knows which scheduler node it needs to move toward.
;;--PARAMETERS----------------------------------------------------------------;;
;;  'the-service-ress':
;;  A list that contains the required resources of the service.
;;
;;  'the-rack-ress':
;;  A list that contains the aggregated available resources of rack.
;;============================================================================;;

to-report calc-resource-pattern-matching-score [ the-service-ress the-rack-ress ]
  let norm-tuple (map / the-service-ress the-rack-ress)
  report (max norm-tuple - min norm-tuple)
end
;;
;;
;;============================================================================;;
;; At each 'tick', each server will update its power consumption. The power
;; power consumed by a server is determined by the total 'ops' consumed at the
;; moment, i.e., the 'used-ops'.
;; Depending on the manufacture and model, each server may have a different
;; power consumption pattern.
;;--PARAMETERS----------------------------------------------------------------;;
;;  'workload': the total computing power used at the moment.
;;  'the-svr-model': the server model.
;;============================================================================;;

to-report calc-power-consumption-stepwise [ the-workload the-model ]
  ;; benchmark information are collected from spec.org
  let power-consumption 0
  (ifelse
    the-model = 1 ;; HP Enterprise ProLiant DL110 Gen10 Plus
    [
      (ifelse
        ;; CPU Utilisation 100% ~ 90%
        the-workload >= 2996610 [ set power-consumption (0.00006841  * the-workload + 72.001)   ]
        ;; CPU Utilisation 90% ~ 80%
        the-workload >= 2663920 [ set power-consumption (0.00014127  * the-workload - 146.3391) ]
        ;; CPU Utilisation 80% ~ 70%
        the-workload >= 2323252 [ set power-consumption (0.00010861  * the-workload - 59.3287)  ]
        ;; CPU Utilisation 70% ~ 60%
        the-workload >= 1991168 [ set power-consumption (0.000066248 * the-workload + 39.0885)  ]
        ;; CPU Utilisation 60% ~ 50%
        the-workload >= 1662976 [ set power-consumption (0.000051799 * the-workload + 67.8596)  ]
        ;; CPU Utilisation 50% ~ 40%
        the-workload >= 1330630 [ set power-consumption (0.000039116 * the-workload + 88.9513)  ]
        ;; CPU Utilisation 40% ~ 30%
        the-workload >= 997346  [ set power-consumption (0.00003601  * the-workload + 93.0902)  ]
        ;; CPU Utilisation 30% ~ 20%
        the-workload >= 668831  [ set power-consumption (0.000039572 * the-workload + 89.533 )  ]
        ;; CPU Utilisation 20% ~ 10%
        the-workload >= 331877  [ set power-consumption (0.000038581 * the-workload + 90.1959 ) ]
        ;; CPU Utilisation 10% ~ 0%
        the-workload >= 0       [ set power-consumption (0.000026817 * the-workload + 94.1)     ]
      )
    ]
    the-model = 2 ;; Lenovo Global Technology ThinkSystem SR655
    [
      (ifelse
        the-workload >= 5520918 [ set power-consumption (0.000053905 * the-workload - 101.6066) ]
        the-workload >= 4875441 [ set power-consumption (0.000037182 * the-workload - 9.2777)   ]
        the-workload >= 4287820 [ set power-consumption (0.000020421 * the-workload + 72.437)   ]
        the-workload >= 3672211 [ set power-consumption (0.000016244 * the-workload + 90.3483)  ]
        the-workload >= 3069128 [ set power-consumption (0.000016581 * the-workload + 89.1094)  ]
        the-workload >= 2453590 [ set power-consumption (0.000016246 * the-workload + 90.1391)  ]
        the-workload >= 1839277 [ set power-consumption (0.000016278 * the-workload + 90.0596)  ]
        the-workload >= 1229720 [ set power-consumption (0.000018046 * the-workload + 86.8086)  ]
        the-workload >= 613931  [ set power-consumption (0.000017538 * the-workload + 87.4326)  ]
        the-workload >= 0       [ set power-consumption (0.000073624 * the-workload + 53.0)     ]
      )
    ]
    the-model = 3 ;; Fujitsu PRIMERGY RX2530 M6
    [
      (ifelse
        the-workload >= 6814856 [ set power-consumption (0.00010672  * the-workload - 228.2503) ]
        the-workload >= 6047198 [ set power-consumption (0.000071646 * the-workload + 10.7395)  ]
        the-workload >= 5292424 [ set power-consumption (0.000084794 * the-workload - 68.7637)  ]
        the-workload >= 4535904 [ set power-consumption (0.000058161 * the-workload + 72.187)   ]
        the-workload >= 3781094 [ set power-consumption (0.000045044 * the-workload + 131.6827) ]
        the-workload >= 3031768 [ set power-consumption (0.000037367 * the-workload + 160.7122) ]
        the-workload >= 2279204 [ set power-consumption (0.000034549 * the-workload + 169.2568) ]
        the-workload >= 1516364 [ set power-consumption (0.000035394 * the-workload + 167.3297) ]
        the-workload >= 758504  [ set power-consumption (0.000035627 * the-workload + 166.9771) ]
        the-workload >= 0       [ set power-consumption (0.000083058 * the-workload + 131.0)    ]
      )
    ]
    the-model = 4 ;; New H3C Technologies Co. Ltd. H3C UniServer R4900 G5
    [
      (ifelse
        the-workload >= 7329609 [ set power-consumption (0.000084383 * the-workload - 77.4948)  ]
        the-workload >= 6523038 [ set power-consumption (0.0001463   * the-workload - 531.3096) ]
        the-workload >= 5705607 [ set power-consumption (0.000070954 * the-workload - 39.8356)  ]
        the-workload >= 4893456 [ set power-consumption (0.000049252 * the-workload + 83.9879)  ]
        the-workload >= 4075795 [ set power-consumption (0.000042805 * the-workload + 115.5355) ]
        the-workload >= 3255610 [ set power-consumption (0.000028042 * the-workload + 175.7047) ]
        the-workload >= 2445686 [ set power-consumption (0.000030867 * the-workload + 166.5088) ]
        the-workload >= 1634538 [ set power-consumption (0.000033286 * the-workload + 160.5925) ]
        the-workload >= 813621  [ set power-consumption (0.000038981 * the-workload + 151.2844) ]
        the-workload >= 0       [ set power-consumption (0.000078661 * the-workload + 119.0)    ]
      )
    ]
    the-model = 5 ;; Inspur Corporation Inspur NF8480M6
    [
      (ifelse
        the-workload >= 10444641 [ set power-consumption (0.0001007   * the-workload - 155.7673) ]
        the-workload >= 9274428  [ set power-consumption (0.00010425  * the-workload - 192.9011) ]
        the-workload >= 8127807  [ set power-consumption (0.00012907  * the-workload - 423.0959) ]
        the-workload >= 6973093  [ set power-consumption (0.00008487  * the-workload - 63.8029)  ]
        the-workload >= 5799377  [ set power-consumption (0.000065604 * the-workload + 70.54)    ]
        the-workload >= 4643659  [ set power-consumption (0.000058838 * the-workload + 109.7769) ]
        the-workload >= 3480205  [ set power-consumption (0.000045554 * the-workload + 171.4627) ]
        the-workload >= 2317053  [ set power-consumption (0.000039548 * the-workload + 192.3659) ]
        the-workload >= 1159866  [ set power-consumption (0.000038887 * the-workload + 193.8958) ]
        the-workload >= 0        [ set power-consumption (0.00011639  * the-workload + 104.0)    ]
      )
    ]
    the-model = 6 ;; Dell Inc. PowerEdge R6515
    [
      (ifelse
        the-workload >= 5527289 [ set power-consumption (0.000021775 * the-workload + 97.6435)  ]
        the-workload >= 4907530 [ set power-consumption (0.000017749 * the-workload + 119.8971) ]
        the-workload >= 4289422 [ set power-consumption (0.000021032 * the-workload + 103.7852) ]
        the-workload >= 3681028 [ set power-consumption (0.000021368 * the-workload + 102.3448) ]
        the-workload >= 3056053 [ set power-consumption (0.000019201 * the-workload + 110.3214) ]
        the-workload >= 2459905 [ set power-consumption (0.000013419 * the-workload + 127.9893) ]
        the-workload >= 1840829 [ set power-consumption (0.000017768 * the-workload + 117.2914) ]
        the-workload >= 1224553 [ set power-consumption (0.000017849 * the-workload + 117.1428) ]
        the-workload >= 613770  [ set power-consumption (0.000026196 * the-workload + 106.9218) ]
        the-workload >= 0       [ set power-consumption (0.00011161  * the-workload + 54.5)     ]
      )
    ]
    the-model = 7 ;; LSDtech L224S-D/F/V-1
    [
      (ifelse
        the-workload >= 2073591 [ set power-consumption (0.00011173  * the-workload + 175.317)  ]
        the-workload >= 1841179 [ set power-consumption (0.00013769  * the-workload + 121.4945) ]
        the-workload >= 1612999 [ set power-consumption (0.00018845  * the-workload + 28.034)   ]
        the-workload >= 1380996 [ set power-consumption (0.00015517  * the-workload + 81.7103)  ]
        the-workload >= 1154911 [ set power-consumption (0.00012827  * the-workload + 118.8592) ]
        the-workload >= 924044  [ set power-consumption (0.00011262  * the-workload + 136.9351) ]
        the-workload >= 692791  [ set power-consumption (0.00010811  * the-workload + 141.1046) ]
        the-workload >= 462327  [ set power-consumption (0.000091121 * the-workload + 152.8725) ]
        the-workload >= 229125  [ set power-consumption (0.000077186 * the-workload + 159.3147) ]
        the-workload >= 0       [ set power-consumption (0.00020076  * the-workload + 131.0)    ]
      )
    ]
    the-model = 8 ;; ASUSTeK Computer Inc. RS700A-E9-RS4V2
    [
      (ifelse
        the-workload >= 10583175 [ set power-consumption (0.000026811 * the-workload + 116.2591) ]
        the-workload >= 9385781  [ set power-consumption (0.000023384 * the-workload + 152.5218) ]
        the-workload >= 8227893  [ set power-consumption (0.000024182 * the-workload + 145.0334) ]
        the-workload >= 7055617  [ set power-consumption (0.00002815  * the-workload + 112.3818) ]
        the-workload >= 5878359  [ set power-consumption (0.00001444  * the-workload + 209.1145) ]
        the-workload >= 4698054  [ set power-consumption (0.000020334 * the-workload + 174.4711) ]
        the-workload >= 3528516  [ set power-consumption (0.000022231 * the-workload + 165.5576) ]
        the-workload >= 2352022  [ set power-consumption (0.00001445  * the-workload + 193.014)  ]
        the-workload >= 1176164  [ set power-consumption (0.000025513 * the-workload + 166.9922) ]
        the-workload >= 0        [ set power-consumption (0.00007737  * the-workload + 106.0)    ]
      )
    ]
    [ ;; Random Servers. Power consumption is assumed to increase with workloads linearly.
      ;; The model is based on Dell PowerEdge R6515 server using simple linear regression.
      if the-workload >= 0      [ set power-consumption (0.000023346 * the-workload + 94.5591) ]
    ]
  )

  report power-consumption
end
;;
;;
;;============================================================================;;
;; Simple Linear Regression Model
;;--PARAMETERS----------------------------------------------------------------;;
;;  'workload': the total computing power used at the moment.
;;  'the-svr-model': the server model.
;;============================================================================;;

to-report calc-power-consumption-simple [ the-workload the-model ]
  ;; benchmark information are collected from spec.org
  let power-consumption 0
  (ifelse
    the-model = 1 ;; HP Enterprise ProLiant DL110 Gen10 Plus
    [ set power-consumption (72.37 + 0.00006076 * the-workload) ]

    the-model = 2 ;; Lenovo Global Technology ThinkSystem SR655
    [ set power-consumption (70.66 + 0.00002313 * the-workload) ]

    the-model = 3 ;; Fujitsu PRIMERGY RX2530 M6
    [ set power-consumption (125.2 + 0.00005361 * the-workload) ]

    the-model = 4 ;; New H3C Technologies Co. Ltd. H3C UniServer R4900 G5
    [ set power-consumption (106.7 + 0.00005369 * the-workload) ]

    the-model = 5 ;; Inspur Corporation Inspur NF8480M6
    [ set power-consumption (85.69 + 0.00007339 * the-workload) ]

    the-model = 6 ;; Dell Inc. PowerEdge R6515
    [ set power-consumption (94.56 + 0.00002335 * the-workload) ]

    the-model = 7 ;; LSDtech L224S-D/F/V-1
    [ set power-consumption (131.0 + 0.0001285 * the-workload) ]

    the-model = 8 ;; ASUSTeK Computer Inc. RS700A-E9-RS4V2
    [ set power-consumption (149.0 + 0.00002409 * the-workload) ]

    [ ;; Random Servers. Power consumption is assumed to increase with workloads linearly.
      ;; The model is based on Dell PowerEdge R6515 server using simple linear regression.
      if the-workload >= 0  [ set power-consumption (0.000023346 * the-workload + 94.5591) ]
    ]
  )

  report power-consumption
end
;;
;;
;;============================================================================;;
;; Quadratic Model
;;--PARAMETERS----------------------------------------------------------------;;
;;  'workload': the total computing power used at the moment.
;;  'the-svr-model': the server model.
;;============================================================================;;

to-report calc-power-consumption-quadratic [ the-workload the-model ]
  ;; benchmark information are collected from spec.org
  let power-consumption 0
  (ifelse
    the-model = 1 ;; HP Enterprise ProLiant DL110 Gen10 Plus
    [ set power-consumption (99.59 + 0.000006182 * the-workload + 0.00000000001642 * (the-workload ^ 2))]

    the-model = 2 ;; Lenovo Global Technology ThinkSystem SR655
    [ set power-consumption (72.45 + 0.00002118 * the-workload + 0.0000000000003178 * (the-workload ^ 2)) ]

    the-model = 3 ;; Fujitsu PRIMERGY RX2530 M6
    [ set power-consumption (158.0 + 0.00002481 * the-workload + 0.000000000003803 * (the-workload ^ 2)) ]

    the-model = 4 ;; New H3C Technologies Co. Ltd. H3C UniServer R4900 G5
    [ set power-consumption (155.0 + 0.00001405 * the-workload + 0.000000000004869 * (the-workload ^ 2)) ]

    the-model = 5 ;; Inspur Corporation Inspur NF8480M6
    [ set power-consumption (156.5 + 0.00003258 * the-workload + 0.000000000003526 * (the-workload ^ 2)) ]

    the-model = 6 ;; Dell Inc. PowerEdge R6515
    [ set power-consumption (79.69 + 0.00003951 * the-workload - 0.000000000002637 * (the-workload ^ 2)) ]

    the-model = 7 ;; LSDtech L224S-D/F/V-1
    [ set power-consumption (141.6 + 0.00009763 * the-workload + 0.00000000001344 * (the-workload ^ 2)) ]

    the-model = 8 ;; ASUSTeK Computer Inc. RS700A-E9-RS4V2
    [ set power-consumption (137.4 + 0.00003067 * the-workload - 0.0000000000005613 * (the-workload ^ 2)) ]

    [ ;; Random Servers. Power consumption is assumed to increase with workloads linearly.
      ;; The model is based on Dell PowerEdge R6515 server using simple linear regression.
      if the-workload >= 0  [ set power-consumption (0.000023346 * the-workload + 94.5591) ]
    ]
  )

  report power-consumption
end
;;
;;
;;============================================================================;;
;; Cubic Polynomial Model
;;--PARAMETERS----------------------------------------------------------------;;
;;  'workload': the total computing power used at the moment.
;;  'the-svr-model': the server model.
;;============================================================================;;

to-report calc-power-consumption-cubic [ the-workload the-model ]
  ;; benchmark information are collected from spec.org
  let power-consumption 0
  (ifelse
    the-model = 1 ;; HP Enterprise ProLiant DL110 Gen10 Plus
    [ set power-consumption (94.47 + 0.00003075 * the-workload - 0.000000000003008 * (the-workload ^ 2) + 0.000000000000000003904 * (the-workload ^ 3)) ]

    the-model = 2 ;; Lenovo Global Technology ThinkSystem SR655
    [ set power-consumption (57.96 + 0.00005883 * the-workload - 0.00000000001581 * (the-workload ^ 2) + 0.000000000000000001757 * (the-workload ^ 3)) ]

    the-model = 3 ;; Fujitsu PRIMERGY RX2530 M6
    [ set power-consumption (138.5 + 0.00006557 * the-workload - 0.00000000001031 * (the-workload ^ 2) + 0.000000000000000001243 * (the-workload ^ 3)) ]

    the-model = 4 ;; New H3C Technologies Co. Ltd. H3C UniServer R4900 G5
    [ set power-consumption (124.4 + 0.00007396 * the-workload - 0.00000000001445 * (the-workload ^ 2) + 0.000000000000000001583 * (the-workload ^ 3)) ]

    the-model = 5 ;; Inspur Corporation Inspur NF8480M6
    [ set power-consumption (130.1 + 0.00006889 * the-workload - 0.000000000004712 * (the-workload ^ 2) + 0.0000000000000000004750 * (the-workload ^ 3)) ]

    the-model = 6 ;; Dell Inc. PowerEdge R6515
    [ set power-consumption (66.12 + 0.00007478 * the-workload - 0.00000000001774 * (the-workload ^ 2) + 0.000000000000000001644 * (the-workload ^ 3)) ]

    the-model = 7 ;; LSDtech L224S-D/F/V-1
    [ set power-consumption (139.7 + 0.0001108 * the-workload - 0.00000000000161 * (the-workload ^ 2) + 0.000000000000000004365 * (the-workload ^ 3)) ]

    the-model = 8 ;; ASUSTeK Computer Inc. RS700A-E9-RS4V2
    [ set power-consumption (120.1 + 0.00005418 * the-workload - 0.000000000005828 * (the-workload ^ 2) + 0.0000000000000000002999 * (the-workload ^ 3)) ]

    [ ;; Random Servers. Power consumption is assumed to increase with workloads linearly.
      ;; The model is based on Dell PowerEdge R6515 server using simple linear regression.
      if the-workload >= 0      [ set power-consumption (0.000023346 * the-workload + 94.5591) ]
    ]
  )

  report power-consumption
end
;;
;;
;;============================================================================;;
;; Show IDs of all servers and schedulers.
;;--PARAMETERS----------------------------------------------------------------;;
;;  none
;;============================================================================;;

to show-label
  ifelse show-label-on?
  [
    ask turtles [ set label "" ]
    set show-label-on? false
  ]
  [
    ask turtles [ set label id ]
    set show-label-on? true
  ]
end
;;
;;
;;============================================================================;;
;; Show model of the servers. This is very useful when heterogeneous clouds
;; are in the simulation.
;;--PARAMETERS------------------------------------------------------------------
;;  none
;;============================================================================;;

to show-model
  ifelse show-model-on?
  [
    ask servers [ set label "" ]
    set show-model-on? false
  ]
  [
    ask servers [ set label model ]
    set show-model-on? true
  ]
end
;;
;;
;;============================================================================;;
;; Show service migration traces.
;;--PARAMETERS------------------------------------------------------------------
;;  none
;;============================================================================;;

to show-trace
  ifelse show-trace-on?
  [
    ask services [ pendown ]
    set show-trace-on? false
  ]
  [
    ask services [ penup ]
    set show-trace-on? true
  ]
end
;;
;;
;;============================================================================;;
;; At the end of a simulation, print the summary of the resutls, especially
;; for those recorded global counters.
;;--PARAMETERS------------------------------------------------------------------
;;  none
;;============================================================================;;

to print-summary
  print "==Summary of Results =========================================================="
  print "|-- Applications --------------------------------------------------------------"
  print (word "| Total Number of Services                            : " total-services)
  print (word "| Average Service Lifetime (Minute)                   : " (precision ((sys-service-lifetime-total * simulation-time-unit + sys-service-ops-sla-vio + sys-service-mem-sla-vio + sys-service-net-sla-vio) / total-services) 4))
  print (word "| Accumulated Number of Migrations (Consolidation)    : " sys-migration-event-due-to-consolidation-total)
  print (word "| Accumulated Number of Migrations (Auto Migration)   : " sys-migration-event-due-to-auto-migration-total)
  print (word "| SLA Violation due to Computing Power Shortage       : " (precision round sys-service-ops-sla-vio 4))
  print (word "| SLA Violation due to Memory Shortage                : " (precision round sys-service-mem-sla-vio 4))
  print (word "| SLA Violation due to Networking Bandwidth Shortage  : " (precision round sys-service-net-sla-vio 4))
  print (word "| Total Number of Rescheduled Services                : " sys-service-reschedule-counter)
  print (word "| Total Number of Rejected Services                   : " sys-service-rejection-counter)

  print "|-- Servers -------------------------------------------------------------------"
  print (word "| Total Number of Servers                             : " (rack-space * total-racks))
  print (word "| Total Computing Power Installed (million of ssj-ops): " (precision ((sum [ops-phy] of servers) / 1000000) 4))
  print (word "| Total Memory Installed (GB)                         : " (precision ((sum [mem-phy] of servers) / 1024) 4))
  print (word "| Total Network Bandwidth Installed (Gbps)            : " (precision ((sum [net-phy] of servers) / 1024) 4))
  print "|-- Systems ------------------------------------------------------------------"
  print (word "| Accumulated Power Consumption (Unit)           : " (precision (sys-power-consumption-total / (ticks * simulation-time-unit * 1000 / 60)) 4))
  print "==Summary of Results =========================================================="
end
;;############################################################################;;
;; END: Utility Functions
;;############################################################################;;
;;
;;
;;############################################################################;;
;; START: Datacentre Initial Configurations
;;############################################################################;;
;;============================================================================;;
;; The initialisation of a datacentre is required when configurations of the
;; simulation are changed.
;;--PARAMETERS------------------------------------------------------------------
;;  none
;;============================================================================;;

to initialise-datacentre
  build-service-submission-zone
  deploy-scheduler-nodes
  deploy-server-nodes
end
;;
;;
;;============================================================================;;
;; Create Service submission zone in the simulation world.
;; Reserve three lines of patches on the top of the world. This place will be
;; used as service submission pool. All newly generated services will
;; initially be placed in this area. The number of patches in this space
;; defines the maximum number of concurrent services that could be submitted
;; at a time. This concurrency is controlled by the global variable
;; 'service-generation-speed'.
;;--PARAMETERS------------------------------------------------------------------
;;  NONE
;;============================================================================;;

to build-service-submission-zone
  set current-top-cord (current-top-cord - service-submission-zone-height)
  ask patches with [ pycor > current-top-cord ]
  [ set pcolor blue + 1 ]

  set current-top-cord (current-top-cord - service-submission-delay-zone-height - def-sepa-line-width)

  ask patches with [ pycor = current-top-cord ]
  [ set pcolor grey ]

  set current-top-cord (current-top-cord - def-gap-width * 2)
end
;;
;;
;;============================================================================;;
;; Create and place scheduler nodes. The number of schedulers is determined by
;; the number of racks, i.e., each rack will have a dedicated scheduler.
;;--PARAMETERS------------------------------------------------------------------
;;  NONE
;;============================================================================;;

to deploy-scheduler-nodes
  let gap ((max-pxcor - 2 - total-racks * 3) / total-racks)
  let idx 1
  let x-cord (gap / 2 + 1)
  repeat total-racks
  [
    create-schedulers 1
    [
      set shape "computer server"
      set ycor current-top-cord
      set xcor x-cord
      set color green
      set size 3
      set id idx
      set capacity scheduler-queue-capacity

      set ops-hist []
      set ops-hist fput 0 ops-hist
      set mem-hist []
      set mem-hist fput 0 mem-hist
      set net-hist []
      set net-hist fput 0 net-hist
    ]
    set idx idx + 1
    set x-cord (x-cord + gap + 3)
  ]

  set current-top-cord current-top-cord - 2
  ask patches with [ pycor = current-top-cord ]
  [ set pcolor grey ]
end
;;
;;
;;============================================================================;;
;; Deploy servers in the datacentre. The number of servers are jointly
;; determined by the global variables: 'rack-space' and 'total-racks'.
;;--PARAMETERS------------------------------------------------------------------
;;  none
;;============================================================================;;

to deploy-server-nodes
  let server-models read-from-string server-model
  let svr-icon-size 2
  let h-gap ((max-pxcor - 2 - total-racks * 3) / total-racks)
  let v-gap ((current-top-cord - 2 - rack-space * 3) / rack-space)
  let svr-x-cord (h-gap / 2 + 1)
  let rack-idx 1
  let the-svr-model 1 ;; Use server model 1 for default
  if not empty? server-model [ set the-svr-model first server-models ]

  repeat total-racks
  [
    let svr-y-cord current-top-cord - 3
    if datacentre-level-heterogeneity? and (not empty? server-models)
    [ set the-svr-model one-of server-models ]

    let rack-svr-count 0
    repeat rack-space
    [
      set rack-svr-count rack-svr-count + 1
      if datacentre-level-heterogeneity? and rack-level-heterogeneity? and (not empty? server-models)
      [ set the-svr-model one-of server-models ]

      create-servers 1
      [
        set shape "container"
        set xcor svr-x-cord
        set ycor svr-y-cord
        set size svr-icon-size
        set id rack-svr-count
        set rack rack-idx
        set model the-svr-model
        set migr-indicator 0

        set status "OFF"
        set color white
        (ifelse ;; benchmark information was collected from spec.org
          model = 1 [ set ops-phy 3318199  set mem-phy 65536  set net-phy 50000 set base-power 94.1 ]
          model = 2 [ set ops-phy 6114552  set mem-phy 131072 set net-phy 2000  set base-power 53   ]
          model = 3 [ set ops-phy 7573884  set mem-phy 262144 set net-phy 4000  set base-power 131  ]
          model = 4 [ set ops-phy 8135458  set mem-phy 262144 set net-phy 4000  set base-power 119  ]
          model = 5 [ set ops-phy 11556864 set mem-phy 393216 set net-phy 1000  set base-power 104  ]
          model = 6 [ set ops-phy 6124305  set mem-phy 65536  set net-phy 2000  set base-power 54.5 ]
          model = 7 [ set ops-phy 2297344  set mem-phy 200704 set net-phy 2000  set base-power 131  ]
          model = 8 [ set ops-phy 11702137 set mem-phy 262144 set net-phy 2000  set base-power 106  ]
          [ set ops-phy 3318199  set mem-phy 65536  set net-phy 50000 set base-power 94.1 ]
        )
        reset-server self
      ]
      set svr-y-cord (svr-y-cord - v-gap - 3)
    ]

    set svr-x-cord (svr-x-cord + h-gap + 3)
    set rack-idx rack-idx + 1
  ]
end
;;
;;
;;############################################################################;;
;; END: Datacentre Initial Configurations
;;############################################################################;;
;;
;;

to-report exp-mem-usage
  let a-svrs servers with [status = "ON" or status = "OVERLOAD"]
  if count a-svrs > 0
  [ report mean [(ops-now + ops-rsv) / ops-phy] of servers with [status = "ON" or status = "OVERLOAD"]]
  report 0
end
