scatterplot

1 collaborator

R. Wade Schuette (Author)

Tags

Model was written in NetLogo 6.3.0 • Viewed 86 times • Downloaded 9 times • Run 0 times

Download this model • Embed this model

To embed this model in another Web site, use the following link:

  <iframe src="http://modelingcommons.org/browse/one_model/7075?embedded=true" />

Info
Discuss
Run in NetLogo Web
Code
History
Files
Family

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

extensions [py]
turtles-own [ AAA BBB ]

to setup
  clear-all
  create-turtles 10 [ set AAA who set BBB (who ^ 1.3) ]
  reset-ticks
end

to  scatterplot
  print "Setting up python now"
  py:setup py:python
  let xlist [ ]
  let ylist [ ]
  ask turtles [ set xlist lput AAA xlist   set ylist lput precision BBB 3 ylist]
  print xlist
  print ylist
  py:set "x" xlist
  py:set "y" ylist
  carefully [
  (py:run
  "import matplotlib"
  "matplotlib.use('TkAgg')"
  "import numpy as np"
  "import matplotlib.pyplot as plt"
  "plt.scatter(x, y )"
  "plt.show()"
)
  ] [ print "ran into some problem running python." ]
 py:run "print('python finished')"
 print "End of plot routine"
end

to  testplot
   print "Setting up python now"
  py:setup py:python
  show py:runresult "1 + 1"
  carefully [
  (py:run
  "import matplotlib"
  "matplotlib.use('TkAgg')"
  "import numpy as np"
  "import matplotlib.pyplot as plt"
  "N = 50"
  "x = np.random.rand(N)"
  "y = np.random.rand(N)"
  "colors = np.random.rand(N)"
  "area = (30 * np.random.rand(N))**2  "
  "plt.scatter(x, y, s=area, c=colors, alpha=0.5)"
  "plt.show()"
)
  ] [ print "ran into some problem running python." ]
 py:run "print('python finished')"
 print "End of plot routine"
end

There is only one version of this model, created about 2 years ago by R. Wade Schuette.

Attached files

File	Type	Description	Last updated

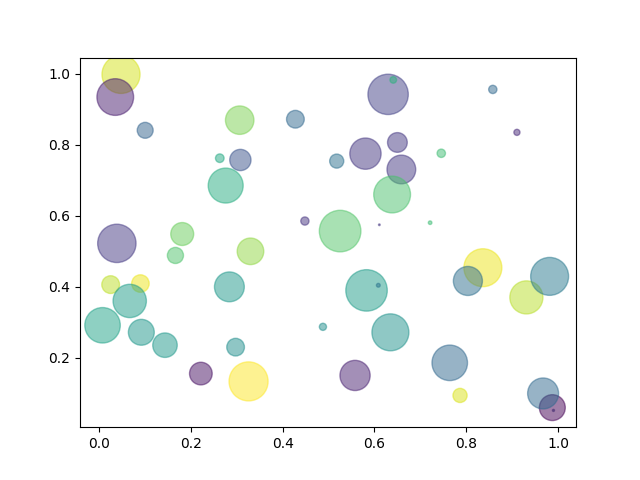

scatterplot.png	preview	Preview for 'scatterplot'	about 2 years ago, by R. Wade Schuette	Download

This model does not have any ancestors.

This model does not have any descendants.
