Parrondo on a network

1 collaborator

WHAT IS IT?

This model implements a version of the Parrondo's scheme on a network based on various types proposed in the literature. The code is focused on providing the implementation of the elementary game played against the environment. In all cases, only random policy for choosing between the game A and game B is provided.

HOW IT WORKS

The model is based on the two elementary games played by agents located on a 2D lattice. A teach step each agent play one of two games - game A or game B. The first one represent a game played against one of the neighbours. The second one is played against the environment. The selection of game played at each step is random.

Additionally, each agent holds information about its current state and the memory of the previous state. Each agent has also a assigned wealth, describing the accumulated capital or some other type of possession. Wealth, as well as state, can be used to select a game played at each step. They are used in the games implemented in the model. For some cases, the game is selected using the information about state of agents in the neighbourhood.

HOW TO USE IT

The model includes several parameters for controlling the behaviours of agents, selecting the type of game, and controlling the characteristics of games played by agents.

Agent posses information about the wealth, current state, and state in the previous round. The state describes the outcome - win or lose - in the round. Additionally, agents have ability to exchenage position with one of its neighbours.

The model includes parameters controlling the behavior of agents which are independednt on of the (eg. probability of exchanging positions) and the parameters depending on the type of chosen scenario (eg. initial wealth).

Note that in some game not all properies are used. However, each elementary game should update the state of the agenmt and the wealth.

The parameters independent on the chosen scenarios include

slider swap-prob - controlling the probability of the agent to swap its position with on the agent in the Moore neighbourhood (agent located at a Chebyshev distance of 1)
slider gameA-prob - probability of playing zero-sum game (i.e. game A)

Properies independetn on the choosen game B are - aWinProb slider - probability of winning in the zero-sum game (i.e. game A) is controlled by - initialWealth input - value of the initial wealth assigned to all aggents. This walue should be upadated by any elementary game, even if it is not used to control the game.

Type of the game B is selected with gameB-type chooser.

Currently, there are three types of game implemented, namely,

capital-based - original scheme with game B played using the accumulated wealth,
state-based - game B depends on the previous state (i.e. history),
niche-based - game B depends on the state of the agents located in the neighborhood.

For the implemented variants of game B, the following controls are available.

For capital-based game

In this case one can control

bigM - paramater M used to introduce dependency on the accumulated capital via the divisibility condition
pWinBranch1 and pWinBranch2 - probabilities for winning used in branch 1 and branch 2 of the game B

For state-based game

In the case of state-based (or history-based) game, it is possible to change four probabilities assigned to four combinations of the current and the previous state. They are controlled via sliders pWinState0, pWinState1, pWinState2, and pWinState3. Sliders correspond to states (loose, loose), (loose, win), (win, loose), and (win, win).

For niche-based game

Sliders with probabilities pWinNiche0, pWinNiche1, pWinNiche2, pWinNiche3, and pWinNiche4 for controlling the probability of winning by the agent if, among the agents in its von Neumann neighborhood, the number of agents in the winning state is 0, 1, 2, 3 and 4 respectively. Hence, the subsequent probabilities reflect the chance of wining based on the tendency of winning in the proximity of the agent.

THINGS TO NOTICE

The model provide a monitor for average increase in the wealth, as well as a monitor for one of the agents (agent with id 0). Thus, one can observe the evolution of the average value of the wealth for all agents, as well as the evolution of a single agent.

EXTENDING THE MODEL

The model can be extended by including new type of game B. For this purposed is it necessary to include new possible value of game-type, include new branch in the main switch in the go procedure, and define a procedure implementing rules of the game.

Currentl only random policy for choosing between game A and game B is implemented. The resutling paradoxical behaviour can be also observed using a deterministic policy.

CREDITS AND REFERENCES

Gregory P. Harmer, Derek Abbott, Peter G. Taylor, and Juan M. R. Parrondo, Brownian ratchets and Parrondo’s games, Chaos: An Interdisciplinary Journal of Nonlinear Science 11, 705 (2001); doi: 10.1063/1.1395623
R. Toral, Cooperative Parrondo’s games,Fluct. Noise Lett. Vol. 1 (2001) 7-12; doi: 10.1142/S021947750100007X
Z. Mihailović, M. Rajković, Cooperative Parrondo's games on a two-dimensional lattice, Physica A: Statistical Mechanics and its Applications, Volume 365, Issue 1, pp. 244-251 (2006); doi: 10.1016/j.physa.2006.01.032.
Ye, Ye And Xie, Neng-Gang And Wang, Lin-Gang And Meng, Rui And Cen, Yu-Wan, Study Of Biotic Evolutionary Mechanisms Based On The Multi-Agent Parrondo'S Games, Fluctuation and Noise Letters, Vol. 11, No. 02, 1250012 (2012); doi: 10.1142/S0219477512500125di

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;
;; internal variables for agents
;;
turtles-own [
  state   ;; current state, 1 - winning, 0 - loosing
  state-1 ;; state in the previous round, 1 - winning, 0 - loosing
  wealth  ;; total wealth, set to some initial value during the setup
]

;;
;; setup the world: creat agents, assign states
;;

to setup
  clear-all
  ask patches [
    set pcolor white
    sprout 1 [
      set wealth intial-wealth
      set shape "person"
      ifelse random-float 1 < 0.5 [
        set state 1
      ][
        set state 0
      ]
      ifelse random-float 1 < 0.5 [
        set state-1 1
      ][
        set state-1 0
      ]
    ]

  ]
  reset-ticks
end

;;
;; main process
;;

to go
  ask one-of turtles [

    ;; position swapping process
    if random-float 1.0 > swap-prob [
      swap-postions
    ]

    ;; include more colors and id
    show-debug-info

    ;;
    ;; main switch based on the type of selected game
    ;;
    ifelse random-float 1.0 < gameA-prob [
      zero-sum-game ;; game A
    ][
      (
        ifelse gameB-type = "capital-based" [
          capital-based-game
        ] gameB-type = "niche-based" [
          niche-based-game
        ] gameB-type = "state-based" [
          state-based-game
        ] gameB-type = "new-type-example" [
          new-type-game
        ]

      )

    ]
  ]
  tick
end

;;
;; exchange postion with one of neighbours
;;

to swap-postions
  let goal one-of neighbors
  let here patch-here
  ;; migrate from the goal
  ask turtles-on goal  [
    ;;set pcolor blue
    move-to here
    show-debug-info
  ]
  ;; move to the goal
  move-to goal
end

;;
;; display some debug information
;;

to show-debug-info
  if debug  [
    show who
    set color black
    set label who
    ifelse state = "winner" [
      set pcolor green
    ][
      set pcolor red
    ]
  ]
end

;;
;;
;;

to warn-unimplemented
  if who = 0 [
    show "[Warning] This function is not implemented yet!"
  ]
end

;;
;; implementation of elementary games used in the schemes
;;

;;
;; game A - zero-sum game played with probability
;;

to zero-sum-game
  ifelse random-float 1.0 < 0.5 [
    set state 1
    set wealth wealth + 1
    ask turtles-on one-of neighbors [
      set state 0
      set wealth wealth - 1
    ]
  ][
    set state 0
    set wealth wealth - 1
    ask turtles-on one-of neighbors [
      set state 1
      set wealth wealth + 1
    ]
  ]
end

;;
;; standard verion of Parronod's scheme, based on the accumulated wealth
;;

to capital-based-game
  ;; local variable for controlling elementary game
  let pWin -1
  ;; check the condition based on divisibility and set the probability
  ifelse wealth mod bigM = 0 [
    set pWin pWinBranch1
  ][
    set pWin pWinBranch2
  ]

  ;; play with p assigned to the apropriate branch
  ifelse random-float 1.0 < pWin [
    set state 1
    set wealth wealth + 1
  ][
    set state 0
    set wealth wealth - 1
  ]
end

;;
;;
;;

to state-based-game
  ;; set the probabilities for all cases
  let probsWinState
  (list
    pWinState00
    pWinState01
    pWinState10
    pWinState11
  )

  ;; save the current state in the history
  set state-1 state

  ;; update the state and the wealth
  ifelse ( random-float 1.0 ) < ( item (2 * state + state-1) probsWinState ) [
    set state 1
    set wealth wealth + 1
  ][
    set state 0
    set wealth wealth - 1
  ]
end

;;
;;
;;

to niche-based-game

  ;; set the probabilities for all cases
  let probsWinNiche
  (list
    pWinNiche0
    pWinNiche1
    pWinNiche2
    pWinNiche3
    pWinNiche4
  )
  ;; read the states of agents in the von Neumann neighborhood
  let whichBranch sum [state] of turtles-on neighbors4

  ;; save the current state in the history
  set state-1 state

  ;; update the state and the wealth
  ifelse ( random-float 1.0 ) < ( item whichBranch probsWinNiche ) [
    set state 1
    set wealth wealth + 1
  ][
    set state 0
    set wealth wealth - 1
  ]
end

;;
;; example of procedure implementing new game B
;;

to new-type-game
  warn-unimplemented
end

;;
;;
;;

to-report mean-state
  report mean [state] of turtles
end

;;
;;
;;

to-report mean-wealth-change
  report  ( mean [wealth] of turtles ) - intial-wealth
end

to-report mean-wealth-change-zero
  report  ( [wealth] of turtle 0 ) - intial-wealth
end

There is only one version of this model, created over 3 years ago by Jaroslaw Miszczak.

Attached files

File	Type	Description	Last updated

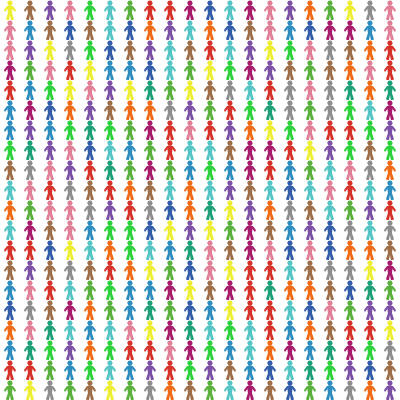

Parrondo on a network.png	preview	Preview for 'Parrondo on a network'	over 3 years ago, by Jaroslaw Miszczak	Download
