Blood sugar regulation by the liver and muscle

1 collaborator

lin xiang (Author)

WHAT IS IT?

This model compares the processes of glucose regulation by the liver and muscle. Students may examine the two processes separately or in one system. Students may also observe the changes in blood sugar level regulated by glucose transportation, glycogenesis, and glycogenolysis.

HOW IT WORKS

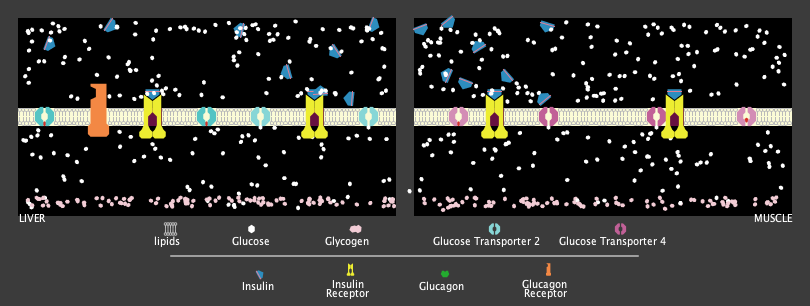

In the model, the upper area is the bloodstream or extracellular space, and the lower area is the liver and muscle. The following ideas are represented in the model:

People have more muscle than liver.
The glucose transporters 2 (GLUT-2) permanently exist in the cytomembrane of liver cells, but the glucose transporters 4 (GLUT-4) do not permanently exist in the cytomembrane of muscle cells. The GLUT-4s are dependent on insulin.
Glucose passes the cytomembrane through facilitated diffusion.
Insulin stimulates glycolysis and glycogenesis in liver and muscle cells.
Glucagon stimulates glycogenolysis.
Excercise may recruit the glucose transporters in the muscle cells.
A higher Metabolic rate enables the glucose to be broken down faster.

The blood sugar level has been calibrated to simulate the levels in real life. The glycogen level is not calibrated, but the model still represents the overall trends.

THINGS TO NOTICE AND TRY

Where do the glucose molecules move? Out of the cell or into the cell? When?
When is insulin produced?
When may glucagon be produced?
How quickly does the blood sugar level change with and without insulin resistance?
How does insulin resistance affect glycogenesis, i.e., glycogen synthesis?
What happens to the blood sugar level and glycogen level when "you" keep eating?
What happens to the blood sugar level when glycogen reaches the max level?
How does exercise affect glucose transportation by muscle cells?
How does the blood sugar level change over time when you separate and connect the liver and muscle systems?
What are the real-life examples of the simulated scenarios above? Can you simulate Type 1 diabetes and Type 2 diabetes in this model?

KEEP IN MIND

This model only shows the blood sugar regulation by the liver and skeletal muscles. When you turn on the switch "eat-every-4-hrs?", you should see that blood sugar will build up over time as the liver and muscle cells can only store a certain amount of glucose as glycogen. Other cells, such as adipose cells, also participate in regulating blood sugar.

HOW TO USE IT

Click on the "setup/reset" button to initiate or reset the model.
Put down the time you want to model to run. For a preliminary investigation, put down a large number (e.g., 1000) to get a sufficient observation time. To set experiments, set time as 1 ~4 hours to get the results close to the real-life.
Click on the "Run/pause" button to run or pause the model. Click on the "Run a tick" button to run the model for just one tick.
Use switches to explore/test the impacts of insulin production and sensitivity.
Use sliders to adjust the initial blood sugar level, cytoplasmic glucose level, and metabolic rate.
Use the "snack" button to simulate a small food intake. Use the "eat-every-4-hrs?" switch to add glucose into the bloodstream regularly.
Use the "watch a glucose" and "stop watching" buttons to track the behaviors of an individual glucose molecule.
Examine results in the simulation window, the numeric monitors, and plots.

Run the model at a lower speed to get a better visual effect.

RELATED MODELS

Check 3dsciencemodeling.com for related models and other resources.

CREDITS AND REFERENCES

This model is made by Dr. Lin Xiang at the University of Kentucky. If you mention this model in a publication, we ask that you include the citations below.

Xiang, L. (2021). Blood sugar regulation by the liver and muscle. Department of STEM Education, University of Kentucky, Lexington, KY.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;
;; This model is developed by Dr. Lin Xiang at the University of Kentucky. Contact: lin.xiang@uky.edu
;;
;; If you see this page rather than a "download" button when downloading the model, click the "download" icon
;; in your browser to download this model file.
;;
;; This model is free for classroom or virtual learning or teacher professional development related to STEM education.
;; You are asked to provide citations when using this model in any published work.
;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


breed [insulins insulin]
breed [glucose a-glucose]
breed [gluts glut]
breed [I-receptors I-receptor]
breed [G-receptors G-receptor]
breed [lipids lipid]
breed [glucagons glucagon]
breed [legends legend]

insulins-own [bonding]
patches-own[protein]
gluts-own[bonding name lock kind]
glucose-own [bonding cyto glycogen]
I-receptors-own [bonding]
G-receptors-own [bonding]
glucagons-own [bonding]

globals [clock]

to-report divider
  report patches with [pxcor = -6 and pycor > 2 and pycor < 8]
end

to-report blood-sugar    ;all blood  sugar level are based on the concentration i.e., glocuse / patch
  report count glucose with [ycor > 2 and color = white and bonding = 0] * 100 /  (count patches with [pycor > 2 and pcolor = 0])
end

to-report blood-sugar-l
  report count glucose with [xcor <= -6 and ycor > 2 and color = white and bonding = 0] * 100 / (count patches with [pxcor <= -6 and pycor > 2 and pcolor = 0])
end

to-report blood-sugar-r
  report count glucose with [xcor > -6 and ycor > 2 and color = white and bonding = 0] * 100 / (count patches with [pxcor > -6 and pycor > 2 and pcolor = 0])
end

to-report cyto-glucose-l
  report count glucose with [xcor <= -6 and ycor < 2 and color = white and bonding = 0 and glycogen = 0] * 100 / (count patches with [pxcor <= -6 and pycor < 2 and pcolor = 0])
end

to-report cyto-glucose-r
  report count glucose with [xcor > -6 and ycor < 2 and color = white and bonding = 0 and glycogen = 0] * 100 / (count patches with [pxcor > -6 and pycor < 2 and pcolor = 0])
end

to-report glycogen-level-l
  report count glucose with [xcor <= -6 and glycogen = 1 and color = 138]
end

to-report glycogen-level-r
  report count glucose with [xcor > -6 and glycogen = 1 and color = 138]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;                                                                           ;;
;;         Main Procedures (SETUP and GO)                                    ;;
;;                                                                           ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to setup
 ;clear-turtles
 ;clear-patches
ca
 setup-legend     ; must be the first line
 setup-membrane-IR
 setup-glucose
 check-glucose-location
 setup-glut-4
 setup-glut-2
 setup-g-receptors
 set-insulin-sensitivity


reset-ticks
end

to go
 if blood-sugar < 54 [user-message "The average blood sugar level is dangerously low." Stop]

adjust-glucose-location
check-glucose-location
set-insulin-sensitivity
setup-insulin
setup-glucagon
glucose-movement
insulin-movement
glut-4-movement
recover-lipids
glucagon-movement
glycolysis
glycogenesis-glycogenolysis
food-intake

plot-levels

tick
end



;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;                                                                           ;;
;;         Sub-procedures of SETUP                                           ;;
;;                                                                           ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to setup-membrane-IR

;make the membrane
  ask patches with [pycor = 2] [set pcolor 49 ]

; make boundary for the system
  ask patches with [abs pxcor = max-pxcor or abs pycor = max-pycor] [set pcolor 2]
  ask patches with [pycor <= min-pycor + 4 ] [set pcolor 2]
  ask patches with [pxcor = -6] [set pcolor 2]

;add Insulin receptors (I-R) into the membrane
  ask patches with [pcolor = 49] [
    if  pxcor = 4 or  pxcor = 14 or    ;muscle I-R
        pxcor = -17 or pxcor = -11    ;Liver I-R
    [set pcolor 123]
  ]

 ask patches with [pcolor = 123]
     [sprout-I-receptors 1
        [set color yellow - 2
        set size 2.5
        set shape "I-R"
        set bonding 0 ]
     ]

  ; add bilayer
   ask patches with [ pycor = 2 and pcolor = 49] [sprout-lipids 1 [set color 7 set shape "lipid-1" set size 1 set heading 0 set ycor 2]]
end

to setup-glucose
  create-glucose round (Starting-Blood-sugar-level * 85 / 100)   ;liver side glucose
  [set color white
    set shape "glucose"
    set size 0.75
    set bonding 0
    set glycogen 0
    setxy -7 + random-float -16 2.5 + random-float 5]

   create-glucose round (Starting-Blood-sugar-level * 145 / 100)  ;muscle side glucose
  [set color white
    set shape "glucose"
    set size 0.75
    set bonding 0
    set glycogen 0
    setxy 23 + random-float -28 2.5 + random-float 5]

  create-glucose round (Starting-cytoplasmic-glucose * 85 / 100)
  [set color white
    set shape "glucose"
    set size 0.75
    set bonding 0
    set glycogen 0
    setxy -7 + random-float -16 1 + random-float -4
    ]

   create-glucose round (Starting-cytoplasmic-glucose * 145 / 100)
  [set color white
    set shape "glucose"
    set size 0.75
    set bonding 0
    set glycogen 0
    setxy 23 + random-float -28 1 + random-float -4
    ]


  create-glucose 400        ;set glycogen
  [set color 138
    set shape "glucose"
    set size 0.75
    set bonding 0
    set glycogen 1
    setxy (max-pxcor - 1) - random-float ((max-pxcor - 1) * 2) min-pycor + 5 + random-float 0.5]

  adjust-glucose-location
end

to adjust-glucose-location
ask glucose with [ycor > min-pycor + 4 ]
  [if pcolor = 2 [ifelse random 2 = 0 [set xcor xcor + 1 ][set xcor xcor - 1 ]]]
end

to setup-glut-4

  create-gluts 1
  [set shape "glut" set color 123 set size 1.25 set bonding 2 set name 1 set lock 0 set kind 4
    setxy -3 + random -2  -0.75]

   create-gluts 1
  [set shape "glut" set color 123 set size 1.25 set bonding 2 set name 1 set lock 0 set kind 4
    setxy 1 + random -2  -1.25]

  create-gluts 1
  [set shape "glut" set color 123 set size 1.25 set bonding 2 set name 1 set lock 0 set kind 4
    setxy 6 + random 2  -1]

 create-gluts 1
  [set shape "glut" set color 123 set size 1.25 set bonding 2 set name 2 set lock 0 set kind 4
    setxy 10 + random 2  -1.5]

  create-gluts 1
  [set shape "glut" set color 123 set size 1.25 set bonding 2 set name 3 set lock 0 set kind 4
    setxy 16 + random 2  -1.25]

    create-gluts 1
  [set shape "glut" set color 123 set size 1.25 set bonding 2 set name 4 set lock 0 set kind 4
    setxy 20 + random 2  -0.75]
end

to setup-glut-2
 ask patches with [(pxcor = -22 or pxcor = -14 or pxcor = -8)  and pycor = 2 and pcolor = 49]
[if any? lipids-here
[ask lipids-here [die]
sprout-gluts 1 [set shape "glut" set color 86.5 set size 1.25 set kind 2 set heading 0 set bonding 0]
]]
end

to setup-g-receptors
 ask patches with [pxcor = -19 and pycor = 2 and pcolor = 49]
  [if any? lipids-here
    [ask lipids-here [die]
   sprout-G-receptors 1 [set shape "g-r" set color 26 set size 3 set heading 0 set bonding 0 setxy -19 2.35]
]]
end

to setup-glucagon
 ifelse [pcolor] of divider = 0
 [ ;no divider
 if blood-sugar  < 98
  [if not any? glucagons with [ycor > 1] [
    create-glucagons 10
    [ set bonding 0
    set shape "glucagon"
    set size 1.75
    set color 64
      setxy min-pxcor + 1 +  random 5 2.5 + random-float 5]]]


  if blood-sugar > 103
  [if count glucagons != 0
    [ask glucagons with [ycor > 0] [die]
       ]
  ]
  ]

  [;with the divide

 if blood-sugar-l  < 98
  [if not any? glucagons with [ycor > 1 and xcor <= -6] [
    create-glucagons 10
    [ set bonding 0
    set shape "glucagon"
    set size 1.75
    set color 64
      setxy min-pxcor + 1 +  random 5 2.5 + random-float 5]]]

  if blood-sugar-l > 103
  [if count glucagons with [ycor > 1 and xcor <= -6] != 0
    [ask glucagons with [ycor > 1 and xcor <= -6] [die]
        ]
  ]

     if blood-sugar-r  < 98
  [if not any? glucagons with [ycor > 1 and xcor > -6] [
    create-glucagons 10
    [ set bonding 0
    set shape "glucagon"
    set size 1.75
    set color 64
      setxy 0.5 + random 20 2.5 + random-float 5]]]

  if blood-sugar-r > 103
  [if count glucagons with [ycor > 1 and xcor > -6] != 0
    [ask glucagons with [ycor > 1 and xcor > -6] [die]]
  ]
  ]
end

to setup-insulin

  ifelse [pcolor] of divider = 0
 ;no divider
  [
   if blood-sugar > 140 and Can-produce-insulin?
    [if not any? insulins with [ycor > 2] [
    create-insulins 20
    [ set bonding 0
    set shape "insulin"
    set size 2
    set color 95
      setxy (min-pxcor + 1) + random-float ((max-pxcor - 1) * 2) 2.5 + random-float 5]]]

  ask insulins  with [ycor > -4]
  [if pcolor = 2 [ifelse random 2 = 0 [set xcor xcor + 1 ][set xcor xcor - 1 ]]]

  if blood-sugar  < 120
  [if count insulins != 0
    [ask insulins with [ycor > 2] [die]]
  ]
  ]

  ;with the divider
  [
    ;left
  if blood-sugar-l > 140 and Can-produce-insulin?
    [if not any? insulins with [ycor > 2 and xcor <= -6] [
    create-insulins 10
    [ set bonding 0
    set shape "insulin"
    set size 2
    set color 95
    setxy -7 + random-float -16 2.5 + random-float 5]]]

  if blood-sugar-l  < 120
  [if count insulins with [ycor > 2 and xcor <= -6] != 0
    [ask insulins with [ycor > 2 and xcor <= -6] [die]]
  ]

    ;right

   if blood-sugar-r > 140 and Can-produce-insulin?
    [if not any? insulins with [ycor > 2 and xcor > -6] [
    create-insulins 10
    [ set bonding 0
    set shape "insulin"
    set size 2
    set color 95
    setxy 23 + random-float -28 2.5 + random-float 5]]]


  if blood-sugar-r  < 120
  [if count insulins with [ycor > 2 and xcor > -6] != 0
    [ask insulins with [ycor > 2 and xcor > -6] [die]]
  ]

  ]
end

to setup-legend
 create-legends 13
  [set shape "legend"]

 ask legend 0
  [set label "lipids"
    setxy -13 -4.75 ]

  create-lipids 1
  [set color 7
    set shape "lipid-1"
    set size 0.75
    set heading 0
    setxy -13 -4.25 ]

  ask legend 1
  [set label "Glucose"
    setxy -8 -4.75]

  Create-glucose 1
  [set color white
    set shape "glucose"
    set size 1.25
    set heading 0
    set glycogen 2
    setxy -8.5 -4.25]

  ask legend 2
  [set label "Glycogen"
    setxy -2.5 -4.75 ]

  Create-glucose 2
  [set color 138
    set shape "glucose"
    set size 1.25
    set glycogen 2
    setxy -3 + random-float 0.5 -4.25]

  ask legend 3
  [set label "Glucose Transporter 4"
    setxy 14 -4.75 ]

  create-gluts 1
  [set shape "glut"
    set color 126.5
    set size 0.75
    set heading 0
    set bonding 2
    set lock 2
    setxy 12 -4.25]

 ask legend 4
  [set label "Insulin"
    setxy -7.8 -7.25 ]

 create-insulins 1
  [ set bonding 0
    set shape "insulin"
    set size 1.25
    set color 95
    setxy -8 -6.75]

  ask legend 5
  [set label "Insulin"
    setxy  -2.8 -7.15 ]

ask legend 6
  [set label "Receptor"
    setxy  -2.5 -7.65 ]

  create-I-receptors 1
       [set color yellow
        set size 0.75
        set shape "I-R"
        setxy -3 -6.5]


   ask legend 7
  [ set label "Glucose Transporter 2"
    setxy 7 -4.75 ]

  create-gluts 1
  [set shape "glut"
    set color 86.5
    set size 0.75
    set heading 0
    set bonding 2
    setxy 5 -4.25]

ask legend 8
  [set label "Glucagon"
    setxy  2.75 -7.25 ]

create-Glucagons 1
  [set color 64
    set shape "Glucagon"
    set size 1.25
    set heading 90
    setxy 2.25 -6.75
  ]

 ask legend 9
  [set label "Glucagon"
    setxy  8.5 -7.15 ]

ask legend 10
  [set label "Receptor"
    setxy  8.5 -7.65 ]

create-G-receptors 1
  [set color 26
    set shape "g-r"
    set size 0.75
    set heading 90
    setxy 8 -6.5
  ]

  ask legend 11
  [set label "LIVER"
    setxy  -20.5 -3.5 ]

  ask legend 12
  [set label "MUSCLE"
    setxy  21 -3.5 ]

  create-lipids 1
  [set color 7
    set shape "line"
    set size 26
    set heading 90
    setxy 0 -5.75
  ]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;                                                                           ;;
;;         Sub-procedures of GO                                              ;;
;;                                                                           ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to glucose-movement
  ask glucose with [glycogen = 0] [
  ifelse bonding = 0
  [ if pcolor = 0
      [right random 90 left random 90   ;wiggle
         if [pcolor] of patch-at dx dy = 0 [fd 0.2]   ;If nothing is ahead, move forward
    ]
    if any? gluts-on patch-ahead 1 [
      let my-channel one-of gluts-on patch-ahead 1
      if [bonding] of my-channel = 0 [
       set color red move-to my-channel set bonding 1

          ask my-channel [set bonding 1 ifelse kind = 2 [set color 85][set color 127.5]]]]]
  [ifelse xcor <= -6
    [ifelse blood-sugar-l > cyto-glucose-l
      [set heading 180 fd 0.1] [set heading 0 fd 0.1]
        if pcolor = 0 [set bonding 0 set color white]]
      [ifelse blood-sugar-r > cyto-glucose-r
      [set heading 180 fd 0.2] [set heading 0 fd 0.2]
        if pcolor = 0 [set bonding 0 set color white]]
        ]
  ]

  ask gluts with [bonding = 1] [if count glucose-here = 0 [set bonding 0 ifelse kind = 2 [set color 86.5][set color 126.5]]]
end

to check-glucose-location ;detemine glucose location
  ask glucose [ifelse ycor > 2 [set cyto 0][set cyto 1]]
end

to insulin-movement
  ask insulins with [ycor > 2]
  [if bonding = 0
    [
      if pcolor = 0
      [right random 90 left random 90   ;wiggle
         if [pcolor] of patch-at dx dy = 0 [fd 0.2]
      ]

      if any? I-receptors in-radius 3 with [bonding = 0] [
      let my-receptor one-of I-receptors in-radius 3 with [bonding = 0]
        set heading 0 move-to my-receptor set ycor ycor + 1.2  set bonding 1

        ask my-receptor [set bonding 1 set color yellow]]]
      ]

 ifelse [pcolor] of divider = 0
  [;no divide
  ask I-receptors with [bonding = 1]
    [if count insulins with [ycor > 2] = 0 [set bonding 0 set color yellow - 2]]]
  [;with the divide
    ask I-receptors with [bonding = 1 and xcor <= -6]
    [if count insulins with [ycor > 2 and xcor <= -6] = 0 [set bonding 0 set color yellow - 2]]

    ask I-receptors with [bonding = 1 and xcor > -6]
    [if count insulins with [ycor > 2 and xcor > -6] = 0 [set bonding 0 set color yellow - 2]]
  ]
end

to glut-4-movement

  ifelse count I-receptors with [bonding = 1 and xcor > -6 ] > 0 or exercise?
    [ask gluts with [kind = 4 and lock = 0]
      [glut-recruiting]]

    [ask gluts with [kind = 4 and lock = 1]
      [glut-restore]]
end

to glut-recruiting

  let loci  min-one-of lipids with [pycor = 2] [distance myself]
 face loci
 ifelse (distancexy [xcor] of loci [ycor] of loci) > 0.3
  [ifelse pcolor = 9 [rt random 90 lt random 90][fd 0.1]]
 [move-to loci set heading 0 set lock 1 set bonding 0 set color 126.5
  ask lipids-here [die] ]
end

to glut-restore
  set bonding 2
  if pcolor = 49 [set heading 180 fd 0.25]
  if pcolor = 0 [ifelse pcolor = 2 [ifelse pxcor > 10 [set heading -90 fd 0.5][set heading 90 fd 0.5]][rt random 15 lt random 15 fd 0.1 set color 123]]
  if pycor < -0.75 [if random 100 < 25 [set lock 0]]
end

to glucagon-movement
  ifelse [pcolor] of divider = 0
  [;no divide

  ask glucagons with [ycor > 2]
  [if bonding = 0
    [
      if pcolor = 0
      [right random 90 left random 90   ;wiggle
         if [pcolor] of patch-at dx dy = 0 [fd 0.2]
      ]

      if any? G-receptors in-radius 2 with [bonding = 0] [
      let my-receptor one-of G-receptors in-radius 2 with [bonding = 0]
        set heading 0 move-to my-receptor set xcor xcor - 0.3 set ycor ycor + 0.95 set bonding 1

        ask my-receptor [set bonding 1 set color 27]]]
      ]

  ask G-receptors with
    [bonding = 1] [if count glucagons with [ycor > 2] = 0 [set bonding 0 set color 26]]
  ]

  [;with the divide

    ask glucagons with [ycor > 2]
  [if bonding = 0
    [
      if pcolor = 0
      [right random 90 left random 90   ;wiggle
         if [pcolor] of patch-at dx dy = 0 [fd 0.2]
      ]

      if any? G-receptors in-radius 2 with [bonding = 0] [
      let my-receptor one-of G-receptors in-radius 2 with [bonding = 0]
        set heading 0 move-to my-receptor set xcor xcor - 0.3 set ycor ycor + 0.95 set bonding 1

        ask my-receptor [set bonding 1 set color 27]]]
      ]

  ask G-receptors with
    [bonding = 1] [if count glucagons with [ycor > 2 and xcor <= -6] = 0 [set bonding 0 set color 26]]

  ]
end

to glycolysis

   ifelse [pcolor] of divider = 0
  [;no divider
  ask glucose with [glycogen = 0 and cyto = 1] [
  if random 100 < (20 + (count insulins with [bonding = 1])* 20)
   [ if random 100000 < metabolic-rate  [die]
  ]]]

  [;with the divider
    ask glucose with [glycogen = 0 and xcor <= -6 and cyto = 1] [
  if random 100 < (20 + (count insulins with [bonding = 1 and xcor <= -6])* 35)
      [ if random 100000 < metabolic-rate  [die]]]

    ask glucose with [glycogen = 0 and xcor > -6 and cyto = 1] [
  if random 100 < (20 + (count insulins with [bonding = 1 and xcor > -6])* 35)
      [ if random 100000 < metabolic-rate  [die]]]
  ]
end

to glycogenesis-glycogenolysis

  ;left
    if glycogen-level-l = 0
   [if count glucose with [cyto = 1 and xcor <= -6] != nobody
     [ask one-of glucose with [cyto = 1 and xcor <= -6]    ;set a starter
        [set glycogen 1
         set color 138
         setxy (min-pxcor + 1) + random-float 10 -2 + random-float -1 ]]]

  if cyto-glucose-l > 80 and glycogen-level-l < 800 [
    ask glucose with [cyto = 1 and glycogen = 0 and xcor <= -6 ]      ;glycogenesis
     [if any? other glucose-here with [glycogen = 1]
      [if random 100 < (1 + (count insulins with [bonding = 1])* 45)
        [ set glycogen 1 set color 138]
  ]]]


   if any? G-receptors with [bonding = 1]                ;glycogenolysis
    [ask glucose with [cyto = 1 and glycogen = 1 and xcor <= -6]
     [if random 1000 < 5
      [set glycogen 0 set color white
       set heading 45 - random 90
          fd 0.5]]
    ]


     ;right

   if glycogen-level-r = 0
   [if count glucose with [cyto = 1 and xcor > -6] != nobody
     [ask one-of glucose with [cyto = 1 and xcor > -6]    ;set a starter
        [set glycogen 1
         set color 138
         setxy 1 + random-float 20 -2 + random-float -1 ]]]

    if cyto-glucose-r > 80 and glycogen-level-r < 400 [
    ask glucose with [cyto = 1 and glycogen = 0 and xcor > -6 ]      ;glycogenesis
     [if any? other glucose-here with [glycogen = 1]
      [if random 100 < (1 + (count insulins with [bonding = 1])* 45)
        [ set glycogen 1 set color 138]
  ]]]

   if cyto-glucose-r <= 80               ;glycogenolysis
    [ask glucose with [cyto = 1 and glycogen = 1 and xcor > -6]
     [if random 1000 < 5
      [set glycogen 0 set color white
       set heading 45 - random 90
          fd 0.5]]
    ]
end

to recover-lipids
  ask patches with [pcolor = 49]
  [if not any? turtles-here [sprout-lipids 1[set color 7 set shape "lipid-1" set size 1 set heading 0 set ycor 2]]]
end

to set-insulin-sensitivity
  ask I-receptors with [ycor > 0]
    [ifelse Insulin-resistance?
      [set bonding 2 set color yellow - 2]
      [ifelse color = yellow [set bonding 1][set bonding 0]]
      ]
end

to divide
  ask divider [ifelse pcolor = 2 [set pcolor 0] [set pcolor 2]]
end

to food-intake
  set clock clock + 1
  if clock = 1200 [
    if eat-every-4-hrs?
  [
  create-glucose round (100 * 85 / 100)   ;add 100 liver side glucose
  [set color white
    set shape "glucose"
    set size 0.75
    set bonding 0
    set glycogen 0
    setxy -7 + random-float -16 2.5 + random-float 5]

  create-glucose round (100 * 145 / 100)  ;muscle side glucose
  [set color white
    set shape "glucose"
    set size 0.75
    set bonding 0
    set glycogen 0
    setxy 23 + random-float -28 2.5 + random-float 5]

 ask glucose with [ycor > -4]
  [if pcolor = 2 [ifelse random 2 = 0 [set xcor xcor + 1 ][set xcor xcor - 1 ]]]
  ]
    set clock 0]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;                                                                           ;;
;;         Supporting-procedures                                             ;;
;;                                                                           ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to plot-levels ;; this creates creates the bar graph
    set-current-plot "Glucose Gradient"
    clear-plot
    plot-pen-down
    set-current-plot-pen "Blood sugar (Liver)"
    plotxy 1 blood-sugar-l
    set-current-plot-pen "Cytoplasmic glucose (Liver)"
    plotxy 2 cyto-glucose-l
    set-current-plot-pen "Blood sugar (Muscle)"
    plotxy 4 blood-sugar-r
    set-current-plot-pen "Cytoplasmic glucose (Muscle)"
    plotxy 5 cyto-glucose-r
end


; Copyright 2021 by Lin Xiang.  All rights reserved.

There are 8 versions of this model.

Uploaded by	When	Description	Download
lin xiang	over 4 years ago	Fix info typos	Download this version
lin xiang	over 4 years ago	Adjust the parameters	Download this version
lin xiang	over 4 years ago	Adjust the glut actions	Download this version
lin xiang	over 4 years ago	Adjust the parameters	Download this version
lin xiang	over 4 years ago	Adjust the parameters	Download this version
lin xiang	over 4 years ago	Adjust regular food intake	Download this version
lin xiang	over 4 years ago	Adjust the parameters	Download this version
lin xiang	over 4 years ago	Initial upload	Download this version

Attached files

File	Type	Description	Last updated
Blood sugar regulation by the liver and muscle.png	preview	Preview for 'Blood sugar regulation by the liver and muscle'	over 4 years ago, by lin xiang	Download

This model does not have any ancestors.

This model does not have any descendants.

NetLogo
