Infectious Disease Outbreak (COV-19)--Vaccination

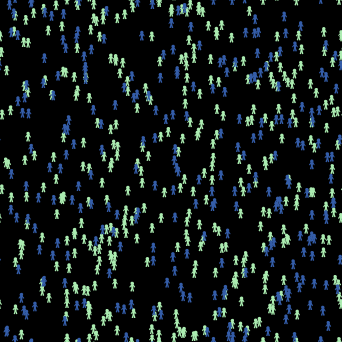

Infectious Disease Outbreak (COV-19)--Vaccination preview image

1 collaborator

Screen_shot_2018-02-02_at_12.53.50_pm lin xiang (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.3.0 • Viewed 518 times • Downloaded 50 times • Run 0 times
Download the 'Infectious Disease Outbreak (COV-19)--Vaccination' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;
;; This model is developed by Dr. Lin Xiang at the University of Kentucky. Contact: lin.xiang@uky.edu
;;
;; If you see this page rather than a "download" button when downloading the model, click the "download" icon
;; in your browser to download this model file.
;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


turtles-own [day infected susceptible]
Patches-own [ ]
Globals [watching LM max-daily-cases]

to setup
  clear-all
  setup-turtles
  setup-patches

  set watching false

  reset-ticks
end

to setup-turtles
  create-turtles Population-size * (100 - vaccination-rate) * 0.01
  [set color 68
    set size 1.25
    set shape "person-1"
    set day 0
    set infected false
    set susceptible true
    setxy random-xcor random-ycor
  ]

  create-turtles Population-size * (vaccination-rate * 0.01)
  [set color blue
    set size 1.25
    set shape "person-1"
    set day 0
    set infected false
    set susceptible false
    setxy random-xcor random-ycor
  ]

  set LM 0
end

to setup-patches
  ask patches [set pcolor 0]
end

to go

  if ticks >= Days [stop]
  move
  transmission
  sickness
  find-max-daily-cases
  tick
end

to move
  ask turtles
  [right random 360 forward 1]
end

to add-an-infected-person
  create-turtles 1
  [set color orange
    set size 1.25
    set shape "person-1"
    set day 0
    set infected true
    set susceptible false
    setxy random-xcor random-ycor
  ]
end

to transmission
  ask turtles with [infected = true]
  [
    let healthy-person one-of other turtles in-radius 1.5 with [susceptible = true]
    if healthy-person != nobody
    [ask healthy-person [
      if random 100 < Transmission-rate
      [set color orange set infected true set susceptible false ]]
    ]
    ]
end

to sickness
  ask turtles with [infected = true]
  [set day day + 1
    if day >= 15
    [ifelse random 100 < mortality
      [set LM LM + 1 die  ]
      [set color blue
       set infected false
       set susceptible false ] ]
  ]
end

to watch-an-infected-person
  watch one-of turtles with [infected = true]
end

to find-max-daily-cases
  if count turtles with [infected = true ] > max-daily-cases        ;Count the infectious.If it is greater than the current record of max daily cases
  [set max-daily-cases count turtles with [infected = true ]]       ;update the max daily case
end
