WSP Posse

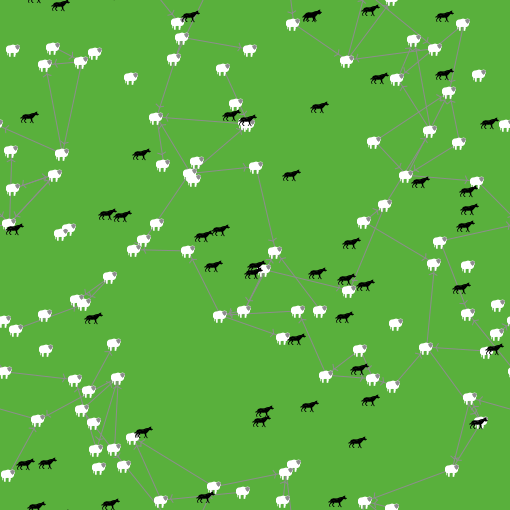

WSP Posse preview image

1 collaborator

Default-person Connor Bain (Author)

Tags

(This model has yet to be categorized with any tags)
Model group MAM-2018 | Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.0.3 • Viewed 128 times • Downloaded 18 times • Run 0 times
Download the 'WSP Posse' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [ max-sheep ]  ; don't let sheep population grow too large
; Sheep and wolves are both breeds of turtle.
breed [ sheep a-sheep ]  ; sheep is its own plural, so we use "a-sheep" as the singular.
breed [ wolves wolf ]
turtles-own [ energy ]       ; both wolves and sheep have energy
patches-own [ countdown ]

to setup
  clear-all
  ifelse netlogo-web? [set max-sheep 10000] [set max-sheep 30000]

  ; Check model-version switch
  ; if we're not modeling grass, then the sheep don't need to eat to survive
  ; otherwise the grass's state of growth and growing logic need to be set up
  ifelse model-version = "sheep-wolves-grass" [
    ask patches [
      set pcolor one-of [ green brown ]
      ifelse pcolor = green
        [ set countdown grass-regrowth-time ]
      [ set countdown random grass-regrowth-time ] ; initialize grass regrowth clocks randomly for brown patches
    ]
  ]
  [
    ask patches [ set pcolor green ]
  ]

  create-sheep initial-number-sheep  ; create the sheep, then initialize their variables
  [
    set shape  "sheep"
    set color white
    set size 1.5  ; easier to see
    set label-color blue - 2
    set energy random (2 * sheep-gain-from-food)
    setxy random-xcor random-ycor
  ]

  create-wolves initial-number-wolves  ; create the wolves, then initialize their variables
  [
    set shape "wolf"
    set color black
    set size 2  ; easier to see
    set energy random (2 * wolf-gain-from-food)
    setxy random-xcor random-ycor
  ]

  ask sheep [
    repeat random max-sheep-posse-size [ create-link-to one-of other sheep in-radius 10 ]
  ]

  ;display-labels
  reset-ticks
end

to go
  ; stop the simulation of no wolves or sheep
  if not any? turtles [ stop ]
  ; stop the model if there are no wolves and the number of sheep gets very large
  if not any? wolves and count sheep > max-sheep [ user-message "The sheep have inherited the earth" stop ]
  ask sheep [
    move
    if model-version = "sheep-wolves-grass" [ ; in this version, sheep eat grass, grass grows and it costs sheep energy to move
      set energy energy - 1  ; deduct energy for sheep only if running sheep-wolf-grass model version
      eat-grass  ; sheep eat grass only if running sheep-wolf-grass model version
      death ; sheep die from starvation only if running sheep-wolf-grass model version
    ]
    reproduce-sheep  ; sheep reproduce at random rate governed by slider
  ]
  ask wolves [
    move
    set energy energy - 1  ; wolves lose energy as they move
    eat-sheep ; wolves eat a sheep on their patch
    death ; wolves die if our of energy
    reproduce-wolves ; wolves reproduce at random rate governed by slider
  ]
  if model-version = "sheep-wolves-grass" [ ask patches [ grow-grass ] ]
  ; set grass count patches with [pcolor = green]
  tick
  ;display-labels
end

to move  ; turtle procedure
  rt random 50
  lt random 50
  fd 1
end

to eat-grass  ; sheep procedure
  ; sheep eat grass, turn the patch brown
  if pcolor = green [
    set pcolor brown
    set energy energy + sheep-gain-from-food  ; sheep gain energy by eating
  ]
end

to reproduce-sheep  ; sheep procedure
  if random-float 100 < sheep-reproduce [  ; throw "dice" to see if you will reproduce
    set energy (energy / 2)                ; divide energy between parent and offspring
    hatch 1 [ rt random-float 360 fd 1
      repeat random max-sheep-posse-size [ create-link-to one-of other sheep in-radius 10 ]
    ]   ; hatch an offspring and move it forward 1 step
  ]
end

to reproduce-wolves  ; wolf procedure
  if random-float 100 < wolf-reproduce [  ; throw "dice" to see if you will reproduce
    set energy (energy / 2)               ; divide energy between parent and offspring
    hatch 1 [ rt random-float 360 fd 1 ]  ; hatch an offspring and move it forward 1 step
  ]
end

to eat-sheep  ; wolf procedure
  let prey one-of sheep-here                    ; grab a random sheep
  if prey != nobody  [                          ; did we get one?  if so,

    if random 101 < (100 - (posse-protection-factor * [count link-neighbors] of prey))[
      ask prey [ die ]                            ; kill it, and...
      set energy energy + wolf-gain-from-food     ; get energy from eating
    ]
  ]
end

to death  ; turtle procedure (i.e. both wolf nd sheep procedure)
  ; when energy dips below zero, die
  if energy < 0 [ die ]
end

to grow-grass  ; patch procedure
  ; countdown on brown patches: if reach 0, grow some grass
  if pcolor = brown [
    ifelse countdown <= 0
      [ set pcolor green
        set countdown grass-regrowth-time ]
      [ set countdown countdown - 1 ]
  ]
end

to-report grass
  ifelse model-version = "sheep-wolves-grass" [
    report patches with [pcolor = green]
  ]
  [ report 0 ]
end

; Copyright 1997 Uri Wilensky.
; See Info tab for full copyright and license.

There is only one version of this model, created over 6 years ago by Connor Bain.
