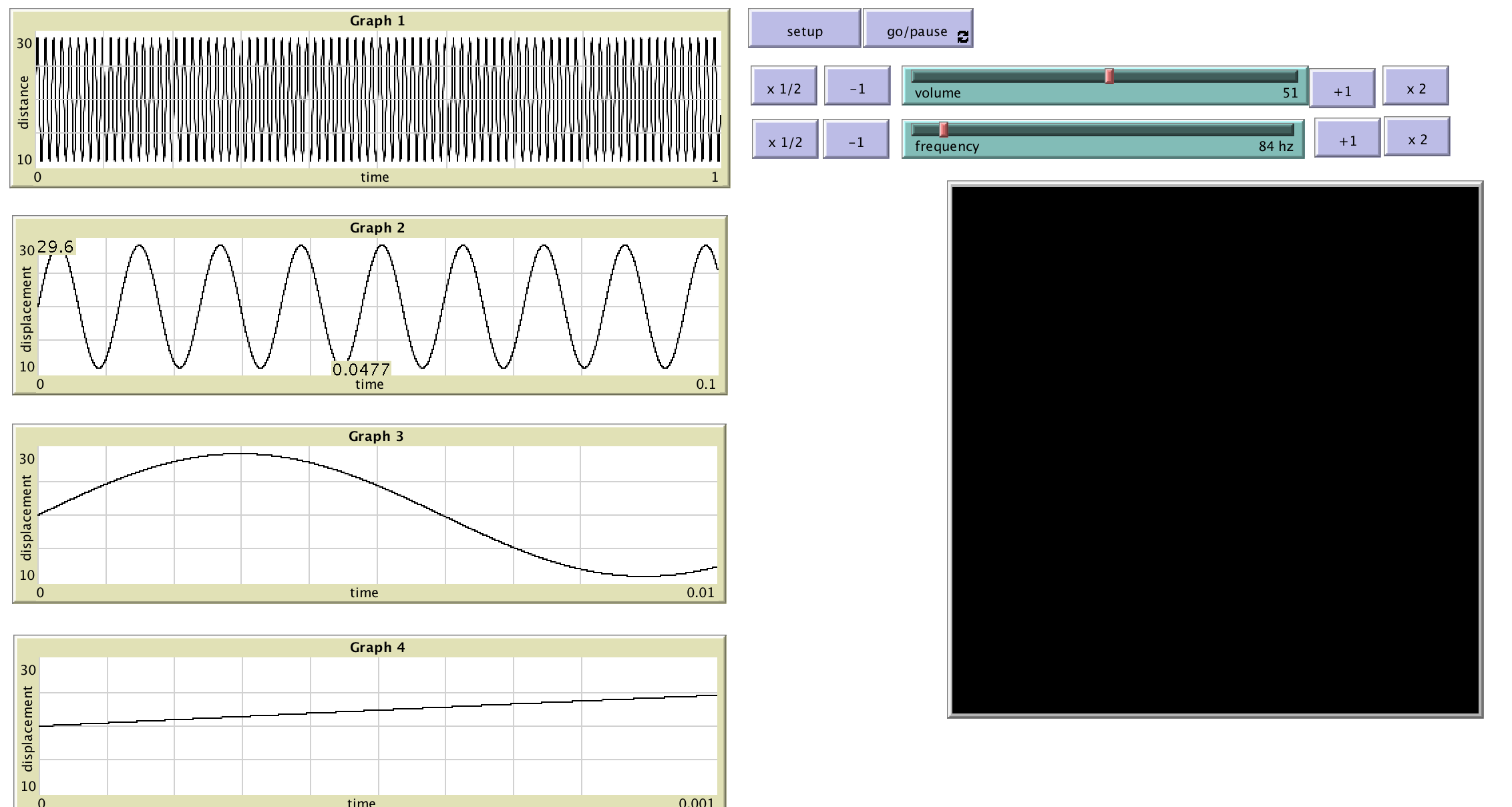

Wave Generator 2 preview image

1 collaborator

Default-person Michael Novak (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0.2 • Viewed 119 times • Downloaded 9 times • Run 0 times
Download the 'Wave Generator 2' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [
  frequency-change-up
  volume-change-up
 frequency-change-down
  volume-change-down
  new-f-value
 new-v-value
]

to setup
  clear-all
  set new-f-value -1
  set new-v-value -1
end

to go
  if new-f-value != frequency or new-v-value != volume [update-all-plots]
end

to update-all-plots
  update-this-plot "Graph 1" 1
  update-this-plot "Graph 2" .1
  update-this-plot "Graph 3" .01
  update-this-plot "Graph 4" .001
  set new-f-value frequency
  set new-v-value volume
end

to update-this-plot [graph-name x-delta]
   let x-counter 0
  set-current-plot graph-name
  clear-plot
  draw-grid x-delta
  repeat 3999 [
    plotxy x-counter (20 + (volume / 100) * (9 * sin ((x-counter * 1 * frequency) *  360)))
    if graph-name = "Graph 1" and frequency > 1000 [
       plotxy x-counter (20 + 9)
       plotxy x-counter (20 - 9)
    ]
    set x-counter x-counter + (x-delta / 4000)
  ]
end

to draw-grid [x-delta]
  set-current-plot-pen "grid"
  let y-increment 15
  let x-increment 0
  repeat 3 [
    plotxy x-delta y-increment
    plot-pen-down
    plotxy 0 y-increment
    plotxy x-delta y-increment
    set y-increment y-increment + 5
    plot-pen-up
  ]
  repeat 9 [
    plotxy x-increment 10.01
    plot-pen-down
    plotxy x-increment 10.01
    plotxy x-increment 29.99
    set x-increment x-increment + (x-delta / 10)
    plot-pen-up
  ]
  set-current-plot-pen "default"
  set-plot-pen-color black
end

to more-frequency-up-one
  if frequency < 1000 [
  set frequency frequency + 1
  ]
  set frequency-change-up false
end

to more-volume-up-one
  if volume < 100 [
  set volume  volume + 1
  ]
  set volume-change-up false
end

to less-volume-down-one
  if volume > 0 [
  set volume  volume - 1
  ]
  set frequency-change-down false
end

to less-frequency-down-one
  if frequency > 0 [
  set frequency  frequency - 1
  ]
  set volume-change-down false
end

to more-frequency-double
  if frequency <= 500 [
  set frequency (frequency * 2)
  ]
  set frequency-change-up false
end

to less-frequency-half
  if frequency >= 2 [
  set frequency round (frequency * 0.5)
  ]
  set volume-change-down false
end

to more-volume-double
  if volume <= 500 [
  set volume (volume * 2)
  ]
  set frequency-change-up false
end

to less-volume-half
  if volume <= 2 [
  set volume round (volume * 0.5)
  ]
  set volume-change-down false
end
