TurSquiral

WHAT IS IT?

We live in a world that seems in some sense mathematical – even if the way is still debated by mathematicians, physicists, philosophers and other scholars. In this project I’d like to compare the logic of (turtle’s) geometry to that of cellular automata: both could recreate the same figure (e.g. a squared spiral) but in very different ways. The first one implies a program’s inner representation of spiral, in the second one, the same pattern can be the emergent output of the rules with which an agent and its environment interact, i.e. the cells of a grid that itself contributes to change. Indeed, according to the hypothesis suggested by an article published in Nature magazine (544, 173-179) cellular automata are not only an abstract computational system but it could be actual biological dynamics supported by evolution, at the base of some morphogenetic processes.

HOW IT WORKS

The model is conceptually divided into two parts, both inspired by two different articles that appeared on the "Computer Recreations" column in Scientific American.

The (chronologically) first article introduces the turtle geometry implemented in Logo computer language; the article suggests how to code a computer program to generate squared spirals (squirals), giving some instruction to an agent called "turtle".

The second article describes what is a turmite i.e. a Turing machine which has an orientation as well as a current state and a "tape" that consists of a (virtually) infinite two-dimensional grid of cells. In this project, a turtle will be able to represent a turmite, as well. As with Langton's ant, turmites perform the following operations each time step (tick): 1. observe the colour of the occupied patch (i.e. square) 2. as a consequence of the patch's colour, turn on the body (by some multiple of 90°) and change the colour of the patch, according to a set of given rules ; 3. move forward one patch.

HOW TO USE IT

After SETUP, you can try one of the four TURMITES' behaviour; one of them is able to output a squared spiral. It is possible to get a similar figure properly setting the SQUIRAL parameters

THINGS TO NOTICE

As with Turing machines, the actions are specified by a state transition table listing the current internal state of the turmite and the colour of the patch it is currently standing on. SQUIRAL's procedure does not interact with patches so it is blind toward its environment.

THINGS TO TRY

Varying Squirals parameters, you can get different graphical effects. Turmites creates the same patterns if they start from the same (empty) background: you can try and alter the initial grid by drawing same patches with the mouse, after DRAW button activation; as in morphogenesis, some procedures are more robust than others: you can see which procedures show a strong attractor (i.e. the emergence of a constant pattern), a weak attractor or no attractor.

EXTENDING THE MODEL

In order to discover new patterns formation, you could combine different procedures or modify some parameter of the transition tables, codified in the behaviour procedures.

NETLOGO FEATURES

MOUSE-DOWN? reports true or false to indicate whether the mouse button is down or up, allowing users to interact with the model's world.

RELATED MODELS

The model LIFE -- enclosed in the NetLogo Models Library -- is an example of a two-dimensional cellular automaton based on the transition table of the renowned Game of Life by John H. Conway. It has been shown that turmites and game of life are equivalent in power to Turing machines; indeed, they are universal calculator either can simulate each other.

CREDITS AND REFERENCES

Brian Hayes. Computer Recreations: Turning turtle gives one a view of geometry from the inside out. Scientific American, February 1 – 1984 http://bit-player.org/wp-content/extras/bph-publications/SciAm-1984-02-Hayes-turtle.pdf
Alexander K. Dewdney. Computer Recreations: Two-dimensional Turing machines and tur-mites make tracks on a plane. Scientific American, September 1 – 1989 (a brief description in Wikipedia https://en.wikipedia.org/wiki/Turmite)
Ian Stewart. The Ultimate in Anty-Particles, Scientific American, July 1994 https://www.imsc.res.in/~sitabhra/teaching/cmp03/ian_stewart.html?fbclid=IwAR3JOskhlbZ1XZxtmr4Tguk7WSm_Enuanizfe1-XNHn-gWwE5H0edxvcoHc
Uri Wilensky. Mouse example. NetLogo Modeling Commons http://modelingcommons.org/browse/one_model/2234#model_tabs_browse_info
Uri Wilensky. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern Institute on Complex Systems, Northwestern University, Evanston, IL.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;  ---------------------   TurSquiral   ----------------------------------------------------------------
;;  -----------------------------------------------------------------------------------------------------


globals [ side step ]

turtles-own [state]

to setup
  clear-all
  ask patches [set pcolor white]
  crt 1[set heading -90]   ;; starting with different heading angle, you could get different outputs
  reset-ticks
end

to patch-draw
  if mouse-down?     ;; reports true or false to indicate whether mouse button is down
    [
      ask patch mouse-xcor mouse-ycor
        [ set pcolor orange
          display ]
    ]
end



;;  Squirals
;;  -----------------------------------------------------------------------------------------------------

to go_squiral
  set step 0
  ask turtles [ walk ]
  ask turtles [ rt angle ]
  set side side + increase
  tick-advance 1
end

to walk
  set pcolor sky
  set step step + 1
  fd 1
  if step <= side [walk]
end



;;  Turmites
;;  -----------------------------------------------------------------------------------------------------

to behaviour1    ;; the Langton's ant
  if pcolor != white [set pcolor white lt 90 fd 1]
  if pcolor = white  [set pcolor sky   rt 90 fd 1]
end

to behaviour2
  if pcolor = white  and state = 0 [set pcolor sky   lt 90 set state 0 fd 1]
  if pcolor = white  and state = 1 [set pcolor white rt 90 set state 0 fd 1]
  if pcolor != white and state = 0 [set pcolor white lt 90 set state 1 fd 1]
  if pcolor != white and state = 1 [set pcolor sky   rt 90 set state 1 fd 1]
end

to behaviour3
  if pcolor = white   [set pcolor magenta rt 90 fd 1]
  if pcolor = magenta [set pcolor sky     rt 90 fd 1]
  if pcolor = sky     [set pcolor orange  lt 90 fd 1]
  if pcolor = orange  [set pcolor white   lt 90 fd 1]
end

to behaviour4
  if pcolor = white  and state = 0 [set pcolor sky   rt 90 set state 0 fd 1]
  if pcolor = white  and state = 1 [set pcolor white rt 0  set state 0 fd 1]
  if pcolor != white and state = 0 [set pcolor sky   rt 90 set state 1 fd 1]
  if pcolor != white and state = 1 [set pcolor white rt 0  set state 1 fd 1]
end

There are 7 versions of this model.

Uploaded by	When	Description	Download
Cosimo Leuci	about 5 years ago	0.6.1	Download this version
Cosimo Leuci	about 5 years ago	Rev. 0.5.1	Download this version
Cosimo Leuci	about 5 years ago	Rev. 0.5	Download this version
Cosimo Leuci	about 6 years ago	references updates	Download this version
Cosimo Leuci	over 7 years ago	Info update: References	Download this version
Cosimo Leuci	over 7 years ago	Info update: what is it?	Download this version
Cosimo Leuci	over 7 years ago	Initial upload	Download this version

Attached files

File	Type	Description	Last updated

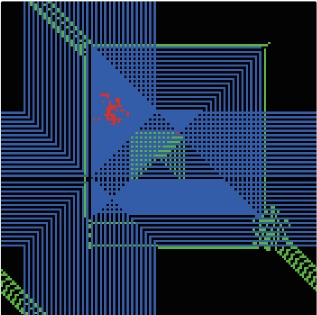

TurSquiral.png	preview	Preview for 'TurSquiral'	almost 7 years ago, by Cosimo Leuci	Download
