ABM_HPV

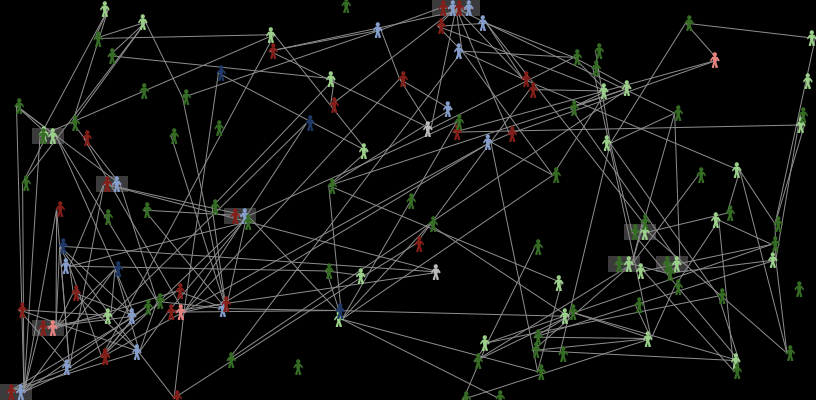

ABM_HPV preview image

1 collaborator

Tags

(This model has yet to be categorized with any tags)
Part of project 'HPV-CC'
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.0 • Viewed 366 times • Downloaded 25 times • Run 0 times
Download the 'ABM_HPV' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

HOW IT WORKS

HOW TO USE IT

THINGS TO NOTICE

THINGS TO TRY

EXTENDING THE MODEL

NETLOGO FEATURES

CREDITS AND REFERENCES

HOW TO CITE

If you mention this model or the NetLogo software in a publication, we ask that you include the citations below.

For the model itself:

Please cite the NetLogo software as:

COPYRIGHT AND LICENSE

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

extensions [nw]
;extensions [r]


globals [
  infection-chance  ;; The chance out of 100 that an infected person will pass on
                    ;;   infection during one week of couplehood.
  symptoms-show     ;; How long a person will be infected before symptoms occur
                    ;;   which may cause the person to get tested.
  slider-check-1    ;; Temporary variables for slider values, so that if sliders
  slider-check-2    ;;   are changed on the fly, the model will notice and
;  slider-check-3    ;;   change people's tendencies appropriately.
  slider-check-4
  initial-people
  vaccine-rate
  vaccine-type
  recruitment-rate
  natural-death-rate
  cc-death-rate
  time              ;; time in weeks
  year
  infected
  population
  n
  num
  ]

breed [women woman]
breed [men man]

turtles-own [
  infected?          ;; If true, the person is infected.  It may be known or unknown.
  known?             ;; If true, the infection is known (and infected? must also be true).
  sane?
  vaccinated?
  cancer?
  virus-type         ;; Stands for virus type 1,2,3 or 4 depending on what family pf hpv does it goes alpha 11 , 7, 6, 5 respectively
  infection-length   ;; How long the person has been infected.
  coupled?           ;; If true, the person is in a sexually active couple.
  couple-length      ;; How long the person has been in a couple.
  ;; the next four values are controlled by sliders
  commitment         ;; How long the person will stay in a couple-relationship.
  coupling-tendency  ;; How likely the person is to join a couple.
  test-frequency     ;; Number of times a person will get tested per year.
  partner            ;; The person that is our current partner in a couple.
  promiscuity        ;; It measures roughly in a scale of 0 to 1, meaning 0 is monogamous and 1 poligamous (completely promiscuous)
  coupling-efectivity ;;Based on the principle that "el que liga más, liga más"
  age
  stage
  vaccine-lenght
]

;;;
;;; SETUP PROCEDURES
;;;

to setup
  clear-all
  setup-globals
  setup-people
  reset-ticks
end

to setup-globals
  set infection-chance 80    ;;hay que revisar la probabilidad de infección en la literatura
  set symptoms-show 200.0    ;; lo mismo para el tiempo de infeccion
  set slider-check-1 average-commitment
  set slider-check-2 average-coupling-tendency
  set slider-check-4 average-test-frequency
  set vaccine-rate vr
  set vaccine-type vaccine
  set time 0
  set recruitment-rate 0.75
  set natural-death-rate 0.524
  set cc-death-rate 0.0012
  set year 0
  set population (initial-men + initial-women)
end

to setup-people
  set initial-people  initial-women + initial-men
  create-women initial-women
  ask women [ifelse version ="people"[set shape "person righty"][set shape "triangle"]]
  create-men initial-men
  ask men [ifelse version ="people"[set shape "person lefty" ][set shape "circle"]]
  ask turtles [set vaccinated? false set infected? false set sane? true set cancer? false]
  ask n-of (floor(initial-women * vaccine-rate)) women [set vaccinated? true]
  ask n-of (floor((count turtles with [vaccinated? = false]) * random-float 1)) turtles with [vaccinated? = false][set infected? true]
  ask turtles[ setxy random-xcor random-ycor
      set known? false
      set coupled? false
      set partner nobody
      set promiscuity random-float 1
      set coupling-efectivity random-float 1
      set age 13 + random 47
      if vaccinated? = true [set vaccine-lenght random 5]
      if infected? = true  [ set virus-type random 4   set infection-length random-float symptoms-show ]
      assign-commitment
      assign-coupling-tendency
      assign-test-frequency]
ask women [assign-woman-color]
ask men [assign-man-color
   if vaccine-type = "vac3"[ask n-of (initial-men * vaccine-rate) men [set vaccinated? true ]]]
end

;; Different people are displayed in 4 different colors depending on health
;; green is not infected
;; blue is infected but doesn't know it
;; red is infected and knows it
;; grey is vaccinated

to assign-man-color  ;; turtle procedure
  ask men [ifelse infected? = true [ifelse known? = true[ set color red + 2  ][set color blue + 2]][ set color green + 2]]
;  ask men [ifelse infected? = true and Known? = true[ set color red + 0.2  ][set color green + 0.2]]
 ; ask men[if infected? = true and known? = false [ set color blue + 0.2] ]
end

to assign-woman-color  ;; turtle procedure
  ask women [ifelse infected? = true [ifelse known? = true[ set color red - 2  ][set color blue - 2]][ set color green - 2]]
;  ask women [if sane? = true ]
;;  ask women[ if infected? = true and known? = false  ]
end

to getSick
 if infected? = true [set stage 1]
 if infection-length >  50 and random 12 < 6 [set stage 2]
 if infection-length > 150 and random 12 = 11[set stage 3]
 if stage = 3 and random 12 < 11 [set cancer? true]
 if cancer? = true and random 12 = 11[die set pcolor black]
end


;; The following four procedures assign core turtle variables.  They use
;; the helper procedure RANDOM-NEAR so that the turtle variables have an
;; approximately "normal" distribution around the average values set by
;; the sliders.

to assign-commitment  ;; turtle procedure
  set commitment random-near average-commitment
end

to assign-coupling-tendency  ;; turtle procedure
  set coupling-tendency random-near average-coupling-tendency
end

;to assign-condom-use  ;; turtle procedure
;  set condom-use random-near average-condom-use
;end

to assign-test-frequency  ;; turtle procedure
  set test-frequency random-near average-test-frequency
end

to-report random-near [center]  ;; turtle procedure
  let result 0
  repeat 40
    [ set result (result + random-float center) ]
  report result / 20
end

;; Recruitment hay que cambiar como se hace el reclutamiento,debe asignarse a estas tortugas las variables

to new-year
  if time = 52 [cp set time 0  set year year + 1 ask n-of (floor(natural-death-rate * population)) turtles [die set pcolor black]
    create-women 0.51 * initial-people * recruitment-rate  create-men 0.49 * initial-people * recruitment-rate
  ask women with  [xcor = 0 and ycor = 0 ][ifelse version ="people"[set shape "person righty"][set shape "triangle"]]
  ask men with [xcor = 0 and ycor = 0 ][ifelse version ="people"[set shape "person lefty"][set shape "circle"]]
  ask turtles with [xcor = 0 and ycor = 0 ][set vaccinated? false set infected? false set sane? true set cancer? false]
  ask n-of (floor((count women with [xcor = 0 and ycor = 0]) * vaccine-rate)) women with [xcor = 0 and ycor = 0 ] [set vaccinated? true]
;  ask n-of (floor(initial-women * vaccine-rate)) women [set vaccinated? true]
  ask n-of (floor((count turtles with [xcor = 0 and ycor = 0 and vaccinated? = false]) * random-float 1)) turtles with [xcor = 0 and ycor = 0 and vaccinated? = false][set infected? true]
  ask turtles with [xcor = 0 and ycor = 0 ][ setxy random-xcor random-ycor
      set known? false
      set coupled? false
      set partner nobody
      set promiscuity random-float 1
      set coupling-efectivity random-float 1
      set age 13 + random 47
      if vaccinated? = true [set vaccine-lenght random 5]
      if infected? = true  [ set virus-type random 4   set infection-length random-float symptoms-show ]
      assign-commitment
      assign-coupling-tendency
 ;     assign-condom-use
      assign-test-frequency]
ask women [assign-woman-color]
ask men [assign-man-color
   if vaccine-type = "vac3"[ask n-of (initial-men * vaccine-rate) men [set vaccinated? true ]]]]
end


;;;
;;; GO PROCEDURES
;;;

to go
   if all? turtles [known? = true]
    [ stop ]
  check-sliders
  ask patches[if turtles-here = 0 [set pcolor black]]
  ask turtles
    [ if infected? = true
        [ set infection-length infection-length + 1 ]
      if coupled? = true
        [ set couple-length couple-length + 1 ] ]
  ask turtles
    [ if coupled? = false
        [ move ] ]
  ;; Righties are always the ones to initiate mating.  This is purely
  ;; arbitrary choice which makes the coding easier.
  ask women
    [ if coupled? = false and (random-float 10.0 < coupling-tendency)
        [ couple ] ]
  ask turtles [ uncouple ]
  ask turtles [ infect ]
  ask turtles [ test ]
  ask turtles [getSick]
  ask men [ assign-man-color ]
  ask women [ assign-woman-color ]
  ;file-open "red_contactos.txt"
  nw:set-context turtles links
  ;ask women [ file-write  map sort nw:get-context ]
  tick
  set time time + 1
  new-year
  ask turtles [set age age + year]
  set population (count turtles)
  ask turtles with [coupled? = true][if partner = nobody[set coupled? false]]
  set n  random 100
  set num (word n)
  if time = 50 [nw:save-matrix (word "matriz"  num  ".txt")]
end

;; Each tick a check is made to see if sliders have been changed.
;; If one has been, the corresponding turtle variable is adjusted

to check-sliders
  if (slider-check-1 != average-commitment)
    [ ask turtles [ assign-commitment ]
      set slider-check-1 average-commitment ]
  if (slider-check-2 != average-coupling-tendency)
    [ ask turtles [ assign-coupling-tendency ]
      set slider-check-2 average-coupling-tendency ]
  if (slider-check-4 != average-test-frequency )
    [ ask turtles [ assign-test-frequency ]
      set slider-check-4 average-test-frequency ]
end

;; People move about at random.

to move  ;; turtle procedure
  ifelse version = "people" [rt random-float 360  fd 1] [fd 1]
end

;; People have a chance to couple depending on their tendency to have sex and
;; if they meet.  To better show that coupling has occurred, the patches below
;; the couple turn gray.

to couple  ;; turtle procedure -- righties only!
  let potential-partner one-of (men-at -1 0)
                          with [coupled? = false]
  if potential-partner != nobody
    [ if random-float 10.0 < [coupling-tendency] of potential-partner and coupling-efectivity > 0.6
      [ set partner potential-partner
        if relacion = true [create-link-with partner]
        set coupled? true
        ask partner [ set coupled? true ]
        ask partner [ set partner myself ]
        move-to patch-here ;; move to center of patch
        ask potential-partner [move-to patch-here] ;; partner moves to center of patch
        set pcolor gray - 3
        ask (patch-at -1 0) [ set pcolor gray - 3 ] ] ]
    if turtles-here = nobody [set pcolor black]
end

;; If two peoples are together for longer than either person's commitment variable
;; allows, the couple breaks up.

to uncouple  ;; turtle procedure
  ask women [if coupled? = true
    [ if (couple-length > commitment) or
         ([couple-length] of partner) > ([commitment] of partner) or promiscuity > 0.7
        [ set coupled? false
          set couple-length 0
          ask partner [ set couple-length 0 ]
          set pcolor black
          ask (patch-at -1 0) [ set pcolor black ]
          ask partner [ set partner nobody ]
          ask partner [ set coupled? false ]
          set partner nobody ] ]]
end

;; Infection can occur if either person is infected, but the infection is unknown.
;; This model assumes that people with known infections will continue to couple,
;; but will automatically practice safe sex, regardless of their condom-use tendency.
;; Note also that for condom use to occur, both people must want to use one.  If
;; either person chooses not to use a condom, infection is possible.  Changing the
;; primitive to AND in the third line will make it such that if either person
;; wants to use a condom, infection will not occur.

to infect  ;; turtle procedure
  if coupled? = true and infected? = true and  known? = false and vaccinated? = false
        [ if random-float 100 < infection-chance
            [ ask partner [ set infected? true ] ] ] ;]

   if vaccine-type = "vac1"[
   if coupled? = true and infected? = true and  known? = false and [vaccinated?] of partner = true and [vaccine-lenght] of partner < 2 and virus-type > 2
        [ if random-float 100 < infection-chance
            [ ask partner [ set infected? true ] ] ] ]

   if vaccine-type = "vac2"[
   if coupled? = true and infected? = true and  known? = false and [vaccinated?] of partner = true and [vaccine-lenght] of partner < 2 and virus-type = 3
         [ if random-float 100 < infection-chance
            [ ask partner  [set infected? true ] ] ] ];]
end


;; People have a tendency to check out their health status based on a slider value.
;; This tendency is checked against a random number in this procedure. However, after being infected for
;; some amount of time called SYMPTOMS-SHOW, there is a 5% chance that the person will
;; become ill and go to a doctor and be tested even without the tendency to check.

to test  ;; turtle procedure
  if random-float 52 < test-frequency
    [ if infected? = true
        [ set known? true ] ]
  if infection-length > symptoms-show
    [ if random-float 100 < 5
        [ set known? true ] ]
end

;;;
;;; MONITOR PROCEDURES
;;;

to-report %infected
  ifelse any? turtles
    [ report (count turtles with [infected? = true] / count turtles) * 100 ]
    [ report 0 ]
end

to-report %vaccinated
  ifelse any? women
    [ report (count women with [vaccinated? = true] / count women) * 100 ]
    [ report 0 ]
end

to-report global-clustering-coefficient
  let closed-triplets sum [ nw:clustering-coefficient * count my-links * (count my-links - 1) ] of turtles
  let triplets sum [ count my-links * (count my-links - 1) ] of turtles
  report closed-triplets / triplets
end

There is only one version of this model, created almost 7 years ago by Augusto Cabrera-Becerril.

Attached files

File Type Description Last updated
ABM_HPV.png preview Preview for 'ABM_HPV' almost 7 years ago, by Augusto Cabrera-Becerril Download

This model does not have any ancestors.

This model does not have any descendants.
