Collective Action Communities

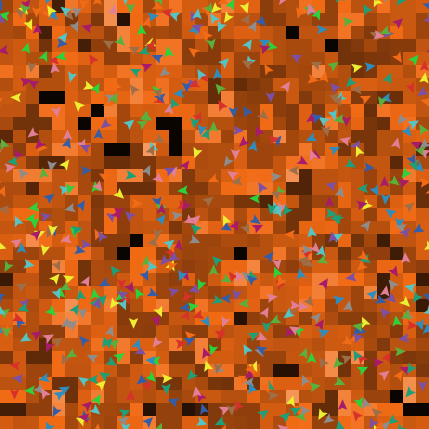

Collective Action Communities preview image

1 collaborator

Default-person Jeremy Foote (Author)

Tags

community models

Tagged by Evgeny Patarakin over 5 years ago

Model group MAM-2016 | Visible to everyone | Changeable by group members (MAM-2016)
Model was written in NetLogo 6.0-M5 • Viewed 465 times • Downloaded 44 times • Run 0 times
Download the 'Collective Action Communities' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

patches-own[
  mu ; Mean of the logisitic production function
  beta ; Steepness of the production function
  contribution-level ;; How much has been contributed
  progress ;; Ratio of project complete
  topics ;; Distribution of topics that a patch is "about"
  pindex ;; Index of the patch
  ]
globals [
  multiplier ; How much the parent patch multiplies the interest
  patch-gini ; Stores the gini of patch contributions
  turtle-gini ; Stores the gini of turtles
  patch-progress-gini ; Gini of patch progress
  ]
turtles-own[
  interest ;; Baseline interest in projects
  resources ;; How much they have to contribute each tick
  contributions-made ;; How much they have contributed in total
  top-project ;; Current patch with highest utility
  topic-interests ;; Distribution of topic interests
  similarity-list ;; List of cosine similarity to each patch
  ]

to setup
  ca
  ;; Set the number of topics to use for topic-based
  let num-topics 20
  set-multiplier 1

  ;; Create the production functions for the patches
  ask patches[
    set mu random-normal global-mu 1
    set beta abs random-normal global-beta 1
    update-patch-progress
  ]
  ;; If topic-based, then create topics
  if topic-based? [
    setup-patch-topics num-topics
    ]
  ;; Make the new turtles
  make-new-turtles num-turtles num-topics
  reset-ticks
end

to set-multiplier [x]
  set multiplier x
end

to make-new-turtles [n num-topics]
  repeat n [
    crt 1 [
      ;; Place turtle randomly
       setxy random-xcor random-ycor
       ;; Give it resources
       set resources abs random-normal .2 .05
       ;set resources random-float 3
       ;; And interest
       set interest random-float max-interest
       ;; Create topics, if necessary
       if topic-based? [
         set topic-interests make-topics num-topics
         make-similarity-list
       ]
    ]
  ]
end

to go
  ask turtles[
    ; Find the best project
    find-top-project
    ; Figure out whether to contribute to it
    contribute-to-project
    ;ask-to-die
  ]
  ask patches[
    recolor-patches
  ]
  update-ginis
  tick
end

; Creates topics for the patches, and creates an index to access the similarity matrix

to setup-patch-topics [num-topics]
  ask patches [
    ; Create random distribution of topics
    set topics make-topics num-topics
  ]
  ;; Create an index so that we can access the similarity list
  let n 0
  foreach sort patches [
    ask ? [
      set pindex n
      set n n + 1
    ]
  ]
end

; Turtle function; creates a turtle-patch similarity matrix

to make-similarity-list
  set similarity-list []
  foreach sort patches [
    set similarity-list lput cosine-similarity ? similarity-list
  ]
end

;; turtle function; reports the cosine similarity of a turtle and a patch's topics

to-report cosine-similarity [curr-patch]
  let patch-topics [topics] of curr-patch
  ; Dot product of topics
  let dot-product sum (map * topic-interests patch-topics)
  ; Then normalize by the magnitude of the vectors
  report dot-product / (make-magnitude topic-interests * make-magnitude patch-topics)
end

to-report make-magnitude [vector]
  ; Magnitude of a vector
  report sqrt sum map [? * ?] vector
end

;; Patch and turtle function

to-report make-topics [num-topics]
  let topic-list []
  repeat num-topics [
    ; For each topic, randomly choose how much of that topic
    set topic-list lput random 3 topic-list
  ]
  report topic-list
end

; turtle method

to find-top-project
  ifelse topic-based? [
    ; if it's topic-based, then look at all patches
    set top-project max-one-of patches [patch-utility]
  ][
  ; Otherwise, only look at neighbors
  set top-project max-one-of patches in-radius neighborhood-size [patch-utility]
  ]
end

to contribute-to-project
  ; Find the top utility of the top project
  let top-utility [patch-utility] of top-project
  ; If the benefit is greater than the cost, then contribute resources
  ifelse top-utility > resources [
    ask top-project[
      ; update the contribution level and progress of the project
      set contribution-level contribution-level + [resources] of myself
      update-patch-progress
      set pcolor red
    ]
    ; Record that this turtle has made a contribution
    set contributions-made contributions-made + resources
    ; If they contributed, they are more likely to contribute in the future
    set interest interest * (1 + positive-reinforcement)
    ; But, they can't go above the max interest
    if interest > max-interest [
      set interest max-interest
    ]
    set color red
  ][
  ;; If they didn't contribute, then decrease their interest
  set interest interest * (1 - negative-reinforcement)
  set color blue
  ]
end

to update-patch-progress
  set progress get-patch-progress contribution-level
end

to-report patch-utility
  let x contribution-level + [resources] of myself ; What would the total contribution be?
  let weight [interest] of myself * multiplier / distance myself ; The utility is multiplied by the overall multiplier times my interest
  if topic-based? [
    ; Multiply the weight by how similar the patch topic distribution is to my interest
    set weight weight * item pindex [similarity-list] of myself
  ]
  let orig_utility weight * progress ; Current utility based on logisitic
  let total_utility weight * get-patch-progress x
  report total_utility - orig_utility ; Return the amount of utility added
end

;; Patch reporter; gives the progress at a given x

to-report get-patch-progress [x]
  let result 0
  carefully[
    ; Update the patch progress based on the current contribution level.
  set result 1 / (e ^ ((mu - x) / beta) + 1)
  ][
  ;If the exponential is too lrge, it means we're really close to 0
  set result 0
  ]
  report result
end

to recolor-patches
  set pcolor scale-color orange progress -1 2
end

; Turtle function

to ask-to-die
  if interest < .05 [
    die
  ]
end

to update-ginis
  ; Code basically stolen from the wealth distribution model
  set patch-gini gini [contribution-level] of patches
  set turtle-gini gini [contributions-made] of turtles
  set patch-progress-gini gini [progress] of patches
end

;; this procedure recomputes the value of gini-index-reserve
;; and the points in lorenz-points for the Lorenz and Gini-Index plots

to-report gini [contributions]
  let sorted-contribs sort contributions
  let total-contribs sum sorted-contribs
  if total-contribs = 0 [
    report 0
  ]
  let contrib-sum-so-far 0
  let index 0
  let gini-index-reserve 0
  let lorenz-points []
  let num-contribs length contributions

  ;; now actually plot the Lorenz curve -- along the way, we also
  ;; calculate the Gini index.
  ;; (see the Info tab for a description of the curve and measure)
  repeat num-contribs [
    set contrib-sum-so-far (contrib-sum-so-far + item index sorted-contribs)
    set lorenz-points lput ((contrib-sum-so-far / total-contribs) * 100) lorenz-points
    set index (index + 1)
    set gini-index-reserve
    gini-index-reserve +
    (index / num-contribs) -
    (contrib-sum-so-far / total-contribs)
  ]
  report (gini-index-reserve / num-contribs) / 0.5
end
