WHAT IS IT?

This model demonstrates diffusion of a quantity through a directed network. The quantity moves among nodes in the network only along established, directed links between two nodes.

The simple rules that drive this diffusion lead to interesting patterns related to the topology, density, and stability of the network. Furthermore, the model may be useful in understanding the basic properties of dynamic processes on networks, and provides a useful starting point for designing more complex and realistic network-based models.

HOW IT WORKS

In each tick, each node shares some percentage (defined by the DIFFUSION-RATE slider) of its "value" quantity with its neighbors in the network. Specifically, the amount of shared value is divided equally and sent along each of the outgoing links from each node to each other node. If a node has no outgoing links, then it doesn't share any of it's value; it just accumulates any that its neighbors have provided via incoming links.

Note that because it is a directed network, node B may give value to node A even if node A doesn't give back.

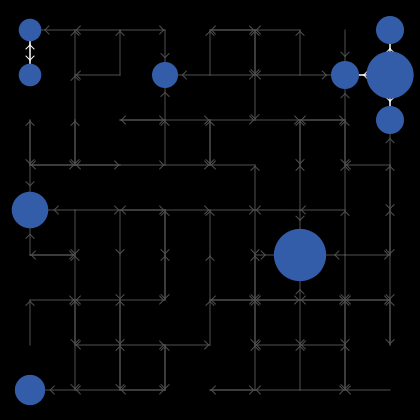

The size of each node shows how much "value" that node has, where the area of the node is proportional to its value. The brightness of a link represents how much value just flowed through that edge.

HOW TO USE IT

Choose the size of network that you want to model using the GRID-SIZE slider. Choose the expected density of links in the network using the LINK-CHANCE slider.

To create the network with these properties, press SETUP.

The DIFFUSION-RATE slider controls how much "value" each node shares with its neighbors during a given time step.

Press the GO button to run the model.

The REWIRE-A-LINK button causes one link to disappear, and a new one to appear elsewhere in the grid.

The KEEP-REWIRING button causes a continual rewiring of links to occur.

The histogram displays the number of nodes whose values fall into certain ranges. For instance, you might see that there are many nodes with nearly zero value, while there are just a few nodes with very large value.

THINGS TO NOTICE

As time passes, the network tends toward an equilibrium state. (Is that always the case, or is it possible for a network to never settle down?)

However, if you run both the GO and KEEP-REWIRING buttons at the same time, then the network will never completely settle down. If you ran the model in this way for a long long time, would the distribution of value across the nodes in the network be uniform, if you averaged across time? Or would nodes near the edges of the grid tend to have more or less value?

THINGS TO TRY

Try running the model with a small 3x3 grid. How many nodes end up with positive value (not approaching zero) after running the model for a while? Sometimes just a single node ends up with all of the value, while other times every node in the network can sustain a positive value. What properties of the network are necessary in order for every node to sustain a positive value? Are these properties more or less likely to occur with large networks?

EXTENDING THE MODEL

Imagine you are modeling a business economy, where each node is a business, and it has suppliers and customers (represented by directed links from that node). Is it reasonable to assume that as a business accumulates more profit from sales, it will in turn purchase more from its suppliers? In order to more accurately match this economic model, change the model into a supply chain model where each node also has an inventory level, and a price they are charging per unit. Try to come up with reasonable rules for how many units each business decides to buy or sell.

How would you change this model to more accurately represent water flowing (or being pumped) through pipes? Should the links be directed or undirected? What if water is continually flowing in or out of the system at certain locations?

NETLOGO FEATURES

This model works in a manner analogous to NetLogo's diffuse command, which causes patches to all share with their neighbors portions of the value of some variable. However, whereas the neighbor relationship in patches is symmetric, this model uses directed links, which can be used to create asymmetric relationships between agents. If you used undirected links, the behavior of this model would more closely resemble the diffuse command, where the value of all the nodes would eventually become the same.

In this model, there are two link-breeds: one for active links (which are shown in the view) and another for inactive links (which are invisible). This makes "rewiring" of links easier, because rather than killing a link and creating a new link, we can just change the breed of a link and hide or show it.

Though it is not used in this model, there exists a network extension for NetLogo that you can download at: https://github.com/NetLogo/NW-Extension.

RELATED MODELS

Virus on a Network

HOW TO CITE

If you mention this model or the NetLogo software in a publication, we ask that you include the citations below.

For the model itself:

Stonedahl, F. and Wilensky, U. (2008). NetLogo Diffusion on a Directed Network model. http://ccl.northwestern.edu/netlogo/models/DiffusiononaDirectedNetwork. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

Please cite the NetLogo software as:

Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

COPYRIGHT AND LICENSE

CC BY-NC-SA 3.0

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License. To view a copy of this license, visit https://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 559 Nathan Abbott Way, Stanford, California 94305, USA.

Commercial licenses are also available. To inquire about commercial licenses, please contact Uri Wilensky at uri@northwestern.edu.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

directed-link-breed [active-links active-link]
directed-link-breed [inactive-links inactive-link]

turtles-own [ val new-val ] ; a node's past and current quantity, represented as size
links-own [ current-flow ]  ; the amount of quantity that has passed through a link
                            ; in a given step

globals [
  total-val                 ; total quantity in the system
  max-val                   ; maximum quantity held by a single node in the system
  max-flow                  ; maximum quantity that has passed through a link in the system
  mean-flow                 ; average quantity that is passing through an arbitrary
                            ; link in the system
]

;;;;;;;;;;;;;;;;;;;;;;;;
;;; Setup Procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all
  set-default-shape turtles "circle"
  set-default-shape links "small-arrow-link"
  ; create the grid of nodes
  ask patches with [abs pxcor < (grid-size / 2) and abs pycor < (grid-size / 2)]
    [ sprout 1 [ set color blue ] ]

  ; create a directed network such that each node has a LINK-CHANCE percent chance of
  ; having a link established from a given node to one of its neighbors
  ask turtles [
    set val 1
    let neighbor-nodes turtle-set [turtles-here] of neighbors4
    create-active-links-to neighbor-nodes
    [
      set current-flow 0
      if random-float 100 > link-chance
      [
        set breed inactive-links
        hide-link
      ]
    ]
  ]
  ; spread the nodes out
  ask turtles [
    setxy (xcor * (max-pxcor - 1) / (grid-size / 2 - 0.5))
          (ycor * (max-pycor - 1) / (grid-size / 2 - 0.5))
  ]
  update-globals
  update-visuals
  reset-ticks
end

;;;;;;;;;;;;;;;;;;;;;;;
;;; Main Procedure  ;;;
;;;;;;;;;;;;;;;;;;;;;;;

to go
  ask turtles [ set new-val 0 ]
  ask turtles [
    let recipients out-active-link-neighbors
    ifelse any? recipients [
      let val-to-keep val * (1 - diffusion-rate / 100)
      ; we keep some amount of our value from one turn to the next
      set new-val new-val + val-to-keep
      ; What we don't keep for ourselves, we divide evenly among our out-link-neighbors.
      let val-increment ((val - val-to-keep) / count recipients)
      ask recipients [
        set new-val new-val + val-increment
        ask in-active-link-from myself [ set current-flow val-increment ]
      ]
    ] [
      set new-val new-val + val
    ]
  ]
  ask turtles [ set val new-val ]
  update-globals
  update-visuals
  tick
end

to rewire-a-link
  if any? active-links [
    ask one-of active-links [
      set breed inactive-links
      hide-link
    ]
    ask one-of inactive-links [
      set breed active-links
      show-link
    ]
  ]
end

;;;;;;;;;;;;;;;;;;;;;;;
;;;     Updates     ;;;
;;;;;;;;;;;;;;;;;;;;;;;

to update-globals
  set total-val sum [ val ] of turtles
  set max-val max [ val ] of turtles
  if any? active-links [
    set max-flow max [current-flow] of active-links
    set mean-flow mean [current-flow] of active-links
  ]
end

to update-visuals
  ask turtles [ update-node-appearance ]
  ask active-links [ update-link-appearance ]
end

to update-node-appearance ; node procedure
  ; scale the size to be between 0.1 and 5.0
  set size 0.1 + 5 * sqrt (val / total-val)
end

to update-link-appearance ; link procedure
  ; scale color to be brighter when more value is flowing through it
  set color scale-color gray (current-flow / (2 * mean-flow + 0.00001)) -0.4 1
end


; Copyright 2008 Uri Wilensky.
; See Info tab for full copyright and license.
