The Dynamics of Power-Grid Degradation
Thomas Rieth IABG mbH, Einsteinstraße 20, D-85521 Ottobrun, Germany rieth(at)iabg.de
WHAT IS IT?
This application can be used for editing and simulating the stability of power-grids. Here, a power-grid is build by nodes that are connected by edges, and power is transfered from sources to sinks using the provided network.
HOW IT WORKS
The Structure of the Network
The power-grid here is build from a set of nodes that are connected by edges. Some of the nodes are either sources or sinks of power. The sign of the values of actual and available power specify the type of node:
- connecting node (green) with
available-power = 0
- dangling nodes (yellow), i.e., nodes just connected by a single edge to the network
- power sources (blue) with
available-power > 0
- power sinks (red) with
available-power < 0
The size of power sources or sinks is given by a logarithmic scale:
set size 1 + log abs actual-power 10
The edges are characterized by an actual load and a capacity they can carry. The thickness of edges is given by:
if load > 0
[ set thickness (1 - exp (- load)) ]
[ set thickness (1 - exp (- capacity)) ]

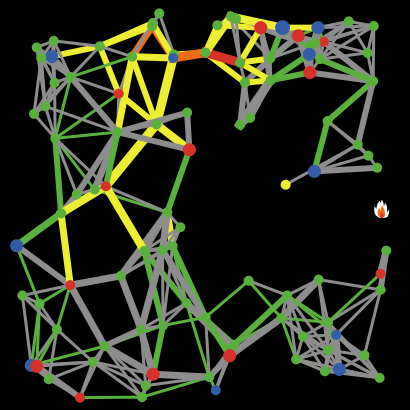

The color indicates if the actual load exceeds the capacity:
- grey in case
load = 0
- green if
0 < load < capacity
- yellow for
capacity < load < 2 * capacity
- orange for
2 * capacity < load < 4 * capacity
- red for
load > 4 * capacity
The Dynamic of the Network
The dynamic behaviour of the network starts with an optimisation of the flow in the network.
let is-isolated? true
let targets nodes with [available-power < 0]
ask targets [
let sources nodes with [can-provide?]
ask min-n-of (count sources) sources [distance myself] [
if [is-needing?] of myself [
set is-grid-disrupted? not update-net-structure self myself
set is-isolated? is-isolated? and is-grid-disrupted?
]
]
]
For optimisation of the power flow an A* (A-star) search algorithm is used. The costs of an edge are given by the value one. If the load of a used edge exceeds its capacity, then additional costs are considered.
Depending on the power flow and the capacity of the edges their life-time is calculated using a random-exponential distribution.
ask edges [
ifelse load > 0
[ set life-time random-exponential capacity / load ]
[ set life-time -1 ]
]
During a simulation tick the simulation time (see the current-time monitor) is increased to next smallest life-time, and the respective edge is removed from the network. Then the network is optimised again, and the life-times of the edges in the new network are calculated repeatedly.
The simulation continues until either all edges or nodes are removed or all sources and sinks are seperated from each other, i.e., any flow is impossible between sources and sinks (see the monitor is-grid-isolated?)
The monitor is-grid-disrupted becomes true, whenever the search algorithm is unable to find a connection between one of the source and one of the sinks. One should notice that the network might have divided into two unconnected components quite earlier.
HOW TO USE IT
During startup the application tries to read the file grid.dat
if it exists. Pressing setup a blank scenario is created.
The data of the power-grid can be stored in files using the buttons save-grid or load-grid.
An export of the power-grid data in special network file formats is possible. Currently supported format are:
- Netdraw VNA format: The VNA format is commonly used by Netdraw, and is very similar to Pajek format. It defines nodes and edges (ties), and supports attributes.
- Pajek NET Format: This format use NET extension and is easy to use. Attributes support is however missing, only the network topology can be currently represented with a Pajek File.
Layout of the Network
By pressing add-nodes further nodes are added randomly to the network. The number of these newly added nodes is set by the slider number-of-nodes. The algorithm connects all nodes with edges randomly. The number of edges is specified by the average-node-degree slider.
Nodes and edges can be inserted or deleted by pressing the buttons and selecting one or two nodes using the mouse.
The monitors on the right side provide information about the number of nodes, edges, sources, sinks, and dangles.
Nodes can be moved using the move-node button. The spring-layout - as well as the circle-layout and the radial-layout button (you have to selct the central nodes using the mouse) - can be used to distribute the nodes in the network in a more uniform layout.
Adding Sources and Sinks
A power-grid created initially has nowhere power flowing from sources to sinks. Here the load on all edges is zero, as well as the actual power of sources or sinks. During optimization shortest paths are searched between randomly chosen combination of power sources and sinks, and the power flow is put as an additional load onto edges. The actual power of sources or sinks is increased or decreased accordingly.
By pressing add-power sources and sinks of varying size are randomly put into the power grid. The slider total-power-flux specifies the dimension of the additional power-flow.
Individual nodes can be changed by pressing either increase-power or decrease-power first, and then by selecting a node. The available power will be changed by a value of one.
The monitors (right side) show:
- power-input: the total available power input into network
- power-output:the total available power output from the network
- power-variance: a measure of difference between available and actual power supply and demand in all nodes
- flux-variance: a measure of difference between load and capacity of all edges
- edge-mean: the mean value of the edges' distribution
- edgevariance_: the standard deviation of the edges' distribution
power-variance = sqrt ( sum over all nodes ( available - actual power)2) flux-variance = sqrt ( sum over all edges ( load - capacity)2)
By pressing remove-power all power sources and sinks are removed, and they will change to standard connecting nodes (green). The load and capacity of the edges will be set to standard load = 0
and capacity = 1
.
By pressing remove-labels all labels on the nodes are removed, but whenever the network is saved, then new labels will be calculated.
Optimization of the Network
The power-flow in the network can be optimized in three steps:
- optimize-flow: find the paths of the flow between power sources and sinks in the network. With the over-capacity-costs sliders the additional costs for edges with load greater than their capacity can be set.
- remove-unused: remove edges with no load and nodes without any connecting edges
- adjust-capacities: change the edges' capacities to their current load (all edges will become gray)
- optimize-structure: the procedures
optimize-flow
andadjust-structure
are repeated optimize-steps times.
Simulation of the Network
The simulation is started with:
- go will start the simulation of the degrading network.
- step allows to perform just a single simulation step until the next tick.
The following switches may be used:
- data-output : after every simulation step (tick) the resulting grid will be stored
- in a file with name "grid-sim-tick#.dat" when set to "each" or "all"
- in files "grid-nodes-R-number-of-run.dat" and "grid-edges-R-number-of-run.dat" when set to "for R" or "all"
- number-of-run : the counter for the output. This number can be used in NetLogo's Behavior Space to produce varying output files.
- output-level: print more or less detailed informations about the A*-search algorithm into NetLogo's Command Center (a level of zero has no output)
- show-destroyed : whenever an edge is removed from the network, a fire symbol will be placed at the middle between the edge's both nodes for the duration of the tick. By pressing the remove-labels button the symbol is removed, too.
A movie can be produced by pressing the movie button. The simulation will run until finished.
THINGS TO NOTICE
Usually, the counting of (simulation) ticks corresponds to physical time. Here the physical time of the model is described by the variable monitor current-time. Whenever in the simulation an edge collapsed (is destroyed) after a randomly determined life-time, the tick counter of the simulation is increased by one.
Somehow, by unknown reasons, inserting and deleting edges does not always work properly in dense networks.
THINGS TO TRY
Suggested things for the user to try to do (move sliders, switches, etc.) with the model are whatever the user wants.
EXTENDING THE MODEL
Calculation of centrality measure might be a good help for the identification of important nodes in the network.
NETLOGO FEATURES
The network, link, and mouse features from netlogo are heavily used.
RELATED MODELS
(models in the NetLogo Models Library and elsewhere which are of related interest)
CREDITS AND REFERENCES
Amit Patel. Introduction to A*. From Amit’s Thoughts on Pathfinding. http://theory.stanford.edu/~amitp/GameProgramming/AStarComparison.html (11 July 2014)
Wikipedia, the free encyclopedia. A search algorithm. http://en.wikipedia.org/wiki/Asearchalgorithm (11 July 2014)
Wilensky, U. 1999. NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University. Evanston, IL
