ZombieApocalypse1

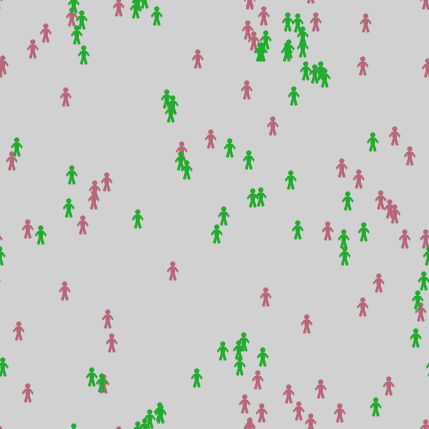

ZombieApocalypse1 preview image

1 collaborator

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 5.2.0 • Viewed 320 times • Downloaded 41 times • Run 0 times
Download the 'ZombieApocalypse1' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [
  safety-top ;variables for the government facility
  safety-bottom
  safety-left
  safety-right
  cross-top ;variables for the vertical red line on the government facility
  cross-bottom
  cross-left
  cross-right
  cross2-top ;variables for the horizontal red line on the government facility
  cross2-bottom
  cross2-left
  cross2-right
  worldcolors
]

breed [HealthyPeople person]
breed [Zombies zombie]
breed [Immunity immune]
breed [Hunters zombieHunter]

to setup
  clear-all
  set worldcolors [ 63 62 ] ;list of colors for the world's green patches
  setupWorld ;function to setup world

  ;Initialize HealthyPeople in world
  set-default-shape HealthyPeople "person"
  create-HealthyPeople initial-number-people  ;; create the HealthyPeople, then initialize their variables
  [
    set color 137
    set size 1.5  ;; easier to see
    setxy random-xcor random-ycor
  ]

  ;Initialize Zombies in world
  set-default-shape Zombies "person"
  create-Zombies initial-number-zombies  ;; create the HealthyPeople, then initialize their variables
  [
    set color 66
    set size 1.5  ;; easier to see
    setxy random-xcor random-ycor
  ]

  ;Initialize Zombie Hunters in world
  set-default-shape Hunters "person"
  create-Hunters initial-number-zombie-hunters
  [
    set color black
    set size 1.5
    setxy random-xcor random-ycor
  ]

  reset-ticks
end

to setupWorld
  ask patches [ set pcolor one-of worldcolors ] ;color the green patches in the world
  set safety-top 12 ;initialize the x and y values for the government facility and red lines
  set safety-bottom 7
  set safety-left 4
  set safety-right 11
  set cross-top 11
  set cross-bottom 8
  set cross-left 7
  set cross-right 8
  set cross2-top 10
  set cross2-bottom 9
  set cross2-left 6
  set cross2-right 9
  safetyZone
end

to go
    if not any? HealthyPeople [ stop ] ;stop the program if there are only Immune and Zombies left
    if not any? Zombies [ stop ]
    ask HealthyPeople [ ;Run procedures for HealthyPeople
      move
      checkSafety
    ]
    ask Zombies [ ;Run procedures for Zombies
      move
      catchPerson
      catchHunter
    ]
    ask Immunity [ ;Run procedures for immune people
      move
    ]
    ask Hunters [ ;Run procedures for Zombie Hunters
      move
      catchZombies
    ]
    tick
end

to safetyZone ;Color patches for the government facility and red lines
  ask patches [
    if (pycor <= safety-top and pycor >= safety-bottom) and (pxcor >= safety-left and pxcor <= safety-right)
      [ set pcolor 7 ]
    if (pycor <= cross-top and pycor >= cross-bottom) and (pxcor >= cross-left and pxcor <= cross-right)
      [ set pcolor 15 ]
    if (pycor <= cross2-top and pycor >= cross2-bottom) and (pxcor >= cross2-left and pxcor <= cross2-right)
      [ set pcolor 15 ]
  ]
end

to move ;Movement for HealthyPeople, Zombies, and Immunity breeds
  rt random 360
  fd 1
end

to checkSafety ;Procedure for HealthyPeople
  if pcolor = 7 or pcolor = 15 ;If the HealthyPeople are at the government facility, they become immune
    [
      set breed Immunity
      set shape "person"
      set color 47
      set size 1.5
    ]
end

to catchPerson ;Procedure for Zombies
  let prey one-of HealthyPeople-here
  if prey != nobody and random 100 < humanInfectionRate ;If the zombie has found a person and the infection rate is within range, the person becomes a zombie
    [ ask prey [ set breed Zombies set color 66 ] ]
end

to catchHunter ;Procedure for Zombies
  let prey one-of Hunters-here
  if prey != nobody and random 100 < hunterInfectionRate ;If the zombie has found a hunter and the infection rate is within range, the hunter becomes a zombie
    [ ask prey [ set breed Zombies set color 66 ] ]
end

to catchZombies
  let prey one-of Zombies
  if prey != nobody and random 100 < zombie-hunter-effective-rate
    [ ask prey [ die ] ]
end

There are 2 versions of this model.

Uploaded by When Description Download
Jennifer Dana-Farley almost 10 years ago Added infection rate, immunity & hunters Download this version
Jennifer Dana-Farley almost 10 years ago Initial upload Download this version

Attached files

File Type Description Last updated
ZombieApocalypse1.png preview Preview for 'ZombieApocalypse1' almost 10 years ago, by Jennifer Dana-Farley Download

This model does not have any ancestors.

This model does not have any descendants.
