Simulateur_EN_v5.7
Model was written in NetLogo 5.2-RC3
•
Viewed 378 times
•
Downloaded 32 times
•
Run 0 times
Download this modelDo you have questions or comments about this model? Ask them here! (You'll first need to log in.)
Info tab cannot be displayed because of an encoding error
Comments and Questions
Please start the discussion about this model!
(You'll first need to log in.)
Click to Run Model
extensions [sound]
turtles-own [meme
pre
infl_list
]
globals [nb
rn
co
nets
meme_2
meme_R
pre_R
host
change
pole
total
percentage
p_class1
p_class2
p_class3
p_class4
p_class5
p_class6
in_data
iteration
file-data
list_data
percent
autolink
Dif
TermMoins
TermPlus
u1
u2
w1
w2
s
z
]
to randomize ;; générer des variables aléatoires normalisées
set u1 random-float 1
set u2 random-float 1
set w1 (2 * u1 - 1)
set w2 (2 * u2 - 1)
set s ((w1 ^ 2) + (w2 ^ 2))
if s <= 1
[set z (w1 * sqrt(-2 * ln s / s) * random noise / 10)]
end
to setup
set out false
set majority false
file-close-all
clear-all
if pole_right = true [out_pole set pole true]
set nb 0
ifelse model = false [set Do_network true]
[set Do_network false]
set change 0
set total 0
ask patches [ set pcolor lime]
draw
ifelse model = false [setup-turtles]
[set-default-shape turtles "person"]
if circle [layout-circle turtles limits / 3
ask turtles [set color yellow
set meme xcor
set pre ycor]]
if model = false [ask turtles [ifelse meme < 0 [set color red] [set color blue]]]
reset-ticks
end

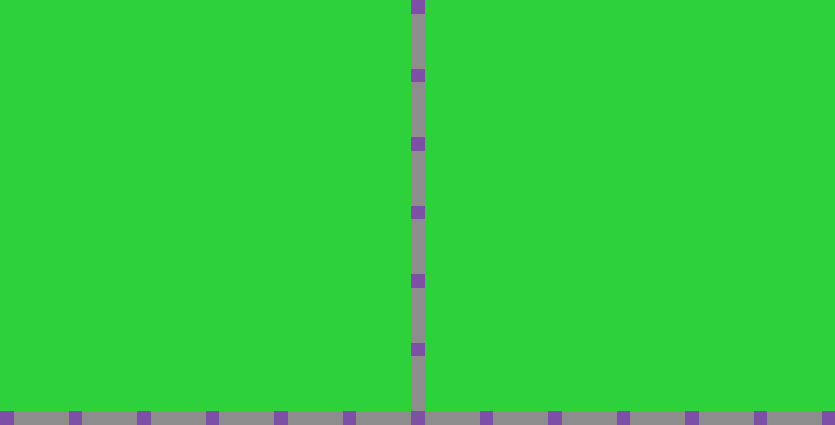

to draw ;; dessiner les axes
ask patches [if pxcor = 0 and pxcor <= 30 [set pcolor gray]
if pycor = 0 and pycor <= 30 [set pcolor gray]]
ask patch -5 0 [set pcolor violet]
ask patch -10 0 [set pcolor violet]
ask patch -15 0 [set pcolor violet]
ask patch -20 0 [set pcolor violet]
ask patch -25 0 [set pcolor violet]
ask patch -30 0 [set pcolor violet]
ask patch 0 0 [set pcolor violet]
ask patch 5 0 [set pcolor violet]
ask patch 10 0 [set pcolor violet]
ask patch 15 0 [set pcolor violet]
ask patch 20 0 [set pcolor violet]
ask patch 25 0 [set pcolor violet]
ask patch 30 0 [set pcolor violet]
ask patch 0 5 [set pcolor violet]
ask patch 0 10 [set pcolor violet]
ask patch 0 15 [set pcolor violet]
ask patch 0 20 [set pcolor violet]
ask patch 0 25 [set pcolor violet]
ask patch 0 30 [set pcolor violet]
end
to strength ;; générer la prégnance initiale en relation avec le niveau de polarisation
set pre (abs(meme) + log(random-float noise) 2)
if pre < 0 [set pre random-float 1]
end
to memetic ;; générer la polarisation des memes à l'intérieur des limites fixées
set meme random-xcor
ifelse meme >= 0 [if abs(meme) > limits [set meme random-float limits]]
[if abs(meme) > limits [set meme random-float limits * -1]]
set xcor meme
end
to setup-turtles ;; créer les agents
set-default-shape turtles "person"
create-turtles sample [memetic
strength
if model = false [if not circle [setxy meme pre
ifelse meme < 0 [set color red] [set color blue]]]]
if model = false [ask turtle 0 [set color magenta]
ask turtle 1 [set color yellow]
ask turtle 2 [set color orange]
ask turtle 3 [set color pink]]
end
to go
set nb 1
if out = false and pole_right != true [file-close]
if pole_right = false [set pole false]
ask turtles [set co (exp(abs(meme)))
set host who
if event_left > event_right [set event_right event_left + 1] ;; faire suivre la limite droite de l'événement en fonction de la limite gauche
if Auto_Nets [if autolink >= X_sample_nets * sample * 3 [set Do_Network false ;;envoyer le signal pour l'arrêt de l'auto_nets
set Auto_Nets false
set out false
sound:play-note "CELESTA" 60 64 1]]
randomize
if Do_network [influence]
set nets round(count links / influencers)
if nets >= round(sample * (sample - 1) / influencers) [set out false]
transmission
if model = false [ifelse meme < 0 [set color red] [set color blue]]
if out = true and model = true [file-write who file-write meme file-write pre file-write infl_list]
]
tick
if nb_ticks = ticks [stop]
if pole = true [set percentage count turtles with [meme > 0]
set percentage round(percentage / sample * 100)
set p_class1 count turtles with [color = blue and meme > 0]
set p_class1 round(p_class1 / count turtles with [color = blue] * 100)
set p_class2 count turtles with [color = magenta and meme > 0]
set p_class2 round(p_class2 / count turtles with [color = magenta] * 100)
set p_class3 count turtles with [color = orange and meme > 0]
set p_class3 round(p_class3 / count turtles with [color = orange] * 100)
set p_class4 count turtles with [color = yellow and meme > 0]
set p_class4 round(p_class4 / count turtles with [color = yellow] * 100)
set p_class5 count turtles with [color = pink and meme > 0]
set p_class5 round(p_class5 / count turtles with [color = pink] * 100)
set p_class6 count turtles with [color = red and meme > 0]
set p_class6 round(p_class6 / count turtles with [color = red] * 100)
ifelse model = true [file-write percentage file-write "; " file-write p_class1 file-write "; " file-write p_class2 file-write "; " file-write p_class3 file-write "; " file-write p_class4 file-write "; " file-write p_class5 file-write "; "file-print p_class6]
[file-print percentage]]
if majority = true [if count turtles with [meme > 0] / sample * 100 > 50 [stop]]
set percent (change / total * 100)
if Hide_links [ask links [hide-link]]
set iteration ticks ;;rafraichir le graphique
if iteration >= 500 [reset-ticks
clear-plot]
end
to influence ;; établir les influenceurs pour chaque agent
set infl_list []
while [nb <= influencers]
[set rn random sample
while [rn = who]
[set rn random sample]
ifelse in-link-neighbor? turtle rn [set autolink autolink + 1]
[if length infl_list <= influencers [create-link-from turtle rn]]
set nb nb + 1
set infl_list sentence infl_list (list rn)
if nb > influencers [if out [file-write who file-write meme file-write pre file-write infl_list]]
]
end
to transmission ;; procéder à la transmission mémétique
ask in-link-neighbors [set total total + 1
if [pre] of self > [pre] of myself
[set meme_R ([meme] of self)
set pre_R ([pre] of self)
ifelse (([meme] of self < 0 and [meme] of myself > 0) or ([meme] of self > 0 and [meme] of myself < 0))
[set meme_2 [meme] of myself * -1
set change change + 1 ]
[set meme_2 [meme] of myself]
ifelse no-polarize
[if pre_R > [pre] of myself [set meme_2 (meme_2 + (meme_R * pre_R / co * [pre] of myself) + z * noise) / base]]
[if pre_R > [pre] of myself [set meme_2 (meme_R - ([meme] of myself * [pre] of myself / co * pre_R) + z * noise) / base]]
ifelse meme_2 >= 0 [if abs(meme_2) >= limits [set meme_2 (limits - random-float noise)]]
[if abs(meme_2) >= limits [set meme_2 (limits - random-float noise) * -1]]
ask turtle host [pregnance
set meme meme_2
set xcor meme
if pre > limits [set pre limits]
set ycor pre
]
]]
end
to pregnance ;; calculer la prégnance après la transmission mémétique
randomize
Set Dif (abs(meme_2 - meme)) / squeeze
Set TermMoins (pre - Dif + z) / base
Set TermPlus (pre + Dif + z) / base
ifelse pre >= abs(meme_2) - effect
[if TermMoins >= 0 and TermMoins <= limits [set pre TermMoins]]
[if TermPlus >= 0 and TermPlus <= limits [set pre TermPlus]]
if pre <= 0 [set pre random-float noise]
end
to event ;; produire un événement
ask turtles [if meme > event_left and meme < event_right and pre < pre_top and pre > pre_bottom [set meme_2 meme
set meme_2 meme_2 + Move
ifelse meme_2 >= 0 [if abs(meme_2) >= limits [set meme_2 (limits - random-float noise)]]
[if abs(meme_2) >= limits [set meme_2 (limits - random-float noise) * -1]]
ifelse Move_strength = 0 [pregnance]
[set pre Move_strength + log(random-float noise) 2]
set meme meme_2
setxy meme pre]
]
end
to out_file
file-close
set file-data user-new-file
if is-string? file-data
[
if file-exists? file-data
[file-delete file-data]
file-open file-data
]
if pole_right = false [set out true]
end
to in_file
set file-data user-file
if (file-data != false)
[
set list_data []
file-open file-data
while [not file-at-end?]
[set list_data sentence list_data (list (list file-read file-read file-read file-read)) ]
user-message "File loading complete!"
file-close
]
clear-turtles
set in_data 1
create-turtles sample
ifelse (is-list? list_data) [foreach list_data [ask turtle first ? [if in_data <= (limit_in * sample) + 1 [set meme item 1 ?
set pre item 2 ?
set infl_list last ?
foreach infl_list [create-link-from turtle ?]
ask links [hide-link]
setxy meme pre
ifelse model = false [ifelse meme < 0 [set color red] [set color blue]]
[if who <= 50 [set color blue]
if who > 50 and who <= 111 [set color magenta]
if who > 111 and who <= 136 [set color orange]
if who > 136 and who <= 161 [set color yellow]
if who > 161 and who <= 185 [set color pink]
if who > 185 [set color red]]
set in_data in_data + 1]]]]
[user-message "Error loading"]
if pole_right [out_pole set pole true]
end
to out_pole
file-close
set file-data user-new-file
if is-string? file-data
[
if file-exists? file-data
[file-delete file-data]
file-open file-data
]
;;set pole true
end
There is only one version of this model, created about 10 years ago by Pierre-Alain Cotnoir.
