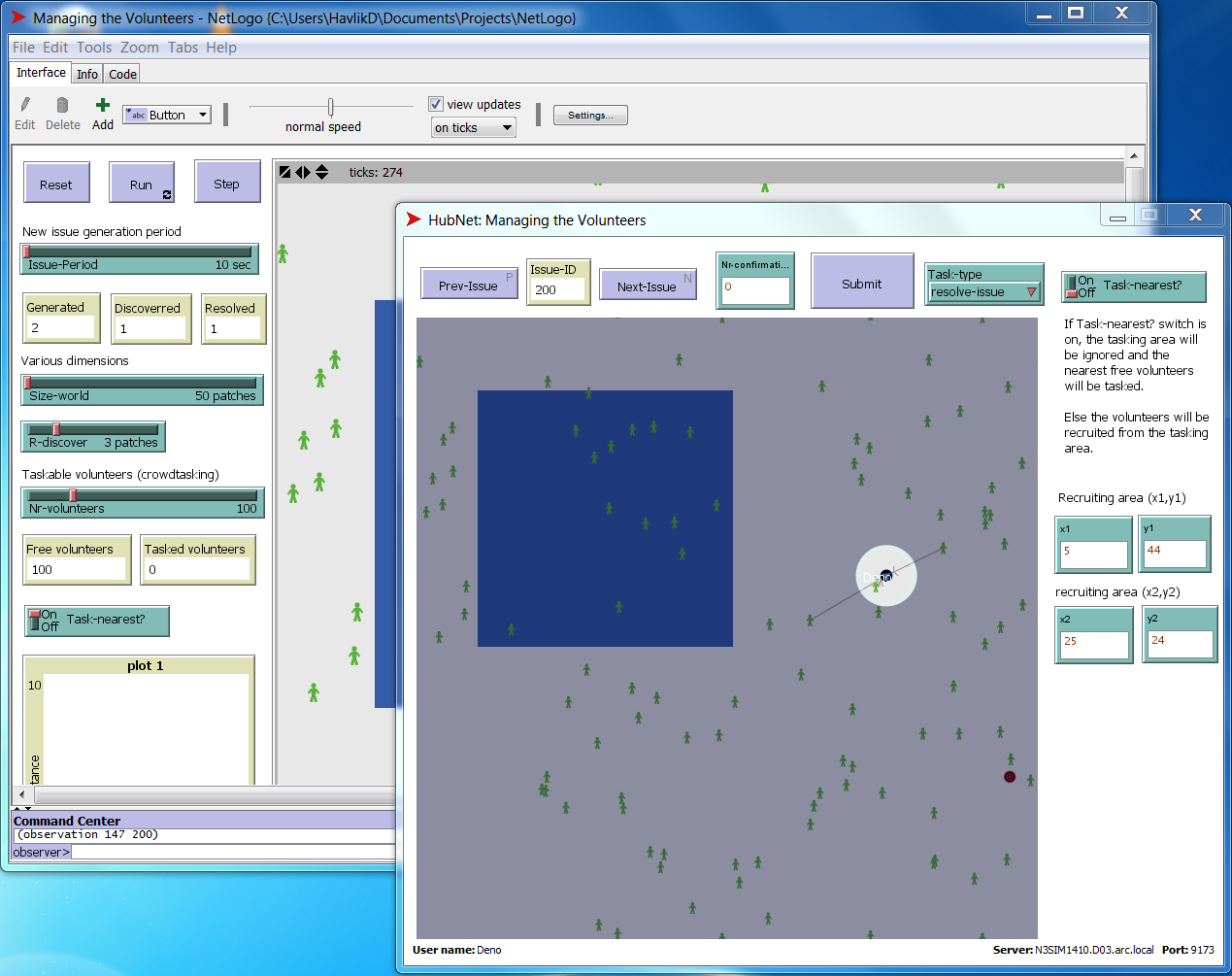

Managing the Volunteers Netlogo and HubNet activity

;;;;;;;;;;;;;;;;;;;;;;;;;;;
; globals and definitions ;
;;;;;;;;;;;;;;;;;;;;;;;;;;;

breed [volunteers volunteer]
volunteers-own [ v_motivation xhome yhome tasking-distance ]

breed [issues issue]
; i_resolved? is set to true when we have enough reports.
issues-own [ i_tasked? i_resolved? i_generated i_tasked i_resolved ]

directed-link-breed [task-requests task-request] ; task requests are special links from the manager to the issue.
                                                 ; task requests are used to generate tasks later on.
task-requests-own [ t_manager-id t_generated-at t_resolved? t_x1 t_x2 t_y1 t_y2 t_outstanding t_issue-ID]
  ; t_outstanding is set to number of requested confirmations initially, and one is substrqcted every time a new volunteer accepts the task
  ; t_resolved is set to true once all the v_tasks generated by this task request have been resolved.

directed-link-breed [ v_tasks v_task ] ; these are the actual tasks - links from volunteers to issues
directed-link-breed [ observations observation ] ; report is reserved word, so we'll use observation.


; not sure what we need in this link...
observations-own [ timestamp correct?]
; every task is requested by one manager and has a task ID.
; this is not unique! Same manager + task ID combination is shared with Nr-volunters other v_tasks!
v_tasks-own [ manager-ID task-ID ]

;;;;;;;;;;;;;;;;;;;
; HUBNET STUFF!!! ;
;;;;;;;;;;;;;;;;;;;

;; create a breed of turtles that represents the crisis manager(s).
;; Crisis managers manage the tasks - in this model the manager will be a human and volunteers software agents.
breed [ managers manager ]

managers-own
[
  user-id          ;; Managers choose a user name when they log in.
                   ;; Each hubnet message from a manager will contain this ID as hubnet-message-source
  x1 y1            ;; one vertice of the BB
  x2 y2            ;; second vertice
  Task-type
  Issue-ID
  Nr-confirmations ;; number of requested volunteers
  Window-size      ;; size of the world-window shown to manager
  ;; more to come
]

;; the STARTUP procedure runs only once at the beginning of the model
;; at this point we just initialize the hubnet

to startup
  hubnet-reset
end

;;
;; HubNet Procedures
;;

to hn-setup-managers
  ask managers
  [
    set Nr-confirmations 3
    hn-inform-me "Nr-confirmations" 3
    set x1 random Size-World - 20
    set y1 random Size-World - 20
    set x2 x1 + 10
    set y2 y1 + 10
    set Task-type "resolve-issue"            ;; right now we have only one type
    set Window-size floor ( Size-world / 5 ) ;;
    ;; set Issue-ID [who] of one-of issues
    ;; hubnet-send user-id "step-size" step-size
    hn-update-me
  ]
end


;; when a new user logs in create a manager turtle
;; this turtle will store any state on the client
;; values of sliders, etc.

to hn-create-new-manager
  create-managers 1
  [
    ;; This is for housekeeping purpose. We need to know who is who.
    set user-id hubnet-message-source
    set label user-id

    set Nr-confirmations 3
    set x1 random Size-World - 20
    set y1 random Size-World - 20
    set x2 x1 + 10
    set y2 y1 + 10
    set Task-type "resolve-issue"
    set Issue-ID [who] of one-of issues

    ;; update the clients with any information you have set
    hn-update-me
  ]
end

;; when a user logs out make sure to clean up the turtle
;; that was associated with that user (so you don't try to
;; send messages to it after it is gone) also if any other
;; turtles of variables reference this turtle make sure to clean
;; up those references too.

to hn-remove-manager
  ask managers with [user-id = hubnet-message-source]
  [ die ]
end

to hn-process-clients
  ;; as long as there are more messages from the clients
  ;; keep processing them.
  while [ hubnet-message-waiting? ]
  [
    ;; get the first message in the queue
    hubnet-fetch-message
    if hubnet-enter-message? [ hn-create-new-manager stop ] ;; when clients enter we get a special message
    if hubnet-exit-message?  [ hn-remove-manager     stop ] ;; when clients exit we get a special message
    print (word "new hubnet message " hubnet-message-tag)
    ask managers with [user-id = hubnet-message-source]
      [ hn-execute-command hubnet-message-tag ]
    ;; I want to always center on currently chosen issue
    if (hubnet-message-tag = "Prev-Issue" or hubnet-message-tag = "Next-Issue") [
      let ID [Issue-ID] of one-of managers with [user-id = hubnet-message-source]
      hubnet-send-watch hubnet-message-source issue ID
      ;; getting the system to center on one of issues is not as simple as I expected. :-(
      ;; it also complicates the definition of the task area because of the wrapping.
      ;; for now we'll therefore stay with full view
      ;hubnet-send-follow hubnet-message-source issue ID 10
    ]
    if (hubnet-message-tag = "Mouse Up") [
      ;; context can be quite an annoying topic in netlogo. :-(
      let px1 0 let py1 0
      let px2 0 let py2 0
      ask one-of managers with [user-id = hubnet-message-source] [
        set px1 x1 set py1 y1
        set px2 x2 set py2 y2
      ]
      hn-fill-tasking-area blue px1 py1 px2 py2       ;; this will make the tasking area visible
    ]
  ]
end


;; Other messages correspond to users manipulating the
;; client interface, handle these individually.

to hn-execute-command [command]
  ;; you should have one if statement for each widget that
  ;; can affect the outcome of the model, buttons, sliders, switches
  ;; choosers and the view, if the user clicks on the view you will receive
  ;; a message with the tag "View" and the hubnet-message will be a
  ;; two item list of the coordinates
  print (word "command=" command "(" hubnet-message ")")

  ;;if command = "Task-type" [ set Task-type item 0 hubnet-message stop ]
  if command = "Nr-confirmations" [ set Nr-confirmations hubnet-message stop ]
  if command = "Nr-confirmations" [ set Nr-confirmations hubnet-message stop ]
  if command = "Task-nearest?"    [ set Task-nearest? hubnet-message stop ]

  ;; find next unresolved issue which is eligible for tasking.
  if command = "Next-Issue" [
    let next_issue min-one-of ( issues with [ who > [Issue-ID] of myself and not i_tasked?  ] ) [ who ]
    if not is-issue? next_issue [ set next_issue min-one-of issues with [ not i_tasked?  ] [ who ] ]
    print (word "Issue-ID=" Issue-ID " next-issue=" next_issue)
    ifelse is-issue? next_issue [
      set Issue-ID [who] of next_issue
      hn-inform-me "Issue-ID" Issue-ID
      set color blue
      ; manager "moves" to the issue.
      set xcor [xcor] of next_issue
      set ycor [ycor] of next_issue
      stop
    ]
    [
      ;; TODO: if this does not work either, there are no issues left. What now?
    ]
    stop
  ]
  ;; find previous unresolved issue which is eligible for tasking.
  if command = "Prev-Issue" [
    let prev_issue max-one-of ( issues with [ who < [Issue-ID] of myself and not i_tasked?  ] ) [ who ]
    if not is-issue? prev_issue [ set prev_issue max-one-of issues with [ not i_tasked?  ] [ who ] ]
    ifelse is-issue? prev_issue [
      set Issue-ID [who] of prev_issue
      hn-inform-me "Issue-ID" Issue-ID
      set color blue
      print (word "Issue-ID=" Issue-ID " prev-issue=" prev_issue)
      ; manager "moves" to the issue.
      set xcor [xcor] of prev_issue
      set ycor [ycor] of prev_issue
      stop
    ]
    [
      ;; TODO: if this does not work either, there are no issues left. What now?
    ]
    stop
  ]

  ;; Tasking area is chosen by mouse klick ("View"), drag and letting go ("Mouse up")
  if command = "View"
  [
    set x1 floor item 0 hubnet-message
    set y1 floor item 1 hubnet-message
    hn-inform-me "x1" x1
    hn-inform-me "y1" y1
    print (word "x1=" x1 ", y1=" y1) ;; debug
    stop
  ]
  if command = "Mouse Up"
  [
    set x2 floor item 0 hubnet-message
    set y2 floor item 1 hubnet-message
    hn-inform-me "x2" x2
    hn-inform-me "y2" y2
    print (word "x2=" x2 ", y2=" y2) ;; debug
    stop
  ]

  ;; And now it gets serious. We have to add a new task request to the queue.
  if command = "Submit"
  [
    print (word "Time to do the tasking to issue " Issue-ID )
    hn-gen-task-request
    stop
  ]
end

;; generate a new tasking request. Called after pressing "Submit" buton.
;; Note: for now this must be called in manager context.

to hn-gen-task-request
  ;; This should assure we never sending the task to same issue twice.
  if [i_tasked?] of issue Issue-ID [ stop ]
  create-task-request-to issue Issue-ID [
    set t_manager-id [user-id] of myself
    set t_generated-at ticks
    set t_x1 [x1] of myself ; coordinates of the tasking area
    set t_x2 [x2] of myself
    set t_y1 [y1] of myself
    set t_y2 [y2] of myself
    set t_outstanding [Nr-confirmations] of myself
    set t_issue-ID [Issue-ID] of myself
    set color black
  ]
  ask issue Issue-ID [
    set i_tasked? true
    set i_tasked ticks
  ]
end


;; whenever something in world changes that should be displayed in
;; a monitor on the client send the information back to the client

to hn-update-me ;; turtle procedure
  hubnet-send user-id "x1" x1
  hubnet-send user-id "y1" y1
end

to hn-inform-me [variable value] ;; turtle procedure
  hubnet-send user-id variable value
end

;; make the current tasking area visible for manager

to hn-fill-tasking-area [the_color px1 py1 px2 py2 ]
  ask patches [
    ifelse ( pxcor >= min (list px1 px2)
      and pxcor <= max (list px1 px2)
      and pycor >= min (list py1 py2)
      and pycor <= max (list py1 py2))
    [ set pcolor the_color ]
    [ set pcolor grey + 4 ]
  ]
end



;;;;;;;;;;;;;;;;;;;;
; setup procedures ;
;;;;;;;;;;;;;;;;;;;;

to setup
  ; clear-all - this would also kill the manager. no-no.
  clear-patches
  clear-drawing
  clear-output
  clear-all-plots
  ask turtles with [breed != managers] [die]
  hn-setup-managers
  setup-world
  setup-volunteers
  clear-ticks
  reset-ticks
end


; initially all patches are just grey = unknown.

to setup-world
  resize-world 0 Size-world 0 Size-world ; world can be of different sizes
  set-patch-size 1000 / Size-world       ; but the world illustration is always the same size.
  ask patches [
      set pcolor grey + 4
  ]
end


; randomly add some taskable volunteers to the world

to setup-volunteers
  set-default-shape volunteers "person"
  create-volunteers Nr-volunteers [
    setxy random-xcor random-ycor
    set color green                  ; green indicates the volunteer is free and ready to get a task.
    set size 1

    ; Variables below aren't used yet (code not implemented)
    set xhome xcor                   ; Just in case we want to send volunteers back home again.
    set yhome ycor
    set v_motivation init-motivation ; motivation is not used at the moment either!
  ]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; Procedures governing the world development ;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to go
  every Issue-period [ add-issues 1 ] ; new issues are added every Issue-period sec.
  every 0.1 [ hn-process-clients ] ;; every 0.1 sec should be more than enough?
  every Issue-period [ export-world (word "volounteers-WS-" ticks)]
  assign-tasks
  move-volunteers
  report-issues
  manage-issues
  tick
end

; adds N (normally just one) new issues to the world when called
; issues have a generation time & later also a discovery time

to add-issues [ N ]
  set-default-shape issues "target"
  create-issues N [
    setxy random-xcor random-ycor
    set i_generated ticks            ; this could be used to generate issues as we go.
    set i_resolved? false
    set i_tasked? false
    set color red
    set size 1
  ]
end

; task requests are defined by manager, but we still have to assign them to volunteers
; since the tasking area may not have enough volunteers at first,
; we need to work with queue.

to assign-tasks
  ;; vol,unteer can't have >1 tasks at any given moment.
  let free_volunteers volunteers with [not any? out-v_task-neighbors]
  ;; t_outstanding will be zero if we have enough volunteers set on a task.
  ask task-requests with [t_outstanding > 0 ] [
    let this_ID t_issue-ID
    ask ifelse-value Task-nearest? [
      min-n-of t_outstanding free_volunteers [ distance (issue this_ID) ]
    ] [
    n-of t_outstanding free_volunteers with [
      xcor >= [min (list t_x1 t_x2)] of myself and
        xcor <= [max (list t_x1 t_x2)] of myself and
        ycor >= [min (list t_y1 t_y2)] of myself and
        ycor <= [max (list t_y1 t_y2)] of myself ]
    ]
    [
      ;; TODO: check if this assures we don't task too many people!
      if [t_outstanding] of myself > 0 [
        set tasking-distance distance issue this_ID ; store the tasking distance of latest task in volunteers variable.
        create-v_task-to issue this_ID [
          if show-tasks? [ set color orange ]
          if debug? [ print word "created task:" self ]
          ;; back to volunters context.
          ;; lets make the tesked v. better visible!

          ask myself [         ;; myself = volunteer here!
            set color orange
            set size size + 1
          ]
        ]
        ask myself [ ;; one outstanding task-request less to go!
                     ;; myself = task request here
          set t_outstanding t_outstanding - 1
        ]
      ]
    ]
  ]
end


;; volunters will move randomly if not tasked and towards the issue if tasked

to move-volunteers
  ask volunteers [
    ; current target?
    ; normally there should be only one, so "one-of" is the same as
    ;

    ; If we have a task, let's go for it!
    ifelse any? out-v_task-neighbors [
      face min-one-of (out-v_task-neighbors)  [distance myself ] ;; this will work even if we set several tasks on the volunteer at once.
      forward 1
    ]
    ; else we'll stroll arround
    [
      right random 360
    ]
    forward 1
    ; motivation always goes down, unless an issue is discovered
    ; TODO: this is not implemented yet
    ;if v_motivation > 0 [
    ;  set v_motivation v_motivation - 1
    ;]

    ;; othervise we'll do nothing.
  ]
end


; tasked volunteers move towards their task or at random if no task defined.


; report observations on nearby issues

to report-issues
  ask volunteers with [any? out-v_task-neighbors] [ ;; in this model ONLY the tasked volunteers can send reports.
    ;;let this_volunteer self
    ask one-of out-v_task-neighbors [      ;; that would be the relevant issue
                                           ;; there can be only one since we allow one task per volunteer
      if distance myself <= R-discover [;; if the issue is near enough, let's report.
                                           ;; we are in issue context
                                           ;; issue = self, volunteer = myself
        create-observation-from myself [   ;; volunteer should report (create) an observation to this issue
                                           ;; now we are in onservation (link) context!
          set timestamp ticks  ;; when was the observation made?
          if show-observations? [
            set color green ;; this will make the observation link visible
          ]
          if debug? [print self]
        ]
        ask myself [                    ;; this should be the volunteer, we are back in issue context.
          set color green               ;; volunteer is free to take a new task again
          set size size - 1             ;; Disable this to see good reporters growing.
          ask one-of my-out-v_tasks [die]  ;; delete the task from a caling turtle to this issue
        ]
      ]
    ]
  ]
end

to manage-issues
  ask task-requests with [ t_outstanding <= 0 ] [ ;; should never be < 0, but just in case.
    ;; t_outstanding = 0 means we have tasked enough v.
    ask issue t_issue-ID [
      if not any? in-v_task-neighbors [ ;; if no tasks are left, all volunteers heve reported
        set i_resolved? true
        set i_resolved ticks
        set color black
        ; ask myself [die] ;; this would kill the task request.
      ]
    ]
  ]
end
