Truck routing
Model was written in NetLogo 5.0
•
Viewed 810 times
•
Downloaded 57 times
•
Run 0 times
Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)
COPYRIGHT AND LICENSE
Copyright 2012 Alvaro Gil alvaro.gil@polymtl.ca
HOW TO CITE
If you mention this model in an academic publication, I ask that you include this citation for the model - Gil, Alvaro (2012), Routing Network simulation with NetLogo. École Polytechnique de Montréal, QC. (alvaro.gil@polymtl.ca)
Comments and Questions
Please start the discussion about this model!
(You'll first need to log in.)
Click to Run Model
extensions [ gis table] globals [ cities-dataset countries-dataset arr_e] breed [cities city] breed [trucks truck] patches-own [population country-name] cities-own [key name pop] to setup file-close-all ca set arr_e [] set-default-shape trucks "truck" ; Load all of our datasets set cities-dataset gis:load-dataset "USCAN/cities.shp" set countries-dataset gis:load-dataset "USCAN/countries.shp" gis:set-world-envelope (gis:envelope-union-of (gis:envelope-of cities-dataset) (gis:envelope-of countries-dataset)) display-countries create-towns end to create-towns foreach gis:feature-list-of cities-dataset [ let location gis:location-of (first (first (gis:vertex-lists-of ?))) if not empty? location [ create-cities 1 [ set xcor item 0 location set ycor item 1 location set size 2 set shape "pentagon" set color black if label-cities [set label gis:property-value ? "NAME"] set key gis:property-value ? "KEY" set name gis:property-value ? "NAME" set pop gis:property-value ? "POPULATION" ] ] ] end to create-electric-network ask turtles [create-links-with other turtles] set arr_e [] ask links [set hidden? true] let l [] foreach [self] of links [ set l lput ([link-length] of ?) l] set l sort l ;first pair ask first([self] of links with [link-length = first(l)]) [set color 25 set hidden? false set thickness 0.3 let e1 [who] of end1 let e2 [who] of end2 let tempar [] set tempar lput e1 tempar set tempar lput e2 tempar set arr_e lput tempar arr_e] set l remove-item 0 l while [length(l) > 0] [ let li first([self] of links with [link-length = first(l)]) let e1 [who] of [end1] of li let e2 [who] of [end2] of li let i 0 let flag 0 let p1 -1 let p2 -1 while [i < length(arr_e)] [ if (member? e1 item i arr_e) [set p1 i] if (member? e2 item i arr_e) [set p2 i] set i i + 1] let case 0 while [flag = 0] [ let tempar [] if p1 != -1 and p1 = p2 [ ;Case1: Both belong to the same array set case 1 set flag 2] if p1 = -1 and p1 = p2 [ ;Case2: Nobody belongs set tempar lput e1 tempar set tempar lput e2 tempar set arr_e lput tempar arr_e set case 2 set flag 1] if p1 != -1 and p2 = -1 [ ;Case 3: Only e1 exists in one group set tempar item p1 arr_e set arr_e remove tempar arr_e set tempar lput e2 tempar set arr_e lput tempar arr_e set case 3 set flag 1] if p1 = -1 and p2 != -1 [ ;Case 4: Only e2 exists in one group set tempar item p2 arr_e set arr_e remove tempar arr_e set tempar lput e1 tempar set arr_e lput tempar arr_e set case 4 set flag 1] if p1 != -1 and p2 != -1 and flag = 0 [ ;Case 5: Both already belong to different groups let g1 item p1 arr_e let g2 item p2 arr_e set tempar sentence g1 g2 set arr_e remove g1 arr_e set arr_e remove g2 arr_e set arr_e lput tempar arr_e set case 5 set flag 1] ] if flag = 1 [ask li [ set color 25 set hidden? false set thickness 0.3 ] ;print (word "ADD link" li ". Case " case) ;show arr_e ] set l remove-item 0 l ] set arr_e remove-duplicates arr_e ;show arr_e ask links with [hidden? = true] [die] end ; Drawing polygon data from a shapefile, and optionally loading some ; of the data into turtles, if label-countries is true to display-countries gis:set-drawing-color white gis:draw countries-dataset 1 gis:apply-coverage countries-dataset "CNTRY_NAME" country-name ask patches [ ifelse country-name = "United States" [set pcolor 135] [ifelse country-name = "Canada" [set pcolor 64] [set pcolor 88]] ] end to import-road-network let dest [] file-open "Road.txt" let l file-read-characters 1 let i 1 while [i <= count(turtles)] [ set dest lput(file-read) dest set i i + 1] set i 1 let j 1 while [i <= length(dest)] [ set j 1 while [j <= length(dest)] [ if j = 1 [set l file-read] let value file-read let fro item (i - 1) dest let too item (j - 1) dest if value != 0 [;print (word "From " fro " to " too) ask cities with [key = fro] [create-link-with one-of (cities with [key = too])] ] set j j + 1] set i i + 1] file-close end to-report dijkstra let tempar [] ask turtle Origin [ let r [] let distan [] let l sort([who] of other turtles) let from_array l let index table:make let t 0 while [t < length(l)] [ set r lput([]) r set distan lput 999999 distan table:put index (item t l) (position (item t l) l) set t t + 1] ;First turn let next_index [] let j 0 while [j < length(l)] [ let de item j l if is-link? link who de [let dd 0 set next_index lput(de) next_index ask link who de [set dd link-length] let temproute item j r set temproute lput de temproute set r replace-item j r temproute set distan replace-item j distan dd] set j j + 1] while [length(from_array) > 0] [ foreach next_index [ let temp_from ? let posic_orig table:get index temp_from let k 0 while [k < length(from_array)] [ let temp_dest item k from_array if temp_dest != temp_from [ if is-link? link temp_dest temp_from [ let dd 0 ask link temp_dest temp_from [set dd link-length] let posic_dest table:get index temp_dest if item posic_dest distan > (dd + item posic_orig distan) [ set distan replace-item posic_dest distan (dd + item posic_orig distan) let temp_route (item posic_orig r) set temp_route lput(temp_dest) temp_route set r replace-item posic_dest r temp_route] ]] set k k + 1] set from_array remove temp_from from_array] set next_index [] let i 0 while [i < length(r)] [ if item i r != [] and member? (item i l) from_array [set next_index lput(item i l) next_index] set i i + 1]] let final_route item (table:get index Destin) r set final_route fput(Origin) final_route let total_distance item (table:get index Destin) distan set tempar lput final_route tempar set tempar lput total_distance tempar] report tempar end to create-shortest-path ask turtles [set color 85] ask links [ set color gray set thickness 0] if Origin = Destin [user-message "Please select two different nodes" stop] ask turtle Origin [set color Red] ask turtle Destin [set color Red] let tempar dijkstra let final_route item 0 dijkstra let total_distance item 1 dijkstra print (word "The shortest path between Origin and Destination nodes is " final_route " for " total_distance) let i 0 while [i < length(final_route) - 1] [ if (item (i + 1) final_route) != Destin [ask turtle (item (i + 1) final_route) [set color 27]] ask link (item i final_route) (item (i + 1) final_route) [ set color red set thickness 0.3] set i i + 1] end to send-truck ask trucks [die] ask turtles [set color black set size 2 set label ""] ask links [ set color gray set thickness 0] if Origin = Destin [user-message "Please select two different nodes" stop] ask turtle Origin [set color Red set size 3 set label Name] ask turtle Destin [set color Red set size 3 set label Name] let tempar dijkstra let final_route item 0 dijkstra let total_distance item 1 dijkstra let fr_name [] foreach final_route [set fr_name lput([Name] of turtle ?) fr_name] print "The shortest path between Origin and Destination nodes is " print fr_name print (word "with a total distance of " (total_distance * 86.5671974577573) " km") let i 0 while [i < length(final_route) - 1] [ if (item (i + 1) final_route) != Destin [ask turtle (item (i + 1) final_route) [set color 27 set label Name]] ask link (item i final_route) (item (i + 1) final_route) [ set color red set thickness 0.3] set i i + 1] create-trucks 1 [ set xcor [xcor] of city Origin set ycor [ycor] of city Origin set size 3 set color blue set label (word "Truck " who) set label-color 25] let c0 first([who] of trucks) watch truck c0 set i 0 while [i < length(final_route) - 1] [ let c1 item (i + 1) final_route move-from-to c0 c1 speed set i i + 1] reset-perspective end to reset-labels ask cities [set color black set size 2 set label Name] ask links [set color gray] end to move-from-to [a b c] ; from turtle a ==> to turtle b, with speed c ask turtle a [set heading towards turtle b] let coordfrom [] let coordto [] set coordfrom lput([xcor] of turtle a) coordfrom set coordfrom lput([ycor] of turtle a) coordfrom set coordto lput([xcor] of turtle b) coordto set coordto lput([ycor] of turtle b) coordto let stepx ((item 0 coordfrom) - (item 0 coordto)) / 20 let stepy ((item 1 coordfrom) - (item 1 coordto)) / 20 while [(abs((item 0 coordfrom) - (item 0 coordto)) > 0.5) or (abs((item 1 coordfrom) - (item 1 coordto)) > 0.5)] [ask turtle a [set xcor (xcor - stepx) set ycor (ycor - stepy) wait (1 / c)] set coordfrom replace-item 0 coordfrom ([xcor] of turtle a) set coordfrom replace-item 1 coordfrom ([ycor] of turtle a) ] end
There is only one version of this model, created about 11 years ago by Alvaro Gil.
Attached files
File | Type | Description | Last updated | |
---|---|---|---|---|
Mod5-6-GIS.zip | extension | Model, extensions and data | about 11 years ago, by Alvaro Gil | Download |

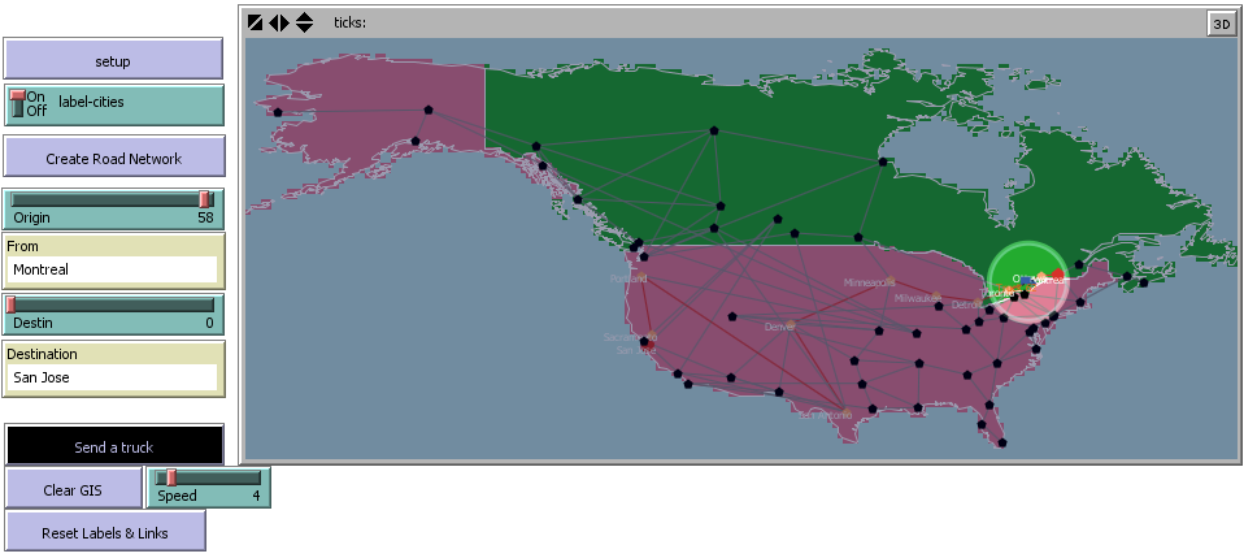

Truck routing.png | preview | Preview for 'Truck routing' | about 11 years ago, by Alvaro Gil | Download |
