ALife Somatic Computation

breed [ replicators ] ; Replicator breed corresponding to mobile agents m-agents


globals
     [
       geneticlist ; A list of the different genetic variants
       number-of-replicators_0
       number-of-replicators_1
       decrease-in-population
       variants
       variants_0
       num-variants
       extinctions
     ]

patches-own
      [
        ; Patches hold plantoids, each plantoid is a plant-like replicator with a fixed position in the territory
        ; The patches variables below actually correspond to plantoid-related variables

        max-reservoir ; Corresponds to a plantoid's reservoir capacity, defined as: the maximum amount of resources that a plantoid at that patch can generate.
                      ; This variable depends upon the territory characteristics, which means that plantoids with the same genetic code but at different locations can have
                      ; different reservoir capacities (different max-reservoir).

        plantoid-tag ; Corresponds to the plantoid's chromosome. Chromosomes are defined as per Holland's Echo rules: while actual chromosomes have a more complex relation to the
                     ; general structure of an organism, the chromosome in Echo's artificial world is introduced with two fundamental characteristics: the chromosome is the
                     ; genetic material of the agent and determines the agent's interface and interaction patterns, addressed in the model through tags that define these interactions,
                     ; the tags' contents match the segments of the chromosome's chain.

        amount-resources ; Corresponds to the amount of resources that a plantoid holds at each time.

      ]

replicators-own
      [
        ; Although the plantoids are replicators, in this Netlogo code these are being addressed internally through patch-related variables, since they are fixed in the terrain.
        ; The breed "replicator" is, thus, being applied to mobile agents, or m-agents.

        genetic-code ; Corresponds to a m-agent's entire chromosome chain

        cog ; The "cog" variable defines the cognitive type, there two cognitive types: Cog-0 basic self-replicating automata; Cog-1 agents capable of emotional responses.

        reservoir-capacity ; The maximum amount of energy resources that the m-agent can hold.

        agent-reservoir ; The amount of resources that the m-agent has stored.

        offense ; The m-agent's offense tag (corresponds to a section of the agent's chromosome).

        defense ; The m-agent's defense tag (corresponds to a section of the agent's chromosome).

        ; NOTE: together, the offense and defense tags compose the agent's chromosome.

        rep-thresh; The energy threshold that if exceeded leads the m-agent to replicate.

        ; Variables for agent-environment interactions: used in m-agent feeding interaction with plantoids (m-agens feed from plantoids' energy resources).

        environmental-comp
        agent-comp1
        agent-comp2
        environmental-score
        extra-environmental

        ; Variables for agent-agent interactions: used in m-agent feeding interaction with other m-agents (m-agents feed from other m-agents' energy resources).
        agent-score1
        agent-score2
        proportion1
        proportion2
        extra1
        extra2

        ; Variables related with emotional responses: these are used in cog-1 related procedures and define the cog-1's AI's emotional responses in survival situations:

        fear ; The fear level is triggered in conflict situations in agent-agent feeding interaction (which take place as conflict procedures).

        desire ; Corresponds to the desire to feed variable.
               ; The desire level is triggered by the m-agent's internal evaluation of its reservoir depletion level and its need to feed.
               ; The desire to feed is involved in deliberation around moving, feeding and conflict situations (agent-agent interactions).

        desire-to-replicate ; The desire to replicate is triggered in replication procedures.

        ; NOTE: none of these AI variables are used in the cog-0 interactions, so that cog-0 is a basic self-replicating automaton, while the cog-1 is programmed with
        ; an AI capable of emotional responses. It is important to stress that the type of computation performed by cog-1 is a "somatic computation" (soma - body) in which
        ; basic emotion responses, taken in parallelism with living organisms, are introduced as a way to provide the agents with greater reflexive abilities.
        ; The cog-1 AI, thus, is programmed in such a way that an engagement of the whole artificial organism's body is involved in the computation, with physiological responses
        ; programmed into the artificial organism's cognitive ability, in this way we can speak of a "somatic" artificial intelligence.
      ]

to setup

ca
reset-ticks

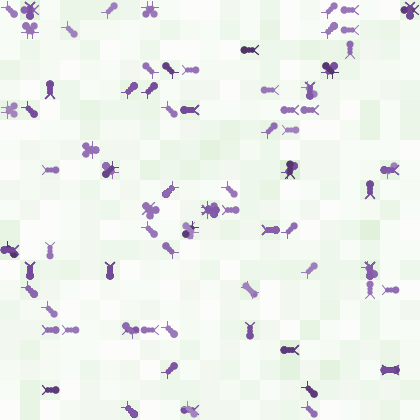

set-default-shape replicators "bug"; m-agents shaped as bugs, called in the program code by the breed replicator.


setup-resources ; Sets up the resource fountains conditions and the plantoids profile
setup-m-agents ; Sets up the m-agents

; Auxiliary variables used in plotting procedures
set variants_0 []
set number-of-replicators_0 count replicators
plot-species
end

to setup-resources

ask patches [ setup-terrain ] ; Setup the terrain in terms of resource fountain maximum capacity and initial resource level of plantoids.
ask patches [ setup-plantoids ] ; Setup the plantoids' genetic profile.
end

to setup-terrain

  ; Each plantoid can hold up to a maximum amount of energy resources characteristic of the patch it is at:
  set max-reservoir 1 + random fountains-capacity ; This is patch-specific plantoid procedure:
                                                  ; the maximum amount of energy resources characteristic of the patch (max-reservoir),
                                                  ; which corresponds to the plantoid's energy reservoir capacity at that patch,
                                                  ; is set randomly with uniform probability between 1 and a maximum level equal to fountains-capacity (global parameter
                                                  ; defining the maximum plantoids' energy reservoir capacity admissible).

  ; Initially the plantoids are at their maximum resource level:
  set amount-resources max-reservoir ; This is a plantoid procedure.

  ; The patches color is set as a function of the amount of resources of the corresponding plantoid:
  set pcolor scale-color green amount-resources 200 0
end

to setup-plantoids

  ; The plantoids' chromosome chain is set with a length chosen randomly from 1 to max-gen
  ; each letter of the genetic code (defined as a Netlogo list) is taken initially from a random uniform distribution
  ; from a numeric alphabet {0,1,2,..., genetic-diversity}.
  set plantoid-tag n-values (1 + random max-gen) [random (1 + genetic-diversity)]
end

to setup-m-agents
  create-replicators init-num-replicators ; Initial number of replicators
  [
    set size 1 ; Each replicator sets its size as 1

    ;; Set the cognitive profile:

    set cog 0 ; The initial cog value is set to 0 in order to be able to replace it depending upon the a-c slider:

    if a-c = 0 [set cog 0] ; a-c slider = 0, means that all m-agents are set with the cognitive profile cog-0.
    if a-c = 2 [set cog 1] ; a-c slider = 2, means that all m-agents are set with the cognitive profile cog-1.

    ; NOTE: The case of a-c = 1 is set in another procedure below.


    ;: Set the genetic profile (each m-agent is born with a given chromosome chain that specifies two tags: an offense tag and
    ;; a defense tag):

    set offense n-values (1 + random max-gen) [random (1 + genetic-diversity)] ; The offense tag

    set defense n-values (1 + random max-gen) [random (1 + genetic-diversity)] ; The defense tag

    set genetic-code sentence offense defense ; The replicator's genetic code


    ;; Set the energy reservoir capacity:

    ; Each m-agent has an energy reservoir capacity which is set to be equal to the length of its genetic code plus a base
    ; reservoir level called agent-max-reservoir.

    set reservoir-capacity agent-max-reservoir + length genetic-code

    ; Initially all replicators have the reservoir at their maximum capacity
    set agent-reservoir reservoir-capacity


    ; Replication threshold for the m-agent equals the length of the m-agent's genetic code, this is involved in replication
    ; procedures: an m-agent only replicates when its energy exceeds the replication threshold (agent-reservoir > rep-thresh)
    set rep-thresh length genetic-code

    ; If the button labels is chosen the genetic-code of each m-agent is shown
    if labels? [set label genetic-code]

    ; Initial position of the m-agent
    setxy random-float world-width random-float world-height
       ]


; When a-c = 1 half of the m-agents are set to be of the cog-1 variant, this connects with the previous procedure of assignment of
; cognitive profiles.

if a-c = 1 [ ask n-of (count turtles / 2) turtles [set cog 1] ]


; Cog-1s' desire to replicate is set to 0 in the initial configuration.
; None of the emotional response variables are applicable in the case of cog-0 m-agent.

ask replicators [ ifelse cog = 1 [set desire-to-replicate 0] [set desire-to-replicate "not applicable"] ]

ask replicators [ if cog = 0 [ set fear "not applicable" set desire "not applicable" ] ]

ask replicators [ifelse cog = 1 [evaluate-internal-state] [set color green] ]
end

to go
  no-display

  ;; First step is energy resource production by the plantoids

  ask patches [produce-resources]


  ;; Second step is resource collection procedures

  ; While cog-0 collect resources form the patch they are at,
  ; cog-1 evaluate their internal state and their environment
  ; before collecting resources (before feeding):

  ask replicators
  [
    if cog = 1
    [ evaluate-internal-state ; Step 1 of cog-1's deliberation process: the evaluation of their internal state
                              ; this means that the cog-1 becomes aware of its feeding needs.
      evaluate-environment ] ; Step 2 of cog-1's deliberation process: the evaluation of the environment
  ]

   resource-collection ; The resource collection/feeding procedures implemented by the replicators.

   ask replicators
   [
      ; Fighting procedures resulting from insufficient energy, this is a predator mode, where m-agent entities search for other
      ; m-agent entities from which to extract energy in a conflict situation
      if (agent-reservoir < max-reservoir) [ fight ] ; Fighting procedures
      replicate ; Replication procedures.
      ; If after fighting and replicating the m-agent's energy reservoir is depleted, then, that m-agent dies:
      if agent-reservoir <= 0 [die]
    ]

   ask patches [ if any? replicators-here [ release-poison ] ] ; Plantoids poison release procedure.
   ask patches
   [ compete ; Competition procedures (define the plantoids' replication rules).
     set pcolor scale-color green amount-resources 200 0 ] ; Patch color defined in terms of the corresponding plantoids' energy resources
   tick
   if (not any? replicators) [stop]
   do-plots
   display
end

to produce-resources

  ; If the maximum reservoir of a plantoid is not filled...
  ifelse max-reservoir - amount-resources > 0

  ;... the plantoid produces resources by a fixed amount of replenishment rate ("replenishment" slider), otherwise...
  [set amount-resources amount-resources + replenishment ]

  ;... the resource level continues unchanged (resource depletion can only come from consumption by replicators).
  [set amount-resources amount-resources]
end

to evaluate-internal-state
  ; The evaluation of internal state corresponds to the evaluation of the agent's energy level
  ; and internal energy requirements, synthesized in an emotional response of desire to feed,
  ; the desire to feed is be defined as an internal response of the agent to the proportion of the
  ; agent's reservoir that is empty called proportion of energy needs,
  ; In the procedure below the desire to feed is set as equal to the proportion of energy needs:

  set desire 1 - (agent-reservoir / reservoir-capacity)

  ; Change in color corresponds to a physiological change in the cog-1's body, depending upon
  ; the desire to feed, thus, the hungrier a cog-1 is, the paler the color is set, darker colors
  ; correspond to cog-1s that have less desire to feed, this is programmed as physiological changes
  ; in their artificial bodies as a consequence of the level of desire to feed:
  set color scale-color color-desire (desire * scale-color-p) scale-color-min scale-color-max
end

to evaluate-environment
  ; Moving costs one unit of energy, in this case, and if energy reaches zero or below zero
  ; the cog-1 dies. In this case, the cog-1 evaluates how close it is to death, if taking one
  ; step does not lead to energy depletion, then, the cog-1 moves uphil with respect to the
  ; "amount of resources" plantoid variable, that is, it moves to the patch with the highest
  ; amount of energy resources. After this procedure the cog-1 evaluates again its internal state
  ; which triggers a new desire to feed level.

  if (1 - desire) * reservoir-capacity - 1 > 0
  [ uphill amount-resources
   evaluate-internal-state ]
end

to move
  ; This is a universal procedure for both cog-0 and cog-1 agents.
  ; Motion leads to spending resources, so that at each step the agent loses one unit of energy of its reservoir.
  ; Death takes place if the resource is completely depeleted after moving.
  ; If the resource is not depleted a cog-0 replicator moves to a new random location.

  if cog = 0
  [ set agent-reservoir agent-reservoir - 1
    ifelse agent-reservoir <= 0 [die] [rt random-normal 0 20 fd random-float 1] ]

  ; A cog-1 replicator evaluates whether or not it should move
  ; if it's resources are depleted by moving the agent stays put and keeps its energy reservoir
  ; intact, otherwise, the cog-1 moves to the patch with an identified greater amount of resources (moving to greener pastures):

  if cog = 1 [ ifelse agent-reservoir - 1 <= 0 [set agent-reservoir agent-reservoir] [uphill amount-resources] ]
end

to resource-collection
  ; This is a universal procedure for both cog-0 and cog-1 agents.

  ; If the plantoid has energy resources available a chromosome-based scoring for feeding is initiated

  ask replicators [ if amount-resources > 0 [evaluate-scores] ]

  ; If the m-agent needs to feed and the amount of resources in the patch is greater than zero...
  ask replicators [ ifelse (agent-reservoir < reservoir-capacity) and (amount-resources > 0)

        ;...then, the agent's reservoir level is increased by the amount of resources multiplied by the proportion of environmental score of the agent in relation
        ; to the total environmental score of the other m-agent automata at that location
         [ set agent-reservoir agent-reservoir + amount-resources * (environmental-score / (sum [environmental-score] of replicators-here))

           ; Resources are depleted by the agent's consumption
           set amount-resources amount-resources - amount-resources * (environmental-score / (sum [environmental-score] of replicators-here))

           ; An agent only consumes up to its maximum reservoir capacity, any additional level of resources extracted is wasted
           ifelse agent-reservoir > max-reservoir [set agent-reservoir max-reservoir] [set agent-reservoir agent-reservoir] ]

        ; If the m-agent does not need to feed or there are no resources at the agent's location, then, the agent does not feed and keeps its reservoir level
        ; at its current level

         [set agent-reservoir agent-reservoir] ]
end

to evaluate-scores

  ; The scores are set depending upon a matching between the m-agent's interface with the plantoid, this depends upon genetic types:

  ; The comparison is between the plantoid's tag and the m-agent's offense tag which encodes to the m-agent's interface for feeding and for fighting.

  ; A list of matchings is defined so that the distance (measured in absolute value) is calculated between the contents for each offense tag element
  ; and the corresponding tag element of the plantoid-tag, this is the envrionmental-comp procedure (the computation of the matching of the interface between
  ; the m-agent and the plantoid).

  ; The environmental-score is calculated as: extra-environmental * [0.5 * (n+ - n- + k) + 1], with:
  ; 'extra-environmental' = 0.5 if it is the plantoid that has the longest tag (longer chromosome string with respect to the length of the m-agent's offense chromosome string)
  ; 'extra-environmental' = 1 if it is the m-agent that has the longest tag (longer offense chromosome string with respect to the length of the plantoid's chromosome string)
  ; n+: number of matching letters in a letter-by-letter chromosome string comparison (tag comparison procedure)
  ; n-: number of non-matching letters in the string chromosme string comparison (tag comparison procedure)
  ; k: length of the shorter chromosome string (shorter tag).


  ; Tag comparison procedure:

  ifelse (length plantoid-tag > length offense) ; If the plantoid has a longer tag than the m-agent...

  ; ...the match is made between the m-agent's offense tag and the sublist of the plantoid's tag which
  ; matches in size the m-agent's offense tag, the extra score penalty is set to 0.5 for the m-agent
  ; because it has the shorter tag:
  [set environmental-comp (map [abs (?1 - ?2)] offense (sublist plantoid-tag 0 (length offense)))
    set extra-environmental 0.5]

  ;... else: the match is made between the sublist of the m-agent's offense tag which matches in size the plantoid's tag
  ; and the plantoid's tag, the extra score penalty is set to 1 (no penalty incurred) for the m-agent because it does not have the
  ; shorter tag:
   [set environmental-comp (map [abs (?1 - ?2)] (sublist offense 0 (length plantoid-tag)) plantoid-tag)
    set extra-environmental 1]

  ; Scoring scheme:
   set environmental-score extra-environmental * (0.5 * (length filter [? = 0] environmental-comp - length filter [? != 0] environmental-comp + length environmental-comp) + 1)
end

to fight

  ; A m-agent initiates fighting by looking for another m-agent at a place to fight

  if any? other replicators-here
  [ match-off-def self one-of other replicators-here ; "Choose a pair to attack and fight"
     ]
end

to match-off-def [agent1 agent2] ;; agent1 is the attacker agent2 is the defender.

  ; As a result of a fight the transfer of energy can be from the attacker to the defender or vice-versa.

  let transfer12 0 ;; transfer from 1 to 2 (from attacker to defender).

  let transfer21 0 ;; transfer from 2 to 1 (from defender to attacker).

  ;; SCORING PROCEDURE 1: Attack scoring

  ; Matching between tags takes place in a similar manner to the evaluation score for resource extraction from plantoids,
  ; in this case the matching is done between the offense tag and the defense tag.

  ifelse (length [defense] of agent2 > length [offense] of agent1) ; If the defender has a longer defense tag than the attacker's offense tag...


  ; ...the match is made between the attacker's offense tag and the sublist of the defender's defense tag which
  ; matches in size the attacker's offense tag, the extra score penalty is set to 0.5 for the attacker because it has the shorter tag:
  [ set agent-comp1 (map [abs (?1 - ?2)] [offense] of agent1 (sublist [defense] of agent2 0 (length [offense] of agent1)))
    set extra1 0.5 ]

  ; ... else: the match is made between the sublist of the attacker's offense tag, which matches in size the defender's defense tag,
  ; and the defender's defense tag, the extra score penalty is set to 1 (no penalty incurred) for the attacker because it does not have the
  ; shorter tag:
  [ set agent-comp1 (map [abs (?1 - ?2)] (sublist [offense] of agent1 0 (length [defense] of agent2)) [defense] of agent2)
    set extra1 1 ]

  ; Scoring is set as before:
   set agent-score1 extra1 * (0.5 * (length filter [? = 0] agent-comp1 - length filter [? != 0] agent-comp1 + length agent-comp1) + 1)


  ;; SCORING PROCEDURE 2: Defense scoring

  ; In the conflict the agent that defends when attack also strikes in response assuming (so that integrated in defense is a counterstrike
  ; the procedures are similar to the above procedures with some adjustments. Namely, the defender has a disadvantage when the tags match in size
  ; and not only when the defense tag of the attacking agent is longer than the defender's offense tag.
  ifelse (length [defense] of agent1 >= length [offense] of agent2) ; If the attacker has defense tag at least as long as the defender's offense tag...


   ; ...the match is made between the defender's offense tag and the sublist of the attacker's defense tag which
   ; matches in size the defender's offense tag, the extra score penalty is set to 0.5 for the defender because
   ; it has the shorter tag or at least of equal size:
   [ set agent-comp2 (map [abs (?1 - ?2)] [offense] of agent2 (sublist [defense] of agent1 0 (length [offense] of agent2)))
     set extra2 0.5 ]

   ; ...else: the match is made between the sublist of the defender's offense tag, which matches in size the attackers's defense tag,
   ; and the attacker's defense tag, the extra score penalty is set to 1 (no penalty incurred) for the defender because it has the
   ; longer tag:
   [ set agent-comp2 (map [abs (?1 - ?2)] (sublist [offense] of agent2 0 (length [defense] of agent1)) [defense] of agent1)
       set extra2 1 ]

   ; Scoring is set as before:
   set agent-score2 extra2 * (0.5 * (length filter [? = 0] agent-comp2 - length filter [? != 0] agent-comp2 + length agent-comp2) + 1)



   ;; RESOURCE TRANSFERENCE EVALUATION PROCEDURE:

   ; The transfer of resources depends on the scores obtained by each agent relative to the total score.

   set proportion1 agent-score1 / (agent-score1 + agent-score2) ; Proportion of resources gained by attacker.
   set proportion2 agent-score2 / (agent-score1 + agent-score2) ; Proportion of resources gained by defender.

   ; Agent 1 (the attacker) transfers to agent 2 (the defender) an amount equal to proportion2 of its reservoir:
   set transfer12 ([agent-reservoir] of agent1) * proportion2

   ; Agent 2 (the defender) transfers to agent 1 (the attacker) an amount equal to proportion1 of its reservoir.
   set transfer21 ([agent-reservoir] of agent2) * proportion1

   ; For cog-0 agents the result of conflict is the above, for cog-1 agents they anticipate the result of a conflict,
   ; in this sense if the agents are cog-1, they may not engage in conflict. This dynamics depends upon the attacker agent1.
   ; Cog-0 attackers do not have the antecipatory response given by the emotional trigger of fear versus desire that is introduced for Cog-1 replicators, so that
   ; they just engage in conflict without deliberation.


   ask agent1 ; Attacker procedures
   [
     ifelse cog = 1 ; If the m-agent is a cog-1, the agent anticipates the result of the resource transfer, the agent's actions will be dependent upon this evaluation

     [
       ; Emotional responses:

       ; Fear: the fear of confrontation is triggered by the antecipatory perception of the outcome of the confrontation, namely,
       ; the cog-1 predator (the attacker) fears the confrontation by a level equal to the relative proportion of resources transferred to
       ; the prey (the defender) over the total amount of energy resources transferred in the conflict:

       set fear transfer12 / (transfer21 + transfer12)

       ; Desire: the desire of confrontation is also triggered by the antecipatory perception of the outcome of the confrontation, namely,
       ; the cog-1 predator (the attacker) desires the transference of resources from the prey (the defender), so that the desire level is
       ; set equal to the proportion of energy resources received from the prey:

       set desire (1 - fear)

       ; If the fear surpasses the desire for resources (resource transfer to the defender is less than half the transfer from the defender)...
       ifelse fear > desire
       ;... color is set to yellow (the agent is afraid to engage in conflict) (NOTE: the color change reflects a physiological response), but
       ; nothing else happens, since the attacker does not engage the potencial prey...
       [ set color yellow ]
       ;...else: the cog-1's color changes to red (physiological response) and the cog-1 attacks so that resource transference takes place.
       [ set color red ; Color is set to red if the desire for resources surpasses the fear of conflict (in this case, the attacker identifies an advantage)
         set agent-reservoir agent-reservoir + transfer21 - transfer12 ; The agent's reservoir changes by the amount of resources received from the defender
                                                                       ; minus the amount of resources lost in the conflict.
         ifelse agent-reservoir > max-reservoir [set agent-reservoir max-reservoir] [set agent-reservoir agent-reservoir] ; The agent's reservoir cannot exceed the maximum capacity.
         if agent-reservoir <= 0 [die] ] ; If the energy reservoir is depleted, the m-agent dies.
       ]

      ; For the cog-0, the resource transfer takes place independently of the advantage of each part.

      [ set agent-reservoir agent-reservoir + transfer21 - transfer12
       ifelse agent-reservoir > max-reservoir [set agent-reservoir max-reservoir] [set agent-reservoir agent-reservoir]
       if agent-reservoir <= 0 [die] ]
    ]

   ask agent2
   [
     ; Fear and desire are triggered in the same way for the cog-1 defender
     if cog = 1 [ set fear transfer21 / (transfer21 + transfer12) ; Cog-1 preys fear the loss of resources to the predator.
                  set desire (1 - fear) ; Cog-1 preys desire the resources from the predator.
                  ifelse fear > desire [set color yellow] [set color red] ] ; Physiological responses triggered by fear versus desire

     ; If the predator is a cog-1 that has decided to attack (identified by red color) or a cog-0, which attacks no matter what...
     if ([cog] of agent1 = 1 and [color] of agent1 = red) or ([cog] of agent1 = 0)

     ; ... conflict takes place, the resource transference procedures are analogous:
     [ set agent-reservoir agent-reservoir + transfer12 - transfer21
       ifelse agent-reservoir > max-reservoir [set agent-reservoir max-reservoir] [set agent-reservoir agent-reservoir]
       if agent-reservoir <= 0 [die] ]
   ]

   ; Cog-1 reevaluate their internal state after conflict:
   ask agent1 [ if cog = 1 [ evaluate-internal-state ] ]
   ask agent2 [ if cog = 1 [ evaluate-internal-state ] ]
end

to replicate
  if (agent-reservoir > rep-thresh) ; If a m-agent's reservoir exceeds the replication threshold then...
   [ if (random-float 1.0000 <= rep-chance) ; ... replication takes place with probability equal to rep-chance
     [ if cog = 1 [ set desire-to-replicate 1 ; Cog-1 agents set their desire to replicate equal to 1
                    set color pink ]            ; and their color changes to pink, this is a physiological change in the agent's body

       hatch 1 ; A new m-agent is born

        [ ; The new m-agent gets the same traits as the parent:
          set offense [offense] of myself
          set defense [defense] of myself
          set cog [cog] of myself
          ifelse cog = 1 [set desire-to-replicate 0] [set desire-to-replicate "not applicable"]

          ; Mutation can take place with probability mutation-p
          if random-float 1.000 <= mutation-p
          [ ifelse random-float 1.000 <= length offense / (length offense + length defense)
            [ set offense replace-item (random-float length offense) offense (random (1 + genetic-diversity)) ] ; Mutation can take place either in the offense tag...
            [ set defense replace-item (random-float length defense) defense (random (1 + genetic-diversity)) ] ; ... or in the defense tag
                                           ]
         set genetic-code sentence offense defense ; The genetic code of the new organism

         ; Reservoir capacity is the same as that of the parent, the new m-agent is, however, born with half the reservoir of the parent
         set reservoir-capacity [reservoir-capacity] of myself
         set agent-reservoir (0.5 * [agent-reservoir] of myself)

         ; The offspring gets the same replication threshold
         set rep-thresh [rep-thresh] of myself

         ; Cog-1 evaluates its internal state
         ifelse cog = 1 [evaluate-internal-state] [set color green]
         if labels? [set label genetic-code]
         ]

      set agent-reservoir agent-reservoir / 2 ; The agent loses half its reservoir to the new offspring.
      ifelse cog = 1 [evaluate-internal-state] [set color green] ; Cog-1 agents reevaluate their internal state.
      if cog = 1 [set desire-to-replicate 0] ] ; Cog-1 agents that have replicated no longer have desire to replicate for the round.
      ]
end

to release-poison
  ; The plantoids react to the m-agents releasing poison that depletes the energy of the m-agents by one unit:
  ask replicators-here
  [ set agent-reservoir agent-reservoir - 1
    ifelse agent-reservoir <= 0 [die] [move] ] ; Agents that have their energy reservoir depleted die, otherwise moving procedures are implemented.
end

to compete
  ; Competition is a procedure for plantoids.

  ; If a plantoid finds a neighbor with less than half its resources, then, it replicates, with the offspring occupying now the neighboring patch.

  if any? neighbors with [amount-resources < 0.5 * [amount-resources] of myself]
  [ ask one-of neighbors with [amount-resources < 0.5 * [amount-resources] of myself] ; Replication takes place with a mutation probability
    [
      set plantoid-tag [plantoid-tag] of myself
      if random-float 1.000 < mutation-p
      [ set plantoid-tag replace-item (random-float length plantoid-tag) plantoid-tag (random (1 + genetic-diversity))
        set amount-resources max-reservoir ] ; The new replicator increases the site's amount of resources to its maximum level.
      ]
    ]
end

to do-plots
plot-species

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; Increase and decrease in numbers ;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

set number-of-replicators_1 count replicators
if (number-of-replicators_1 - number-of-replicators_0 < 0) [set decrease-in-population number-of-replicators_0 - number-of-replicators_1]

set-current-plot "Replicator Deaths"
plot decrease-in-population
set number-of-replicators_0 number-of-replicators_1
end

to plot-species

count-genetic-variants ; A procedure to count the number of genetic variants in the population

set-current-plot "Number of Different Variants"
plot num-variants

set-current-plot "Number of replicators"
plot count replicators

set-current-plot "Extinctions"
plot extinctions ; extinctions of genetic variants

set-current-plot "Genetic Complexity"
set-current-plot-pen "Average Complexity"
plot mean [length genetic-code] of replicators
set-current-plot-pen "Maximum Complexity"
plot max [length genetic-code] of replicators

set-current-plot "Plant Genetic Complexity"
set-current-plot-pen "Average Complexity"
plot mean [length plantoid-tag] of patches
set-current-plot-pen "Maximum Complexity"
plot max [length plantoid-tag] of patches
end

to count-genetic-variants
set variants remove-duplicates [genetic-code] of replicators
set num-variants length variants
ifelse empty? variants_0 [set extinctions 0]
                        [pair-up-gene-pool]
set variants_0 variants
end

to pair-up-gene-pool
let count-s 0
foreach variants_0 [if member? ? variants [set count-s count-s + 1]]
ifelse count-s < length variants_0 [set extinctions length variants_0 - count-s] [set extinctions 0]
end
