Game Theory v1

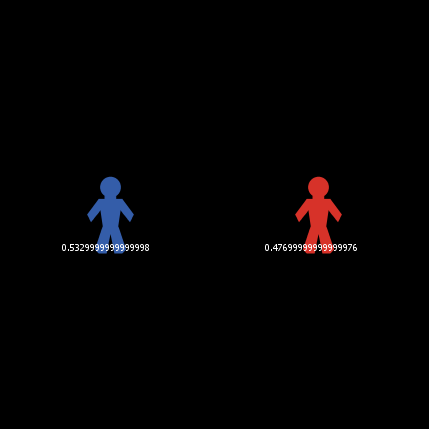

Game Theory v1 preview image

1 collaborator

Default-person Peter Jourgensen (Author)

Tags

game theory

Tagged by Qian li almost 11 years ago

Model group MAM-2013 | Visible to everyone | Changeable by everyone
Model was written in NetLogo 5.0.4 • Viewed 1163 times • Downloaded 134 times • Run 0 times
Download the 'Game Theory v1' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


WHAT IS IT?

This model is an N-person customizable Game Theory model, built to demonstrate the power and effects of various decision making strategies. This model looks at three distinct strategies:The first is called "Utility-maximization" and is representative of experiential learning.The next is called "Fair-seeking" and is representative of emotional learning, based on a purely competitive drive. Finally, the last is a predictive strategy that employs both observational and experiential learning. A combination of these groups then iteratively play a pre-set "game" and monitor their expected utilities over time. Whichever group ends up with the highest expected utility has the best decision making strategy for that game.

HOW IT WORKS

The only important rules to consider are those of the learning processes.

For a Utility-maximizer: When they enter a game and make a decision, they look at the payoff they received and the payoff they could have received had they made the other decision. If they received a larger payoff than their potential, then they become more likely to make the same decision again. However, if they could have done better by making the other choice, then they become more likely to make that other decision.

For a Fair-seeker: When they enter a game and make a decision, they look at the payoff they received and the payoff their partner received. If they did as good as or better than their partner, then they become more likely to make the same decision again. If, however, they lost to their partner, then they become more likely to choose their other strategy the next time around.

For a Predictor: They look at the payoff that their partner received and the payoff their partner could have received from choosing the other strategy. The player assumes that his partner will tend to make the better decision, and then assesses what’s best for himself given such a situation. At this point, the player becomes more likely to make his best decision in response to the decision prediction for his partner.

HOW TO USE IT

First, set up the actual "game":

P1S1-utility: Utility player 1 receives from strategy profile (1,1) P2S1-utility: Utility player 2 receives from strategy profile (1,1) P1S1-utility2: Utility player 1 receives from strategy profile (1,2) P2S2-utility: Utility player 2 receives from strategy profile (1,2) P1S2-utility: Utility player 1 receives from strategy profile (2,1) P2S1-utility2: Utility player 2 receives from strategy profile (2,1) P1S2-utility2: Utility player 1 receives from strategy profile (2,2) P2S2-utility2: Utility player 2 receives from strategy profile (2,2)

number-utility-max: number of total players using the utility-maximzation strategy number-seek-fair: number of total players using the fair-seeking strategy number-predictors: number of total players using the predictive strategy

THINGS TO NOTICE

The two monitors display important results for the outcomes of player 1:

The first illustrates how likely a member of a group is to choose strategy 1 over time. This shows which strategy the average member tends towards and how quickyl they tend towards that strategy.

The second illustrates the expected utilities of the average member of a group. When this reaches equilibrium, it is highlighting what the best decision making strategy is for the pre-set game.

THINGS TO TRY

Observe the differences in outcomes of both a cooperation game and a competition game. the setups are as follows:

For a cooperation game: -If both players choose strategy 1, they each receive a payoff of 5 -If both players choose strategy 2, they each receive a payoff of 2 -If the players choose different strategies, they each receive a payoff of 0

For a competition game: -If both players choose strategy 1 (aggressive), they receive a payoff of (R-C)/2 -If one player is aggressive and the other passive, the aggressor receives a payoff of R, while the passive player receives a payoff of 0 -If both players choose to be passive, then they each receive a payoff of R/2 -Be sure to let C > R

EXTENDING THE MODEL

The best extension would be to increase the number of learning procedures and also give more depth to the current ones. Learning is a complex and diverse process and should be modeled accordingly.

NETLOGO FEATURES

Setting utilities is the only case a workaround was required. Given the specificity of assigning payoffs, the coding required that one of the partners take charge in setting all of the utilities. If both partners were allowed to set the utilities, then it is possible that player 1 would receive player 2's payoff and vice versa. To get around this, only player 1 analyzes the current strategy profile. He then assigns his own utilities and potential utilities to himself, and afterwards, assigns those of his partner to his partner. Despite requiring a brute force approach to coding this section, it is effective.

RELATED MODELS

Check out all of the Prisoner's Dilemma models! -> Social Science -> Unverified Models -> Prisoner's Dilemma

CREDITS AND REFERENCES

-N-person iterated prisoner's dilemma model

-Besanko, David, and Ronald Braeutigam. 4th ed. N.p.: Wiley and Sons, 2011. Print.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

turtles-own [
  prob-s1                ;probability of choosing strategy 1
  prob-s2                ;probability of choosing strategy 2
  strategy1?             ;boolean, "true" if strategy 1 is chosen
  utility                ;payoff received at that round
  potential-utility      ;payoff of choosing other strategy in the same round
  partnered?             ;boolean, "true" if turtle is partnered with another turtle
  partner                ;the opposing turtle in a game
  partner-strategy1?     ;boolean, "true" if partner chose strategy 1
  strategy               ;the learning strategy used by each turtle
]

to setup
  clear-all
  crt number-utility-max [
    set strategy "utility-max"
    set label 1                      ;labels used to identify what strategy a turtle is using
  ]
  crt number-seek-fair [
    set strategy "seek-fair"
    set label 2
  ]
  crt number-predictors [
    set strategy "predict"
    set label 3
  ]
  ask turtles [
    set shape "person"
    set size 2                       ;size used to make turtles easier to see
    set color one-of [red blue]      ;determines if turtles are player 1s (blue) or player 2s (red)
    set partnered? false             ;turtles are initially unpaired
    set partner nobody
    prob-initial                     ;sets turtles indifferent to their strategies
    setxy random-xcor random-ycor
  ]
  reset-ticks
end

;turtle procedure
;sets initial probabilities

to prob-initial
  set prob-s1 0.5
  set prob-s2 0.5
end

to go
end -round                          ;releases partners to allow them to look for new ones
  ask turtles [
    partner-up                       ;turtles partner-up if they are next to an opposing player
  ]
  let partnered-turtles turtles with [partnered? = true]
  ask partnered-turtles [play-a-round]
  ask turtles [
    if prob-s1 > 1 [                 ;probabilites can't exceed 1 or go below 0
      set prob-s1 1
      set prob-s2 0
    ]
    if prob-s1 < 0 [
      set prob-s1 0
      set prob-s2 1
    ]
  ]
  tick
end

;releases partners

to end-round
  let partnered-turtles turtles with [ partnered? = true]
  ask partnered-turtles [
    release-partner
    ]
end

;partnered-turtle procedure

to release-partner
  set partnered? false
  set partner nobody
  rt 180
end

;turtle procedure
;opposing turtles pair up if they're spatially located right next to each other

to partner-up
  if (not partnered?) [
    rt (random-float 90 - random-float 90) fd 1
    set partner one-of (turtles-at -1 0) with [ (not partnered?) and (color != [color] of myself) ]
    if partner != nobody [
      set partnered? true
      set heading 270
      ask partner [
        set partnered? true
        set partner myself
        set heading 90
      ]
    ]
  ]
end

;partnered-turtle procedure

to play-a-round
  let partnered-turtles turtles with [partnered? = true]
  pick-a-strategy                                           ;turtles probabilistically make a decision
  set partner-strategy1? [strategy1?] of partner
  ask partnered-turtles with [color = blue] [
    set-utilities
  ]
  ask partnered-turtles with [strategy = "utility-max"] [
    utility-max
  ]
  ask partnered-turtles with [strategy = "seek-fair"] [
    seek-fair
  ]
  ask partnered-turtles with [(color = blue) and (strategy = "predict")] [
    predict-blue
  ]
  ask partnered-turtles with [(color = red) and (strategy = "predict")] [
    predict-red
  ]
end

;partnered-turtle procedure
;turtles probabilistically select a strategy

to pick-a-strategy
  ifelse random-float 1 < prob-s1 [
    set strategy1? true
  ][
  set strategy1? false
  ]
end

;player1 partnered-turtle procedure
;looks at the strategy choices and assigns the appropriate utility values

to set-utilities
  ifelse strategy1? = true [
    ifelse partner-strategy1? = true [
      set utility p1s1-utility
      set potential-utility p1s2-utility
      ask partner [
        set utility p2s1-utility
        set potential-utility p2s2-utility
      ]
    ][
    set utility p1s1-utility2
    set potential-utility p1s2-utility2
    ask partner [
      set utility p2s2-utility
      set potential-utility p2s1-utility
    ]
    ]
  ][
  ifelse partner-strategy1? = true [
    set utility p1s2-utility
    set potential-utility p1s1-utility
    ask partner [
      set utility p2s1-utility2
      set potential-utility p2s2-utility2
    ]
  ][
  set utility p1s2-utility2
  set potential-utility p1s1-utility2
  ask partner [
    set utility p2s2-utility2
    set potential-utility p2s1-utility2
  ]
  ]
  ]
end

;partnered-turtle utility maximizer learning procedure
;if a turtle could've done better by choosing the other strategy, given their partner stays the same,
;then they become more likely to choose the other strategy.  If they're happy with their decision,
;they become more likely to make the same decision

to utility-max
  ifelse strategy1? = true [
    if utility < potential-utility [
      set prob-s1 prob-s1 - (.001 * (potential-utility - utility))
      set prob-s2 prob-s2 + (.001 * (potential-utility - utility))
    ]
  ][
  if utility < potential-utility [
    set prob-s1 prob-s1 + (.001 * (potential-utility - utility))
    set prob-s2 prob-s2 - (.001 * (potential-utility - utility))
  ]
  ]
end

;partnered-turtle competitive learning procedure
;If a turtle loses to their opponent, then they become less likely to make the same decision.  They're
;indifferent to ties though

to seek-fair
  ifelse strategy1? = true [
    if utility < [utility] of partner [
      set prob-s1 prob-s1 - (.001 * (([utility] of partner) - utility))
      set prob-s2 prob-s2 + (.001 * (([utility] of partner) - utility))
    ]
  ][
  if utility < [utility] of partner [
    set prob-s1 prob-s1 + (.001 * (([utility] of partner) - utility))
    set prob-s2 prob-s2 - (.001 * (([utility] of partner) - utility))
  ]
  ]
end

;player1 partnered-turtle predictor learning procedure
;They look at whether or not their partner made their best decision.  The turtles assume that their partner will tend
;towards making the best decision.  They then respond with their best decision.

to predict-blue
  ifelse partner-strategy1? = true [
    ifelse [potential-utility] of partner > [utility] of partner [
      ifelse p1s1-utility2 > p1s2-utility2 [
        set prob-s1 prob-s1 + .001 * ([potential-utility] of partner - [utility] of partner)
        set prob-s2 prob-s2 - .001 * ([potential-utility] of partner - [utility] of partner)
      ][
      set prob-s1 prob-s1 - .001 * ([potential-utility] of partner - [utility] of partner)
      set prob-s2 prob-s2 + .001 * ([potential-utility] of partner - [utility] of partner)
      ]
    ][
    ifelse p1s1-utility > p1s2-utility [
      set prob-s1 prob-s1 + .001 * ([utility] of partner - [potential-utility] of partner)
      set prob-s2 prob-s2 - .001 * ([utility] of partner - [potential-utility] of partner)
    ][
    set prob-s1 prob-s1 - .001 * ([utility] of partner - [potential-utility] of partner)
    set prob-s2 prob-s2 + .001 * ([utility] of partner - [potential-utility] of partner)
    ]
    ]
  ][
  ifelse [potential-utility] of partner > [utility] of partner [
    ifelse p1s1-utility > p1s2-utility [
      set prob-s1 prob-s1 + .001 * ([potential-utility] of partner - [utility] of partner)
      set prob-s2 prob-s2 - .001 * ([potential-utility] of partner - [utility] of partner)
    ][
    set prob-s1 prob-s1 - .001 * ([potential-utility] of partner - [utility] of partner)
    set prob-s2 prob-s2 + .001 * ([potential-utility] of partner - [utility] of partner)
    ]
  ][
  ifelse p1s1-utility2 > p1s2-utility2 [
    set prob-s1 prob-s1 + .001 * ([utility] of partner - [potential-utility] of partner)
    set prob-s2 prob-s2 - .001 * ([utility] of partner - [potential-utility] of partner)
  ][
  set prob-s1 prob-s1 - .001 * ([utility] of partner - [potential-utility] of partner)
  set prob-s2 prob-s2 + .001 * ([utility] of partner - [potential-utility] of partner)
  ]
  ]
  ]
end

;player2 partnered-turtle predictor learning procedure

to predict-red
  ifelse partner-strategy1? = true [
    ifelse [potential-utility] of partner > [utility] of partner [
      ifelse p2s1-utility2 > p2s2-utility2 [
          set prob-s1 prob-s1 + .001 * ([potential-utility] of partner - [utility] of partner)
          set prob-s2 prob-s2 - .001 * ([potential-utility] of partner - [utility] of partner)
      ][
        set prob-s1 prob-s1 - .001 * ([potential-utility] of partner - [utility] of partner)
        set prob-s2 prob-s2 + .001 * ([potential-utility] of partner - [utility] of partner)
      ]
    ][
    ifelse p2s1-utility > p2s2-utility [
        set prob-s1 prob-s1 + .001 * ([utility] of partner - [potential-utility] of partner)
        set prob-s2 prob-s2 - .001 * ([utility] of partner - [potential-utility] of partner)
    ][
      set prob-s1 prob-s1 - .001 * ([utility] of partner - [potential-utility] of partner)
      set prob-s2 prob-s2 + .001 * ([utility] of partner - [potential-utility] of partner)
    ]
    ]
  ][
  ifelse [potential-utility] of partner > [utility] of partner [
    ifelse p2s1-utility > p2s2-utility [
        set prob-s1 prob-s1 + .001 * ([potential-utility] of partner - [utility] of partner)
        set prob-s2 prob-s2 - .001 * ([potential-utility] of partner - [utility] of partner)
    ][
      set prob-s1 prob-s1 - .001 * ([potential-utility] of partner - [utility] of partner)
      set prob-s2 prob-s2 + .001 * ([potential-utility] of partner - [utility] of partner)
    ]
  ][
  ifelse p2s1-utility2 > p2s2-utility2 [
      set prob-s1 prob-s1 + .001 * ([utility] of partner - [potential-utility] of partner)
      set prob-s2 prob-s2 - .001 * ([utility] of partner - [potential-utility] of partner)
  ][
    set prob-s1 prob-s1 - .001 * ([utility] of partner - [potential-utility] of partner)
    set prob-s2 prob-s2 + .001 * ([utility] of partner - [potential-utility] of partner)
  ]
  ]
  ]
end
