Client Overrides Example

breed [students student]

students-own [ user-id ]

patches-own [ true-color ]

to startup
  hubnet-reset
end

to setup
  clear-patches
  clear-drawing
  clear-output
  ask patches
  [

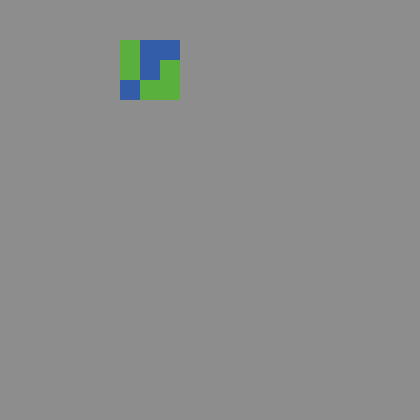

    ;; the gray covers the "true color" of the patch, which can only
    ;; be seen on the clients if they click on a nearby patch
    set pcolor gray
    set true-color one-of [blue green]
  ]
  reset-ticks
end

to go
  listen-clients
  every 0.1
  [
    tick
  ]
end

;;
;; Here's where the action is
;;

to execute-command [command]
  if command = "View"
  [
    ;; extract the coordinates from the message
    let p patch (item 0 hubnet-message) (item 1 hubnet-message)
    ;; get the patch clicked on and the surrounding patches in a single patch set
    let my-patch-set (patch-set p [neighbors] of p)

    ;; clear any existing overrides on the client including any patches
    ;; revealed by the last click
    hubnet-clear-overrides hubnet-message-source
    ;; send an override to the client each patch in MY-PATCH-SET will evaluate
    ;; the reporter in the block [TRUE-COLOR].  So the color of the patch on the client
    ;; will appear as TRUE-COLOR rather than the color on the server.
    hubnet-send-override hubnet-message-source my-patch-set "pcolor" [true-color]
  ]
end

;;
;; Standard HubNet Procedures
;;

to listen-clients
  while [hubnet-message-waiting?]
  [
    hubnet-fetch-message
    ifelse hubnet-enter-message? ;; when clients enter we get a special message
    [ create-new-student ]
    [
      ifelse hubnet-exit-message? ;; when clients exit we get a special message
      [ remove-student ]
      [ ask students with [user-id = hubnet-message-source]
        [ execute-command hubnet-message-tag ]
      ]
    ]
  ]
end

to create-new-student
  create-students 1
  [
    set user-id hubnet-message-source
    hide-turtle
  ]
end

to remove-student
  ask students with [user-id = hubnet-message-source]
  [ die ]
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
