Walking

;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; Variable declarations ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;

globals
[
  ;;clock             ;; keeps track of the number of times modulus total-intervals through the go procedure
  num-intervals     ;; the number of time intervals a walker can move

  ;; variables for leaving a trail
  up-trail-color    ;; color of the trail left behind by an walker as it moves upwards
  down-trail-color  ;; color of the trail left behind by an walker as it moves downwards

  ;; plotting variables
  walker-to-plot         ;; the walker to plot if plot-all-walkers? is false
]

breed [ footprints footprint ]
breed [ walkers walker ]

walkers-own
[
  user-id           ;; the name of the client corresponding to this turtle
  my-xcor           ;; the unwrapped horizontal position of a turtle
  xcor-initial      ;; the initial horizontal position of a turtle
  interval          ;; the current interval a turtle is moving through
  velocity          ;; current velocity of an walker
  velocities        ;; list of velocities one for each interval
  base-shape        ;; either person-forward- or person-backward- so when we are animating
                    ;; we just tack on the frame number to form the name of the appropriate shape
  shape-counter     ;; keep track of where in the animation we are so it looks smooth
]

footprints-own
[
  base-color  ;; keep track of the color so we know when it has faded enough to entirely disappear
]

patches-own
[
  base-pcolor       ;; the original color of the patch before any trail was drawn on it
]

;;;;;;;;;;;;;;;;;;;;;;
;; Setup Procedures ;;
;;;;;;;;;;;;;;;;;;;;;;

to startup
  hubnet-reset
  setup-vars
  setup-patches
  set-default-shape walkers "person-forward-1"
  set-default-shape footprints "footprint"
  setup
end

to setup
  reset-ticks
  cd
  setup-patches
  ask walkers
  [
    pu
    set-position xcor-initial
  ]
  ask footprints [ die ]
  my-setup-plots
end

to reset-clock
  reset-ticks
  cd
  setup-patches
  ask walkers
  [ set-position xcor
    pu ]
  ask footprints [ die ]
  my-setup-plots
end

to set-random-positions
  reset-ticks
  setup-patches
  ask walkers [ set-position random-pxcor ]
  ask footprints [ die ]
  my-setup-plots
end

to set-uniform-positions
  reset-ticks
  setup-patches
  ask walkers [ set-position walker-position ]
  ask footprints [ die ]
  my-setup-plots
end

to set-position [x]
  set heading 90
  set xcor x
  set interval 0
  set my-xcor xcor
  st
  show-or-hide-id-labels
end

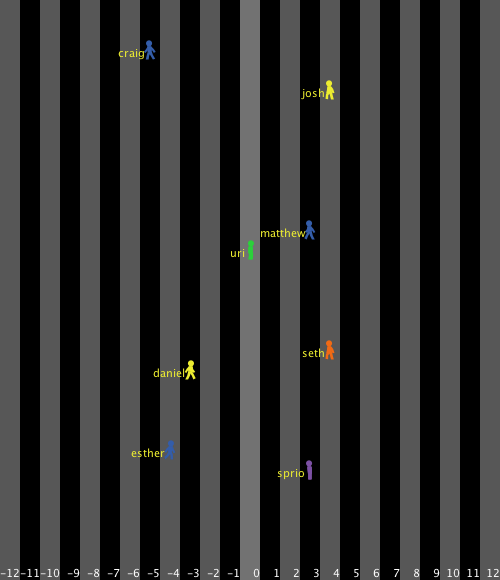

;; set up the patches to have the floor numbers down the left side of the
;; view and color all even floor a gray color

to setup-patches
  clear-output
  cp
  ;; give the floors some color to be able to distinguish one floor from another
  ask patches with [ pxcor mod 2 = 0 ]
  [ set pcolor gray - 2 ]
  ask patches with [ pxcor = 0 ]
  [ set pcolor gray - 1 ]
  ;; label each row of pycors with a floor number
  ask patches with [ pycor = min-pycor ]
  [ set plabel pxcor ]
  ask patches
  [ set base-pcolor pcolor ]
end

;; set variables to initial values

to setup-vars
  reset-ticks
  set num-intervals 9
  set up-trail-color green
  set down-trail-color red

  ;; by default have the walker to plot be nobody
  set walker-to-plot "everybody"
end

;;;;;;;;;;;;;;;;;;;;;;;;
;; Runtime Procedures ;;
;;;;;;;;;;;;;;;;;;;;;;;;

;; move the walkers one interval

to go
  if ticks >= num-intervals
  [ stop ]
  ;; see if there are any messages waiting before
  ;; we start moving
  listen-clients
  ;; we want to move to a new interval after delay seconds
  ;; where delay is a function of simulation speed
  every delay
  [
    if ticks < num-intervals
    [
        ask walkers
        [
          show-or-hide-id-labels  ;; keep labels in sync with the switches
          assign-values           ;; set the walkers' velocity to the appropriate value
          move-walkers            ;; move the walkers by their velocity for this interval
        ]
        do-plotting
        ;; depending on the visualizations used
        ;; we may have to do some fading at the end of each move.
        if trails?
        [
          ask patches with [ pcolor != base-pcolor ]
            [ fade-trail ]
        ]
        if footprints?
        [
          ask footprints
          [
            set color color - 0.4
            if color < base-color - 5
            [ die ]
          ]
        ]
      tick
    ]
  ]
end

;; calculate the delay in seconds based on the simulation speed

to-report delay
  ifelse simulation-speed <= 0
  [ report ln (10 / 0.001) ]
  [ report ln (10 / simulation-speed) ]
end

to show-or-hide-id-labels  ;; turtle procedure
  ifelse show-user-id?
  [ set label word user-id "     " ]
  [ set label "" ]
end

;; set the student selected walker velocity for the current interval

to assign-values  ;; turtle procedure
  ifelse interval >= length velocities
  [ set velocity 0 ]
  [ set velocity item interval velocities ]
end

to move-walkers  ;; turtle procedure
  let delta-pos 0
  let speed abs velocity

  if velocity != 0
  [ set delta-pos (velocity / speed ) ]
  ;; each step is divided into smaller steps
  ;; so we get the appearance of motion, and differing
  ;; velocities
  let inner-tick 0

  ;; depending on whether the person is moving
  ;; forward or back change the shape to reflect the movement
  ifelse velocity >= 0
  [ set base-shape "person-forward-"]
  [ set base-shape "person-backward-" ]

  if not animation?
  [ set shape word base-shape "1" ]

  ;; reduce the "frames" per step so we get smoother movement
  ;; the distance and relative speed they move is the
  ;; same only there are more intermediate positions
  ;; and shapes displayed.
  set delta-pos delta-pos / 4
  set speed speed * 4

  while [ inner-tick < speed ]
  [
    ;; divide the amount of time till the next interval into equal amounts
    ;; so as to be able to make the motion of an walker smooth
    every ( delay / speed )
    [
      if trails?
      [
        ;; change the patch color as we move
        ifelse velocity > 0
        [ set pcolor up-trail-color ]
        [ set pcolor down-trail-color ]
      ]
      ;; set the true x-coord to the new position, even if it goes outside the world
      set my-xcor (my-xcor + delta-pos)
      ;; if the new position is outside the world
      ;; hide the turtle, it's out of the view
      ;; otherwise show the turtle and move there.
      ifelse patch-at (my-xcor - xcor) 0 != nobody
      [ st
        set xcor my-xcor ]
      [ ht ]
      set inner-tick inner-tick + 1
      if animation?
      [
        ;; increment the shape to the next shape in the
        ;; series to create the illusion of motion.
        set shape (word base-shape shape-counter)
        set shape-counter ((shape-counter + 1) mod 9) + 1
      ]
      display
    ]
  ]

  if footprints?
  [
    ;; make a shape where we landed.
    ;; we can't use stamp shape because we want them to fade.
    hatch-footprints 1
    [
      set base-color color
      set label ""
      set color color - 0.4
      ;; make sure the footprint faces in the
      ;; direction the walker is headed
      ifelse [velocity] of myself >= 0
      [ set heading 90 ]
      [ set heading 270 ]
     ]
   ]

  set interval interval + 1
end

;; have any trails fade back to the base color of the patch

to fade-trail  ;; patch procedure
  set pcolor pcolor - 0.4
  if (pcolor mod 10 = 0)
  [ set pcolor base-pcolor ]
end

;;;;;;;;;;;;;;;;;;;;;;;
;; HubNet Procedures ;;
;;;;;;;;;;;;;;;;;;;;;;;

to listen-clients
  while [ hubnet-message-waiting? ]
  [
    hubnet-fetch-message
    ifelse hubnet-enter-message?
    [ setup-walker display ]
    [
      ifelse hubnet-exit-message?
      [ remove-walker display ]
      [ ask walkers with [ user-id = hubnet-message-source ]
        [ execute-cmd hubnet-message-tag ] ]
    ]
  ]
end

to execute-cmd [ cmd ]
  ifelse cmd = "interval-1"
  [ set-velocity 0 ][
  ifelse cmd = "interval-2"
  [ set-velocity 1 ][
  ifelse cmd = "interval-3"
  [ set-velocity 2 ][
  ifelse cmd = "interval-4"
  [ set-velocity 3 ][
  ifelse cmd = "interval-5"
  [ set-velocity 4 ][
  ifelse cmd = "interval-6"
  [ set-velocity 5 ][
  ifelse cmd = "interval-7"
  [ set-velocity 6 ][
  ifelse cmd = "interval-8"
  [ set-velocity 7 ]
  [ if cmd = "interval-9" [ set-velocity 8 ] ]
  ] ] ] ] ] ] ]
end

to set-velocity [index]
  set velocities replace-item index velocities hubnet-message
end

to setup-walker
  let p one-of patches with [ pxcor = 0 and pycor > (min-pycor + 1) and not any? walkers-on patches with [ pycor = [pycor] of myself ] ]
  ifelse p = nobody
  [
    user-message "A user tried to join but there is no more space for another user."
  ]
  [
    create-walkers 1
    [
      set user-id hubnet-message-source
      set velocities [0 0 0 0 0 0 0 0 0]
      set heading 0
      set interval 0
      set color 5 + 10 * random 14
      set xcor-initial random-pxcor
      setxy xcor-initial [pycor] of p
      set my-xcor xcor
      set label-color yellow
      show-or-hide-id-labels
      set shape-counter 1
      set base-shape "person-forward-"
    ]
    my-setup-plots
  ]
end

to remove-walker
  ask walkers with [ user-id = hubnet-message-source ] [ die ]
  my-setup-plots
end

;;;;;;;;;;;;;;;;;;;;;;;;;
;; Plotting Procedures ;;
;;;;;;;;;;;;;;;;;;;;;;;;;

;; plot the positions and velocities for the walkers in the appropriate plot

to do-plotting
  ;; walker-to-plot is a string
  ;; assume we are plotting everyone
  let guys-to-plot walkers

  ;; if we're not get the agentset that includes the agents
  ;; we're plotting, right now it can only be one but the code
  ;; is simpler this way.
  if walker-to-plot != "everybody"
  [ set guys-to-plot walkers with [ user-id = walker-to-plot ] ]

  ask guys-to-plot
  [
    set-current-plot "Position vs. Intervals"
    set-current-plot-pen user-id
    plot my-xcor

    set-current-plot "Velocity vs. Intervals"
    set-current-plot-pen user-id
    plot velocity
  ]

  plot-x-axis "Velocity vs. Intervals"
  plot-x-axis "Position vs. Intervals"
end

;; plots a black line at the x-axis of the plot this-plot

to plot-x-axis [ this-plot ]
  set-current-plot this-plot
  set-current-plot-pen "x-axis"
  plotxy plot-x-min 0
  plotxy plot-x-max 0
end

to pick-walker-to-plot
  set walker-to-plot user-one-of
                    "Please select the walker to plot"
                     (fput "everybody" sort [user-id] of walkers )
end

;; setup the position and velocity plot

to my-setup-plots
  clear-all-plots

  ask walkers
  [
    set-current-plot "Position vs. Intervals"
    setup-pens false

    set-current-plot "Velocity vs. Intervals"
    setup-pens true

    ;; make sure to plot the initial position
    set-current-plot "Position vs. Intervals"
    set-current-plot-pen user-id
    plot my-xcor
  ]

  plot-x-axis "Velocity vs. Intervals"
  plot-x-axis "Position vs. Intervals"
end

;; create pens for each of the existing walkers and color the pens to be the same color as
;; their corresponding walker.  if bars? is true, set the pen mode to be 1 for bar mode.

to setup-pens [ bars? ]
  create-temporary-plot-pen user-id
  if bars?
  [ set-plot-pen-mode 1 ]
  set-plot-pen-color color
end


; Copyright 2006 Uri Wilensky and Walter Stroup.
; See Info tab for full copyright and license.
