Minority Game HubNet

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; Variable and Breed declarations ;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

globals
[
  ;; these may be different because the memory of players and androids may be different
  player-history    ;; the history of which number was the minority (encoded into a binary number), seen by the players
  android-history   ;; the history of which number was the minority (encoded into a binary number), seen by the androids

  minority          ;; the current number in the minority
  avg-score         ;; keeps track of all turtles' average score
  stdev-score       ;; keeps track of the standard deviation of the turtles' scores
  avg-success       ;; keeps track of all turtles' average success

  ;; lists used to create the various turtles
  shape-names        ;; shapes available for players
  colors             ;; colors available for players
  color-names        ;; names of colors available for players
  used-shape-colors  ;; shape-color combinations used

  ;; quick start instructions and variables
  quick-start  ;; current quickstart instruction displayed in the quickstart monitor
  qs-item      ;; index of the current quickstart instruction
  qs-items     ;; list of quickstart instructions

  score-list ;; for plotting
  success-list ;; for plotting
]

turtles-own
[
  score          ;; each turtle's score
  choice         ;; each turtle's current choice either 1 or 0
]

;; each client is represented by a player turtle
breed [ players player ]
players-own
[
  user-id        ;; name entered by the user in the client
  chosen-sides?  ;; true/false to tell if player has made current choice we don't move to the next round until everyone has chosen
  choices-made   ;; the number of choices each turtle has made
]

;; androids are players in the game that are controlled by the computer
breed [ androids android  ]
androids-own
[
  strategies        ;; each android's strategies (a list of lists)
  current-strategy  ;; each android's current strategy (index for the above list)
  strategies-scores ;; the accumulated virtual scores for each of the turtle's strategies
]

;;;;;;;;;;;;;;;;;;;;;
;; Setup Procedures
;;;;;;;;;;;;;;;;;;;;;

;; startup of the model

to startup
  clear-all
  setup
  hubnet-reset
end

;; setup for the overall program, will require clients to re-login

to setup
  ;; prevent an infinite loop from occurring in assign-strategies
  if (android-memory = 1 and strategies-per-android > 4 )
  [
    user-message word "You need to increase the memory variable or\n"
                      "decrease the strategies-per-agent variable"
    stop
  ]
  setup-quick-start
  initialize-system
  initialize-androids
  ask patches with [pxcor = 0 ]
  [ set pcolor white ]
  ask players
  [
    clear-my-data
    set ycor 0
  ]
  set score-list map [ [score] of ? ] sort turtles
  update-success-list
  clear-all-plots
  reset-ticks
end

;; initializes system variables

to initialize-system
  ;; when generating a random history to start out with
  ;; first fill the longer memory then take a subsection
  ;; of that memory and give it to the other group
  let temp-history random (2  ^ (max list player-memory android-memory))

  ifelse player-memory >= android-memory
  [
    set player-history temp-history
    set android-history (reduce-memory (full-history temp-history player-memory) android-memory)
  ]
  [
    set android-history temp-history
    set player-history (reduce-memory (full-history temp-history android-memory) player-memory)
  ]

  reset-ticks
  set avg-score 0
  set stdev-score 0

  set shape-names [ "airplane" "bug" "butterfly" "car" "fish" "monster"
                    "star" "turtle" "bird" "crown" "ufo" "sun" "train" ]
  set colors      [ white   brown   yellow   green
                    sky   violet   orange   pink  red ]
  set color-names [ "white" "brown" "yellow"  "green"
                   "blue" "purple" "orange" "pink" "red" ]
  set used-shape-colors []
end

;; given a list reduce the length to that of the given
;; memory and return that list as a decimal number

to-report reduce-memory [history memory]
    report decimal sublist history (length history - memory) (length history - 1)
end

;; reports the history in binary format (with padding if needed)

to-report full-history [ agent-history agent-memory ]
  let full binary agent-history
  while [length full < agent-memory]
    [ set full fput 0 full ]
  report full
end

;; converts a decimal number to a binary number (stored in a list of 0's and 1's)

to-report binary [ decimal-num ]
  let binary-num []
  loop
    [ set binary-num fput (decimal-num mod 2) binary-num
      set decimal-num int (decimal-num / 2)
      if (decimal-num = 0)
        [ report binary-num ] ]
end

;; converts a binary number (stored in a list of 0's and 1's) to a decimal number

to-report decimal [ binary-num ]
  report reduce [(2 * ?1) + ?2] binary-num
end

;; remove existing turtles and create number-of-androids androids

to initialize-androids
  ask androids
    [ die ]
  set-default-shape androids "person"
  create-androids (number-of-participants - count players)
  [
    set color gray
    set xcor random-xcor
    set heading 0
    assign-strategies
    set current-strategy random strategies-per-android
    set choice item android-history (item current-strategy strategies)
    set score 0
    set strategies-scores n-values strategies-per-android [0]
  ]
  let num-picked-zero count turtles with [choice = 0]
  ifelse (num-picked-zero <= (count turtles - 1) / 2)
    [ set minority 0 ]
    [ set minority 1 ]
  set score-list map [ [score] of ? ] sort turtles
  setup-plots
end

;; gives the androids their allotted number of unique strategies

to assign-strategies  ;; android procedure
  let temp-strategy false
  set strategies []
  repeat strategies-per-android
  [
    ;; make sure there are no duplicate strategies in the list
    set temp-strategy create-strategy
    while [ member? temp-strategy strategies ]
    [ set temp-strategy create-strategy ]
    set strategies fput temp-strategy strategies
  ]
end

;; creates a strategy (a binary number stored in a list of
;; length 2 ^ android-memory)

to-report create-strategy
  report n-values (2 ^ android-memory) [random 2]
end

;; reset a player to some initial values

to clear-my-data  ;; players procedure
  set xcor random-xcor
  set choice random 2
  set score 0
  set chosen-sides? false
  set choices-made 0
  send-info-to-clients
  update-client
end

;;;;;;;;;;;;;;;;;;;;;;
;; Runtime Procedures
;;;;;;;;;;;;;;;;;;;;;;

to go
  every 0.1
  [
     ;; get commands and data from the clients
     listen-clients
     ;; determine if the system should be updated (advanced in time)
     ;; that is, if every player has chosen a side for this round
     if any? turtles and not any? players with [ not chosen-sides? ]
     [
       update-system
       update-scores-and-strategies
       advance-system
       update-choices
       update-success-list
       set score-list map [ [score] of ? ] sort turtles
       update-plots
       let scores [score] of turtles
       ask turtles [ move max scores min scores ]
       ask players
       [
         set chosen-sides? false
         update-client
       ]
       tick
    ]
  ]
end

to update-success-list
  set success-list map [ [ score / choices-made ] of ? ] sort players with [ choices-made > 0 ]
  if ticks > 0
  [ set success-list sentence success-list map [ [score / ticks] of ? ] sort androids ]
end

;; updates system variables such as minority, avg-score, and stdev-score globals

to update-system
  let num-picked-zero count turtles with [choice = 0]
  ifelse num-picked-zero <= (count turtles - 1) / 2
  [ set minority 0 ]
  [ set minority 1 ]
  set-current-plot "Number Picking Zero"
  plot num-picked-zero
  set avg-score mean [score] of turtles
  set stdev-score standard-deviation [score] of turtles
  if ticks > 0
  [ set avg-success mean (sentence [score / ticks] of androids [score / choices-made] of players with [ choices-made > 0 ]) ]
end

;; ask all participants to update their strategy and scores

to update-scores-and-strategies
  ask androids
    [ update-androids-scores-and-strategies ]
  ask players
    [ update-score ]
end

;; updates android's score and their strategies' virtual scores

to update-androids-scores-and-strategies  ;; androids procedure
  ;; here we use MAP to simultaneously walk down both the list
  ;; of strategies, and the list of those strategies' scores.
  ;; ?1 is the current strategy, and ?2 is the current score.
  ;; For each strategy, we check to see if that strategy selected
  ;; the minority.  If it did, we increase its score by one,
  ;; otherwise we leave the score alone.
  set strategies-scores (map
    [ ifelse-value (item android-history ?1 = minority)
        [?2 + 1]
        [?2] ]
    strategies strategies-scores)
  let max-score max strategies-scores
  let max-strategies []
  let counter 0
  ;; this picks a strategy with the largest virtual score
  foreach strategies-scores
  [
    if ? = max-score
    [ set max-strategies lput counter max-strategies ]
    set counter counter + 1
  ]
  set current-strategy one-of max-strategies
  update-score
end

;; if the turtle is in the minority, increase its score

to update-score  ;; turtle procedure
  if choice = minority
    [ set score score + 1 ]
end

;; advances the system forward in time and updates the history

to advance-system
  ;; remove the oldest entry in the memories and place the new one on the end
  set player-history decimal (lput minority but-first full-history player-history player-memory)
  set android-history decimal (lput minority but-first full-history android-history android-memory)
  ;; send the updated info to the clients
  ask players
  [ hubnet-send user-id "history" full-history player-history player-memory ]
end

;; ask all participants to update their choice

to update-choices
  update-androids-choices
  ask players [ update-client ]
end

;; ask the androids to pick a new choice

to update-androids-choices
  ask androids
    [ set choice (item android-history (item current-strategy strategies)) ]
end

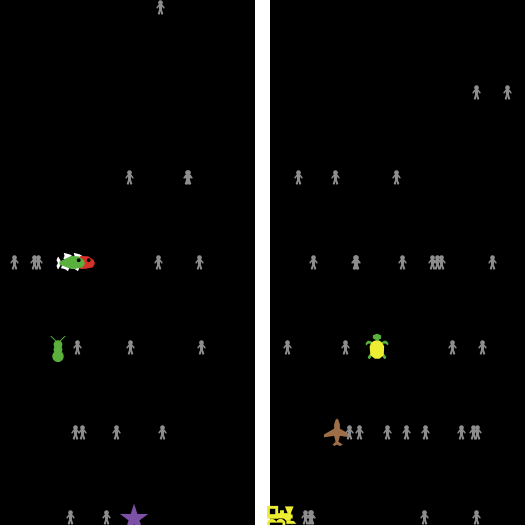

;; move turtles according to their success (a visual aid to see their collective behavior)

to move [low-score high-score]
  if low-score != high-score
  [ set ycor (((score - low-score) / (high-score - low-score )) * (world-height - 1) ) + min-pycor ]
  ifelse choice = 0
  [
    if xcor > 0
    [ set xcor random-float (min-pxcor + 1) - 1 ]
  ]
  [
    if xcor < 0
    [ set xcor random-float (max-pxcor - 1) + 1 ]
  ]
end

;;;;;;;;;;;;;;;;;;;;;;
;; HubNet Procedures
;;;;;;;;;;;;;;;;;;;;;;

;; listen for hubnet client activity

to listen-clients
  while [hubnet-message-waiting?]
  [
    hubnet-fetch-message
    ifelse hubnet-enter-message?
     [ execute-create ]
     [ ifelse hubnet-exit-message?
       [
         ;; when players log out we don't kill off the turtles
         ;; instead we just turn them into androids since it's
         ;; important to have an odd number of players. This keeps
         ;; the total population constant
         ask players with [user-id = hubnet-message-source]
         [
           set breed androids
           set color gray
           assign-strategies
           set current-strategy random strategies-per-android
           set choice item android-history (item current-strategy strategies)
           set strategies-scores n-values strategies-per-android [0]
           set score 0
           set size 1
           display
         ]
       ]
       [
         if hubnet-message-tag = "0"
           [ choose-value 0 ]
         if hubnet-message-tag = "1"
           [ choose-value 1 ]
       ]
     ]
   ]
end

;; create a client player upon login

to execute-create
  ;; to make sure that we always have an odd number of
  ;; participants so there is always a true minority
  ;; so just change one of the androids into a player
  ;; (you can only create an odd number of androids)
  ;; if there aren't enough androids make two and update
  ;; the slider.
  if not any? androids
  [
    create-androids 2
    [
      set heading 0
      set xcor random-xcor
    ]
    set number-of-participants number-of-participants + 2
  ]
  ask one-of androids
  [
    set breed players
    set user-id hubnet-message-source
    set size 2
    set-unique-shape-and-color
    clear-my-data
  ]
  display
end

;; assigns a shape that is not currently in use to
;; a player turtle

to set-unique-shape-and-color  ;; player procedure
  let max-possible-codes (length colors * length shape-names)
  let code random max-possible-codes
  while [member? code used-shape-colors and count turtles < max-possible-codes]
    [ set code random max-possible-codes ]
  set used-shape-colors (lput code used-shape-colors)
  set shape item (code mod length shape-names) shape-names
  set color item (code / length shape-names) colors
end

;; to tell the clients what they look like

to send-info-to-clients  ;; player procedure
  hubnet-send user-id "You are a:" identity
end

;; report the string version of the turtle's identity (color + shape)

to-report identity  ;; turtle procedure
  report (word (color-string color) " " shape)
end

;; report the string version of the turtle's color

to-report color-string [color-value]
  report item (position color-value colors) color-names
end

;; send information to the clients

to update-client  ;; player procedure
  hubnet-send user-id "chosen-sides?" chosen-sides?
  hubnet-send user-id "last choice" choice
  hubnet-send user-id "current choice" choice
  hubnet-send user-id "history" full-history player-history player-memory
  hubnet-send user-id "score" score
  hubnet-send user-id "success rate" precision ifelse-value (choices-made > 0) [ score / choices-made ] [ 0 ] 2
end

;; the client chooses 0 or 1

to choose-value [ value-chosen ]
  ask players with [user-id = hubnet-message-source]
  [ if not chosen-sides?
    [
      hubnet-send user-id "last choice" choice
      set choice value-chosen
      set chosen-sides? true
      set choices-made choices-made + 1
      hubnet-send user-id "current choice" choice
      hubnet-send user-id "chosen-sides?" chosen-sides?
    ]
  ]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;
;; Quick Start Procedures
;;;;;;;;;;;;;;;;;;;;;;;;;;;

;; instructions to quickly setup the model, and clients to run this activity

to setup-quick-start
  set qs-item 0
  set qs-items
  [
    "Teacher: Follow these directions to run the HubNet activity."
    "Optional: Zoom In (see Tools in the Menu Bar)"
    "Optional: Change any of the settings...."
      "If you did change settings, press the SETUP button."
    "Teacher: Press the LOG-IN button."
    "Everyone: Open up a HubNet Client on your machine and..."
      "choose a user-name and..."
        "connect to this activity."
    "Teacher: Once everyone has started their client..."
      "press the LOG-IN button, then press GO."
    "Everyone: Watch your clock and choose 0 or 1."

    "Teacher: To rerun the activity with the same group,..."
      "stop the model by pressing the GO button, if it is on."
        "Change any of the settings that you would like."
          "Press the RE-RUN button."
    "Teacher: Restart the simulation by pressing the GO button again."

    "Teacher: To start the simulation over with a new group,..."
      "stop the model by pressing the GO button, if it is on..."
        "and follow these instructions again from the beginning."
  ]
  set quick-start (item qs-item qs-items)
end

;; view the next item in the quickstart monitor

to view-next
  set qs-item qs-item + 1
  if qs-item >= length qs-items
  [ set qs-item length qs-items - 1 ]
  set quick-start (item qs-item qs-items)
end

;; view the previous item in the quickstart monitor

to view-previous
  set qs-item qs-item - 1
  if qs-item < 0
  [ set qs-item 0 ]
  set quick-start (item qs-item qs-items)
end


; Copyright 2004 Uri Wilensky.
; See Info tab for full copyright and license.
