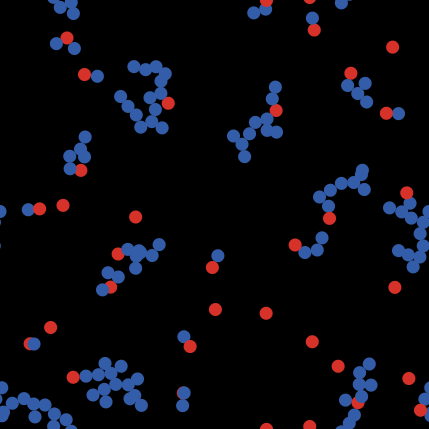

Mobile Aggregation Example

turtles-own [
  ;; The easiest way to handle the clusters is to designate one
  ;; node in the cluster as the "leader".  It doesn't really matter
  ;; which node it is; the choice is arbitrary, but it gives us a way
  ;; to identify the cluster.  Every node knows who the leader of
  ;; its cluster is.
  leader
  ;; This is used to make all of the nodes in a cluster turn by
  ;; the same number of degrees.  Each leader chooses a random
  ;; amount, then everyone else uses the amount from their leader.
  turn-amount
]

to setup
  clear-all
  set-default-shape turtles "circle"
  crt population
    [ set color red
      setxy random-xcor random-ycor
      rt random-float 360
      ;; initially, every node leads its own cluster of one
      set leader self ]
  reset-ticks
end

to go
  ;; All the leaders choose turn amounts
  ask turtles with [leader = self] [
    set turn-amount random 10 - random 10
  ]
  ;; All nodes follow their leaders
  ask turtles [
    rt [turn-amount] of leader
    fd 0.1
  ]
  ;; Here's the tricky part. We check whether any pairs
  ;; of clusters are touching, and if they are, we merge them.
  ask turtles [
    let candidates turtles in-radius 1 with [leader != [leader] of myself]
    if any? candidates [
      create-links-with candidates [ hide-link ]
      ask candidates [ merge ]
    ]
  ]
  tick
end

;; This is a recursive procedure -- it calls itself.
;; That way the new leader propagates through the entire
;; cluster.

to merge  ;; node procedure
  ;; First this node merges.
  set leader [leader] of myself
  set heading [heading] of leader
  set color blue
  ;; Then any neighboring nodes that haven't merged yet
  ;; merge.
  ask link-neighbors with [leader != [leader] of myself]
    [ merge ]
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
