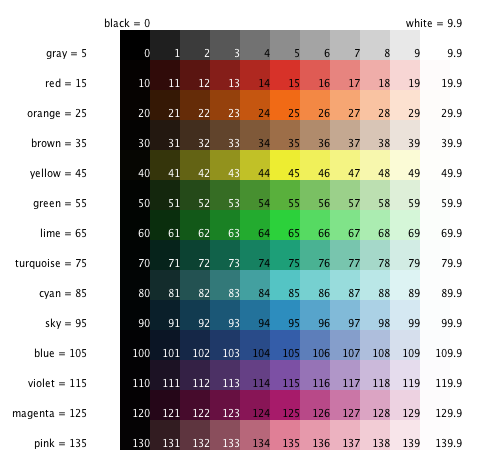

;; The origin patch is (0,0) is located where the color 0 appears;
;; this helps keep the math relatively simple.  Unfortunately there's
;; no way to make pycor increase as we go down instead of up.  So
;; instead, we use the trick of using negative y coordinates: row
;; 0 has a pycor of 0, row 1 has a pycor of -1, row 2 has a pycor
;; of -2, and so on.

to setup
  ca
  ;; make the background white
  ask patches [ set pcolor white ]
  ;; draw all the colors 0 to 139
  ask patches with [(pxcor >= 0) and (pxcor <= 9) and
                    (pycor <= 0) and (pycor >= -13)]
    [ set pcolor -10 * pycor + pxcor
      set plabel int pcolor ]
  ;; draw the rightmost column of whites
  ask patches with [(pxcor = 10) and (pycor <= 0) and (pycor >= -13)]
    [ set pcolor -10 * pycor + 9.9 ]
  ;; draw the rightmost column of patch labels
  ask patches with [(pxcor = 11) and (pycor <= 0) and (pycor >= -13)]
    [ set plabel word precision (-10 * pycor + 9.9) 4 "      "]
  ;; draw the color key on the left
  ask patches with [(pxcor = -2) and (pycor <= 0)]
    [
      if pycor = int (blue      / -10) [ set plabel "blue" ]
      if pycor = int (brown     / -10) [ set plabel "brown" ]
      if pycor = int (cyan      / -10) [ set plabel "cyan" ]
      if pycor = int (gray      / -10) [ set plabel "gray" ]
      if pycor = int (green     / -10) [ set plabel "green" ]
      if pycor = int (lime      / -10) [ set plabel "lime" ]
      if pycor = int (magenta   / -10) [ set plabel "magenta" ]
      if pycor = int (orange    / -10) [ set plabel "orange" ]
      if pycor = int (pink      / -10) [ set plabel "pink" ]
      if pycor = int (red       / -10) [ set plabel "red" ]
      if pycor = int (sky       / -10) [ set plabel "sky" ]
      if pycor = int (turquoise / -10) [ set plabel "turquoise" ]
      if pycor = int (violet    / -10) [ set plabel "violet" ]
      if pycor = int (yellow    / -10) [ set plabel "yellow" ]
      set plabel (word plabel " = " (-10 * pycor + 5) " ")
    ]
  ;; add black and white in the top row
  ask patches with [pycor = 1]
    [ if pxcor = 0
        [ set plabel "black = 0" ]
      if pxcor = 11
        [ set plabel "white = 9.9      " ] ]
  ;; all make the patch labels visible against background
  ask patches
    [ ifelse pcolor mod 10 >= 4
        [ set plabel-color black ]
        [ set plabel-color white ] ]
end
