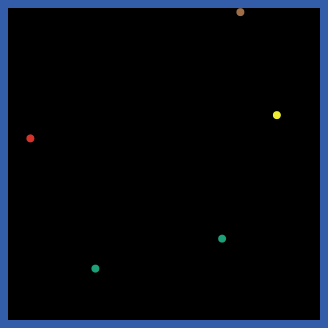

Bounce Example preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

code example

Tagged by Reuven M. Lerner over 11 years ago

Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 1168 times • Downloaded 108 times • Run 1 time
Download the 'Bounce Example' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Click to Run Model

to setup
  clear-all
  set-default-shape turtles "circle"
  draw-walls
  crt 5                                 ;; create some turtles
    [ randomize ]                       ;; place them randomly
  reset-ticks
end

; draws the boundaries (walls) of the "billiard table"

to draw-walls
  ; draw left and right walls
  ask patches with [abs pxcor = max-pxcor]
    [ set pcolor blue ]
  ; draw top and bottom walls
  ask patches with [abs pycor = max-pycor]
    [ set pcolor blue ]
end

; set random location

to randomize
  setxy random-xcor random-ycor
  if pcolor = blue       ; if it's on the wall...
    [ randomize ]        ; ...try again
end

to go
  ask turtles [
    ifelse leave-trace?             ;; the turtle puts its pen up or down depending on the
      [ pd ]                        ;; value of the LEAVE-TRACE? switch
      [ pu ]
    bounce
    fd 0.1
  ]
  tick
end

;; this procedure checks the coordinates and makes the turtles
;; reflect according to the law that the angle of reflection is
;; equal to the angle of incidence

to bounce  ;; turtle procedure
  ; check: hitting left or right wall?
  if abs [pxcor] of patch-ahead 0.1 = max-pxcor
    ; if so, reflect heading around x axis
    [ set heading (- heading) ]
  ; check: hitting top or bottom wall?
  if abs [pycor] of patch-ahead 0.1 = max-pycor
    ; if so, reflect heading around y axis
    [ set heading (180 - heading) ]
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
