Hex Cells Example

breed [ cells cell ]

cells-own [
  hex-neighbors  ;; agentset of 6 neighboring cells
  n              ;; used to store a count of white neighbors
]

to setup1
  clear-all
  setup-grid
  ;; make the center hexagon white, as the "seed" from which we
  ;; grow our "snowflake"
  ask patch 0 0
    [ ask cells-here
        [ set color white ] ]
  reset-ticks
end

to setup2
  clear-all
  setup-grid
  ;; make two center hexagons white, as the "seed" from which we
  ;; grow our "snowflake"
  ask patches at-points [[0 0] [1 0]]
    [ ask cells-here
        [ set color white ] ]
  reset-ticks
end

to setup-grid
  set-default-shape cells "hex"
  ask patches
    [ sprout-cells 1
        [ set color gray - 3  ;; dark gray
          ;; shift even columns down
          if pxcor mod 2 = 0
            [ set ycor ycor - 0.5 ] ] ]
  ;; now set up the hex-neighbors agentsets
  ask cells
    [ ifelse pxcor mod 2 = 0
        [ set hex-neighbors cells-on patches at-points [[0 1] [1 0] [1 -1] [0 -1] [-1 -1] [-1 0]] ]
        [ set hex-neighbors cells-on patches at-points [[0 1] [1 1] [1  0] [0 -1] [-1  0] [-1 1]] ] ]
end

to go

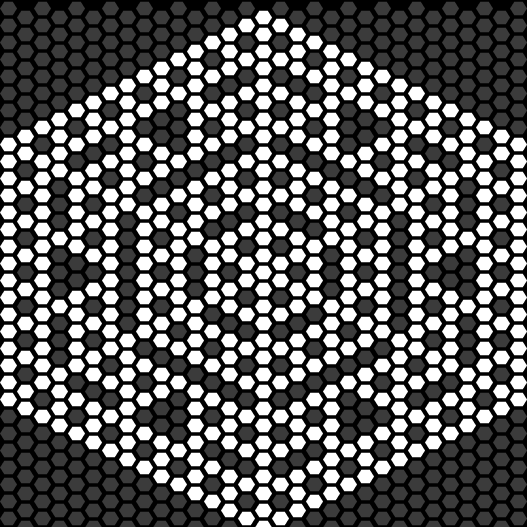

  ;; these are example cellular automaton rules; they produce
  ;; a snowflake-like pattern
  ask cells
    [ set n count hex-neighbors with [color = white] ]
  ask cells
    [ if n = 1
        [ set color white ] ]
  tick
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
