Network Import Example

turtles-own [node-id]

links-own [strength]

globals [links-list]

to import-network
  clear-all
  set-default-shape turtles "circle"
  import-attributes

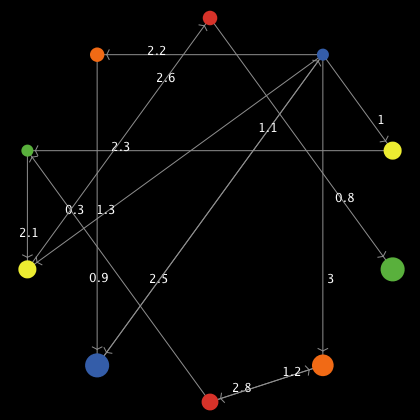

  layout-circle (sort turtles) (max-pxcor - 1)
  import-links
end

;; This procedure reads in a files that contains node-specific attributes
;; including an unique identification number

to import-attributes
  ;; This opens the file, so we can use it.
  file-open "attributes.txt"
  ;; Read in all the data in the file
  ;; data on the line is in this order:
  ;; node-id attribute1 attribute2
  while [not file-at-end?]
  [
    ;; this reads a single line into a three-item list
    let items read-from-string (word "[" file-read-line "]")
    crt 1 [
      set node-id item 0 items
      set size    item 1 items
      set color   item 2 items
    ]
  ]
  file-close
end

;; This procedure reads in a file that contains all the links
;; The file is simply 3 columns separated by spaces.  In this
;; example, the links are directed.  The first column contains
;; the node-id of the node originating the link.  The second
;; column the node-id of the node on the other end of the link.
;; The third column is the strength of the link.

to import-links
  ;; This opens the file, so we can use it.
  file-open "links.txt"
  ;; Read in all the data in the file
  while [not file-at-end?]
  [
    ;; this reads a single line into a three-item list
    let items read-from-string (word "[" file-read-line "]")
    ask get-node (item 0 items)
    [
      create-link-to get-node (item 1 items)
        [ set label item 2 items ]
    ]
  ]
  file-close
end

;; Helper procedure for looking up a node by node-id.

to-report get-node [id]
  report one-of turtles with [node-id = id]
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
