Circular Path Example

globals [radius]

to setup
  clear-all
  set radius max-pxcor - 2

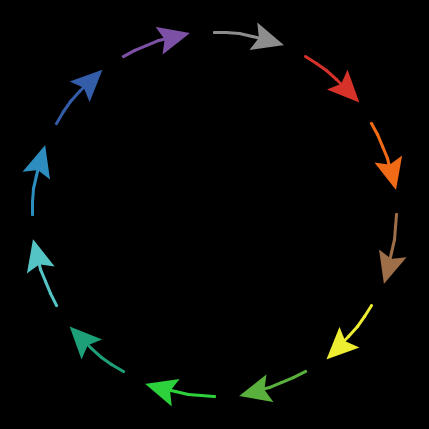

  ;; make 12 turtles, equally spaced in heading
  create-ordered-turtles 12 [
    ;; move to edge of circle
    fd radius
    ;; turn to face clockwise
    rt 90
    ;; bigger turtles are easier to see
    set size 3
    ;; thicker line is easier to see
    set pen-size 3
    ;; leave a trail
    pen-down
  ]
  reset-ticks
end

to go-distance
  ask turtles [ arc-forward-by-dist step-size ]
  tick
end

to go-angle
  ask turtles [ arc-forward-by-angle arc-angle ]
  tick
end

;; This is the core procedure.  It moves the turtle to the next point
;; on the circle, the given distance along the curve.

to arc-forward-by-dist [dist]  ;; turtle procedure
  ;; calculate how much of an angle we'll be turning through
  ;; (essentially converting radians to degrees)
  let theta dist * 180 / (pi * radius)
  ;; turn to face the next point we're going to
  rt theta / 2
  ;; go there
  fd dist
  ;; turn to face tangent to the circle
  rt theta / 2
end

to arc-forward-by-angle [angle]
  ;; turn to face the next point we're going to
  rt angle / 2
  ;; calculate the distance we'll have to move forward
  ;; in order to stay on the circle. Go there.
  fd 2 * radius * sin (angle / 2)
  ;; turn to face tangent to the circle
  rt angle / 2
end


; Public Domain:
; To the extent possible under law, Uri Wilensky has waived all
; copyright and related or neighboring rights to this model.
