Ants (Perspective Demo)

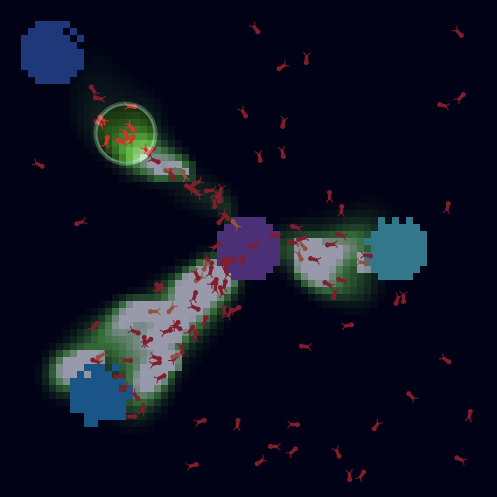

Ants (Perspective Demo) preview image

1 collaborator

Uri_dolphin3 Uri Wilensky (Author)

Tags

(This model has yet to be categorized with any tags)
Model group CCL | Visible to everyone | Changeable by group members (CCL)
Model was written in NetLogo 5.0.4 • Viewed 504 times • Downloaded 52 times • Run 2 times
Download the 'Ants (Perspective Demo)' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Click to Run Model

patches-own [
  chemical             ;; amount of chemical on this patch
  food                 ;; amount of food on this patch (0, 1, or 2)
  nest?                ;; true on nest patches, false elsewhere
  nest-scent           ;; number that is higher closer to the nest
  food-source-number   ;; number (1, 2, or 3) to identify the food sources
]

;;;;;;;;;;;;;;;;;;;;;;;;
;;; Setup procedures ;;;
;;;;;;;;;;;;;;;;;;;;;;;;

to setup
  clear-all
  set-default-shape turtles "bug"
  crt population
  [ set size 2         ;; easier to see
    set color red  ]   ;; red = not carrying food
  setup-patches
  reset-ticks
end

to setup-patches
  ask patches
  [ setup-nest
    setup-food
    recolor-patch ]
end

to setup-nest  ;; patch procedure
  ;; set nest? variable to true inside the nest, false elsewhere
  set nest? (distancexy 0 0) < 5
  ;; spread a nest-scent over the whole world -- stronger near the nest
  set nest-scent 200 - distancexy 0 0
end

to setup-food  ;; patch procedure
  ;; setup food source one on the right
  if (distancexy (0.6 * max-pxcor) 0) < 5
  [ set food-source-number 1 ]
  ;; setup food source two on the lower-left
  if (distancexy (-0.6 * max-pxcor) (-0.6 * max-pycor)) < 5
  [ set food-source-number 2 ]
  ;; setup food source three on the upper-left
  if (distancexy (-0.8 * max-pxcor) (0.8 * max-pycor)) < 5
  [ set food-source-number 3 ]
  ;; set "food" at sources to either 1 or 2, randomly
  if food-source-number > 0
  [ set food one-of [1 2] ]
end

to recolor-patch  ;; patch procedure
  ;; give color to nest and food sources
  ifelse nest?
  [ set pcolor violet ]
  [ ifelse food > 0
    [ if food-source-number = 1 [ set pcolor cyan ]
      if food-source-number = 2 [ set pcolor sky  ]
      if food-source-number = 3 [ set pcolor blue ] ]
    ;; scale color to show chemical concentration
    [ set pcolor scale-color green chemical 0.1 5 ] ]
end

;;;;;;;;;;;;;;;;;;;;;
;;; Go procedures ;;;
;;;;;;;;;;;;;;;;;;;;;

to go  ;; forever button
  ask turtles
  [ if who >= ticks [ stop ] ;; delay initial departure
    ifelse color = red
    [ look-for-food  ]       ;; not carrying food? look for it
    [ return-to-nest ]       ;; carrying food? take it back to nest
    wiggle
    fd 1 ]
  diffuse chemical (diffusion-rate / 100)
  ask patches
  [ set chemical chemical * (100 - evaporation-rate) / 100  ;; slowly evaporate chemical
    recolor-patch ]
  tick
end

to return-to-nest  ;; turtle procedure
  ifelse nest?
  [ ;; drop food and head out again
    set color red
    rt 180 ]
  [ set chemical chemical + 60  ;; drop some chemical
    uphill-nest-scent ]         ;; head toward the greatest value of nest-scent
end

to look-for-food  ;; turtle procedure
  if food > 0
  [ set color orange + 1     ;; pick up food
    set food food - 1        ;; and reduce the food source
    rt 180                   ;; and turn around
    stop ]
  ;; go in the direction where the chemical smell is strongest
  if (chemical >= 0.05) and (chemical < 2)
  [ uphill-chemical ]
end

;; sniff left and right, and go where the strongest smell is

to uphill-chemical  ;; turtle procedure
  let scent-ahead chemical-scent-at-angle   0
  let scent-right chemical-scent-at-angle  45
  let scent-left  chemical-scent-at-angle -45
  if (scent-right > scent-ahead) or (scent-left > scent-ahead)
  [ ifelse scent-right > scent-left
    [ rt 45 ]
    [ lt 45 ] ]
end

;; sniff left and right, and go where the strongest smell is

to uphill-nest-scent  ;; turtle procedure
  let scent-ahead nest-scent-at-angle   0
  let scent-right nest-scent-at-angle  45
  let scent-left  nest-scent-at-angle -45
  if (scent-right > scent-ahead) or (scent-left > scent-ahead)
  [ ifelse scent-right > scent-left
    [ rt 45 ]
    [ lt 45 ] ]
end

to wiggle  ;; turtle procedure
  rt random 40
  lt random 40
  if not can-move? 1 [ rt 180 ]
end

to-report nest-scent-at-angle [angle]
  let p patch-right-and-ahead angle 1
  if p = nobody [ report 0 ]
  report [nest-scent] of p
end

to-report chemical-scent-at-angle [angle]
  let p patch-right-and-ahead angle 1
  if p = nobody [ report 0 ]
  report [chemical] of p
end


; Copyright 1998 Uri Wilensky.
; See Info tab for full copyright and license.
