Minimal SI

1 collaborator

WHAT IS IT?

Do you know how an epidemic grows? One infects two, two infect four or three or two or one or none. All with different probabilities and a weighted average of logistic growth.

The Minimal SI model is a discrete stochastic compartmental model of an epidemic that averages to the (ordinary differential equation) SI model. Each individual within a population is in one of two states known, in epidemic modelling, as compartments:

S - Susceptible to infection.
I - Infected and infectious.

HOW IT WORKS

Setup

There are sliders to vary:

The size of the population that will be divided into compartments.
The basic reproduction number.

The basic reproduction number, R0, is defined as the number of individuals that will be infected by one individual in an otherwise susceptible population.

Go

Initially one individual is infected. At each step the simulation proceeds by each infected individual selecting R0 others at random and irrespective of their state - the model is said to be "well mixed". At the end of the step those susceptible that were selected become infected. The simulation finishes when there are no longer any susceptible. (Note there is a subtle bug which occasionally appears to thwart this being strictly true)

As the simulation progresses lines are drawn between the previous generation of infected and those individuals that they were in contact with. The colour of the individuals changes according to the code:

Susceptible - Blue.
Infected - Red.

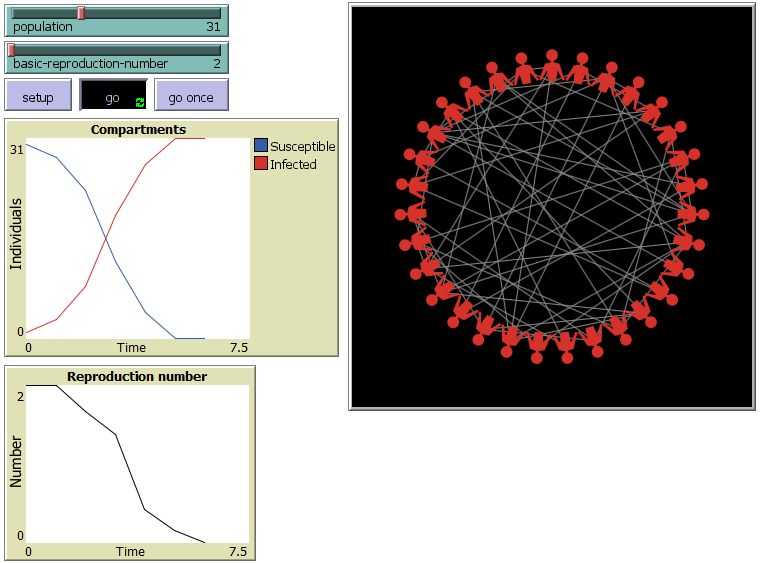

There are two plots of how the statistics vary as the iterations proceed. The first shows how the individuals are divided between the two compartments. The second how the reproduction number varies between zero and R0.

HOW TO USE IT

Move the sliders then press setup. Perform a simulation and note how the epidemic curves vary.

THINGS TO NOTICE

Sigmoid curves

When plotted against time the number of susceptible always decrease. i.e. the curve is monotonic decreasing. Similarly, the number of infected is monotonic increasing and a mirror of the other curve. For the SI model these are both sigmoid (S-shaped) curves. For a given simulation the plots of the minimal SI model may be more or less sigmoid.

Variation of the reproduction number

If this were constant then the epidemic would be growing exponentially. The initial step plots a value of R0 which matches its definition.

If this were the SI model instead then it would be the smoothly decreasing function R0 x S / N where S is the number of susceptible and N = S + I is the size of the population.

Selecting R0 others

Each infected picking the number of susceptible is equivalent to sampling (without replacement) R0 individuals from a hypergeometric probability distribution.

Exponential growth

Requires that only susceptible are picked. The probability of that happening can then be calculated by forming a fraction where the numerator is the numbers from the size of the population down to one all multiplied together and the denominator is the number of choices multiplied together. e.g. 31 x 30 x 29 x 28 x ... x 1 divided by 31 x 30 x 29 x 30 ... x 29 for a population of 31, no prior immunity and R0 equal to 2.

Evaluating the fraction results in roughly a two in a million million chance. Truncating it to correspond to the first 8 individuals results in roughly an even chance.

Actual examples of exponential growth appear to be all man-made:

Compound interest, which dates back to the Babylonians at least
Grains of wheat on a chessboard, according to folklore from ancient India and Persia
Pyramid schemes

THINGS TO TRY

Average behaviour

If you are prepared to alter the code then scale the population to, say, 1000 individuals and run numerous times to create an ensemble of results at each step which are then averaged. Show that this matches the SI model in which the infection curve is formed bylogistic growth:

dI/dt = (R0 x S / N) x I x gamma

where N = S + I and gamma = 1

EXTENDING THE MODEL

Minimal SIR model

Check out the Minimal SIR model for a more realistic model.

CREDITS AND REFERENCES

This software implementation was forked from

Wilensky, U. (2003). NetLogo Dining Philosophers model. http://ccl.northwestern.edu/netlogo/models/DiningPhilosophers. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

HOW TO CITE

If you mention this model or the NetLogo software in a publication, we ask that you include the citations below.

For the model itself:

Mason, Z. W. T. (2025). The minimal SIR model, validated then extended to social networks and stochastic differential equations. https://osf.io/y6ckv/. Stoch Answers Ltd, Sheffield, UK.

Please cite the NetLogo software as:

Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

COPYRIGHT AND LICENSE

CC BY-NC-SA 3.0

This work is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License. To view a copy of this license, visit https://creativecommons.org/licenses/by-nc-sa/3.0/ or send a letter to Creative Commons, 559 Nathan Abbott Way, Stanford, California 94305, USA.

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

extensions [array]
globals [reproduction-number old-infected new-infected]

breed [individuals individual]
individuals-own [
  state                   ;; my current state: "INFECTED", or "SUSCEPTIBLE"

  marked?                 ;; whether I'm currently marked

]

to setup
  clear-all
  ;; set up the model

  make-turtles
  set reproduction-number basic-reproduction-number
  set new-infected 1
  recolor
  reset-ticks
end

;; create all the turtles, place them, and associate forks with individuals


to make-turtles
  set-default-shape individuals "person torso"
  ;; create-ordered- equally spaces the headings of the turtles,

  ;; in who number order

  create-ordered-individuals population [
    set size 0.1
    jump 0.35
    set state "SUSCEPTIBLE"
    set marked? false
  ]
  ask individual 0 [set state "INFECTED"]
end

to go
  if new-infected > 0
  [
    a-go
  ]
end

to a-go
  set old-infected (old-infected + new-infected)
  clear-links
  ask individuals [ infect ]
  set new-infected 0
  ask individuals [ update ]
  ifelse old-infected = 0
  [
    set reproduction-number 0
  ]
  [
    set reproduction-number (new-infected / old-infected)
  ]
  recolor
  tick
end

;; everybody gets a new color.


to recolor
  ask individuals [
    ;; look up the color in the colors list indexed by our current state

    ifelse state = "SUSCEPTIBLE"
      [ set color blue ]
      [ set color red ]
  ]
end

;;


to infect  ;; individual procedure

  if state = "INFECTED" [
    ;; create an array of random numbers

    let values array:from-list shuffle range (population - 1)
    let index 0
    repeat basic-reproduction-number [
      let i2 array:item values index
      let i3 ((i2 + 1 + who) mod population)
      ask individual i3 [set marked? true]
      create-link-with individual i3
      set index (index + 1)
    ]
  ]
end

;;


to update  ;; individual procedure

  if marked? and state = "SUSCEPTIBLE"
  [
    set state "INFECTED"
    set new-infected (new-infected + 1)
  ]
  set marked? false
end


; Copyright 2025 Zebedee Mason.

; See Info tab for full copyright and license.
