Connect the Dots 5

1 collaborator

WHAT IS IT?

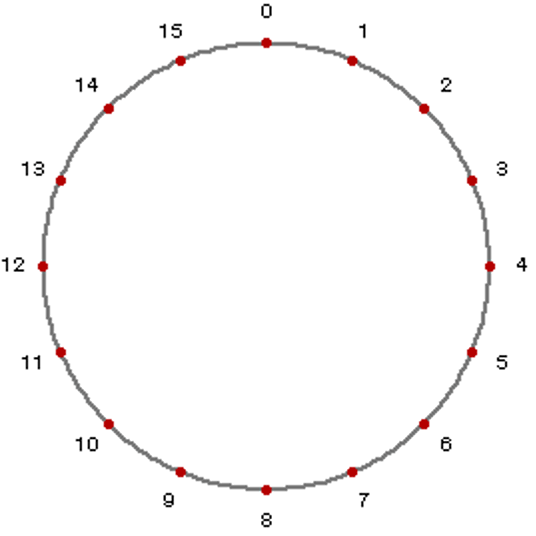

This program is a tool for exploring patterns made by jumping around a circle based on the number of dots and the size of the jump.

HOW IT WORKS

Each round, the design begins at dot 0 and keeps going until a jump returns to 0.

HOW TO USE IT

The switch called Show-labels turns the numbers on the dots on and off. The switch Draw-one-segment allows you to step through the development of a design one segment at a time. If you set it to Off, the program will keep drawing segment jumps until 0 is reaached. If you turn Sorted to On, the list of points hit will be sorted. If not, they will be listed in the order they are hit by the jumps starting at 0.

THINGS TO NOTICE

Do you always hit all dots? Why or why not? ow many are hit? What combinations of dot number and jump size produce which shapes? Why?

THINGS TO TRY

The dotnum (number of dots) and jumpsize (amount added each time as segments are connected) can be changed by dragging the sliders or by manually entering a number in the boxes below the sliders. The sliders are restricted to whole numbers, but the boxes are not. What happens if the jumpsize is bigger than the dot number? Is negative? If a fraction? Do you conjectures still work when numbers other than whole numbers are used?

CREDITS AND REFERENCES

A very thorough resource for understanding the potential of this program for teaching conjecturing is at www.makingmath.org or http://www2.edc.org/makingmath/mathsettings/connect/connect.asp and http://www2.edc.org/makingmath/mathsettings/connect/ConnectTheDots_TeachNotes.asp

The original idea for this tool came from the program Connectany by Jonathan Choate

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

globals [leg mover dots-hit]
breed [dlabel dlabels]

to go
  ifelse draw-one-segment
    [draw-next]
    [connect-all]
  if Show-labels
    [let i 0 repeat dotnum [create-dlabel 1 [set color blue set size 0 set label i set label-color 93 set xcor 4 + int(290 * sin(i * 360 / dotnum)) set ycor int(290 * cos(i * 360 / dotnum)) set i i + 1]]]
end

to draw-next
  ifelse leg > 1   ;;started doing them individually already
    [ask turtle mover[setxy int(280 * sin((leg * jumpsize mod dotnum) * 360 / dotnum)) int(280 * cos((leg * jumpsize mod dotnum) * 360 / dotnum))]
      if int(leg * jumpsize) = (leg * jumpsize) and Show-labels [output-print ((leg * jumpsize) mod dotnum) set dots-hit lput ((leg * jumpsize) mod dotnum) dots-hit if sorted [sortdots]] set leg leg + 1] ;; draw one more leg
  ;;ELSE first leg to be drawn, need dots as well
    [let i  0
     set dots-hit [0]
    repeat dotnum [crt 1 [set color red set shape "circle" set size 6 facexy 0 0 set xcor int(280 * sin(i * 360 / dotnum)) set ycor int(280 * cos(i * 360 / dotnum))] set i  i + 1 ]
    crt 1 [set mover who set color blue setxy 0 280 pd setxy int(280 * sin((leg * jumpsize mod dotnum) * 360 / dotnum)) int(280 * cos((leg * jumpsize mod dotnum) * 360 / dotnum)) if int(leg * jumpsize) = (leg * jumpsize) and Show-labels [output-print ((leg * jumpsize) mod dotnum) set dots-hit lput ((leg * jumpsize) mod dotnum) dots-hit if sorted [sortdots]] set leg leg + 1]]
end

to connect-all
;; (for this model to work with NetLogo's new plotting features,
  ;; __clear-all-and-reset-ticks should be replaced with clear-all at
  ;; the beginning of your setup procedure and reset-ticks at the end
  ;; of the procedure.)
ca
ask patches [set pcolor white]
let i  0
  if Show-labels [output-print 0] set dots-hit [0]
repeat dotnum [crt 1 [set color red set shape "circle" set size 6 facexy 0 0 set xcor int(280 * sin(i * 360 / dotnum)) set ycor int(280 * cos(i * 360 / dotnum))] set i  i + 1 ]
let j 1 crt 1 [set color blue setxy 0 280 pd
               setxy int(280 * sin((j * jumpsize mod dotnum) * 360 / dotnum)) int(280 * cos((j * jumpsize mod dotnum) * 360 / dotnum)) if int(j * jumpsize) = (j * jumpsize) and Show-labels [output-print ((j * jumpsize) mod dotnum) set dots-hit lput ((j * jumpsize) mod dotnum) dots-hit if sorted [sortdots]] set j j + 1
               while [(distance turtle 0) > 0.1]
      [setxy int(280 * sin((j * jumpsize mod dotnum) * 360 / dotnum)) int(280 * cos((j * jumpsize mod dotnum) * 360 / dotnum)) if int(j * jumpsize) = (j * jumpsize) and Show-labels [output-print ((j * jumpsize) mod dotnum) set dots-hit lput ((j * jumpsize) mod dotnum) dots-hit if sorted [sortdots]] set j j + 1]]
end

to sortdots
  set dots-hit sort remove-duplicates dots-hit
  clear-output
  foreach dots-hit output-print
end
