Lanchester Combat Model

1 collaborator

Thomas Rieth (Author)

Lanchester’s Square Law

An agent-based model to replicate basic Lanchester’s Square Law.

What It Is?

This section gives a general understanding of what the model is trying to show or explain.

Lanchester (1916) presented a now classic deterministic model of outcomes of ranged combat based on the fighting effectiveness and the troop strengths (i.e., number of soldiers) of two opposing forces. The system of differential equations that came to be known as the Lanchester Square Law for targeted fire is given by

b'(t)= -c r(t) , b(0)=b₀ , r'(t)= -k b(t) , r(0)=r₀ ,

where c and k are the fighting effectiveness coefficients of the red and blue forces, respectively, and b and r are the troop strengths of the blue and red forces, respectively.

The Lanchester Linear Law describes untargeted area fire:

b'(t)= -C b(t) r(t) , b(0)=b₀ , r'(t)= -K r(t) b(t) , r(0)=r₀ ,

How It Works

This section explains what rules the agents use to create the overall behavior of the model.

In the basic model, the agents are placed randomly, targeting occurs without regard for range, and all agents are homogeneous.

To setup, all variables and agents are cleared, and then the square space is filled with blue agent and red agents. To go, in random order, each agent kills exactly one enemy, if an enemy remains to kill.

Scenario 1: Accuracy as basic heterogeneity

Suppose a force's weaponry will kill an enemy with probability of given accuracy, at a range of 1 unit, with that probability decreasing exponentially with range. Each force unit will choose the closest target.

This modification alters the outcome of the battle: the blue forces can overcome the numerically larger red forces with their technological superiority.

Scenario 2: Further deviation from the Lanchester model

The red force is attacked from two sides by a blue force with only 90% their troop strength. Blue force weapons have mean accuracy of 0.62 at 1 unit distance, whereas red force weapons have mean accuracy of 0.60 at the same range, with individuals’ accuracy varying according to a normal distribution with a standard deviation of 0.1. Blue forces are short on ammunition, so they have orders to only fire from a maximum range of 5 units. The red forces, meanwhile, can fire at any range. If a soldier fires, they can move only 25% the distance that they could move otherwise.

This more complex model yields a slight advantage to the blue forces: over 100 replicates, 68 result in a blue victory. This result is statistically significant (p<0.001).

How To Use It

This section explains how to use the model, including a description of each of the items in the interface tab.

Running many iterations of this simulation, the mean number of agents remaining once one side has been killed is equal to that predicted by Lanchester’s Square Law.

The setup button starts a new setup based on the interface and global variables. The go button starts the simulation. The step button executes a single tick (step) only. The startup button prepares a default scenario.

Press one of the buttons scenario-one or scenario-two to set up the corresponding scenario.

THINGS TO NOTICE

This section could give some ideas of things for the user to notice while running the model.

THINGS TO TRY

This section could give some ideas of things for the user to try to do (move sliders, switches, etc.) with the model.

EXTENDING THE MODEL

This section could give some ideas of things to add or change in the procedures tab to make the model more complicated, detailed, accurate, etc.

NETLOGO FEATURES

This section could point out any especially interesting or unusual features of NetLogo that the model makes use of, particularly in the Procedures tab. It might also point out places where workarounds were needed because of missing features.

RELATED MODELS

This section could give the names of models in the NetLogo Models Library or elsewhere which are of related interest.

Credits and References

Christopher W. Weimer, J. O. Miller, Raymond R. Hill. Agent-Based Modeling: An Introduction and Primer. Proceedings of the 2016 Winter Simulation Conference, T. M. K. Roeder, P. I. Frazier, R. Szechtman, E. Zhou, T. Huschka, and S. E. Chick, eds. http://simulation.su/uploads/files/default/2016-weimer-miller-hill.pdf

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

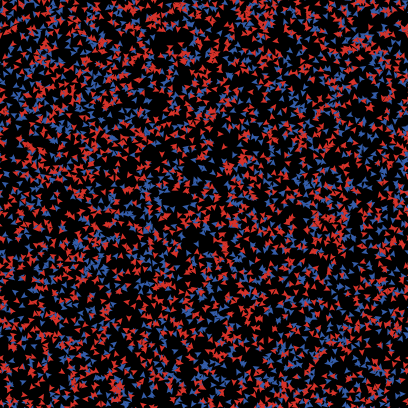

Click to Run Model

breed[force-units force-unit]

force-units-own[
  force-range
  accuracy
]

globals [
  separated-forces?
  accuracy-deviation
  free-move
  battle-move
]

to setup-globals
  set separated-forces? false
  set accuracy-deviation 0
  set free-move 0
  set battle-move 0
end

to startup
  set initial-blue-forces 2000
  set initial-red-forces 2050
  set blue-accuracy 1
  set red-accuracy 1
  set blue-range max-range + 1
  set red-range max-range + 1
  set blue-area-fire? false
  set red-area-fire? false
  setup
end

to setup
  clear-all
  setup-globals
  setup-forces
  reset-ticks
end

to go
  if battle-finished? [ stop ]
  go-forces
  tick
end

to-report max-range
  report ceiling sqrt ( max-pxcor * max-pxcor + max-pycor * max-pycor )
end

to setup-forces
  spwan-blue-forces
  spawn-red-forces
end

to setup-accuracy [accuracy-mean accuracy-standard-deviation]
  ifelse accuracy-standard-deviation > 0 [
    set accuracy random-normal accuracy-mean accuracy-standard-deviation
  ] [
    set accuracy accuracy-mean
  ]
  set accuracy min list 1 accuracy
  set accuracy max list 0 accuracy
end

to spwan-blue-forces
  create-force-units initial-blue-forces [
    set color blue
    ifelse separated-forces? [
      set xcor random-xcor
      set ycor (max-pycor / 2) + random-float (max-pycor / 2)
      if random 2 = 1 [ set ycor (- ycor) ]
    ] [
      setxy random-xcor random-ycor
    ]
    setup-accuracy blue-accuracy accuracy-deviation
    set force-range blue-range
  ]
end

to spawn-red-forces
  create-force-units initial-red-forces [
    set color red
    ifelse separated-forces? [
      set xcor random-xcor
      set ycor (random-ycor / 2)
    ] [
      setxy random-xcor random-ycor
    ]
    setup-accuracy red-accuracy accuracy-deviation
    set force-range red-range
  ]
end

to go-forces
  ask force-units [ force-unit-attack ]
end

to-report hostile-force-units
  report force-units with [color != [color] of myself]
end

to-report force-unit-select-target
  let target nobody
  let area-fire? ((color = blue and blue-area-fire?)
    or (color = red and red-area-fire?))
  ifelse area-fire? [
    let target-patch one-of patches
    if force-range < max-range [
      set target-patch one-of patches in-radius force-range
    ]
    ask target-patch [
      if any? force-units-here [ set target one-of force-units-here ]
    ]
  ] [
    let targets hostile-force-units
    if force-range < max-range [ set targets targets in-radius force-range ]
    set target min-one-of targets [distance myself]
  ]
  report target
end

to force-unit-attack
  let target force-unit-select-target
  ifelse target != nobody [
    face target
    if random-float 1 < (accuracy ^ (distance target)) [ ask target [ die ] ]
    force-unit-move battle-move
  ] [
    force-unit-move free-move
  ]
end

to force-unit-move [ steps ]
  if steps > 0 [
    if any? hostile-force-units [
      let target min-one-of hostile-force-units [distance myself]
      face target
    ]
    forward steps
  ]
end

to-report battle-finished?
  report not any? turtles with [color = red] or not any? turtles with [color = blue]
end

to scenario-one
  set initial-blue-forces 2000
  set initial-red-forces 2050
  set blue-accuracy 0.95
  set red-accuracy 0.9
  set blue-range max-range + 1
  set red-range max-range + 1
  setup
end

to scenario-two
  set initial-blue-forces 1800
  set blue-accuracy 0.62
  set blue-range 5
  set initial-red-forces 2000
  set red-accuracy 0.6
  set red-range max-range + 1
  clear-all
  set separated-forces? true
  set accuracy-deviation 0.1
  set free-move 1
  set battle-move 0.25
  setup-forces
  reset-ticks
end
