Universities Selection Model

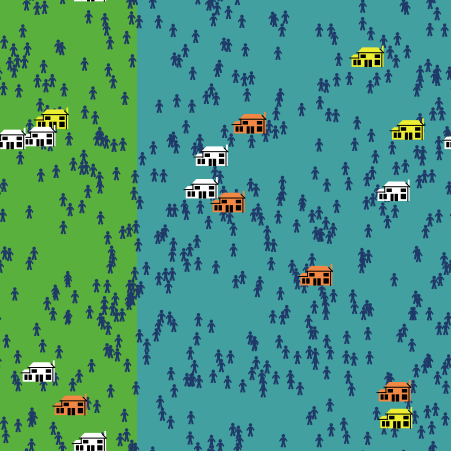

Universities Selection Model preview image

1 collaborator

Default-person Razan Nofal (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.2.2 • Viewed 97 times • Downloaded 5 times • Run 0 times
Download the 'Universities Selection Model' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

breed [persons person]
breed [universities university]

persons-own [target familyincome enrolled?]
universities-own [highreputation? reputation enrolledstudents]


; reset button

to setup
  clear-all
  setup-patch
  setup-university
  setup-person
  reset-ticks
end


; setup the patch colors to city and urban areas

to setup-patch
  ask patches with [pxcor < -6  AND pycor >= -16]
  [
    set pcolor green
  ]
  ask patches with [pxcor >= -6 AND pycor <= 16]
  [ set pcolor cyan - 1
  ]
end


; set up the universities based on reputation - it has different colors based on reputation

to setup-university
  create-universities number-of-universities  [fd max-pxcor setxy random-xcor random-ycor]
    ; set the universities shape and default color
     ask universities [ set shape "house two story"  set size  2.6
                   set color white

     ; high reputation with white color, moderate reputation with yellow and low reputation with orange
     ; reputation is based on rank of 30 university - low rank means high reputation and vice versa
     set reputation random 100 * university-rank / 100
     if (reputation >= 0 and reputation < 10 ) [set highreputation? true]
        ifelse (reputation >= 10 and reputation < 19) [set highreputation? true set color yellow][
        ifelse (reputation >= 19) [set highreputation? false set color orange + 1 ][set highreputation? true]]
        set enrolledstudents 0]
end

; setup students color and shape and the target

to setup-person
  create-persons number-of-students
  [setxy random-xcor random-ycor set shape "person" set size 1
    set familyincome one-of (range 500 6000)
    set color blue - 2
               set target 1
    set target one-of universities
               face target

  ]
  reset-ticks
end


; movement of students between universities to select their target based on distance as well

to move-students
 ask persons [
   if distance target = 0
      [ set target one-of universities
        face target ]

    ifelse distance target < 1
    [
      move-to target
      ]
      [ fd 1 ]

  ]
end

; pick the target university based on family income, rank and distance, the university will be selected.

to select-university

        ifelse (familyincome > income-level and color =  white )
    [
set target one-of universities with [[familyincome] of myself] with-max [reputation]
    ]

  [
    ifelse (familyincome < income-level and  color =  yellow) [
      set target min-one-of universities with [[familyincome] of myself - (distance myself) / 100 > 0] with-max [reputation] [distance myself]]


    [ifelse (familyincome < income-level and color =  brown)
      [set target min-one-of universities with [[familyincome] of myself - (distance myself) / 100 > 0] with-min [reputation] [distance myself]]

       [set target min-one-of universities
      with [[familyincome] of myself - (distance myself) / 100 > 0] [distance myself] ]
  ]]

  if target != nobody
  [ move-students]
   set enrolled? TRUE
end


; run the model by calling select university and move students to target

to go
  ask persons [
  select-university
  move-students]
  ask universities [ calculate-enrolledstudents ]
  tick
  if (ticks = 50)
  [stop]
end

; proc to calculate the count of enrolled students

to calculate-enrolledstudents

  if (enrolledstudents < number-of-students)
  [set enrolledstudents enrolledstudents + 1]
end

There is only one version of this model, created over 1 year ago by Razan Nofal.

Attached files

File Type Description Last updated
Universities Selection Model.png preview Preview for 'Universities Selection Model' over 1 year ago, by Razan Nofal Download

This model does not have any ancestors.

This model does not have any descendants.
