Herbivory and Animal Interspecific Competition

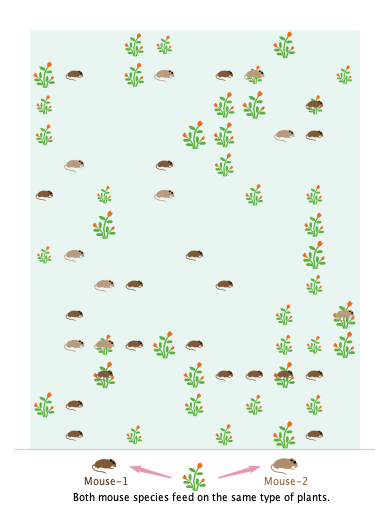

Herbivory and Animal Interspecific Competition preview image

1 collaborator

Screen_shot_2018-02-02_at_12.53.50_pm lin xiang (Author)

Tags

Visible to everyone | Changeable by the author
Model was written in NetLogo 6.2.2 • Viewed 97 times • Downloaded 15 times • Run 0 times
Download the 'Herbivory and Animal Interspecific Competition' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

; Coded in 2022 by Lin Xiang; Last revised in 2022 by Lin Xiang (lxiang75@gmail.com; lin.xiang@uky.edu)
;;
;; If you mention this model in a publication, we ask that you include the citations below.
;;
;; Xiang, L. (2022). Herbivory and Animal Interspecific Competition. Department of STEM Education, University of Kentucky, Lexington, KY.
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


breed [plant1s plant1]
breed [plant2s plant2]
breed [animal1s animal1 ]
breed [animal2s animal2 ]
breed [legends legend]

plant1s-own [ num-seed-1 erg-0]
plant2s-own [ num-seed-2 erg-00]
animal1s-own [erg-1 life-1]
animal2s-own [erg-2 life-2]

patches-own []

Globals [
  running-avg-list1  running-avg-list2
  running-avg-lista1  running-avg-lista2

  mean-total-1 mean-total-2
  mean-total-a1 mean-total-a2
]

to-report empty-patches
  report patches with [pcolor >= 79 and pcolor <= 79.5 and not any? plant1s-here and not any? plant2s-here]
end

to setup
  clear-all

  setup-patches
  setup-legends
  add-plants
  add-mice1
  add-mice2


  set running-avg-list1 []
  set running-avg-list2 []
  set running-avg-lista1 []
  set running-avg-lista2 []

  reset-ticks
end

to setup-patches
  ask patches [set pcolor 79 + random-float 0.5]
  ask patches with [pycor = max-pycor or pycor < 2] [set pcolor white]
end

to add-plants

ask up-to-n-of number-of-plants empty-patches
    [sprout-plant2s 1
    [set shape "plant-1"
    set size 0.6 + random-float 0.4
    set erg-00 10]]
end

to add-mice1

create-animal1s number-of-mice1
 [set color 34
  set size 0.65
  set erg-1 5 + random 10
  set shape "mouse"
  setxy 1 + random (max-pxcor - 1) 2 + random (max-pycor - 2)
 ]
end

to add-mice2
  create-animal2s number-of-mice2
 [set color 37
  set size 0.75
  set erg-2 5 + random 10
  set shape "mouse"
  setxy 1 + random (max-pxcor - 1) 2 + random (max-pycor - 2)
 ]
end
;;;;;;;;;;;;;;;;;;;;;
;;   GO PROCEDURE  ;;
;;;;;;;;;;;;;;;;;;;;;

to go
 every 0.05[
  if ticks >= Years [stop]
  move
  feeding
  reproduce-2
  death
  find-running-avg
    tick
]
end

to move
  if any? animal1s [ask animal1s
                     [ifelse life-1 >= 2 + mouse1-lifespan * 3 [die] [set life-1 life-1 + 1]
                      right random 360
                       if [pcolor] of patch-at dx dy <= 79.5 and [pcolor] of patch-at dx dy >= 79  [fd 1 if ycor < 2 [set ycor 2] set erg-1 erg-1 - 1]
                      if erg-1 <= 0 [die]]]

  if any? animal2s [ask animal2s
                      [ifelse life-2 >= 2 + mouse2-lifespan * 3 [die] [set life-2 life-2 + 1]
                       right random 360
                       if [pcolor] of patch-at dx dy <= 79.5 and [pcolor] of patch-at dx dy >= 79  [fd 1 if ycor < 2 [set ycor 2] set erg-2 erg-2 - 1]
                       if erg-2 <= 0 [die]]]
end

to feeding
  (ifelse
    any? animal1s and not any? animal2s
    [feeding-1]

    any? animal2s and not any? animal1s
    [feeding-2]

    any? animal1s and any? animal2s
    [ifelse random 2 = 0
       [feeding-1 feeding-2]
       [feeding-2 feeding-1]]
    )
end

to feeding-1
 ask animal1s [
    if any? plant2s-here [
      let food one-of plant2s-here
      set erg-1 erg-1 + [erg-00] of food
      ask food [die]]]

  ask animal1s [
    if erg-1 > 20 [if random 100 < 20
      [hatch 1 [set erg-1 5 set life-1 0]
        set erg-1 erg-1 - 10]]]
end

to feeding-2
 ask animal2s [
    if any? plant2s-here [
      let food one-of plant2s-here
      set erg-2 erg-2 + [erg-00] of food
      ask food [die]]]

   ask animal2s [
    if erg-2 > 20 [if random 100 < 20
      [hatch 1 [set erg-2 5 set life-2 0]
      set erg-2 erg-2 - 10]]]
end

to reproduce-2
  if any? plant2s
    [ask plant2s
       [set num-seed-2 1 + random 2
        ask up-to-n-of num-seed-2 neighbors with [pcolor <= 79.5 and pcolor >= 79 and not any? plant1s-here and not any? plant2s-here]
           [sprout-plant2s 1
            [set shape "plant-1"
             set size 0.6 + random-float 0.4
             set erg-00 10]]
  ]]
end

to death

  ask plant2s
  [if random 100 < 30 [die]]  ;a mortality of 30%-50% is optimal
end

to find-running-avg  ;find the 5-year running averages
   (ifelse
    ticks < 10
     [set running-avg-list1 lput (count plant1s) running-avg-list1 set mean-total-1 mean running-avg-list1
      set running-avg-list2 lput (count plant2s) running-avg-list2 set mean-total-2 mean running-avg-list2

      set running-avg-lista1 lput (count animal1s) running-avg-lista1 set mean-total-a1 mean running-avg-lista1
      set running-avg-lista2 lput (count animal2s) running-avg-lista2 set mean-total-a2 mean running-avg-lista2]

     [set running-avg-list1 lput count plant1s running-avg-list1 set running-avg-list1 remove-item 0 running-avg-list1 set mean-total-1 mean running-avg-list1
      set running-avg-list2 lput count plant2s running-avg-list2 set running-avg-list2 remove-item 0 running-avg-list2 set mean-total-2 mean running-avg-list2

      set running-avg-lista1 lput count animal1s running-avg-lista1 set running-avg-lista1 remove-item 0 running-avg-lista1 set mean-total-a1 mean running-avg-lista1
      set running-avg-lista2 lput count animal2s running-avg-lista2 set running-avg-lista2 remove-item 0 running-avg-lista2 set mean-total-a2 mean running-avg-lista2])
end

to setup-legends
   create-legends 9

  ask legend 0
  [set shape "plant-1"
    set size 1
    setxy 6 0.6]

  ask legend 1
  [set shape "mouse"
    set color 34
    set size 0.9
    setxy 3 1]


  ask legend 2
  [set shape "mouse"
    set color 36
    set size 1
    setxy 9 1]

  ask legend 3
  [set shape "line"
    set color 8
    set size 12
    set heading 90
    setxy 6 1.5]

  ask legend 4
  [set shape "arrow-1"
    set color 136
    set size 1.5
    set heading -75
    setxy 4.5 0.75]

  ask legend 5
  [set shape "arrow-1"
    set color 136
    set size 1.5
    set heading 75
    setxy 7.5 0.75]

  ask legend 6
  [set shape "blank"
    set color 136
    set size 1.5
    set label "Mouse-2"
    set label-color 35
    set heading 75
    setxy 9 1]

  ask legend 7
  [set shape "blank"
    set color 136
    set size 1.5
    set label "Mouse-1"
    set label-color 33
    set heading 75
    setxy 3 1]

  ask legend 8
  [set shape "blank"
    set color 136
    set size 1
    set label "Both mouse species feed on the same type of plants."
    set label-color 0
    set heading 75
    setxy 10 0.2]
end

There are 5 versions of this model.

Uploaded by When Description Download
lin xiang over 1 year ago Update the plotting Download this version
lin xiang over 1 year ago Update the plotting Download this version
lin xiang about 2 years ago adjust the interface Download this version
lin xiang about 2 years ago adjust the interface Download this version
lin xiang about 2 years ago Initial upload Download this version

Attached files

File Type Description Last updated
Herbivory and Animal Interspecific Competition.png preview Preview for 'Herbivory and Animal Interspecific Competition' about 2 years ago, by lin xiang Download

This model does not have any ancestors.

This model does not have any descendants.
