Contraception Simulation R0

Contraception Simulation R0 preview image

1 collaborator

Rg_400x400 Ricardo Gonzalez (Author)

Tags

average_vs_median

Tagged by Ricardo Gonzalez about 2 years ago

contraception

Tagged by Ricardo Gonzalez about 2 years ago

nyt

Tagged by Ricardo Gonzalez about 2 years ago

population dynamics

Tagged by Ricardo Gonzalez about 2 years ago

Visible to everyone | Changeable by everyone
Model was written in NetLogo 6.2.2 • Viewed 178 times • Downloaded 11 times • Run 0 times
Download the 'Contraception Simulation R0' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;
;; Global variables.
;;
globals [count_OS0 delta_OS0 EAVG E1up]

;;
;; turtle/breed.
;;

;;
;; turtle/breed variables.
;;
turtles-own [
  MS  ;; mental state, MS = 1 if the agent tends to use correctly the tool, 0 otherwise
  OS  ;; observed state, OS = 1 if the tool has always been used correctly, 0 otherwise.
]

;;
;; setup.
;;

to setup
  clear-all
  reset-ticks
  setup-world
  setup-turtles
  ;; etc
end

;;
;; setup-world.
;;

to setup-world
  ask patches [ set pcolor green + 2]
end

;;
;; setup-turtles.
;;

to setup-turtles
  ;; Initialize global variables.

  ;; Create the turtles and set their initial states.
  create-turtles number_agents
  [ set shape "person"
    setxy random-xcor random-ycor]

  ;; Initial MS and OS.
  ask turtles
  [
    ifelse random 100 < S1
    [ set MS 1
      set color 9.9]
    [ set MS 0
      set color 0  ]
    set OS 1
  ]
  ;; Update counts.
  update-counts

set EAVG (S1 * E1 + (100 - S1) * E0) / 100
set delta_OS0 0
set E1up E1
end

;;
;; go.
;;

to go
  ;; Criteria to stop.
  if (ticks > number_ticks) [stop]
  if (count_OS0 = number_agents) [stop]

  ;; Otherwise do-things.

  ;; Update status.
  update-turtles

  ;; Update counts.
  update-counts

  ;; tick.
  tick
end

;;
;; update-turtles.
;;

to update-turtles
  ask turtles
  [ ;; update MS with LR0
    if MS = 0
    [
      if random 100 <= LR0
      [ set MS 1
        if OS = 0 [set color 25]
        if OS = 1 [set color 9.9]
      ]
    ]

    ;; update OS
    set E1up E1up * (100 - LR1) / 100
    if OS = 1
    [
      ifelse MS = 0
      [ if random 100 <= E0
        [set OS 0
        set color 15]
      ]
      [ if random 100 <= E1up
        [set OS 0
        set color 25]
      ]
    ]
  ]
end

to update-counts
  ;; Update counts.
  set delta_OS0 count turtles with [OS = 0] - count_OS0
  set count_OS0 count turtles with [OS = 0]
end

There are 4 versions of this model.

Uploaded by When Description Download
Ricardo Gonzalez about 2 years ago Adds learning rates Download this version
Ricardo Gonzalez about 2 years ago Corrects % error... Download this version

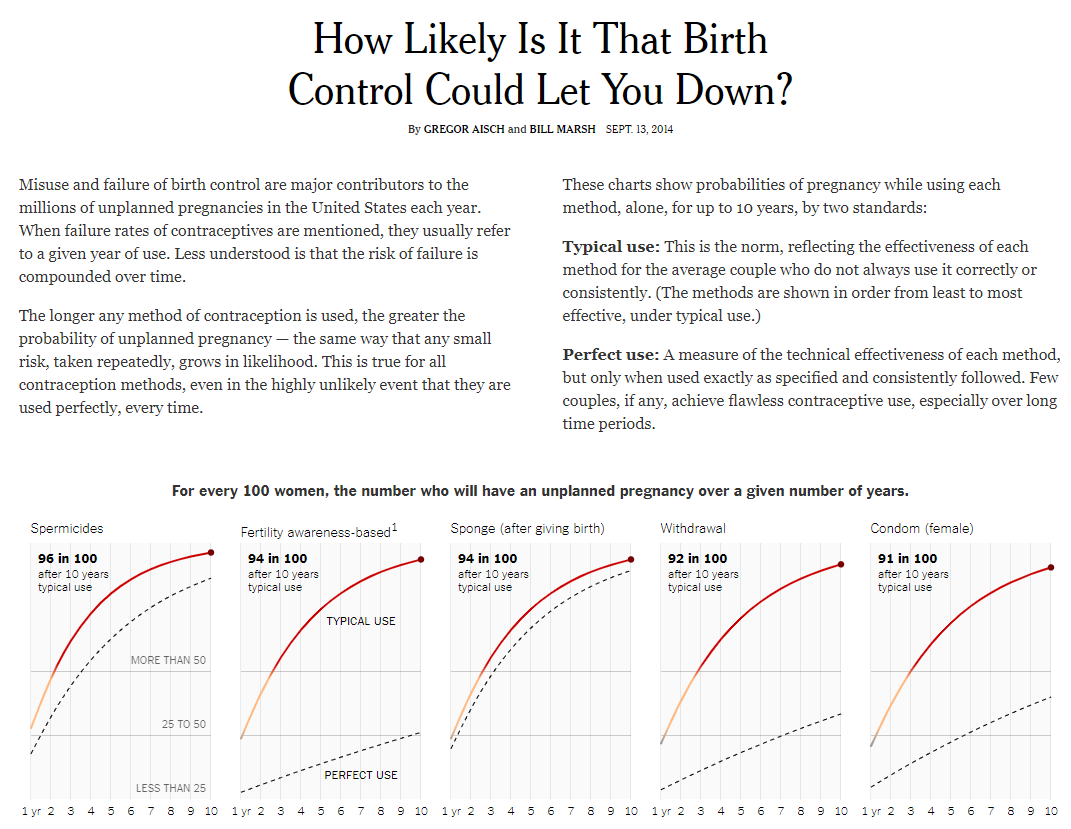

Ricardo Gonzalez about 2 years ago How Likely Is It That Birth Control Could Let You Down? Download this version
