Evolution and patchy resources
Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)
Model Information and Materials
Model Google Drive Link: https://drive.google.com/open?id=146kpnta3oq6AjH-rZXyzYzOIW5XWXw7f
Model GUI overview: https://drive.google.com/open?id=146kpnta3oq6AjH-rZXyzYzOIW5XWXw7f
References and Citation
Model elements based on:
Pepper, J. W., & Smuts, B. (2001). Agent-based modeling of multilevel selection: The evolution of feeding restraint as a case study. Natural Resources and Environmental Issues, 8, 57–68. Retrieved from http://digitalcommons.usu.edu/cgi/viewcontent.cgi?article=1340&context=nrei
Pepper, J. W., & Smuts, B. B. (2002). A mechanism for the evolution of altruism among nonkin: Positive assortment through environmental feedback. American Naturalist, 160(2), 205–213. http://doi.org/10.1086/341018
For this model:
- Hanisch, S. (2017). Evolution and patchy resource. GlobalESD NetLogo Models. http://NetLogo.GlobalESD.org
For the NetLogo-Software:
- Wilensky, U. (1999). NetLogo. http://ccl.northwestern.edu/netlogo/. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.
Licence
This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License. http://creativecommons.org/licenses/by-nc-sa/4.0/
Comments and Questions
breed [plants plant] breed [foragers forager] foragers-own [eattype energy mypatch] patches-own [ seedpatch? seedpatchnum foodpatch? foodpatchnum assortindex resource] globals [patch-width gap foodpatchlist growth-rate carryingcap ;;maxpop costchild ] to setup clear-all set patch-width Size-Resource-Areas set gap Distance-Resource-Areas set growth-rate 0.2 set carryingcap 10 ;;set maxpop 400 setup-plants setup-frgs set costchild 10 reset-ticks end to setup-plants foreach [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13] [ x -> foreach [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13] [ y -> ask patches with [ pxcor = ( gap / 2 ) + (x * ( gap + (patch-width ))) and pycor = ( gap / 2 ) + (y * (gap + (patch-width))) ] [set seedpatch? true sprout-plants 1 [set hidden? true] set seedpatchnum [who] of plants-here ] ] ] ask patches with [seedpatch? = true] [ let localpatch (patch-set self patches in-radius patch-width) ask localpatch [ set resource carryingcap if resource = 0 [set resource 0.1] set pcolor scale-color brown resource 0 (carryingcap + 10) set foodpatch? true set foodpatchnum [seedpatchnum] of localpatch with [seedpatch? = true] ] ] set foodpatchlist ( [who] of plants ) end to setup-frgs ask n-of (Number-Agents * Percent-Sustainables / 100) patches with [foodpatch? = true] [sprout-foragers 1 [ set eattype "low" set color green set mypatch [foodpatchnum] of patch-here ] ] ask n-of (Number-Agents * ( 100 - Percent-Sustainables) / 100) patches with [foodpatch? = true] [sprout-foragers 1 [ set eattype "high" set color red set mypatch [foodpatchnum] of patch-here ] ] ask foragers [ if Agents = "People" [ set shape "person"] if Agents = "Bacteria" [ set shape "bacteria" ] if Agents = "Cows" [ set shape "cow"] if Agents = "Cells" [ set shape "cell"] set size 2 set energy Living-costs] end to go ask foragers [ if Agents = "People" [ set shape "person"] if Agents = "Bacteria" [ set shape "bacteria" ] if Agents = "Cows" [ set shape "cow"] if Agents = "Cells" [ set shape "cell"]] move eat if Evolution? [reproduce] expend-energy if Evolution? [death] ask patches with [foodpatch? = true] [regrow recolor] tick end to move ask foragers [let local ( patch-set patch-here ( patches in-radius 2 with [not any? foragers-here] )) if local != nobody [let local-max ( max-one-of local [resource] ) ifelse local-max != nobody and [resource] of local-max >= Living-costs [face local-max move-to local-max set mypatch [foodpatchnum] of patch-here ] [if any? ( patches in-radius 2 with [not any? foragers-here] ) [move-to one-of ( patches in-radius 2 with [not any? foragers-here] )]] ] ] end to eat ask foragers [ifelse eattype = "low" [ set energy energy + ([resource] of patch-here * 0.5) ask patch-here [set resource resource / 2]] [ set energy energy + ([resource] of patch-here * 0.99) ask patch-here [set resource resource - (0.99 * resource) ]] ] end to reproduce ask foragers [ let birthrate 0.0005 * energy if energy > costchild and random-float 1 < birthrate [ let destination one-of neighbors with [not any? turtles-here] if destination != nobody [ hatch 1 [ move-to destination mutate set energy costchild ] set energy (energy - costchild) ] ] ] end to mutate if random-float 1 < Mutation-rate [ifelse eattype = "low" [set eattype "high"] [set eattype "low"] update-color ] end to expend-energy ask foragers [set energy energy - Living-costs] end to death ask foragers [if energy <= 0 [die] ] end to regrow ifelse resource >= 0.1 [set resource precision (resource + ((growth-rate * resource) * (1 - (resource / carryingcap )))) 3] [set resource 0.1] end to recolor ;; patch set pcolor scale-color brown resource 0 (carryingcap + 10) end to update-color ifelse eattype = "low" [set color green] [set color red] end to calcassort foreach (foodpatchlist) [ x -> let foodpatch patches with [foodpatchnum = x] let lowfrgs count foragers with [eattype = "low" and mypatch = x] let frgs count foragers with [ mypatch = x] ask patches with [seedpatch? = true and seedpatchnum = x] [ set assortindex (lowfrgs / frgs) ] ] end ;;;;;;;;;;;;;;;;;;reporters;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; to-report avenhigh report sum [energy] of foragers with [eattype = "high"] / count foragers with [eattype = "high"] end to-report avenlow report sum [energy] of foragers with [eattype = "low"] / count foragers with [eattype = "low"] end to-report gensim-pop report ( count patches with [seedpatch? = true] - 1) / (count foragers - 1) end to-report avassort report sum [assortindex] of patches with [seedpatch? = true] / count patches with [seedpatch? = true] end
There is only one version of this model, created over 4 years ago by Susan Hanisch.
Attached files
File | Type | Description | Last updated | |
---|---|---|---|---|

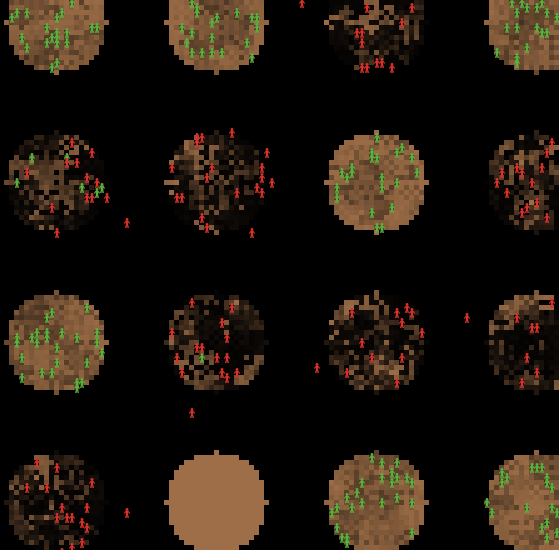

Evolution and patchy resources.png | preview | Preview for 'Evolution and patchy resources' | over 4 years ago, by Susan Hanisch | Download |
This model does not have any ancestors.
This model does not have any descendants.
