MLS demo 3.2

1 collaborator

Getting started

You can open the model in your browser simply by clicking, although it’ll be in a window within Canvas so might be a bit tight.

If you right click and ‘Save As…’, you can download the .html file to your hard drive, then open the saved file. (It should open with your default browser.)

You can also download the .nlogo file, download NetLogo onto your computer, and use it to open the model file (.nlogo).

Running the model

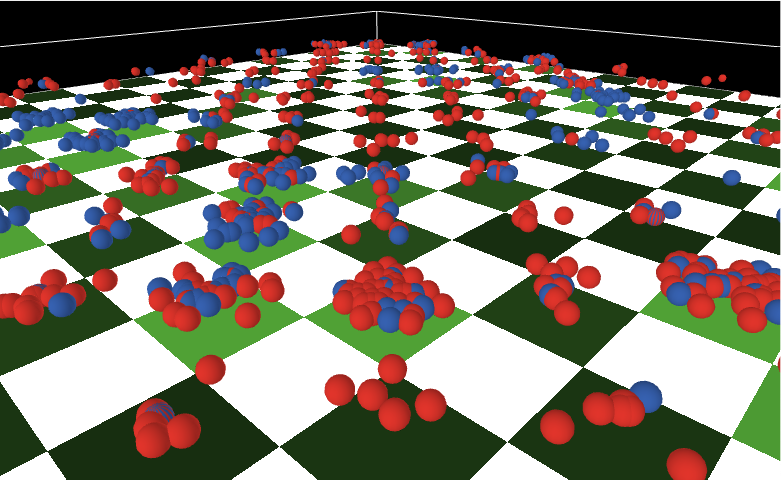

Starting/stopping. Running the model requires that you click ‘Setup’, then ‘Go’ (purple buttons on the right-hand side of the interface). You should see the 2D model view (with little simulated dots cooperating or not) and plots start changing. Click ‘Go’ again at any point to pause the model (it stops after it completes the current step). Note the slider at the very top, which allows you to control the speed of the model. If you are getting frustrated with how it’s taking, drag that slider all the way right and things will speed up (your computer willing).

Default populations. The default populations are a random distribution of altruists (A) and cheaters (C). You can monitor populations visually, and the graphs show (1) the frequency of the A allele, as well as (2) the balance of variance among groups and variance within groups (the purple line in graph 2). (When the purple line is above the black line, variance among groups > variance within groups.)

Invasion experiments. After you have clicked ‘Setup’ (before or after clicking ‘Go’, up to you), clicking either ‘invades’ button will instantly convert all members of the population except for one into the opposite genotype, so that you can more easily see what happens to that genotype. The invader’s habitat will flash blue/red (for A or C, respectively) to make it easier to find them visually. For example, ‘Altruists invade’ will convert the entire population to C, and you will see a lone A highlighted for awhile, until it goes extinct or is clearly spreading.

As with all experiments, remember to replicate each test multiple times—these models have randomness built in, so one failed invasion doesn’t mean much on its own.

Parameters (aka ‘Independent Variables’). You are free to vary any parameters you can find if you would like, but the two on the left are the most straightforward and likely to tell you something interested about multilevel selection. To change a parameter value before or during an experiment, simply click the slider and drag right or left.

Note that mutation_rate is set to zero by default, and should probably remain zero for invasion experiments.

mutationrate = the probability that a parent and offspring have a different phenotype. migrationrate = the probability that an individual will move to a neighboring group between rounds.

Model rules

Habitats. All individuals occupy a single habitat at any one time. Habitats are separated by uninhabitable areas (white squares). Habitats have their own local carrying capacity (K), which determines how many individuals can live in that square before lack of resources stops their reproduction. Black squares have relatively low K, whereas greener squares have higher K (can support more individuals; so green = high quality). When a group reaches K and can no longer reproduce, the square will flash brown.

After a certain number of rounds (‘duration,’ which is 10 by default), patches ‘reset’ and all individuals disperse at random to start reproducing/gathering resources again. (This represents seasonality, disturbance, resource exhaustion, etc., and is vaguely based on social insect and microbial group life cycles.) The more of a genotype there is just before patch reset, the more chances they will have to successfully colonize new patches immediately after reset.

Phenotypes. An Altruist (A) individual divides its effort roughly equally into (1) acquiring resources that will be shared with all group members (increasing the carrying capacity (K) of their habitat), and (2) reproducing asexually. In contrast, Cheaters (C) do not attempt to secure resources (never increase K), and instead attempt reproduction every chance they get. Neither phenotype can reproduce once their group size exceeds K.
