Green Stormwater Infrastructure Social Spatial Adoption (G-SSA) Applied Model

Green Stormwater Infrastructure Social Spatial Adoption (G-SSA) Applied Model preview image

1 collaborator

Default-person Seth Brown (Author)

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by everyone
Model was written in NetLogo 5.3.1 • Viewed 158 times • Downloaded 14 times • Run 0 times
Download the 'Green Stormwater Infrastructure Social Spatial Adoption (G-SSA) Applied Model' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

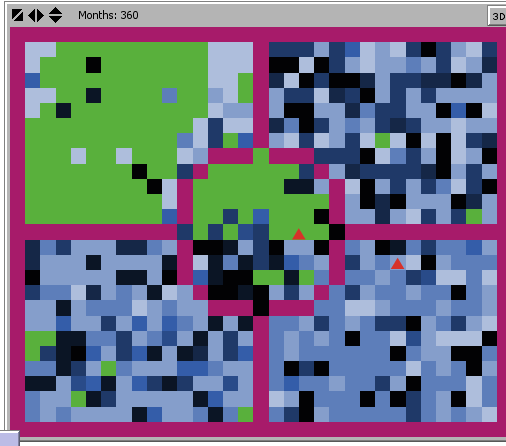

Click to Run Model

breed [investors investor]
breed [public-outreach-specialists public-outreach-specialist]
breed [lowest-opinions lowest-opinion]
breed [low-opinions low-opinion]
breed [lower-opinions lower-opinion]
breed [moderate-opinions moderate-opinion]
breed [higher-opinions higher-opinion]
breed [highest-opinions highest-opinion]

patches-own [
  favorability-level?         ;; indicates level of favorability for cell, -2 for unfavorable, -1 for
                              ;; less favorable, 0 for neutral, 1 for more favorable, 2 for favorable
  favorable-neighbors  ;; counts how many neighboring cells make a favorable match
near-patches
sector  ;; defines the part of the city (1-5)
landuse ;; set's landuse
parcel-size ;; parcel size
impervious-cover
impervious-acreage
ERUs
stormwater-fee
innovation-index
annual-income
annual-fee
annual-max-discount
gallons-runoff-generated
in-lieu-fee
annual-max-credit
BMP-number
BMP-type
BMP-cap-cost
property-value
BMP-footprint
opportunity-cost
OM-BMP-cost
transaction-cost
total-BMP-cost
credit-revenue
payback
constraints-index
wealth-index
pbc
public-outreach-agent-contact
sia-initial
sia-updated
U-initial
U-updated
sia-initial-baseline
sia-initial-income
sia-initial-sector
sia-innovation
green-infrastructure-practiced
acceptance-decision-score
green-infrastructure-decision
implementation-decision-score
impervious-cost
sia-neighboring
sia-plus-east-value
sia-plus-west-value
sia-plus-north-value
sia-plus-south-value
sia-plus-southeast-value
sia-plus-northeast-value
sia-plus-southwest-value
sia-plus-northwest-value
landuse-type
credit-revenue-generated
cluster-number
isolated-adopter
]

to setup
  clear-all
  ask patches with[pxcor < 0 and pycor > 0][set sector 1]
  ask patches with[pxcor > 0 and pycor > 0][set sector 2]
  ask patches with[pxcor < 0 and pycor < 0][set sector 3]
  ask patches with[pxcor > 0 and pycor < 0][set sector 4]
  ask patches with [pxcor = 0 or pycor = 0] [set pcolor 125]
  ask patches with [pxcor > 15] [set pcolor 125]
  ask patches with [pxcor < -15] [set pcolor 125]
  ask patches with [pycor > 12] [set pcolor 125]
  ask patches with [pycor < -12] [set pcolor 125]
  ask patches with [pcolor = 125] [set sector 0]
  ask patch 0 0 [ask patches in-radius 6 [set sector 0]]
  ask patch 0 0 [ask patches in-radius 6 [set pcolor 125]]
  ask patch 0 0 [ask patches in-radius 5 [set sector 5]]
  set muni-demand 0
;  set muni-demand 50000
  set development-demand 0
  set demand-supply-ratio 0
  set indexed-credit-price credit-price
  establish-landuse-patches
  assign-landuse-type
  assign-parcel-size
  assign-impervious-cover
  determine-impervious-acreage
  determine-ERUs
  determine-stormwater-fee
  set-innovation-by-sector
  set-income-by-sector
  assign-landuse-colors
;  sprout-early-adopters
  identify-early-adopters
  determine-annual-stormwater-fee
  determine-annual-max-fee-discount
  determine-gallons-runoff-generated
  determine-in-lieu-fee
  determine-BMP-type
  assign-BMP-type
  determine-captial-cost-of-BMP
  determine-property-values
  estimate-BMP-footprint
  determine-opportunity-cost-of-BMP
  determine-other-BMP-costs
  credit-revenue-potential
  determine-pbc
  determine-payback
  establish-initial-sia-and-uncertainty
  set-property-owner-attributes
  create-outreach-agents
  determine-clusters
  reset-ticks
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;GO ROUTINES;;;;;;;;;;;;;;;;;;;;;;;

to go
  if ticks >= 360 [ stop ]
  relative-algorithm-initial
  relative-algorithm-random
;  neighbors-test
  public-outreach-specialists-move
  determine-clusters
  property-owner-decision-start-point
  determine-muni-demand
  determine-development-demand
  determine-supply-demand-ratio
  determine-indexed-credit-price
  sia-neighboring-plus-setup
  sia-neighboring-plus-add
  sia-neighboring-plus-adjust
  credit-revenue-potential
  determine-payback
  identify-isolated-adopters
;  see-RA-work
;  see-RA-work-turtles
;  see-RA-work-turtles-patches
;  assign-landuse-colors-invested-parcels
  tick
end

to go-RA-work
  if ticks >= 360 [ stop ];
  relative-algorithm-initial
;  relative-algorithm-random
;  neighbors-test
  public-outreach-specialists-move
  property-owner-decision-start-point
  determine-muni-demand
  determine-development-demand
  determine-supply-demand-ratio
  determine-indexed-credit-price
  sia-neighboring-plus-setup
  sia-neighboring-plus-add
  sia-neighboring-plus-adjust
  credit-revenue-potential
  determine-payback
  see-RA-work
;  see-RA-work-turtles
;  see-RA-work-turtles-patches
;  assign-landuse-colors-invested-parcels
  tick
end

to go-RA
  relative-algorithm-initial
  relative-algorithm-random
  tick
end

to go-decide
  property-owner-decision-start-point
  tick
end

;to go-neighbors
;  neighbors-test
;  tick
;end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to highlight-sectors
ask patches [
  if sector = 0 [set pcolor 125]
  if sector = 1 [set pcolor 134]
  if sector = 2 [set pcolor 75]
  if sector = 3 [set pcolor 15]
  if sector = 4 [set pcolor 95]
  if sector = 5 [set pcolor 45]
   ]
end

to establish-landuse-patches
  repeat 10 [
;Establish Sector 5 - From Ward 2
let sector-5-LDR (0.062 * count patches with [sector = 5])
ask n-of sector-5-LDR patches with [sector = 5] [set landuse "LDR"]
let sector-5-LMDR (0.227 * count patches with [sector = 5])
ask n-of sector-5-LMDR patches with [sector = 5] [set landuse "LMDR"]
let sector-5-MDR (0.075 * count patches with [sector = 5])
ask n-of sector-5-MDR patches with [sector = 5] [set landuse "MDR"]
let sector-5-HDR (0.051 * count patches with [sector = 5])
ask n-of sector-5-HDR patches with [sector = 5] [set landuse "HDR"]
let sector-5-MU (0.032 * count patches with [sector = 5])
ask n-of sector-5-MU patches with [sector = 5] [set landuse "MU"]
let sector-5-I (0.003 * count patches with [sector = 5])
ask n-of sector-5-I patches with [sector = 5] [set landuse "I"]
let sector-5-O (0.205 * count patches with [sector = 5])
ask n-of sector-5-O patches with [sector = 5] [set landuse "O"]
let sector-5-C (0.140 * count patches with [sector = 5])
ask n-of sector-5-C patches with [sector = 5] [set landuse "C"]
let sector-5-S (0.203 * count patches with [sector = 5])
ask n-of sector-5-S patches with [sector = 5] [set landuse "S"]


;Establish Sector 4 - From Ward 8
let sector-4-LDR (0.148 * count patches with [sector = 4])
ask n-of sector-4-LDR patches with [sector = 4] [set landuse "LDR"]
let sector-4-LMDR (0.258 * count patches with [sector = 4])
ask n-of sector-4-LMDR patches with [sector = 4] [set landuse "LMDR"]
let sector-4-MDR (0.385 * count patches with [sector = 4])
ask n-of sector-4-MDR patches with [sector = 4] [set landuse "MDR"]
let sector-4-HDR (0.030 * count patches with [sector = 4])
ask n-of sector-4-HDR patches with [sector = 4] [set landuse "HDR"]
let sector-4-MU (0.017 * count patches with [sector = 4])
ask n-of sector-4-MU patches with [sector = 4] [set landuse "MU"]
let sector-4-I (0.004 * count patches with [sector = 4])
ask n-of sector-4-I patches with [sector = 4] [set landuse "I"]
let sector-4-O (0.008 * count patches with [sector = 4])
ask n-of sector-4-O patches with [sector = 4] [set landuse "O"]
let sector-4-C (0.077 * count patches with [sector = 4])
ask n-of sector-4-C patches with [sector = 4] [set landuse "C"]
let sector-4-S (0.072 * count patches with [sector = 4])
ask n-of sector-4-S patches with [sector = 4] [set landuse "S"]


;Establish Sector 1 - From Ward 3
let sector-1-LDR (0.598 * count patches with [sector = 1])
ask n-of sector-1-LDR patches with [sector = 1] [set landuse "LDR"]
let sector-1-LMDR (0.084 * count patches with [sector = 1])
ask n-of sector-1-LMDR patches with [sector = 1] [set landuse "LMDR"]
let sector-1-MDR (0.056 * count patches with [sector = 1])
ask n-of sector-1-MDR patches with [sector = 1] [set landuse "MDR"]
let sector-1-HDR (0.033 * count patches with [sector = 1])
ask n-of sector-1-HDR patches with [sector = 1] [set landuse "HDR"]
let sector-1-MU (0.001 * count patches with [sector = 1])
ask n-of sector-1-MU patches with [sector = 1] [set landuse "MU"]
let sector-1-I (0.000 * count patches with [sector = 1])
ask n-of sector-1-I patches with [sector = 1] [set landuse "I"]
let sector-1-O (0.013 * count patches with [sector = 1])
ask n-of sector-1-O patches with [sector = 1] [set landuse "O"]
let sector-1-C (0.041 * count patches with [sector = 1])
ask n-of sector-1-C patches with [sector = 1] [set landuse "C"]
let sector-1-S (0.173 * count patches with [sector = 1])
ask n-of sector-1-S patches with [sector = 1] [set landuse "S"]

;Establish Sector 2 - From Ward 5
let sector-2-LDR (0.243 * count patches with [sector = 2])
ask n-of sector-2-LDR patches with [sector = 2] [set landuse "LDR"]
let sector-2-LMDR (0.279 * count patches with [sector = 2])
ask n-of sector-2-LMDR patches with [sector = 2] [set landuse "LMDR"]
let sector-2-MDR (0.035 * count patches with [sector = 2])
ask n-of sector-2-MDR patches with [sector = 2] [set landuse "MDR"]
let sector-2-HDR (0.009 * count patches with [sector = 2])
ask n-of sector-2-HDR patches with [sector = 2] [set landuse "HDR"]
let sector-2-MU (0.000 * count patches with [sector = 2])
ask n-of sector-2-MU patches with [sector = 2] [set landuse "MU"]
let sector-2-I (0.096 * count patches with [sector = 2])
ask n-of sector-2-I patches with [sector = 2] [set landuse "I"]
let sector-2-O (0.006 * count patches with [sector = 2])
ask n-of sector-2-O patches with [sector = 2] [set landuse "O"]
let sector-2-C (0.120 * count patches with [sector = 2])
ask n-of sector-2-C patches with [sector = 2] [set landuse "C"]
let sector-2-S (0.177 * count patches with [sector = 2])
ask n-of sector-2-S patches with [sector = 2] [set landuse "S"]

;Establish Sector 3 - From Ward 6
let sector-3-LDR (0.007 * count patches with [sector = 3])
ask n-of sector-3-LDR patches with [sector = 3] [set landuse "LDR"]
let sector-3-LMDR (0.447 * count patches with [sector = 3])
ask n-of sector-3-LMDR patches with [sector = 3] [set landuse "LMDR"]
let sector-3-MDR (0.127 * count patches with [sector = 3])
ask n-of sector-3-MDR patches with [sector = 3] [set landuse "MDR"]
let sector-3-HDR (0.042 * count patches with [sector = 3])
ask n-of sector-3-HDR patches with [sector = 3] [set landuse "HDR"]
let sector-3-MU (0.013 * count patches with [sector = 3])
ask n-of sector-3-MU patches with [sector = 3] [set landuse "MU"]
let sector-3-I (0.038 * count patches with [sector = 3])
ask n-of sector-3-I patches with [sector = 3] [set landuse "I"]
let sector-3-O (0.070 * count patches with [sector = 3])
ask n-of sector-3-O patches with [sector = 3] [set landuse "O"]
let sector-3-C (0.202 * count patches with [sector = 3])
ask n-of sector-3-C patches with [sector = 3] [set landuse "C"]
let sector-3-S (0.054 * count patches with [sector = 3])
ask n-of sector-3-S patches with [sector = 3] [set landuse "S"]
  ]
end

;assign parcel size by land use

to assign-parcel-size
ask patches [
  if landuse = "LDR" [set parcel-size exp (random-normal -1.19 1.25)]
  if landuse = "LMDR" [set parcel-size exp (random-normal -1.51 1.21)]
  if landuse = "MDR" [set parcel-size exp (random-normal -1.21 1.38)]
  if landuse = "HDR" [set parcel-size exp (random-normal -0.60 1.07)]
  if landuse = "MU" [set parcel-size exp (random-normal -0.27 1.34)]
  if landuse = "I" [set parcel-size exp (random-normal -0.59 1.22)]
  if landuse = "O" [set parcel-size exp (random-normal -1.39 1.15)]
  if landuse = "C" [set parcel-size exp (random-normal -2.11 1.54)]
  if landuse = "S" [set parcel-size exp (random-normal -0.81 1.68)]
  if parcel-size <= 0 [set parcel-size 0.001]
  set parcel-size precision parcel-size 2
  ]
end

;assign parcel size by land use

to assign-impervious-cover
ask patches [
;  if landuse = "LDR" [set impervious-cover random-normal 21.2 3.49]
;  if landuse = "LMDR" [set impervious-cover random-normal 27.8 2.88]
;  if landuse = "MDR" [set impervious-cover random-normal 32.6 5.06]
;  if landuse = "HDR" [set impervious-cover random-normal 44.4 8.49]
;  if landuse = "MU" [set impervious-cover random-normal 44.4 8.49]
;  if landuse = "I" [set impervious-cover random-normal 72.2 9.59]
;  if landuse = "O" [set impervious-cover random-normal 72.2 9.59]
;  if landuse = "C" [set impervious-cover random-normal 72.2 9.59]
;  if landuse = "S" [set impervious-cover random-normal 34.4 18.9]
  if landuse = "LDR" [set impervious-cover random-normal 21.2 7.21]
  if landuse = "LMDR" [set impervious-cover random-normal 27.8 9.45]
  if landuse = "MDR" [set impervious-cover random-normal 32.6 11.08]
  if landuse = "HDR" [set impervious-cover random-normal 44.4 15.10]
  if landuse = "MU" [set impervious-cover random-normal 80 27.2]
  if landuse = "I" [set impervious-cover random-normal 72.2 24.55]
  if landuse = "O" [set impervious-cover random-normal 72.2 24.55]
  if landuse = "C" [set impervious-cover random-normal 72.2 24.55]
  if landuse = "S" [set impervious-cover random-normal 34.4 11.70]
  if impervious-cover <= 0 [set impervious-cover 0.01]
  set impervious-cover precision impervious-cover 2
  ]
end

to determine-impervious-acreage
  ask patches [
    set impervious-acreage impervious-cover / 100 * parcel-size
    set impervious-acreage precision impervious-acreage 2
  ]
end

;determine ERUs

to determine-ERUs
  ask patches [
    if landuse = "S" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000]
    if landuse = "I" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000]
    if landuse = "O" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000]
    if landuse = "C" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000]
    if landuse = "HDR" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000]
    if landuse = "MU" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000]
    if landuse = "MDR" [set ERUs impervious-cover / 100 * parcel-size * 43560 / 1000]
    if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 < 600 [set ERUs 0.6]
    if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 600 and parcel-size * impervious-cover / 100 < 2000 [set ERUs 1]
    if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 2000 and parcel-size * impervious-cover / 100 < 3000 [set ERUs 2.4]
    if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 3000 and parcel-size * impervious-cover / 100 < 7000 [set ERUs 3.8]
    if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 7000 and parcel-size * impervious-cover / 100 < 11000 [set ERUs 8.6]
    if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 11000 [set ERUs 13.5]
    if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 < 600 [set ERUs 0.6]
    if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 600 and parcel-size * impervious-cover / 100 < 2000 [set ERUs 1]
    if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 2000 and parcel-size * impervious-cover / 100 < 3000 [set ERUs 2.4]
    if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 3000 and parcel-size * impervious-cover / 100 < 7000 [set ERUs 3.8]
    if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 7000 and parcel-size * impervious-cover / 100 < 11000 [set ERUs 8.6]
    if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 11000 [set ERUs 13.5]
    set ERUs precision ERUs 1
  ]
end

;determine monthly stormwater fee

to determine-stormwater-fee
  ask patches [
    if landuse = "S" [set stormwater-fee ERUrate * ERUs]
    if landuse = "I" [set stormwater-fee ERUrate * ERUs]
    if landuse = "O" [set stormwater-fee ERUrate * ERUs]
    if landuse = "C" [set stormwater-fee ERUrate * ERUs]
    if landuse = "HDR" [set stormwater-fee ERUrate * ERUs]
    if landuse = "MU" [set stormwater-fee ERUrate * ERUs]
    if landuse = "MDR" [set stormwater-fee ERUrate * ERUs]
    if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 < 600 [set stormwater-fee ERUs * ERUrate]
    if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 600 and parcel-size * impervious-cover / 100 < 2000 [set stormwater-fee ERUs * ERUrate]
    if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 2000 and parcel-size * impervious-cover / 100 < 3000 [set stormwater-fee ERUs * ERUrate]
    if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 3000 and parcel-size * impervious-cover / 100 < 7000 [set stormwater-fee ERUs * ERUrate]
    if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 7000 and parcel-size * impervious-cover / 100 < 11000 [set stormwater-fee ERUs * ERUrate]
    if landuse = "LMDR" and parcel-size * 43560 * impervious-cover / 100 > 11000 [set stormwater-fee ERUs * ERUrate]
    if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 < 600 [set stormwater-fee ERUs * ERUrate]
    if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 600 and parcel-size * impervious-cover / 100 < 2000 [set stormwater-fee ERUs * ERUrate]
    if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 2000 and parcel-size * impervious-cover / 100 < 3000 [set stormwater-fee ERUs * ERUrate]
    if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 3000 and parcel-size * impervious-cover / 100 < 7000 [set stormwater-fee ERUs * ERUrate]
    if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 7000 and parcel-size * impervious-cover / 100 < 11000 [set stormwater-fee ERUs * ERUrate]
    if landuse = "LDR" and parcel-size * 43560 * impervious-cover / 100 > 11000 [set stormwater-fee ERUs * ERUrate]
    set stormwater-fee precision stormwater-fee 2
  ]
end

to determine-clusters
  ask patches with [pcolor = 55]
   [
  if count neighbors with [ pcolor = 55 ] = 0
  [set cluster-number 0.111]
  if count neighbors with [ pcolor = 55 ] = 1
  [set cluster-number 0.222]
  if count neighbors with [ pcolor = 55 ] = 2
  [set cluster-number 0.333]
  if count neighbors with [ pcolor = 55 ] = 3
  [set cluster-number 0.444]
  if count neighbors with [ pcolor = 55 ] = 4
  [set cluster-number 0.555]
  if count neighbors with [ pcolor = 55 ] = 5
  [set cluster-number 0.666]
  if count neighbors with [ pcolor = 55 ] = 6
  [set cluster-number 0.777]
  if count neighbors with [ pcolor = 55 ] = 7
  [set cluster-number 0.888]
  if count neighbors with [ pcolor = 55 ] = 8
  [set cluster-number 1]
  ]
end

to determine-annual-stormwater-fee
  ask patches [
        set annual-fee stormwater-fee * 12
    set annual-fee precision annual-fee 2
  ]
end

to determine-annual-max-fee-discount
  ask patches
  [set annual-max-discount  12 * (rebate-amount * stormwater-fee)]
  ask patches
  [set annual-max-discount precision annual-max-discount 2]
end

to determine-gallons-runoff-generated
  ask patches
;  [set gallons-runoff-generated impervious-cover / 100 * parcel-size * 43560 * 144 * 1.2 * 0.004329 * 0.95]
  [set gallons-runoff-generated impervious-cover / 100 * parcel-size * 43560 * 1.2 / 12 * 7.48 * 0.95]
  ask patches
  [set gallons-runoff-generated precision gallons-runoff-generated 0]
end

to determine-in-lieu-fee
  ask patches [
    set in-lieu-fee 1.2 / 12 * (impervious-cover) / 100 * (parcel-size) * 43560 * 7.48 * 0.95 * 3.50
    set in-lieu-fee precision in-lieu-fee 2
;    set annual-max-credit 2.14 * ERUs * 12
;    set annual-max-credit precision annual-max-credit 2
  ]
end

to determine-BMP-type
  ask patches[
    if landuse = "I" [set BMP-number random 2]
    if landuse = "O" [set BMP-number random 2]
    if landuse = "C" [set BMP-number random 2]
    if landuse = "HDR" [set BMP-number random 2]
    if landuse = "MU" [set BMP-number random 2]
    if landuse = "LDR" [set BMP-number random 3 + 2]
    if landuse = "LMDR" [set BMP-number random 3 + 2]
    if landuse = "S" [set BMP-number random 3 + 2]
    if landuse = "MDR" [set BMP-number random 1 + 5]
  ]
end

  ;assign BMP type by BMP number (set above) for DDOE BMP Types 3.2 (green roof), 3.3 (rainwater harvesting),
  ;3.4 (impervious surface disconnection), 3.5 (permeable pavement), 3.6 (bioretention), 3.8 (infiltration/planter),
  ;3.9 (open channels - bioswales)

to assign-BMP-type
    ask patches
    with [BMP-number = 0] [set BMP-type "Green Roof"]
    ask patches
    with [BMP-number = 1] [set BMP-type "Rainwater Harvesting"]
    ask patches
    with [BMP-number = 2] [set BMP-type "Permeable Pavement"]
    ask patches
    with [BMP-number = 3] [set BMP-type "Bioswale"]
    ask patches
    with [BMP-number = 4] [set BMP-type "Bioretention"]
    ask patches
    with [BMP-number = 5] [set BMP-type "Downspout Disconnection"]
    ask patches
    with [BMP-number = 6] [set BMP-type "Flow-Through Planter"]
end


;assign costs by BMP type

to determine-captial-cost-of-BMP
  ask patches[
    if landuse-type = "non-residential" and BMP-number = 0 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 43560 * 1.0 * greenroofcost-Non-Res]
    if landuse-type = "non-residential" and BMP-number = 1 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 43560 * 1.0 * cisterncost-Non-Res]
    if landuse-type = "non-residential" and BMP-number = 2 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 43560 * 1.0 * permpavecost-Non-Res]
    if landuse-type = "non-residential" and BMP-number = 3 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * bioswalecost-Non-Res]
    if landuse-type = "non-residential" and BMP-number = 4 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * bioretentioncost-Non-Res]
    if landuse-type = "non-residential" and BMP-number = 5 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * downspoutcost-Non-Res]
    if landuse-type = "non-residential"and BMP-number = 6 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * plantercost-Non-Res]
    if landuse-type = "residential" and BMP-number = 0 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 43560 * 1.0 * greenroofcost-Res]
    if landuse-type = "residential" and BMP-number = 1 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 43560 * 1.0 * cisterncost-Res]
    if landuse-type = "residential" and BMP-number = 2 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 43560 * 1.0 * permpavecost-Res]
    if landuse-type = "residential" and BMP-number = 3 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * bioswalecost-Res]
    if landuse-type = "residential" and BMP-number = 4 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * bioretentioncost-Res]
    if landuse-type = "residential" and BMP-number = 5 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * downspoutcost-Res]
    if landuse-type = "residential"and BMP-number = 6 [set BMP-cap-cost impervious-cover / 100 * parcel-size * 1.0 * 43560 * plantercost-Res]
    set BMP-cap-cost precision BMP-cap-cost 2
  ]
end

to determine-property-values
;for LDR
ask patches with [sector = 5 and landuse = "LDR"]
  [set property-value 956.61 * parcel-size * 43560]
ask patches with [sector = 1 and landuse = "LDR"]
  [set property-value 738.49 * parcel-size * 43560]
ask patches with [sector = 2 and landuse = "LDR"]
  [set property-value 328.05 * parcel-size * 43560]
ask patches with [sector = 3 and landuse = "LDR"]
  [set property-value 484.00 * parcel-size * 43560]
ask patches with [sector = 4 and landuse = "LDR"]
  [set property-value 154.97 * parcel-size * 43560]
;for LMDR
ask patches with [sector = 5 and landuse = "LMDR"]
  [set property-value 956.61 * parcel-size * 43560]
ask patches with [sector = 1 and landuse = "LMDR"]
  [set property-value 738.49 * parcel-size * 43560]
ask patches with [sector = 2 and landuse = "LMDR"]
  [set property-value 328.05 * parcel-size * 43560]
ask patches with [sector = 3 and landuse = "LMDR"]
  [set property-value 484.00 * parcel-size * 43560]
ask patches with [sector = 4 and landuse = "LMDR"]
  [set property-value 154.97 * parcel-size * 43560]
;for MDR - assuming 10 units per story, so cost per floor
ask patches with [sector = 5 and landuse = "MDR"]
  [set property-value 956.61 * parcel-size * 43560 * 1]
ask patches with [sector = 1 and landuse = "MDR"]
  [set property-value 738.49 * parcel-size * 43560 * 1]
ask patches with [sector = 2 and landuse = "MDR"]
  [set property-value 328.05 * parcel-size * 43560 * 1]
ask patches with [sector = 3 and landuse = "MDR"]
  [set property-value 484.00 * parcel-size * 43560 * 1]
ask patches with [sector = 4 and landuse = "MDR"]
  [set property-value 154.97 * parcel-size * 43560 * 1]
;for HDR - assuming 10 units per story, so cost per floor
ask patches with [sector = 5 and landuse = "HDR"]
  [set property-value 956.61 * parcel-size * 43560 * 1]
ask patches with [sector = 1 and landuse = "HDR"]
  [set property-value 738.49 * parcel-size * 43560 * 1]
ask patches with [sector = 2 and landuse = "HDR"]
  [set property-value 328.05 * parcel-size * 43560 * 1]
ask patches with [sector = 3 and landuse = "HDR"]
  [set property-value 484.00 * parcel-size * 43560 * 1]
ask patches with [sector = 4 and landuse = "HDR"]
  [set property-value 154.97 * parcel-size * 43560 * 1]
;for MU - assuming 10 units per story, so cost per floor
ask patches with [sector = 5 and landuse = "MU"]
  [set property-value 956.61 * parcel-size * 43560 * 1]
ask patches with [sector = 1 and landuse = "MU"]
  [set property-value 738.49 * parcel-size * 43560 * 1]
ask patches with [sector = 2 and landuse = "MU"]
  [set property-value 328.05 * parcel-size * 43560 * 1]
ask patches with [sector = 3 and landuse = "MU"]
  [set property-value 484.00 * parcel-size * 43560 * 1]
ask patches with [sector = 4 and landuse = "MU"]
  [set property-value 154.97 * parcel-size * 43560 * 1]
;for office
ask patches with [sector = 5 and landuse = "O"]
  [set property-value 395.30 * parcel-size * 43560]
ask patches with [sector = 1 and landuse = "O"]
  [set property-value 305.16 * parcel-size * 43560]
ask patches with [sector = 2 and landuse = "O"]
  [set property-value 135.56 * parcel-size * 43560]
ask patches with [sector = 3 and landuse = "O"]
  [set property-value 200.00 * parcel-size * 43560]
ask patches with [sector = 4 and landuse = "O"]
  [set property-value 64.04 * parcel-size * 43560]
;for institutional - assumed to be same as officce
ask patches with [sector = 5 and landuse = "S"]
  [set property-value 395.30 * parcel-size * 43560]
ask patches with [sector = 1 and landuse = "S"]
  [set property-value 305.16 * parcel-size * 43560]
ask patches with [sector = 2 and landuse = "S"]
  [set property-value 135.56 * parcel-size * 43560]
ask patches with [sector = 3 and landuse = "S"]
  [set property-value 200.00 * parcel-size * 43560]
ask patches with [sector = 4 and landuse = "S"]
  [set property-value 64.04 * parcel-size * 43560]
;for commercial
ask patches with [sector = 5 and landuse = "C"]
  [set property-value 494.12 * parcel-size * 43560]
ask patches with [sector = 1 and landuse = "C"]
  [set property-value 381.45 * parcel-size * 43560]
ask patches with [sector = 2 and landuse = "C"]
  [set property-value 169.45 * parcel-size * 43560]
ask patches with [sector = 3 and landuse = "C"]
  [set property-value 250.00 * parcel-size * 43560]
ask patches with [sector = 4 and landuse = "C"]
  [set property-value 80.05 * parcel-size * 43560]
;for industrial
ask patches with [sector = 5 and landuse = "I"]
  [set property-value 256.94 * parcel-size * 43560]
ask patches with [sector = 1 and landuse = "I"]
  [set property-value 198.35 * parcel-size * 43560]
ask patches with [sector = 2 and landuse = "I"]
  [set property-value 88.11 * parcel-size * 43560]
ask patches with [sector = 3 and landuse = "I"]
  [set property-value 130.00 * parcel-size * 43560]
ask patches with [sector = 4 and landuse = "I"]
  [set property-value 41.62 * parcel-size * 43560]
ask patches
   [set property-value precision property-value 2]
end

;determine appoximate BMP footprint (square feet)

to estimate-BMP-footprint
  ask patches[
    if BMP-number = 0 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 1]
    if BMP-number = 1 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 0]
    if BMP-number = 2 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 0.2]
    if BMP-number = 3 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 0.05]
    if BMP-number = 4 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 0.05]
    if BMP-number = 5 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 0]
    if BMP-number = 6 [set BMP-footprint impervious-cover / 100 * parcel-size * 43560 * 0.05]
    set BMP-footprint precision BMP-footprint 2
  ]
end

;determine opportunity costs by BMP type
;to determine-opportunity-cost-of-BMP
;  ask patches[
;    if BMP-number = 0 [set opportunity-cost (BMP-footprint / 435600) / (parcel-size + 0.001) * property-value]
;    if BMP-number = 1 [set opportunity-cost (BMP-footprint / 43560) / (parcel-size + 0.001) * property-value]
;    if BMP-number = 2 [set opportunity-cost (BMP-footprint / 43650) / (parcel-size + 0.001) * property-value]
;    if BMP-number = 3 [set opportunity-cost (BMP-footprint / 43560) / (parcel-size + 0.001) * property-value]
;    if BMP-number = 4 [set opportunity-cost (BMP-footprint / 43560) / (parcel-size + 0.001) * property-value]
;    if BMP-number = 5 [set opportunity-cost (BMP-footprint / 43560) / (parcel-size + 0.001) * property-value]
;    if BMP-number = 6 [set opportunity-cost (BMP-footprint / 43560) / (parcel-size + 0.001) * property-value]
;    set opportunity-cost precision opportunity-cost 2
;  ]
;  end


;determine opportunity costs by BMP type

to determine-opportunity-cost-of-BMP
  ask patches[
    if BMP-number = 0 [set opportunity-cost BMP-footprint * 0.00000117 * property-value]
    if BMP-number = 1 [set opportunity-cost BMP-footprint * 0.00000117 * property-value]
    if BMP-number = 2 [set opportunity-cost BMP-footprint * 0.00000117 * property-value]
    if BMP-number = 3 [set opportunity-cost BMP-footprint * 0.00000117 * property-value]
    if BMP-number = 4 [set opportunity-cost BMP-footprint * 0.00000117 * property-value]
    if BMP-number = 5 [set opportunity-cost BMP-footprint * 0.00000117 * property-value]
    if BMP-number = 6 [set opportunity-cost BMP-footprint * 0.00000117 * property-value]
    set opportunity-cost precision opportunity-cost 2
  ]
end


;determine O&M, transaction and total costs (NEED TO INCLUDE RISK AND OPPORTUNITY COST SOMEHOW)

to determine-other-BMP-costs
  ask patches
  [  if pcolor != 125
    [set OM-BMP-cost BMP-cap-cost * (random (0.05) + 0.05)]
  ]
  ask patches
  [
    if pcolor != 125
  [set total-BMP-cost
    BMP-cap-cost +
    transaction-cost
    + (opportunity-cost * opportunity-cost-level)
;    + OM-BMP-cost
  ]
  ]
  ask patches
  [if pcolor != 125
  [set impervious-cost total-BMP-cost / ( impervious-cover / 100 * (parcel-size + 0.001 ))]]
  ask patches

  [if pcolor != 125
  [set impervious-cost precision impervious-cost 2]]
  ask patches
  [if pcolor != 125
  [set OM-BMP-cost precision OM-BMP-cost 2]]
  ask patches
  [if pcolor != 125
  [set transaction-cost precision transaction-cost 2]]
  ask patches
  [if pcolor != 125
  [set total-BMP-cost precision total-BMP-cost 2]]
end

to credit-revenue-potential
  repeat 5
  [
  ask patches [
     set credit-revenue gallons-runoff-generated
;     * credit-price
     * indexed-credit-price
     ]
  ]
end

;determine perceived behavior control index from credit-revenue, wealth-index and constraints-index; determine payback

to determine-payback
  ask patches
  [
  set payback (total-BMP-cost / (credit-revenue + annual-max-discount + 0.000000001))
  set payback precision payback 2
  ]
end

to determine-pbc
  ask patches
  [set constraints-index random-normal 0.5 0.17]
  ask patches
  [let max-income max [annual-income] of patches
;  ask patches
;  [set wealth-index (annual-income / 300000)]
   set wealth-index (annual-income / max-income)]
  ask patches
;  [set pbc ((1 + wealth-index) / 2) - constraints-index]
  [set pbc (wealth-index - constraints-index)]
  ask patches
  [set constraints-index precision constraints-index 2]
  ask patches
  with [parcel-size != 0][set wealth-index precision wealth-index 2]
  ask patches
  with [parcel-size != 0][set pbc precision pbc 2]
end

to assign-landuse-colors
ask patches with [landuse = "LDR"]
  [set pcolor 108]
ask patches with [landuse = "LMDR"]
  [set pcolor 107]
ask patches with [landuse = "MDR"]
  [set pcolor 106]
ask patches with [landuse = "HDR"]
  [set pcolor 105]
ask patches with [landuse = "MU"]
  [set pcolor 104]
ask patches with [landuse = "S"]
  [set pcolor 103]
ask patches with [landuse = "I"]
  [set pcolor 102]
ask patches with [landuse = "O"]
  [set pcolor 101]
ask patches with [landuse = "C"]
  [set pcolor 100]
ask patches with [ sector = 0]
  [set pcolor 125]
end

to set-innovation-by-sector
  ask patches[
;    if sector = 1 [set innovation-index random-normal 2.49 0.85]
;    if sector = 2 [set innovation-index random-normal 0.81 0.28]
;    if sector = 3 [set innovation-index random-normal 1.45 0.49]
;    if sector = 4 [set innovation-index random-normal 0.64 0.22]
;    if sector = 5 [set innovation-index random-normal 2.07 0.71]
    if sector = 1 [set innovation-index random-normal 1.42 0.48]
    if sector = 2 [set innovation-index random-normal 0.78 0.27]
    if sector = 3 [set innovation-index random-normal 1.17 0.40]
    if sector = 4 [set innovation-index random-normal 0.74 0.25]
    if sector = 5 [set innovation-index random-normal 1.54 0.52]
           ]
    ask patches
  [set innovation-index precision innovation-index 2]
end

to set-income-by-sector
  ask patches[
    if sector = 1 [set annual-income random-normal 197096 67013]
    if sector = 2 [set annual-income random-normal 110971 37730]
    if sector = 3 [set annual-income random-normal 135708 46141]
    if sector = 4 [set annual-income random-normal 54134 18406]
    if sector = 5 [set annual-income random-normal 152684 51913]
  ]
    ask patches
  [set annual-income precision annual-income 2]
end

to sprout-early-adopters ; based upon DOEE RiverSmart early program dynamics where early adopters were
  ; identified as being middle-class, single-familiy homeowners with 1-2 children and who give to charity
  repeat 7 [

  ask n-of number-of-innovators patches [
      if annual-income >= income-lower-threshold and annual-income < income-upper-threshold
    and (landuse = "LDR" or landuse = "LMDR")
    [ sprout 1 ]
  ]
    ask turtles [set shape "tree" set color 45]
    ]
end

to identify-early-adopters

ask max-n-of (number-of-innovators * 0.75) patches with [(landuse = "LDR" or landuse = "LMDR") and annual-income >= income-lower-threshold and annual-income < income-upper-threshold] [innovation-index] [set pcolor 55]
  ask max-n-of (number-of-innovators * 0.25) patches with [landuse-type = "non-residential"] [innovation-index] [set pcolor 55]
    ask patches with [pcolor = 55] [set plabel "Innovator"]


;  ask n-of (number-of-innovators * 0.75) patches with [(landuse = "LDR" or landuse = "LMDR") and annual-income >= income-lower-threshold and annual-income < income-upper-threshold] [set pcolor 55]
;    ask n-of (number-of-innovators * 0.25) patches with [landuse-type = "non-residential"and innovation-index > 2.2 ] [set pcolor 55]
end

to identify-early-adopters-old ; based upon DOEE RiverSmart early program dynamics where early adopters were
  ; identified as being middle-class, single-familiy homeowners with 1-2 children and who give to charity
;loop
;[
  repeat 10
   [
  ask patches
  [
if count patches with [pcolor = 55] >= number-of-innovators [stop]

     if annual-income >= income-lower-threshold
     and
     annual-income < income-upper-threshold
     and
    (landuse = "LDR" or landuse = "LMDR")
    or
    landuse-type = "non-residential" and innovation-index >= 2.2
;if pcolor != 125

 [set pcolor 55]
  ]
; ask n-of number-of-innovators patches [

;   [set pcolor 55]
    ]
;  ]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;OPINION/UNCERTAINTY;;;;;;;;;;;;;;;;;;;;;;;

to establish-initial-sia-and-uncertainty
  ask patches
  [set sia-updated 0]
  ask patches
  [set U-updated 0]
  ask patches
  [set sia-initial-baseline random-float 0.15]
  ask patches
  [
   if annual-income >= income-lower-threshold and annual-income < income-upper-threshold
    and (landuse = "LDR" or landuse = "LMDR")
    [set sia-initial-income random-float (0.15) + 0.05]
  ]
  ask patches
  [
    if (landuse-type = "non-residential" and innovation-index >= 1.49)
    [set sia-initial-income random-float (0.15) + 0.05]
  ]
;  ask patches
;  [if any? neighbors with [ pcolor = 55 ]
;      [set sia-neighboring random-float 0.20]
;  ]

;  ask patches
;  [if innovation-index <= innovation-threshold
;      [set sia-innovation random-float 0.15]
;  ]
;   ask patches with [sector = 5]
;   [set sia-initial-sector random-normal 0.2070 0.0706]
;   ask patches with [sector = 1]
;   [set sia-initial-sector random-normal 0.2495 0.0851]
;   ask patches with [sector = 2]
;   [set sia-initial-sector random-normal 0.0812 0.0277]
;   ask patches with [sector = 3]
;   [set sia-initial-sector random-normal 0.1446 0.0493]
;   ask patches with [sector = 4]
;   [set sia-initial-sector random-normal 0.0636 0.0217]

;   ask patches with [sector = 5]
;   [set sia-initial-sector random-normal 0.2500 0.0850]
;   ask patches with [sector = 1]
;   [set sia-initial-sector random-normal 0.2440 0.0830]
;   ask patches with [sector = 2]
;   [set sia-initial-sector random-normal 0.0620 0.0210]
;   ask patches with [sector = 3]
;   [set sia-initial-sector random-normal 0.1450 0.0500]
;   ask patches with [sector = 4]
;   [set sia-initial-sector random-normal 0.1430 0.0490]

   ask patches with [sector = 5]
   [set sia-initial-sector random-normal 0.154 0.0524]
   ask patches with [sector = 1]
   [set sia-initial-sector random-normal 0.139 0.0473]
   ask patches with [sector = 2]
   [set sia-initial-sector random-normal 0.078 0.0265]
   ask patches with [sector = 3]
   [set sia-initial-sector random-normal 0.117 0.0398]
   ask patches with [sector = 4]
   [set sia-initial-sector random-normal 0.074 0.0265]
;  ask patches [
;    if BMP-rebate != 0 [let sia-initial-BMP-rebate random-float (0.1) + 0.1]
;  ]
  ask patches
  [set sia-initial sia-initial-baseline + 0.1 + sia-initial-income + sia-initial-sector
;    + sia-neighboring
;    + sia-innovation
;   + sia-initial-rebate
    ]
  ask patches with [sia-initial != 0]
  [set U-initial 1 / sia-initial]
  ask patches
  [set sia-updated sia-initial]
  ask patches
  [set U-updated U-initial]
    ask patches
  [set sia-initial precision sia-initial 2]
    ask patches
  [set sia-initial-sector precision sia-initial-sector 2]
      ask patches
  [set U-initial precision U-initial 2]
      ask patches
  [set sia-initial-baseline precision sia-initial-baseline 2]
      ask patches
  [set sia-initial-income precision sia-initial-income 2]
      ask patches
  [set sia-neighboring precision sia-neighboring 2]
  ask patches
  [set sia-plus-east-value 0.00001]
    ask patches
  [set sia-plus-west-value 0.00001]
    ask patches
  [set sia-plus-north-value 0.00001]
    ask patches
  [set sia-plus-south-value 0.00001]
    ask patches
  [set sia-plus-northeast-value 0.00001]
    ask patches
  [set sia-plus-southeast-value 0.00001]
    ask patches
  [set sia-plus-northwest-value 0.00001]
    ask patches
  [set sia-plus-southwest-value 0.00001]
end

;;;;;;;;;;;;;;;;;;RANDOM RELATIVE AGREEMENT ALGORITHM;;;;;;;;;;
;  CREATE A PROCEDURE THAT PAIIRS UP A PATCH WITH RANDOM PATCH OUTSIIDE OF ITS NEIGHBORHOOD AND SECTOR PER SOCIAL DYNAMISM

to relative-algorithm-random
      ask n-of 5
      patches [
      if innovation-index > (innovation-threshold
        - 0.2
        )
      [
      let opinion-self [sia-updated] of patch-at 0 0
      let uncertainty-self [U-updated] of patch-at 0 0
      let sector-self [sector] of patch-at 0 0
;      let other-patches patch-set other neighbors
      let other-patches patch-set other patches

      ask one-of other-patches
      [
      if sector != sector-self
      [
      let opinion-other [sia-updated] of patch-at 0 0
      let uncertainty-other [U-updated] of patch-at 0 0

      let opinion-uncertainty-right-self opinion-self + uncertainty-self
      let opinion-uncertainty-left-self opinion-self - uncertainty-self

      let opinion-uncertainty-right-other opinion-other + uncertainty-other
      let opinion-uncertainty-left-other opinion-other - uncertainty-other

;other - NEED TO CORRECT THIS
      let h-self-other min (list opinion-uncertainty-right-self opinion-uncertainty-right-other) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-other)
      if h-self-other > uncertainty-other and parcel-size != 0
      [ask patch-at 0 0 [set sia-updated (opinion-other + mu * ((h-self-other / uncertainty-self) - 1) * (opinion-self - opinion-other))]]
      if h-self-other > uncertainty-other and parcel-size != 0
      [ask patch-at 0 0 [set U-updated (uncertainty-other + mu * ((h-self-other / uncertainty-self) - 1) * (uncertainty-self - uncertainty-other))]]
;      if h-self-other > uncertainty-other and parcel-size != 0
;      [ask patch-at 0 0 [set pcolor 45]]
      ]
      ]
      ]
      ]
end

;;;;;;;;;;;;;;;;;RELATIVE AGREEMENT ALGORITHM NEW;;;;;;;;;;;;

to relative-algorithm-initial ;; opinion influence through word of mouth
;NEED TO FIGURE OUT HOW TO INCLUDE SMALL-WORLD DYNAMICS HERE - ASSUME A DISTRIBUTION OF OUTSIDE-NEIGHBORHOOD
;INTERACTIONS BETWEEN 1-10% BASED UPON INNOVATION INDEX/PROFILE - SHOULD FORCE CONTACTS TO BE MADE OUTSIDE OF
;HOME WARD
;ONE WAY OF DOING THIS IS TO HAVE OUTSIDE-NETWORK INTERACTIONS ROUTINE DEVELOPED FIRST, THEN ALLOW FOR
;IN-NEIGHBORHOOD CONTACTS VIA THE CODE ALREADY DEVELOPED IN THIS SECTION
;    ask n-of 10 patches [
;      if parcel-size != 0
;      [
      ask
      n-of 45
      patches [
      let opinion-self [sia-updated] of patch-at 0 0
      let opinion-east [sia-updated] of patch-at 1 0
      let opinion-west [sia-updated] of patch-at -1 0
      let opinion-north [sia-updated] of patch-at 0 1
      let opinion-south [sia-updated] of patch-at 0 -1
      let opinion-southeast [sia-updated] of patch-at 1 -1
      let opinion-northeast [sia-updated] of patch-at 1 1
      let opinion-southwest [sia-updated] of patch-at -1 -1
      let opinion-northwest [sia-updated] of patch-at -1 1
      let uncertainty-self [U-updated] of patch-at 0 0
      let uncertainty-east [U-updated] of patch-at 1 0
      let uncertainty-west [U-updated] of patch-at -1 0
      let uncertainty-north [U-updated] of patch-at 0 1
      let uncertainty-south [U-updated] of patch-at 0 -1
      let uncertainty-southeast [U-updated] of patch-at 1 -1
      let uncertainty-northeast [U-updated] of patch-at 1 1
      let uncertainty-southwest [U-updated] of patch-at -1 -1
      let uncertainty-northwest [U-updated] of patch-at -1 1


      let opinion-uncertainty-right-self opinion-self + uncertainty-self
      let opinion-uncertainty-left-self opinion-self - uncertainty-self

      let opinion-uncertainty-right-east opinion-east + uncertainty-east
      let opinion-uncertainty-left-east opinion-east - uncertainty-east

      let opinion-uncertainty-right-west opinion-east + uncertainty-west
      let opinion-uncertainty-left-west opinion-east - uncertainty-west

      let opinion-uncertainty-right-north opinion-north + uncertainty-north
      let opinion-uncertainty-left-north opinion-north - uncertainty-north

      let opinion-uncertainty-right-south opinion-south + uncertainty-south
      let opinion-uncertainty-left-south opinion-south - uncertainty-south

      let opinion-uncertainty-right-southeast opinion-southeast + uncertainty-southeast
      let opinion-uncertainty-left-southeast opinion-southeast - uncertainty-southeast

      let opinion-uncertainty-right-northeast opinion-northeast + uncertainty-northeast
      let opinion-uncertainty-left-northeast opinion-northeast - uncertainty-northeast

      let opinion-uncertainty-right-southwest opinion-southwest + uncertainty-southwest
      let opinion-uncertainty-left-southwest opinion-southwest - uncertainty-southwest

      let opinion-uncertainty-right-northwest opinion-northwest + uncertainty-northwest
      let opinion-uncertainty-left-northwest opinion-northwest - uncertainty-northwest

;east
      let h-self-east min (list opinion-uncertainty-right-self opinion-uncertainty-right-east) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-east)
      if h-self-east > uncertainty-east and parcel-size != 0
      [ask patch-at 1 0 [set sia-updated (opinion-east + mu * ((h-self-east / uncertainty-self) - 1) * (opinion-self - opinion-east))]]
      if h-self-east > uncertainty-east and parcel-size != 0
      [ask patch-at 1 0 [set U-updated (uncertainty-east + mu * ((h-self-east / uncertainty-self) - 1) * (uncertainty-self - uncertainty-east))]]
;west
      let h-self-west min (list opinion-uncertainty-right-self opinion-uncertainty-right-west) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-west)
      if h-self-west > uncertainty-west and parcel-size != 0
      [ask patch-at -1 0 [set sia-updated (opinion-west + mu * ((h-self-west / uncertainty-self) - 1) * (opinion-self - opinion-west))]]
      if h-self-west > uncertainty-west and parcel-size != 0
      [ask patch-at -1 0 [set U-updated (uncertainty-west + mu * ((h-self-west / uncertainty-self) - 1) * (uncertainty-self - uncertainty-west))]]
;north
      let h-self-north min (list opinion-uncertainty-right-self opinion-uncertainty-right-north) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-north)
      if h-self-north > uncertainty-north and parcel-size != 0
      [ask patch-at 0 1 [set sia-updated (opinion-north + mu * ((h-self-north / uncertainty-self) - 1) * (opinion-self - opinion-north))]]
      if h-self-north > uncertainty-north and parcel-size != 0
      [ask patch-at 0 1 [set U-updated (uncertainty-north + mu * ((h-self-north / uncertainty-self) - 1) * (uncertainty-self - uncertainty-north))]]
;south
      let h-self-south min (list opinion-uncertainty-right-self opinion-uncertainty-right-south) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-south)
      if h-self-south > uncertainty-south and parcel-size != 0
      [ask patch-at 0 -1 [set sia-updated (opinion-south + mu * ((h-self-south / uncertainty-self) - 1) * (opinion-self - opinion-south))]]
      if h-self-south > uncertainty-south and parcel-size != 0
      [ask patch-at 0 -1 [set U-updated (uncertainty-south + mu * ((h-self-south / uncertainty-self) - 1) * (uncertainty-self - uncertainty-south))]]
;southeast
      let h-self-southeast min (list opinion-uncertainty-right-self opinion-uncertainty-right-southeast) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-southeast)
      if h-self-southeast > uncertainty-southeast and parcel-size != 0
      [ask patch-at 1 -1 [set sia-updated (opinion-southeast + mu * ((h-self-southeast / uncertainty-self) - 1) * (opinion-self - opinion-southeast))]]
      if h-self-southeast > uncertainty-southeast and parcel-size != 0
      [ask patch-at 1 -1 [set U-updated (uncertainty-southeast + mu * ((h-self-southeast / uncertainty-self) - 1) * (uncertainty-self - uncertainty-southeast))]]
;northeast
      let h-self-northeast min (list opinion-uncertainty-right-self opinion-uncertainty-right-northeast) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-northeast)
      if h-self-northeast > uncertainty-northeast and parcel-size != 0
      [ask patch-at 1 1 [set sia-updated (opinion-northeast + mu * ((h-self-northeast / uncertainty-self) - 1) * (opinion-self - opinion-northeast))]]
      if h-self-northeast > uncertainty-northeast and parcel-size != 0
      [ask patch-at 1 1 [set U-updated (uncertainty-northeast + mu * ((h-self-northeast / uncertainty-self) - 1) * (uncertainty-self - uncertainty-northeast))]]
;southwest
      let h-self-southwest min (list opinion-uncertainty-right-self opinion-uncertainty-right-southwest) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-southwest)
      if h-self-southwest > uncertainty-southwest and parcel-size != 0
      [ask patch-at -1 -1 [set sia-updated (opinion-southwest + mu * ((h-self-southwest / uncertainty-self) - 1) * (opinion-self - opinion-southwest))]]
      if h-self-southwest > uncertainty-southwest and parcel-size != 0
      [ask patch-at -1 -1 [set U-updated (uncertainty-southwest + mu * ((h-self-southwest / uncertainty-self) - 1) * (uncertainty-self - uncertainty-southwest))]]
;northwest
      let h-self-northwest min (list opinion-uncertainty-right-self opinion-uncertainty-right-northwest) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-northwest)
      if h-self-northwest > uncertainty-northwest and parcel-size != 0
      [ask patch-at -1 1 [set sia-updated (opinion-northwest + mu * ((h-self-northwest / uncertainty-self) - 1) * (opinion-self - opinion-northwest))]]
      if h-self-northwest > uncertainty-northwest and parcel-size != 0
      [ask patch-at -1 1 [set U-updated (uncertainty-northwest + mu * ((h-self-northwest / uncertainty-self) - 1) * (uncertainty-self - uncertainty-northwest))]]

;     ]
;     ]
    ]

   ask patches
  [set sia-updated precision sia-updated 2]
    ask patches
  [set U-updated precision U-updated 2]
end

;;;;;;;;;;;;;;;;;;;;;;sia-plus-old;;;;;;;;;;;;;;;

to sia-neighboring-plus-old
  ask patches [
  if count neighbors with [ pcolor = 55 ] = 1
  [set sia-updated sia-updated + 0.01]
  if count neighbors with [ pcolor = 55 ] = 2
  [set sia-updated sia-updated + 0.01]
  if count neighbors with [ pcolor = 55 ] = 3
  [set sia-updated sia-updated + 0.01]
  if count neighbors with [ pcolor = 55 ] = 4
  [set sia-updated sia-updated + 0.01]
  if count neighbors with [ pcolor = 55 ] = 5
  [set sia-updated sia-updated + 0.01]
  if count neighbors with [ pcolor = 55 ] = 6
  [set sia-updated sia-updated + 0.02]
  if count neighbors with [ pcolor = 55 ] = 7
  [set sia-updated sia-updated + 0.04]
  if count neighbors with [ pcolor = 55 ] = 8
  [set sia-updated sia-updated + 0.04]
  let sia-initial-max sia-initial + 0.15
  if sia-updated >= sia-initial-max
  [set sia-updated sia-initial-max]
;  if sia-updated > 1
; [set sia-updated 1]
  ]
end

;;;;;;;;;;;;;;;;;;;;;;sia-plus;;;;;;;;;;;;;;;
; THIS MODULE ACCOUNTS FOR NEIGHBORING/SPATIAL INFLUENCES THAT GO BEYOND WORD-OF-MOUTH
; THIS ROUTINE ASKS ALL PATCHES TO REVIEW ALL NEIGHBORS TO SEE IF THEY ARE ALREADY GREENED AND HAVEN'T HAD AN INFLUENCED OPINION AS OF YET
; IF BOTH CONDITIONS ARE MET, 0.04375 IS ADDED TO THEIR SIA-UPDATED VALUE - THE SIGNIFICANCE OF 0.04375 IS THAT THERE ARE 8 NEIGHBORS AND THE
; TOTAL INFLUENCE OF NEIGHBORING WAS DECIDED TO BE 0.35, SO 0.04375 * 8 = 0.35

to sia-neighboring-plus-setup
  ask
;  n-of 10
  patches
  [
  if [pcolor] of patch-at 1 0 = 55 and sia-plus-east-value = 0.00001
  [set sia-plus-east-value 0.04375]


  if [pcolor] of patch-at -1 0 = 55 and sia-plus-west-value = 0.00001
  [set sia-plus-west-value 0.04375]


  if [pcolor] of patch-at 0 1 = 55 and sia-plus-north-value = 0.00001
  [set sia-plus-north-value 0.04375]

  if [pcolor] of patch-at 0 -1 = 55 and sia-plus-south-value = 0.00001
  [set sia-plus-south-value 0.04375]


  if [pcolor] of patch-at 1 -1 = 55 and sia-plus-southeast-value = 0.00001
  [set sia-plus-southeast-value 0.04375]


  if [pcolor] of patch-at 1 1 = 55 and sia-plus-northeast-value = 0.00001
  [set sia-plus-northeast-value 0.04375]


  if [pcolor] of patch-at -1 1 = 55 and sia-plus-northwest-value = 0.00001
  [set sia-plus-northwest-value 0.04375]


  if [pcolor] of patch-at -1 -1 = 55 and sia-plus-southwest-value = 0.00001
  [set sia-plus-southwest-value 0.04375]


  ]
end

;THIS ROUTINE ADDS THE NEIGHBOR-INFLUENCED VALUE (SIA-PLUS) TO THE SIA-UPDATED VALUE

to sia-neighboring-plus-add
ask patches
[
    set sia-updated
  sia-updated +
    sia-plus-east-value
    + sia-plus-west-value
    + sia-plus-south-value
    + sia-plus-north-value
    + sia-plus-southeast-value
    + sia-plus-northeast-value
    + sia-plus-southwest-value
    + sia-plus-northwest-value
]
end

; THIS ROUTINE ENSURES THAT THE NEIBORING EFFECT DOESN'T BECOME A 'RUNAWAY LOOP' BY ADDING 0.04375 OVER AND OVER AGAIN
; THE ROUTINE SCREENS OUT PATCHES THAT HAVE NEIGHBORS WITH 0.04375 IN THEIR SIA-PLUS VALUES

to sia-neighboring-plus-adjust
ask patches [
    if [pcolor] of patch-at 1 0 = 55 and sia-plus-east-value = 0.04375
 [set sia-plus-east-value 0]
   if [pcolor] of patch-at -1 0 = 55 and sia-plus-west-value = 0.04375
 [set sia-plus-west-value 0]
   if [pcolor] of patch-at 0 1 = 55 and sia-plus-north-value = 0.04375
  [set sia-plus-north-value 0]
    if [pcolor] of patch-at 0 -1 = 55 and sia-plus-south-value = 0.04375
  [set sia-plus-south-value 0]
    if [pcolor] of patch-at 1 -1 = 55 and sia-plus-southeast-value = 0.04375
  [set sia-plus-southeast-value 0]
    if [pcolor] of patch-at 1 1 = 55 and sia-plus-northeast-value = 0.04375
  [set sia-plus-northeast-value 0]
    if [pcolor] of patch-at -1 1 = 55 and sia-plus-northwest-value = 0.04375
  [set sia-plus-northwest-value 0]
    if [pcolor] of patch-at -1 -1 = 55 and sia-plus-southwest-value = 0.04375
  [set sia-plus-southwest-value 0]
]

;  [set sia-updated sia-updated + 0.04]
;  let sia-initial-max sia-initial + 0.15
;  if sia-updated >= sia-initial-max
;  [set sia-updated sia-initial-max]
end


;;;;;;;;;;;;;;;;;RELATIVE AGREEMENT ALGORITHM OLD;;;;;;;;;;;;

to relative-algorithm-initial-old ;; opinion influence through word of mouth
;NEED TO FIGURE OUT HOW TO INCLUDE SMALL-WORLD DYNAMICS HERE - ASSUME A DISTRIBUTION OF OUTSIDE-NEIGHBORHOOD
;INTERACTIONS BETWEEN 1-10% BASED UPON INNOVATION INDEX/PROFILE - SHOULD FORCE CONTACTS TO BE MADE OUTSIDE OF
;HOME WARD
;ONE WAY OF DOING THIS IS TO HAVE OUTSIDE-NETWORK INTERACTIONS ROUTINE DEVELOPED FIRST, THEN ALLOW FOR
;IN-NEIGHBORHOOD CONTACTS VIA THE CODE ALREADY DEVELOPED IN THIS SECTION
;    ask n-of 10 patches [
;     if parcel-size != 0
;      [
      ask
;      n-of 10
      patches [
      let opinion-self [sia-initial] of patch-at 0 0
      let opinion-east [sia-initial] of patch-at 1 0
      let opinion-west [sia-initial] of patch-at -1 0
      let opinion-north [sia-initial] of patch-at 0 1
      let opinion-south [sia-initial] of patch-at 0 -1
      let opinion-southeast [sia-initial] of patch-at 1 -1
      let opinion-northeast [sia-initial] of patch-at 1 1
      let opinion-southwest [sia-initial] of patch-at -1 -1
      let opinion-northwest [sia-initial] of patch-at -1 1
      let uncertainty-self [U-initial] of patch-at 0 0
      let uncertainty-east [U-initial] of patch-at 1 0
      let uncertainty-west [U-initial] of patch-at -1 0
      let uncertainty-north [U-initial] of patch-at 0 1
      let uncertainty-south [U-initial] of patch-at 0 -1
      let uncertainty-southeast [U-initial] of patch-at 1 -1
      let uncertainty-northeast [U-initial] of patch-at 1 1
      let uncertainty-southwest [U-initial] of patch-at -1 -1
      let uncertainty-northwest [U-initial] of patch-at -1 1
      let updated-opinion-east [sia-updated] of patch-at 1 0
      let updated-opinion-west [sia-updated] of patch-at -1 0
      let updated-opinion-north [sia-updated] of patch-at 0 1
      let updated-opinion-south [sia-updated] of patch-at 0 -1
      let updated-opinion-southeast [sia-updated] of patch-at 1 -1
      let updated-opinion-northeast [sia-updated] of patch-at 1 1
      let updated-opinion-southwest [sia-updated] of patch-at -1 -1
      let updated-opinion-northwest [sia-updated] of patch-at -1 1
      let updated-uncertainty-east [U-updated] of patch-at 1 0
      let updated-uncertainty-west [U-updated] of patch-at -1 0
      let updated-uncertainty-north [U-updated] of patch-at 0 1
      let updated-uncertainty-south [U-updated] of patch-at 0 -1
      let updated-uncertainty-southeast [U-updated] of patch-at 1 -1
      let updated-uncertainty-northeast [U-updated] of patch-at 1 1
      let updated-uncertainty-southwest [U-updated] of patch-at -1 -1
      let updated-uncertainty-northwest [U-updated] of patch-at -1 1

      let opinion-uncertainty-right-self opinion-self + uncertainty-self
      let opinion-uncertainty-left-self opinion-self - uncertainty-self

      let opinion-uncertainty-right-east opinion-east + uncertainty-east
      let opinion-uncertainty-left-east opinion-east - uncertainty-east

      let opinion-uncertainty-right-west opinion-east + uncertainty-west
      let opinion-uncertainty-left-west opinion-east - uncertainty-west

      let opinion-uncertainty-right-north opinion-north + uncertainty-north
      let opinion-uncertainty-left-north opinion-north - uncertainty-north

      let opinion-uncertainty-right-south opinion-south + uncertainty-south
      let opinion-uncertainty-left-south opinion-south - uncertainty-south

      let opinion-uncertainty-right-southeast opinion-southeast + uncertainty-southeast
      let opinion-uncertainty-left-southeast opinion-southeast - uncertainty-southeast

      let opinion-uncertainty-right-northeast opinion-northeast + uncertainty-northeast
      let opinion-uncertainty-left-northeast opinion-northeast - uncertainty-northeast

      let opinion-uncertainty-right-southwest opinion-southwest + uncertainty-southwest
      let opinion-uncertainty-left-southwest opinion-southwest - uncertainty-southwest

      let opinion-uncertainty-right-northwest opinion-northwest + uncertainty-northwest
      let opinion-uncertainty-left-northwest opinion-northwest - uncertainty-northwest

;east
      let h-self-east min (list opinion-uncertainty-right-self opinion-uncertainty-right-east) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-east)
      if h-self-east > uncertainty-east and parcel-size != 0
      [ask patch-at 1 0 [set sia-updated (opinion-east + mu * ((h-self-east / uncertainty-self) - 1) * (opinion-self - opinion-east))]]
      if h-self-east > uncertainty-east and parcel-size != 0
      [ask patch-at 1 0 [set U-updated (uncertainty-east + mu * ((h-self-east / uncertainty-self) - 1) * (uncertainty-self - uncertainty-east))]]
;west
      let h-self-west min (list opinion-uncertainty-right-self opinion-uncertainty-right-west) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-west)
      if h-self-west > uncertainty-west and parcel-size != 0
      [ask patch-at -1 0 [set sia-updated (opinion-west + mu * ((h-self-west / uncertainty-self) - 1) * (opinion-self - opinion-west))]]
      if h-self-west > uncertainty-west and parcel-size != 0
      [ask patch-at -1 0 [set U-updated (uncertainty-west + mu * ((h-self-west / uncertainty-self) - 1) * (uncertainty-self - uncertainty-west))]]
;north
      let h-self-north min (list opinion-uncertainty-right-self opinion-uncertainty-right-north) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-north)
      if h-self-north > uncertainty-north and parcel-size != 0
      [ask patch-at 0 1 [set sia-updated (opinion-north + mu * ((h-self-north / uncertainty-self) - 1) * (opinion-self - opinion-north))]]
      if h-self-north > uncertainty-north and parcel-size != 0
      [ask patch-at 0 1 [set U-updated (uncertainty-north + mu * ((h-self-north / uncertainty-self) - 1) * (uncertainty-self - uncertainty-north))]]
;south
      let h-self-south min (list opinion-uncertainty-right-self opinion-uncertainty-right-south) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-south)
      if h-self-south > uncertainty-south and parcel-size != 0
      [ask patch-at 0 -1 [set sia-updated (opinion-south + mu * ((h-self-south / uncertainty-self) - 1) * (opinion-self - opinion-south))]]
      if h-self-south > uncertainty-south and parcel-size != 0
      [ask patch-at 0 -1 [set U-updated (uncertainty-south + mu * ((h-self-south / uncertainty-self) - 1) * (uncertainty-self - uncertainty-south))]]
;southeast
      let h-self-southeast min (list opinion-uncertainty-right-self opinion-uncertainty-right-southeast) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-southeast)
      if h-self-southeast > uncertainty-southeast and parcel-size != 0
      [ask patch-at 1 -1 [set sia-updated (opinion-southeast + mu * ((h-self-southeast / uncertainty-self) - 1) * (opinion-self - opinion-southeast))]]
      if h-self-southeast > uncertainty-southeast and parcel-size != 0
      [ask patch-at 1 -1 [set U-updated (uncertainty-southeast + mu * ((h-self-southeast / uncertainty-self) - 1) * (uncertainty-self - uncertainty-southeast))]]
;northeast
      let h-self-northeast min (list opinion-uncertainty-right-self opinion-uncertainty-right-northeast) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-northeast)
      if h-self-northeast > uncertainty-northeast and parcel-size != 0
      [ask patch-at 1 1 [set sia-updated (opinion-northeast + mu * ((h-self-northeast / uncertainty-self) - 1) * (opinion-self - opinion-northeast))]]
      if h-self-northeast > uncertainty-northeast and parcel-size != 0
      [ask patch-at 1 1 [set U-updated (uncertainty-northeast + mu * ((h-self-northeast / uncertainty-self) - 1) * (uncertainty-self - uncertainty-northeast))]]
;southwest
      let h-self-southwest min (list opinion-uncertainty-right-self opinion-uncertainty-right-southwest) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-southwest)
      if h-self-southwest > uncertainty-southwest and parcel-size != 0
      [ask patch-at -1 -1 [set sia-updated (opinion-southwest + mu * ((h-self-southwest / uncertainty-self) - 1) * (opinion-self - opinion-southwest))]]
      if h-self-southwest > uncertainty-southwest and parcel-size != 0
      [ask patch-at -1 -1 [set U-updated (uncertainty-southwest + mu * ((h-self-southwest / uncertainty-self) - 1) * (uncertainty-self - uncertainty-southwest))]]
;northwest
      let h-self-northwest min (list opinion-uncertainty-right-self opinion-uncertainty-right-northwest) - max (list opinion-uncertainty-left-self opinion-uncertainty-left-northwest)
      if h-self-northwest > uncertainty-northwest and parcel-size != 0
      [ask patch-at -1 1 [set sia-updated (opinion-northwest + mu * ((h-self-northwest / uncertainty-self) - 1) * (opinion-self - opinion-northwest))]]
      if h-self-northwest > uncertainty-northwest and parcel-size != 0
      [ask patch-at -1 1 [set U-updated (uncertainty-northwest + mu * ((h-self-northwest / uncertainty-self) - 1) * (uncertainty-self - uncertainty-northwest))]]

      ]
;      ]
;    ]
end



;;;;;;;;;;;;;;;PUBLIC OUTREACH AGENTS;;;;;;;;;;;;;;;;;;;;;;;;;;

to create-outreach-agents
;  repeat 10
;  [
  ask n-of number-of-pub-outreach patches [
    if public-outreach-agent-contact = "false"
    [sprout-public-outreach-specialists 1 [set color red set shape "triangle" set size 1]]
;    if any? public-outreach-specialists-here [die]
  ]
;  ]
end

to public-outreach-specialists-move
  ask public-outreach-specialists
 [
;    ifelse any? neighbors with [parcel-size = 0]
;    [
      setxy random-pxcor random-pycor
;      ] [
      set heading random 360 fd 1
;      ]
    ask patch-here [set public-outreach-agent-contact "true"]
   ]
end

to identify-isolated-adopters
; ask patches with [pcolor = 55] [if count neighbors with [plabel = "Innovator"] >= 1 [set isolated-adopter "true"]]
ask patches with [pcolor = 55 and plabel != "Innovator"] [if count neighbors with [plabel = "Innovator"] >= 1 [set isolated-adopter "false"]]
ask patches with [pcolor = 55 and plabel != "Innovator"] [if count neighbors with [plabel = "Innovator"] = 0 [set isolated-adopter "true"]]
end


;;;;;;;;;;;;;;;;;;;;;;;;;TESTING;;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;clustering;;;;;;;;;;;;;;;

to determine-clusters-old
  ask patches with [pcolor = 55]
   [
  if count patches in-radius 1 with [ pcolor = 55 ] = 0
  [set cluster-number 0.111]
  if count patches in-radius 1 with [ pcolor = 55 ] = 1
  [set cluster-number 0.222
  if count patches in-radius 1 with [ pcolor = 55 ] = 2
  [set cluster-number 0.333]
  if count patches in-radius 1 with [ pcolor = 55 ] = 3
  [set cluster-number 0.444]
  if count patches in-radius 1 with [ pcolor = 55 ] = 4
  [set cluster-number 0.555]
  if count patches in-radius 1 with [ pcolor = 55 ] = 5
  [set cluster-number 0.666]
  if count patches in-radius 1 with [ pcolor = 55 ] = 6
  [set cluster-number 0.777]
  if count patches in-radius 1 with [ pcolor = 55 ] = 7
  [set cluster-number 0.888]
  if count patches in-radius 1 with [ pcolor = 55 ] = 8
  [set cluster-number 1]
  ]
   ]
end

;;;;;;;;;;;;;;;;;;;;;;clustering;;;;;;;;;;;;;;;

to see-good-paybacks-self
ask patches
[if payback < payback-threshold-self [set pcolor 25]
 ]
end

to see-good-payback-threshold-other
  ask patches
[if payback < payback-threshold-other [set pcolor 25]
 ]
end

to see-parcel-acreage-threshold
  ask patches
[if parcel-size >= parcel-acreage-threshold [set pcolor 25]
 ]
end

to see-good-sia-threshold
  ask patches
[if sia-updated > sia-threshold [set pcolor 25]
 ]
end

to see-good-innovation-threshold
  ask patches
[if innovation-index > innovation-threshold
  and landuse-type = "non-residential"
  [set pcolor 25]
 ]
end

to see-imp-cover-0
ask patches
[if impervious-cover <= 0 [set pcolor 25]
 ]
end

to see-implementation-decision-score
ask patches
[if implementation-decision-score = test-implementation-decision-score [set pcolor 25]
 ]
end

;;;;;;;;;;;;;;;;;;;;;;;;PROCEDURES;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;



;;;;;;;;;;;;;;;;;;;;;;SUPPLY AND DEMAND;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to determine-muni-demand
if remainder ticks 12 = 0
[set muni-demand muni-demand + ongoing-muni-demand
;  + 50000
;  + 0
  ]
end

to determine-development-demand
  if remainder ticks 12 = 0
  [ask n-of (redevelopment_rate / 100 * 654) patches with [sector != 0]
;    [set pcolor red]
    [
      let new-development-demand gallons-runoff-generated
    set development-demand (development-demand + new-development-demand)
      set development-demand precision development-demand 2
  ]
  ]
end

to determine-supply-demand-ratio
 let total-supply sum [gallons-runoff-generated] of patches
with [pcolor = 55 and plabel != "Innovator"]
  set demand-supply-ratio (muni-demand + development-demand) / (total-supply + 0.0000001)
  set demand-supply-ratio precision demand-supply-ratio 2
end

to determine-indexed-credit-price
  set indexed-credit-price credit-price * demand-supply-ratio
;  / 10
  / 1
  if indexed-credit-price > 3.5 [set indexed-credit-price 3.5]
  if indexed-credit-price < 1 [set indexed-credit-price 1]
  set indexed-credit-price precision indexed-credit-price 2
end

;;;;;;;;;;;;;;;;;;;DECISION-MAKING;;;;;;;;;;;;;;;;;;;;;;;;;

to decision-making
set-property-owner-attributes
end

to set-property-owner-attributes
  ask patches
  [
    ifelse pcolor = 55 [set green-infrastructure-decision "accepted"] [set green-infrastructure-decision "not_accepted"]
    ifelse pcolor = 55 [set acceptance-decision-score 2] [set acceptance-decision-score 0]
    ifelse pcolor = 55 [set green-infrastructure-practiced true] [set green-infrastructure-practiced false]
    ifelse pcolor = 55 [set implementation-decision-score 3] [set implementation-decision-score 0]
    set public-outreach-agent-contact "false"
  ]
end


;THIS IS PATCH-BASED DECISION MAKING STUFF

to property-owner-decision-start-point
  ask patches [
  if green-infrastructure-practiced = true
  and
  landuse-type = "residential"
  [SRC-implementation-continued-res]
  if green-infrastructure-practiced = false
    and
  landuse-type = "residential"
  [run-decide-between-accept-and-implement-res]
    if green-infrastructure-practiced = true
  and
  landuse-type = "non-residential"
  [SRC-implementation-continued-non-res]
  if green-infrastructure-practiced = false
    and
  landuse-type = "non-residential"
  [run-decide-between-accept-and-implement-non-res]
;  if acceptance-decision-score = 1 [SRC-form-opinion]
  ]
end

;;;;;;;;;;;;;;;;;RESIDENTIAL DECISION MAKING;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to run-decide-between-accept-and-implement-res
  if green-infrastructure-decision = "not_accepted" [ run-acceptance-decision-res ]
  if green-infrastructure-decision = "accepted_not_implemented" [ run-implementation-decision-res ]
  if green-infrastructure-decision = "implemented" [ SRC-implementation-continued-res ]
end

to run-acceptance-decision-res
 if acceptance-decision-score = 0 [ SRC-aware-res ]
 if acceptance-decision-score = 1 [ SRC-form-opinion-res ]
 if acceptance-decision-score = 2 [ run-implementation-decision-res ]
end

to SRC-aware-res
  ifelse ((innovation-index > innovation-threshold) or (public-outreach-agent-contact = "true")) or
 ; (
 ;   (innovation-index > innovation-threshold) and
  (count neighbors with [ green-infrastructure-practiced = true ] >= neighbors-threshold)
 ; )
[set acceptance-decision-score 1] [set acceptance-decision-score 0]
end

;---------------------------------------------------------------------------------------------------------

to SRC-form-opinion-res
;  ask patches [
    ifelse sia-updated > sia-threshold [ run-implementation-decision-res ] [ SRC-aware-res ]
;  ]
end

to run-implementation-decision-res
  set green-infrastructure-decision "accepted_not_implemented"
 if implementation-decision-score = 0 [ SRC-self-investment-decision-res ]
 if implementation-decision-score = 1 [ SRC-other-investment-decision-res ]
 if implementation-decision-score = 2 [ SRC-implementation-positive-res ]
 if implementation-decision-score = 3 [ SRC-implementation-continued-res ]
end

to SRC-self-investment-decision-res
  ; NEED TO INCORPORATE OTHER FACTORS HERE POSSIBLY, SUCH AS RISK, ETC.
     ifelse (pbc > 0.5) and (payback <= payback-threshold-self)
;     and (total-BMP-cost < 0.005 * annual-income)
[set implementation-decision-score 2] [set implementation-decision-score 1]
end

to SRC-other-investment-decision-res
  ; NEED TO CONSIDER MANY MORE/DIFFERENT FACTORS HERE
    ifelse
;    (sia-updated > sia-threshold)
;      or
      (payback <= payback-threshold-other)
     and (constraints-index <= constraints-threshold)
[set implementation-decision-score 2] [set implementation-decision-score 1]
    ifelse
     (payback <= payback-threshold-other)
     and (count neighbors with [ green-infrastructure-practiced = true ] >= (neighbors-threshold - additional-neighbors-threshold))
     [set implementation-decision-score 2] [set implementation-decision-score 1]
end

to SRC-implementation-positive-res
;NEED TO INCORPORATE A TIME DELAY TO SIMULATE THE TIME REQUIRED TO IMPLEMENT - SHOULD VARY NORMALLY AND SHOULD BE COMPRISED OF A CERTAIN NUMBER OF TICKS
;    wait 1
    set pcolor 55
    set implementation-decision-score 3
    set green-infrastructure-decision "implemented"
    set green-infrastructure-practiced true
    set credit-revenue-generated indexed-credit-price * gallons-runoff-generated
end

to SRC-implementation-continued-res
ifelse (OM-BMP-Cost < credit-revenue) [set pcolor 55] [reassign-landuse-colors-and-properties]
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;DECISION MAKING ROUTINES FOR NON-RESIDENTIAL;;;;;;;;;;;;;;;;;;;;;;;;;;


;  Assumption here is that non-residential property owners will make decisions in a manner that is
; unique compared with residential property owners.  Specifically, non-residential

to run-decide-between-accept-and-implement-non-res
  if green-infrastructure-decision = "not_accepted" [ run-acceptance-decision-non-res ]
  if green-infrastructure-decision = "accepted_not_implemented" [ run-implementation-decision-non-res ]
  if green-infrastructure-decision = "implemented" [ SRC-implementation-continued-non-res ]
end

to run-acceptance-decision-non-res
 if acceptance-decision-score = 0 [ SRC-aware-non-res ]
 if acceptance-decision-score = 1 [ SRC-form-opinion-non-res ]
 if acceptance-decision-score = 2 [ run-implementation-decision-non-res ]
end

to SRC-aware-non-res
  ifelse ((innovation-index > innovation-threshold)
  or (public-outreach-agent-contact = "true"))
;  or (count neighbors with [green-infrastructure-practiced = true] >= neighbors-threshold)
[set acceptance-decision-score 1] [set acceptance-decision-score 0]
end

to SRC-form-opinion-non-res
;  ask patches [
    ifelse (sia-updated > sia-threshold - 0.1) [ run-implementation-decision-non-res ] [ SRC-aware-non-res ]
;  ]
end

to run-implementation-decision-non-res
  set green-infrastructure-decision "accepted_not_implemented"
 if implementation-decision-score = 0 [ SRC-self-investment-decision-non-res ]
 if implementation-decision-score = 1 [ SRC-other-investment-decision-non-res ]
 if implementation-decision-score = 2 [ SRC-implementation-positive-non-res ]
 if implementation-decision-score = 3 [ SRC-implementation-continued-non-res ]
end

to SRC-self-investment-decision-non-res
  ; NEED TO INCORPORATE OTHER FACTORS HERE POSSIBLY, SUCH AS RISK, ETC.
     ifelse (pbc > 0.5) and (payback <= payback-threshold-self)
;     and (total-BMP-cost < 0.005 * annual-income)
[set implementation-decision-score 2] [set implementation-decision-score 1]
end

to SRC-other-investment-decision-non-res
  ; NEED TO CONSIDER MANY MORE/DIFFERENT FACTORS HERE
    ifelse
;    (sia-updated > sia-threshold)
;      or
      (payback <= payback-threshold-other)
    and (constraints-index <= constraints-threshold)
[set implementation-decision-score 2] [set implementation-decision-score 1]
    ifelse
     (payback <= payback-threshold-other)
    and (count neighbors with [ green-infrastructure-practiced = true ] >= (neighbors-threshold - additional-neighbors-threshold))
     [set implementation-decision-score 2] [set implementation-decision-score 1]
end

to SRC-implementation-positive-non-res
;NEED TO INCORPORATE A TIME DELAY TO SIMULATE THE TIME REQUIRED TO IMPLEMENT - SHOULD VARY NORMALLY AND SHOULD BE COMPRISED OF A CERTAIN NUMBER OF TICKS
;    wait 1
    set pcolor 55
    set implementation-decision-score 3
    set green-infrastructure-decision "implemented"
    set green-infrastructure-practiced true
    set credit-revenue-generated indexed-credit-price * gallons-runoff-generated
end

to SRC-implementation-continued-non-res
ifelse (OM-BMP-Cost < credit-revenue) [set pcolor 55] [reassign-landuse-colors-and-properties]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

to reassign-landuse-colors
if landuse = "LDR" [set pcolor 108]
if landuse = "LMDR" [set pcolor 107]
if landuse = "MDR" [set pcolor 106]
if landuse = "HDR" [set pcolor 105]
if landuse = "MU"  [set pcolor 104]
if landuse = "S"   [set pcolor 103]
if landuse = "I"   [set pcolor 102]
if landuse = "O"   [set pcolor 101]
if landuse = "C"   [set pcolor 100]
end

to reassign-landuse-colors-and-properties
if landuse = "LDR" [set pcolor 108]
if landuse = "LMDR" [set pcolor 107]
if landuse = "MDR" [set pcolor 106]
if landuse = "HDR" [set pcolor 105]
if landuse = "MU"  [set pcolor 104]
if landuse = "S"   [set pcolor 103]
if landuse = "I"   [set pcolor 102]
if landuse = "O"   [set pcolor 101]
if landuse = "C"   [set pcolor 100]
set green-infrastructure-decision "not_accepted"
set acceptance-decision-score 0
set green-infrastructure-practiced false
set implementation-decision-score 0
end

to assign-landuse-type
ask patches[
if landuse = "LDR" [set landuse-type "residential"]
if landuse = "LMDR" [set landuse-type "residential"]
if landuse = "MDR" [set landuse-type "residential"]
if landuse = "HDR" [set landuse-type "residential"]
if landuse = "MU"  [set landuse-type "residential"]
if landuse = "S"   [set landuse-type "non-residential"]
if landuse = "I"   [set landuse-type "non-residential"]
if landuse = "O"   [set landuse-type "non-residential"]
if landuse = "C"   [set landuse-type "non-residential"]
]
end

to see-implementation-decision-equal-greater-than-1
ask patches
[if implementation-decision-score >= 1 [set pcolor 55]

]
end

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;VIEW OPINION DISSIMENATION;;;;;;;;;;;;;;;;;;;;;;;;

to see-RA-work
  ask patches with [sia-updated <= 0.15]
  [set pcolor 14 ]
    ask patches with [sia-updated > 0.15 and sia-updated <= 0.3]
  [set pcolor 15 ]
ask patches with [sia-updated > 0.3 and sia-updated <= 0.45]
  [set pcolor 16 ]
  ask patches with [sia-updated > 0.45 and sia-updated <= 0.6]
  [set pcolor 17 ]
  ask patches with [sia-updated > 0.6 and sia-updated <= 0.75]
  [set pcolor 18 ]
  ask patches with [sia-updated > 0.75]
  [set pcolor 19 ]
end

to see-RA-work-turtles-patches
  ask patches with [sia-updated <= 0.15]
  [sprout-lowest-opinions 1 [set color 14 set shape "tree"]]
      ask patches with [sia-updated > 0.15 and sia-updated <= 0.3]
  [sprout-lower-opinions 1 [set color 15 set shape "tree"]]
ask patches with [sia-updated > 0.3 and sia-updated <= 0.45]
  [sprout-low-opinions 1 [set color 16 set shape "tree"]]
  ask patches with [sia-updated > 0.45 and sia-updated <= 0.6]
  [sprout-moderate-opinions 1 [set color 17 set shape "tree"]]
  ask patches with [sia-updated > 0.6 and sia-updated <= 0.75]
  [sprout-higher-opinions 1 [set color 18 set shape "tree"]]
  ask patches with [sia-updated > 0.75]
  [sprout-highest-opinions 1 [set color 19 set shape "tree"]]
end

to see-RA-work-turtles
  ask turtles with [sia-updated <= 0.15]
  [hatch-lowest-opinions 1 [set color 14 set shape "tree"]]
      ask turtles with [sia-updated > 0.15 and sia-updated <= 0.3]
  [hatch-lower-opinions 1 [set color 15 set shape "tree"]]
ask turtles with [sia-updated > 0.3 and sia-updated <= 0.45]
  [hatch-low-opinions 1 [set color 16 set shape "tree"]]
  ask turtles with [sia-updated > 0.45 and sia-updated <= 0.6]
  [hatch-moderate-opinions 1 [set color 17 set shape "tree"]]
  ask turtles with [sia-updated > 0.6 and sia-updated <= 0.75]
  [hatch-higher-opinions 1 [set color 18 set shape "tree"]]
  ask turtles with [sia-updated > 0.75]
  [hatch-highest-opinions 1 [set color 19 set shape "tree"]]
end

to see-clusters
  ask patches with [cluster-number != 0]
  [set pcolor 14 ]
end

;;;;;;;;;;;;;;;;;

to assign-landuse-colors-invested-parcels
ask patches with [landuse = "LDR"]
  [set pcolor 108]
ask patches with [landuse = "LMDR"]
  [set pcolor 107]
ask patches with [landuse = "MDR"]
  [set pcolor 106]
ask patches with [landuse = "HDR"]
  [set pcolor 105]
ask patches with [landuse = "MU"]
  [set pcolor 104]
ask patches with [landuse = "S"]
  [set pcolor 103]
ask patches with [landuse = "I"]
  [set pcolor 102]
ask patches with [landuse = "O"]
  [set pcolor 101]
ask patches with [landuse = "C"]
  [set pcolor 100]
ask patches with [ sector = 0]
  [set pcolor 125]
  ask patches with [ green-infrastructure-practiced = true]
  [set pcolor 55]
end


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;to neighbors-test ;; determining if neighbors are good for investment
;;  repeat 10
;;  [
;    ask n-of 2 patches [
;      let added-self [pbc] of patch-at 0 0
;      let added-east [pbc] of patch-at 1 0
;      let added-west [pbc] of patch-at -1 0
;      let added-north [pbc] of patch-at 0 1
;      let added-south [pbc] of patch-at 0 -1
;      let added-southeast [pbc] of patch-at 1 -1
;      let added-northeast [pbc] of patch-at 1 1
;      let added-southwest [pbc] of patch-at -1 -1
;      let added-northwest [pbc] of patch-at -1 1
;
;      if added-self + added-east >= favorability-need
;      and
;      (any? turtles-here)
;      and
;      added-self >= favorability-threshold [ask patch-at 1 0 [set pcolor 55 ] ]
;
;      if added-self + added-west >= favorability-need
;      and
;      (any? turtles-here)
;      and
;      added-self >= favorability-threshold  [ask patch-at -1 0 [set pcolor 55 ] ]
;
;      if added-self + added-north >= favorability-need
;      and
;      (any? turtles-here)
;      and
;      added-self >= favorability-threshold  [ask patch-at 0 1 [set pcolor 55 ] ]
;
;      if added-self + added-south >= favorability-need
;      and
;      (any? turtles-here)
;      and
;      added-self >= favorability-threshold  [ask patch-at 0 -1 [set pcolor 55 ] ]
;
;      if added-self + added-southeast >= favorability-need
;      and
;      (any? turtles-here)
;      and
;      added-self >= favorability-threshold [ask patch-at 1 -1 [set pcolor 55 ] ]
;
;      if added-self + added-northeast >= favorability-need
;      and
;      (any? turtles-here)
;      and
;      added-self >= favorability-threshold [ask patch-at 1 1 [set pcolor 55 ] ]
;
;      if added-self + added-southwest >= favorability-need
;      and
;      (any? turtles-here)
;      and
;      added-self >= favorability-threshold [ask patch-at -1 -1 [set pcolor 55 ] ]
;
;      if added-self + added-northwest >= favorability-need
;      and
;      (any? turtles-here)
;      and
;      added-self >= favorability-threshold [ask patch-at -1 1 [set pcolor 55 ] ]
;
;      if any? neighbors with [ pcolor = 55 ]
;      and
;      (any? turtles-here)
;      and
;      pbc >= favorability-threshold
;      [set pcolor 55]
;    ]
;;  ]
;  ask turtles [
;;    if one-of neighbors with [ pcolor = 55 ]
;    if any? neighbors with [ pcolor = 55 ]
;    and
;    (any? turtles-here)
;    and
;    pbc >= favorability-threshold
;    [hatch-investors 1 [set color 105 set shape "tree"]]
;    if any? investors-here [die]
;  ]
;end




;
; sweep-test
;
; this is an automated parameter sweeping test
; it runs num-tests interations of the various configurations
; and prints results to the console
;
;Least Favorable
;  set growth-capacity 8
;  set investment-limit-radius 1
;  set num-turtles 25
;  set favorability-threshold 2
;  set favorability-need 4
;  set level-of-competition 1

;Reasonable Scenario
;  set growth-capacity 2
;  set investment-limit-radius 1
;  set num-turtles 25
;  set favorability-threshold 1
;  set favorability-need 2
;  set level-of-competition 2

;Most Favorable
;  set growth-capacity 0
;  set investment-limit-radius 5
;  set num-turtles 700
;  set favorability-threshold 0
;  set favorability-need 0
;  set level-of-competition 9

;to sweep-test
  ;
  ; setup the configuration
  ;
;;  set growth-capacity 1
;;  set investment-limit-radius 5
;;  set num-turtles 700
;;  set favorability-threshold 0
;;  set favorability-need 0
;;  set level-of-competition 9


;  let num-tests 10
;  let i 0
;
;  set i 0
;  while [i <= 10]
;    [
;      setup
;      print (Invested-parcels)
;      set i (i + 1)
;    ]
;end

There is only one version of this model, created over 3 years ago by Seth Brown.

Attached files

File Type Description Last updated
Green Stormwater Infrastructure Social Spatial Adoption (G-SSA) Applied Model.png preview Preview for 'Green Stormwater Infrastructure Social Spatial Adoption (G-SSA) Applied Model' over 3 years ago, by Seth Brown Download

This model does not have any ancestors.

This model does not have any descendants.
