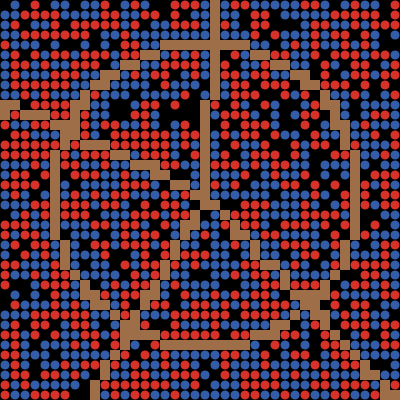

Segregation model:  Model of Connectivity preview image

1 collaborator

Tags

(This model has yet to be categorized with any tags)
Visible to everyone | Changeable by the author
Model was written in NetLogo 6.1.1 • Viewed 42 times • Downloaded 0 times • Run 0 times
Download the 'Segregation model:  Model of Connectivity' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Info tab cannot be displayed because of an encoding error

Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

; ===========
; ## NOTES ##
; ===========

; The model is built partly with code from Crooks et al (2018), Wilensky (1997).
; The A* algorithm applied in NetLogo is taken from http://www.cs.us.es/~fsancho/?e=131

extensions [
  rnd
]

globals [
  percent-unhappy
  prop_neighborhood ;; proportion of agents of type X in a neighborhood // a report variable
  p-valids ;Contain patches which are not barriers.
  Start ;Start position (unhappy turtle)
  Final-Cost ;Store the distance returned by the A* algorithm.
  pot_NBH
  ethnic_share
  similar
  unhappy
  dis ; For dissimilarity index calculation
  indexdissimilarity
]

patches-own [
  NBH_id ;Neighborhoods id.
  father ;Is used by A* to store paths.
  Cost-path ;Is used to store the cost of the path (distance).
  visited? ;A boolean indicating if the patch have been visited before.
  active? ;A boolean indicating if the patch is active in the search for shortest path.
  neigborhood2 ; To be used to calculated segregation index.
]

turtles-own [
  happy? ;boolean variable indicating if the agent is happy with their current living situation (given Schelling, 1971 behavior rules).
  similar-nearby ; similar in neighborhood where agent is located
  myneighbors ; a agent's polygon-neighbor, same as adjacent_polygon of the polygon where the agent is located.
  other-nearby  ; others in neighborhood where agent is located
  total-nearby ; total population of neigborhood where agent is located
  NBH ;Which neighborhoods do the turtle dwell in.
]

; ==========================
; ## SETTING UP THE MODEL ##
; ==========================

to setup
  ca
  set similar []
  set unhappy []

  ; Setting world.
  resize-world 0 (world_size - 1) 0 (world_size  - 1)
  set-patch-size patch_size ; 7 o 36

  ; Identifying neighborhood.
  ; Only works with tens (10, 20, 30, 40, 50 etc...)
  let x sizenbh
  let y sizenbh
  let col 36
  while [y <= max-pycor + 2][
    while [x <= max-pxcor + 2][
      ask patches with [pxcor < x and pxcor >= x - sizenbh and pycor < y and pycor >= y - sizenbh][
        set pcolor col
      ]
      set x x + sizenbh
      set col col + 3
    ]
    set x sizenbh
    set y y + sizenbh
  ]

  ask patches[
    set neigborhood2 [pcolor] of self]

  ; Generating physical features.
  if Environment = "Barrier" or Environment = "Bridges" [
    if Ring-road [
      crt (max-pycor * 3)
      layout-circle turtles (max-pycor * ((random (max-pxcor / 2) + (max-pxcor / 1.5 )) / 100))
      ask turtles [set pcolor brown]
      ask turtles [die]
    ]

    ; Urban form: Monocentric
    if Urban-form  = "Monocentric" [
      let center-region patches with [ pycor = (round(max-pycor / 2)) and pxcor = (round(max-pxcor / 2))]
      ask center-region [sprout 4]
      let i 0
      ask turtles [
        set pcolor brown
      ]

      while [i < (max-pycor )][
        ask one-of turtles [
          fd 1
          set pcolor brown
          fd 1
          set pcolor brown
          fd 1
          set pcolor brown
          fd 1
          set pcolor brown
          ifelse (random 25 <= 1)[
            rt one-of [-90 0 90]
            fd 1
            set pcolor brown
            fd 1
            set pcolor brown
            fd 1
            set pcolor brown
          ][
            set pcolor brown
            fd 1
            set pcolor brown
            fd 1
            set pcolor brown
            fd 1
            set pcolor brown
          ]
          set i i + 1]
      ]
      ask turtles [die]
    ]

    ; Urban form: Polycentric
    if Urban-form = "Polycentric" [
      ask n-of 2 patches with [ (pycor = (round(max-pycor * 0.5 )) and pxcor = (round(max-pxcor * 0.3))) or (pycor = (round(max-pycor * 0.5)) and pxcor = (round(max-pxcor * 0.7))) or (pycor = (round(max-pycor * 0.7)) and pxcor = (round(max-pxcor * 0.50))) or(pycor = (round(max-pycor * 0.3)) and pxcor = (round(max-pxcor * 0.50)))][sprout 2]
      let i 0
      ask turtles [
        set pcolor brown
      ]
      while [i < (max-pycor )][
        ask one-of turtles [
          fd 1
          set pcolor brown
          fd 1
          set pcolor brown
          fd 1
          set pcolor brown
          fd 1
          set pcolor brown
          ifelse (random 25 <= 1)[
            rt one-of [-90 0 90]
            fd 1
            set pcolor brown
            fd 1
            set pcolor brown
            fd 1
            set pcolor brown
          ][
            set pcolor brown
            fd 1
            set pcolor brown
            fd 1
            set pcolor brown
            fd 1
            set pcolor brown
          ]
          set i i + 1 ]
      ]
      ask turtles[die]
    ]
  ]

  ; Bridges.
  if Environment = "Bridges" [
    ask n-of (count patches with [pcolor = brown] * 0.05) patches with [pcolor = brown][
      ask patches in-radius 1 [
        set pcolor 139]
      ]
    ]



  ; Adding agents.
  ask n-of ((count patches with [pcolor != brown]) * ( 1 - (%VacantHH / 100))) patches with [pcolor != brown][sprout 1]
  ask turtles [
    set color red
    set shape "circle"
    set size 0.9
  ]
  ask n-of ((minority-group-size / 100) * count turtles) turtles [set color blue]

  ask patches with [pcolor = 139][set pcolor ([neigborhood2] of self)]

  ; Adding neighborhood.
  ask patches with [pcolor != brown][ set NBH_ID nobody ]
  find-clusters

  ; Giving each neighborhood an ID.
  ask patches with [pcolor != brown] [
    set pcolor black]

  ask turtles[
    set NBH [NBH_ID] of patch-here]

  ; Setting start attributes for the A* algorithm
  ask patches
  [
    set father nobody
    set Cost-path 0
    set visited? false
    set active? false
  ]

  set p-valids patches with [pcolor != brown]
  reset-ticks
end

; ====================
; ## AGENT BEHAVIOR ##
; ====================

to go
  update-happiness
  if any? turtles with [happy? = false][
    ask one-of turtles with [happy? = false][new-neighborhood]]
  update-globals
  tick
end

; All agents evaluate their living situation.

to update-happiness
  ask turtles[
    ;Calculating composition of egocentric neighborhood.
    set myneighbors turtles with [NBH = [NBH] of myself]
    set similar-nearby count myneighbors with [color = [color] of myself] ; Number of similar agents in neighborhood
    set other-nearby count myneighbors with [color != [color] of myself]   ; Number of other agents in neighborhood.
    set total-nearby similar-nearby + other-nearby  ; Total agents in neighborhood.
    ;Determine if an agent is happy
    set happy? similar-nearby >= (%-similar-wanted * total-nearby / 100)
  ]
end

to new-neighborhood
  ; Identifying avaiable neigborhoods.
  ; Listing all potential neighborhoods.
  if Printer [print "-------------------"]
  set Start self
  if Printer [print(word" ""Unhappy agent is: " Start)]

  ; Identifying all vacant households outside the the agent's current neighborhood.
  let pot_NBH1 patches with [not any? turtles-here and pcolor != brown and NBH_id != [NBH] of myself]
  set pot_NBH sort pot_NBH1
  if Printer [print(word" ""My current neighborhood is: " [NBH] of Start)]

  ; 'Ethnic' share of all possible vacant neigborhoods.
  ; Identifying agent's 'ethnicity
  let mycolor [color] of self
  ; Identifying polygon neighborhood
  let pot_NBH2 map [ i -> [NBH_id] of i ] pot_NBH
  ; Computing ethnic share of each neighborhood.
  set ethnic_share map [i -> prop_same_group i mycolor] pot_NBH2

  if Printer [print(word" ""Agent is happy?"  happy?)]
  if Printer [print(word" ""Agent's ethnicity :" mycolor)]

  ; Distance to all neighborhoods with vacant household.
  let distance_NBH map [i -> A* Start i p-valids] pot_NBH

  ; Normalzing distance, makes it weight more even to ethnic share.
  let distance_NBH_normal map [i -> normalize2 i ] distance_NBH

  ; Calculuating utility.
  if Printer [print " Calculating utility"]

  ; Ethnic share
  let utility_share map [i -> i * beta_ethnic] ethnic_share

  ; Household distance
  let utility_distance map [i -> i * beta_distance] distance_NBH_normal

  if Printer [print(word" ""Distance utility :"  utility_distance)]
  if Printer [print(word" ""Share utility :"  utility_share)]
  ; Summing utility
  let added_utility2 []
  (foreach utility_share utility_distance  [ [a b ] -> let suma (a + b ) set added_utility2 lput suma added_utility2 ])

  ; Exp() utility
  let added_utility map [i -> exp i ] added_utility2

  ; Calculating probabilities
  let tot_utility sum added_utility
  let NBH_probabilities map [i -> i / tot_utility] added_utility

  ; Joining final utilities and NBHs' ids
  let final_pool (map list pot_NBH NBH_probabilities)
  if Printer [print(word" ""Each neighborhoods utility :" final_pool)]

  ; Selecting the neighborhood with highest utility and moves.
  let origin_place patch-here
  if Printer [print(word" ""Moving from NBH :"  origin_place)]
  if Printer [ pen-down ]
  let decision select_and_move Start final_pool origin_place
end

; =============
; ## REPORTs ##
; =============
;To identify neighborhood, made on code from 'Patch Clusters example' model.

to find-clusters
  loop [
    ; Pick a random patch that isn't in a cluster yet
    let seed one-of patches with [NBH_id = nobody]
    ; If we can't find one, then we're done!
    if seed = nobody
    [
      stop
    ]
    ; Otherwise, grow-cluster to find the rest of the cluster
    ask seed
    [ set NBH_id self
      grow-cluster ]
  ]
  display
end

to grow-cluster
  ; Patch procedure
  ask neighbors4 with [(NBH_id = nobody) and
    (pcolor = [pcolor] of myself)]
  [
    set NBH_id [NBH_id] of myself
    grow-cluster ]
end

; Calculating fraction of similar neighbors in each neighborhood with a vacant household.

to-report prop_same_group [a mycolor]
    let similar_nearby count turtles with [color = mycolor and NBH = a]
    let total_nearby count turtles with [NBH = a]
    ifelse (total_nearby > 0) [set prop_neighborhood (similar_nearby / total_nearby)] [ set prop_neighborhood 0]
  report prop_neighborhood
end

to-report normalize2 [ current_distance ]
  let b precision ( current_distance / ( world_size * 3 )) 4
  report b
end

to-report select_and_move [a b c]
 ask a [
  if ( (length b) > 0 )
    [
      let chosen_NBH first rnd:weighted-one-of-list b [ [p] -> last p ]
      if Printer [print(word"""Moved to NBH = "chosen_NBH)]
      move-to chosen_NBH
      set NBH [NBH_ID] of patch-here
    ]
  ]

  report []
end

; A* algorithm, used to calculate shortest distance to all vacant households.
; The A* algorithm applied in NetLogo is heavily based on the code from:  http://www.cs.us.es/~fsancho/?e=131

to-report A* [#Start #Goal #valid-map]
  ; Reset everything.
  ask #valid-map with [visited?]
  [
    set father nobody
    set Cost-path 0
    set visited? false
    set active? false
  ]

  ; Active the starting point to begin the searching loop
  ask #Start
  [
    set father self
    set visited? true
    set active? true
  ]

  ; Exists? indicates if the two points can be reached with the A* algorithm.
  let exists? true
  while [not [visited?] of #Goal and exists?]
  [
    ; Only look at 'walk-able' patches which has not been visited before.
    let options #valid-map with [active?]
    ifelse any? options
    [
      ; Chooses active patches with minimal expected cost (heuristic)
      ask min-one-of options [Total-expected-cost #Goal]
      [
        ; Store its real cost (to reach it) to compute the real cost of its children
        let Cost-path-father Cost-path
        ; and deactivate it, because its children will be computed right now
        set active? false
        ; Compute its valid neighbors and look for an extension of the path
        let valid-neighbors neighbors4 with [member? self #valid-map]
        ask valid-neighbors
        [
          let t ifelse-value visited? [ Total-expected-cost #Goal] [2 ^ 20]
          if t > (Cost-path-father + distance myself + Heuristic #Goal)
          [
            ; The current patch becomes the father of its neighbor in the new path.
            set father myself
            set visited? true
            set active? true
            ; Store the distance in the Final-Cost variable
            set Cost-path Cost-path-father + distance father
            set Final-Cost precision Cost-path 3
          ]
        ]
      ]
    ]
    [
      set exists? false ;Can a path be found?
    ]
  ]
  ; If a path can be found (not isolated)
  ifelse exists?
  [
    set Final-Cost (precision [Cost-path] of #Goal 3)
    report Final-Cost
  ]
  [
    ; Otherwise, there is no path: use the Euclidean distance.
    set Final-Cost (precision (distance #Goal) 3) * 3
    report Final-Cost
  ]
end

to-report Total-expected-cost [#Goal]
  report Cost-path + Heuristic #Goal
end

; The heuristic is based on Euclidean distance.

to-report Heuristic [#Goal]
  report distance #Goal
end

to update-globals
  ; Dissimilarity index.
  let tot_red (count turtles with [color = red])
  let tot_blue (count turtles with [color = blue])

  let neighb1 [neigborhood2] of patches
  let neighb remove-duplicates neighb1

  set dis []

  foreach neighb [i -> set dis lput abs((count turtles with [neigborhood2 = i and color = red] / tot_red) - (count turtles with [neigborhood2 = i and color = blue] / tot_blue)) dis]
  set indexdissimilarity sum(dis) / 2
end

; ================
; ## REFERENCES ##
; ================
; Crooks, A., Malleson, N., Manley, E., & Heppenstall, A. (2018). Agent-based modelling and geographical information systems: a practical primer. SAGE Publications Limited.
; Patch Cluster Example (in NetLogo)
; Sancho Caparrini, F. (2018). A General A* Solver in NetLogo. Retrieved 2020-03-15 from: http://www.cs.us.es/~fsancho/?e=131
; Wilensky, U. (1997). NetLogo Segregation model. http://ccl.northwestern.edu/netlogo/models/Segregation. Center for Connected Learning and Computer-Based Modeling, Northwestern University, Evanston, IL.

There is only one version of this model, created 3 months ago by Elis Carlberg Larsson.

Attached files

File Type Description Last updated
Segregation model: Model of Connectivity.png preview Preview for 'Segregation model: Model of Connectivity' 3 months ago, by Elis Carlberg Larsson Download

This model does not have any ancestors.

This model does not have any descendants.
