Covid-19 variation on the theme
No preview image
Model was written in NetLogo 6.0.3
•
Viewed 337 times
•
Downloaded 26 times
•
Run 0 times
Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)
Info tab cannot be displayed because of an encoding error
Comments and Questions
Please start the discussion about this model!
(You'll first need to log in.)
Click to Run Model
turtles-own [ sick? ;; if true, the turtle is infectious remaining-immunity ;; how many weeks of immunity the turtle has left sick-time ;; how long, in days, the turtle has been infectious age ] ;; how many weeks old the turtle is globals [ %infected ;; what % of the population is infectious %immune ;; what % of the population is immune max-%infected ;; maximun % infected population reached (at the peak) peak ;; day of the peak alive ;; total population alive that tick now-infected ;; number of people infected at the current day immune ;; number of people immune at the present day total-infected ;; total infected from the beginning lifespan ;; the lifespan of a turtle chance-reproduce ;; the probability of a turtle generating an offspring each tick chance-recover ;; the probability of recovery at each tick carrying-capacity ;; the number of turtles that can be in the world at one time immunity-duration ] ;; how many weeks immunity lasts ;; The setup is divided into four procedures to setup clear-all reset-ticks setup-constants setup-turtles update-global-variables update-display reset-ticks end ;; We create a variable number of turtles of which 1 are infectious, ;; and distribute them randomly to setup-turtles create-turtles number-people [ setxy random-xcor random-ycor set age random lifespan set sick-time 0 set remaining-immunity 0 if age < 10 * 52 * 7 [set color blue] if age > 60 * 52 * 7 [set color yellow] set size .7 ;; easier to see get-healthy ] ask n-of init-infected turtles [ get-sick ] set total-infected (count turtles with [sick?]) end to get-sick ;; turtle procedure set sick? true set remaining-immunity 0 set total-infected (total-infected + 1) end to get-healthy ;; turtle procedure set sick? false set remaining-immunity 0 set sick-time 0 end to become-immune ;; turtle procedure set sick? false set sick-time 0 set remaining-immunity immunity-duration ask my-links [ die ] ;; remove link to turtle who infected us, if there was one end ;; This sets up basic constants of the model. to setup-constants set lifespan 80 * 52 * 7 ;; 80 times 52 weeks times 7 days = 50 years = 2600 weeks old = 18200 days set carrying-capacity 1000 set chance-reproduce 0.005 ;; birth rate per 1000 people per day set immunity-duration 52 * 7 if Weather = "Hot-Humid" [set chance-recover .98] if Weather = "Hot-Dry" [set chance-recover .96] if Weather = "Cold-Dry" [set chance-recover .95] if Weather = "Cold-Humid" [set chance-recover .94] end to go if all? turtles [not sick?] [stop] ask turtles [ get-older move if sick? [ recover-or-die ] ifelse sick? [ infect ] [ reproduce ] ] update-global-variables update-display tick end to update-global-variables if count turtles > 0 [ set %infected (count turtles with [ sick? ] / count turtles) * 100 set %immune (count turtles with [ immune? ] / count turtles) * 100 set alive (count turtles) set now-infected (count turtles with [sick?]) set immune (count turtles with [immune?]) if %infected > max-%infected [set peak ticks + 1] if %infected > max-%infected [set max-%infected %infected] ;;set peak ticks + 1] ] end to update-display ask turtles [ if shape != turtle-shape [ set shape turtle-shape ] set label ifelse-value show-age? [ floor (age / 364) ] [ "" ] set color ifelse-value sick? [ red ] [ ifelse-value immune? [ grey ] [ green ] ] ] stop-inspecting-dead-agents if watch-a-person? and subject = nobody [ watch one-of turtles with [ not hidden? ] clear-drawing ask subject [ pen-down ] inspect subject ] if not watch-a-person? and subject != nobody [ stop-inspecting subject ask subject [ pen-up ask my-links [ die ] ] clear-drawing reset-perspective ] ask patches [ if Weather = "Hot-Humid" [set pcolor 68] if Weather = "Hot-Dry" [set pcolor 48] if Weather = "Cold-Dry" [set pcolor 38] if Weather = "Cold-Humid" [set pcolor 108] ] end ;;Turtle counting variables are advanced. to get-older ;; turtle procedure ;; Turtles die of old age once their age exceeds the ;; lifespan (set at 80 years in this model). set age age + 1 if age > lifespan [ die ] if age > 60 * 52 * 7 [ set chance-recover .93] if age < 60 * 52 * 7 [ set chance-recover .97] if immune? [ set remaining-immunity remaining-immunity - 1 ] if sick? [ set sick-time sick-time + 1 ] end ;; Turtles move about at random. to move ;; turtle procedure rt random 100 lt random 100 fd mobility end ;; If a turtle is sick, it infects other turtles on the same patch. ;; Immune turtles don't get sick. to infect ;; turtle procedure ask other turtles-here with [ not sick? and not immune? ] [ if random-float 100 < infectiousness [ get-sick if self = subject ;; if its the watched turtle getting sick [ create-link-with myself ;; create a link with the one that infected it [ set color red set thickness .3 ] ] ] ] end ;; Once the turtle has been sick long enough, it ;; either recovers (and becomes immune) or it dies. to recover-or-die ;; turtle procedure if sick-time > duration * 7 ;; If the turtle has survived past the virus' duration, then [ ifelse random-float 100 < chance-recover * 100 ;; either recover or die [ become-immune ] [ die ] ] end ;; If there are less turtles than the carrying-capacity ;; then turtles can reproduce. to reproduce if count turtles < carrying-capacity and random-float 100 < chance-reproduce [ hatch 1 [ set age 1 lt 45 fd 1 pen-up ;; in case we're hatched from the watched turtle get-healthy ] ] end to-report immune? report remaining-immunity > 0 end to startup setup-constants ;; so that carrying-capacity can be used as upper bound of number-people slider end ; Copyright 1998 Uri Wilensky. ; See Info tab for full copyright and license.
There are 2 versions of this model.
Attached files
File | Type | Description | Last updated | |
---|---|---|---|---|

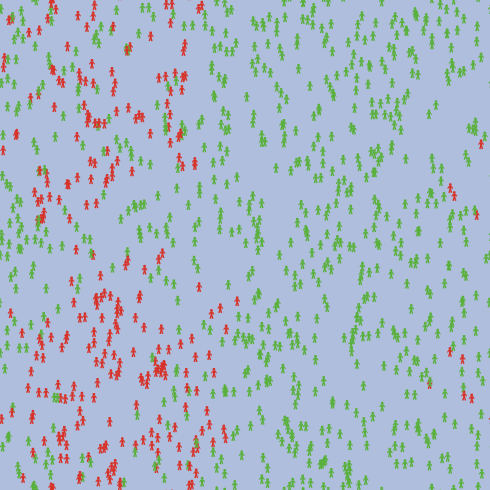

COVID_19_DaVig view.png | png | view | over 4 years ago, by Davide Vignoni | Download |

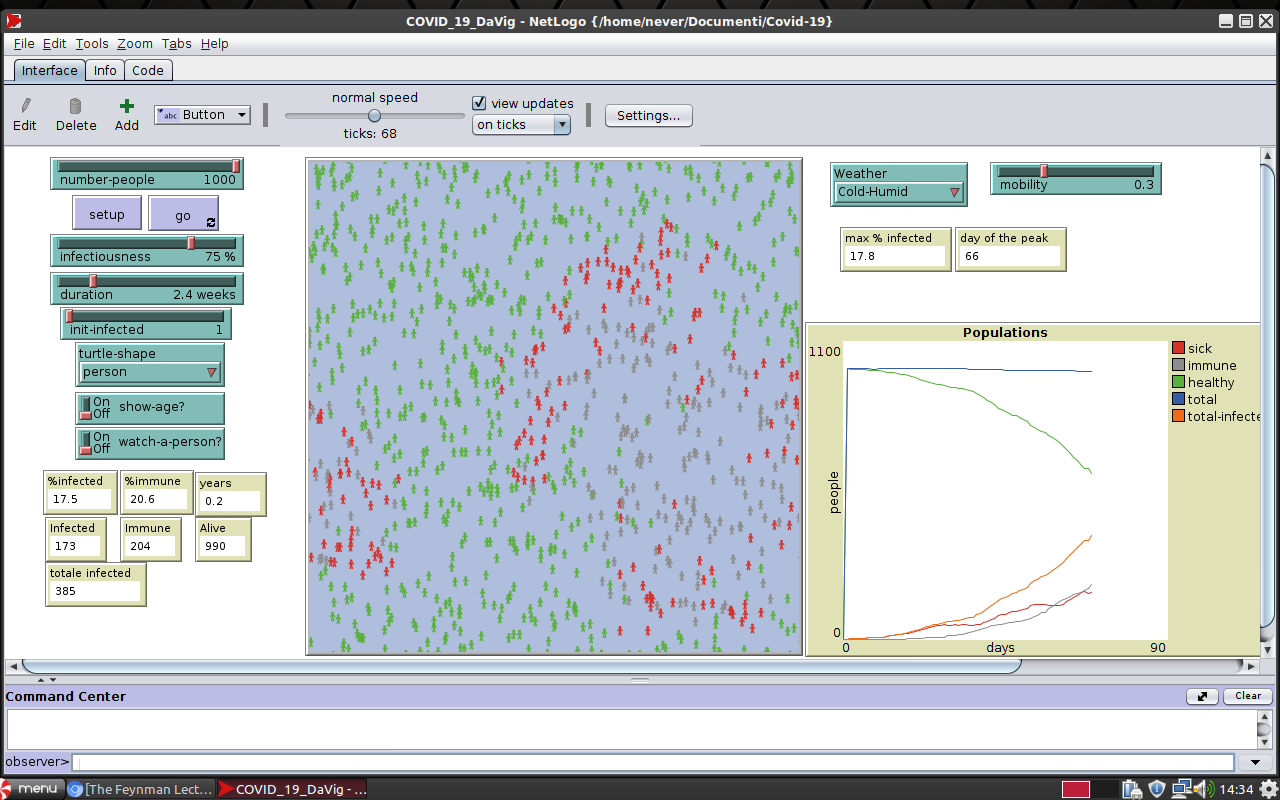

Screenshot_2020-04-14_14:34:54.png | png | screenshot | over 4 years ago, by Davide Vignoni | Download |
This model does not have any ancestors.
This model does not have any descendants.
