Infectious disease outbreak (COVID-19)-transmission and mortality

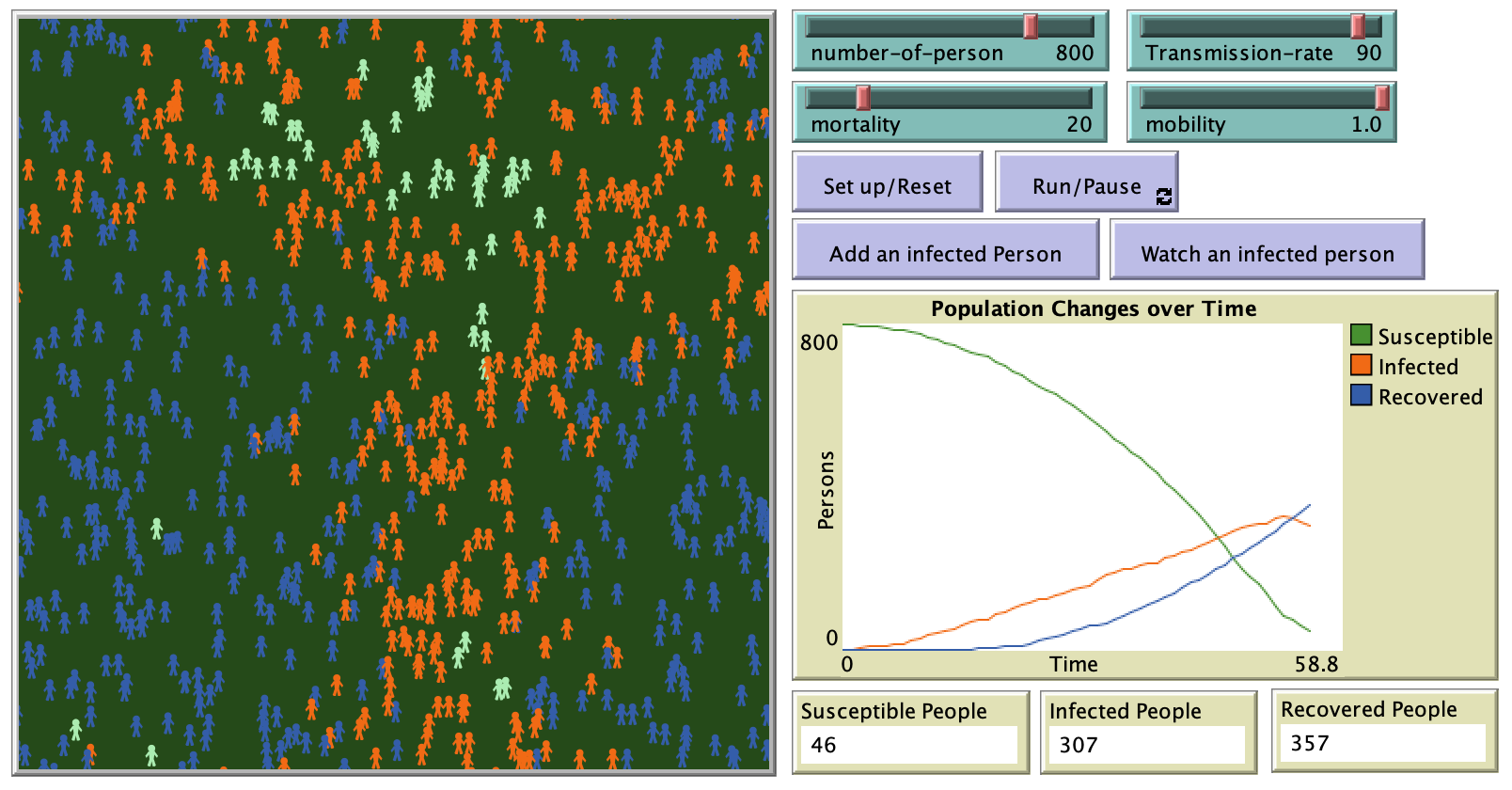

Infectious disease outbreak (COVID-19)-transmission and mortality preview image

1 collaborator

Screen_shot_2018-02-02_at_12.53.50_pm lin xiang (Author)

Tags

covid19

Tagged by lin xiang almost 4 years ago

Visible to everyone | Changeable by the author
Model was written in NetLogo 6.2.2 • Viewed 457 times • Downloaded 29 times • Run 0 times
Download the 'Infectious disease outbreak (COVID-19)-transmission and mortality' modelDownload this modelEmbed this model

Do you have questions or comments about this model? Ask them here! (You'll first need to log in.)


Comments and Questions

Please start the discussion about this model! (You'll first need to log in.)

Click to Run Model

;;
;; This model is developed by Dr. Lin Xiang at the University of Kentucky. Contact: lin.xiang@uky.edu
;;
;; If you see this page rather than a "download" button when downloading the model, click the "download" icon
;; in your browser to download this model file.
;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


turtles-own [day]
Patches-own [ ]
Globals [watching LM max-daily-cases]

to setup
  clear-all
  setup-turtles
  setup-patches
  set LM 0
  reset-ticks
end

to setup-turtles
  create-turtles Population-size
  [set color 68
    set size 1.25
    set shape "person-1"
    set day 0
    setxy random-xcor random-ycor
  ]
end

to setup-patches
  ask patches [set pcolor 0]
end

to go

  if ticks >= days [stop]
  move
  transmission
  sickness
  find-max-daily-cases
  tick
end

to move
  ask turtles
  [right random 360 forward mobility]
end

to add-an-infected-person
  create-turtles 1
  [set color orange
    set size 1.25
    set shape "person-1"
    setxy random-xcor random-ycor
  ]
end

to transmission
  ask turtles with [color = orange]
  [
    let healthy-person one-of other turtles in-radius 1.5 with [color = 68]
    if healthy-person != nobody
    [ask healthy-person [
      if random 100 < Transmission-rate
      [set color orange]]]
  ]
end

to sickness
  ask turtles with [color = orange]
  [set day day + 1
    if day >= 15
    [ifelse random 100 < mortality
      [ set LM LM + 1 die  ]
      [set color blue] ]
  ]
end

to watch-an-infected-person
  watch one-of turtles with [color = orange]
end

to find-max-daily-cases
  if count turtles with [color = orange ] > max-daily-cases        ;Count the infectious. If it is greater than the current record of max daily cases
  [set max-daily-cases count turtles with [color = orange ]]       ;update the max daily case
end

There are 9 versions of this model.

Uploaded by When Description Download
lin xiang about 2 years ago Minor adjustment Download this version
lin xiang about 2 years ago Adjust the parameters Download this version
lin xiang about 2 years ago Adjust the parameters Download this version
lin xiang about 3 years ago Add in max daily cases Download this version
lin xiang about 3 years ago Add in max daily cases Download this version
lin xiang almost 4 years ago Add total deaths monitor Download this version
lin xiang about 4 years ago fix the background Download this version
lin xiang about 4 years ago add an adjustable time Download this version
lin xiang about 4 years ago Initial upload Download this version

Attached files

File Type Description Last updated
Infectious disease outbreak (COVID-19)-transmission and mortality.png preview Preview for 'Infectious disease outbreak (COVID-19)-transmission and mortality' about 4 years ago, by lin xiang Download

This model does not have any ancestors.

This model does not have any descendants.
